Teradek Bolt 6 Monitor Module 750 RX V Mount

Teradek Bolt 6 Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

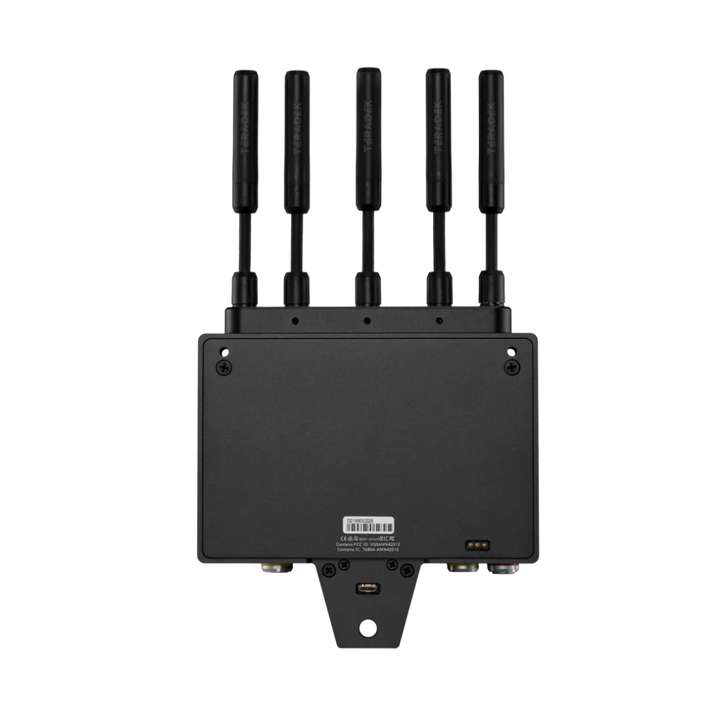

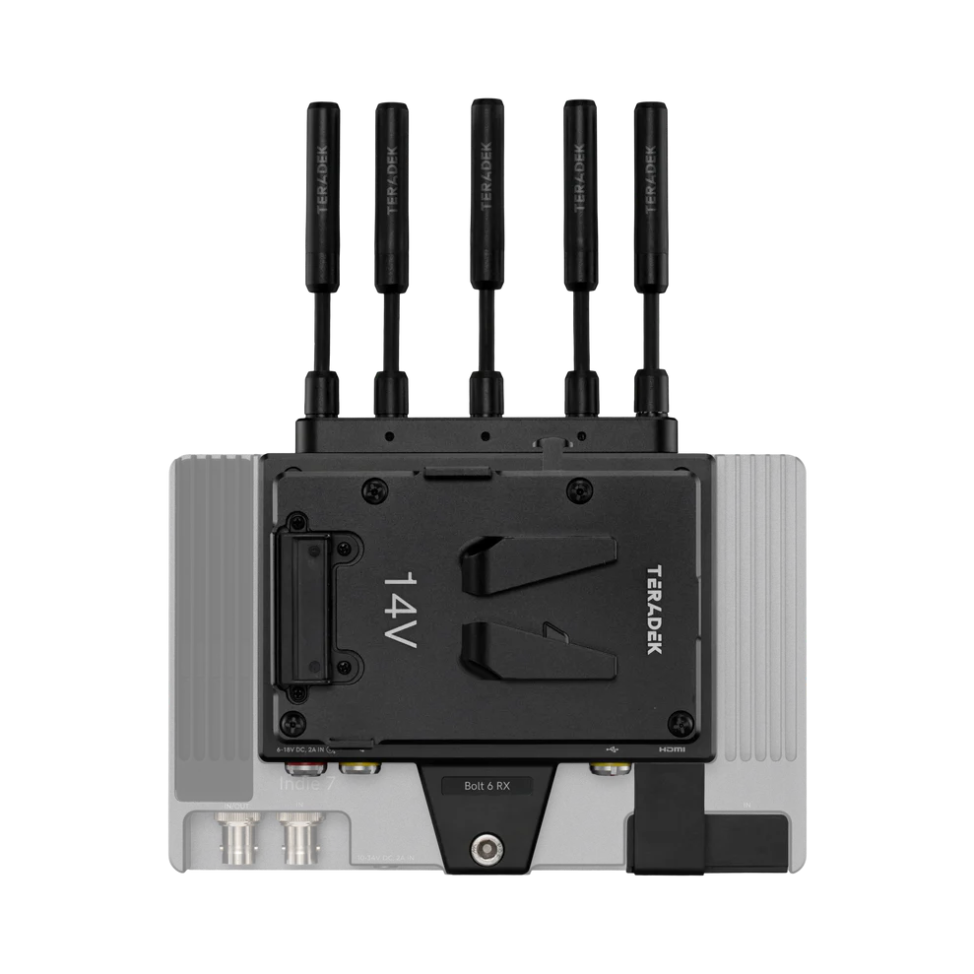

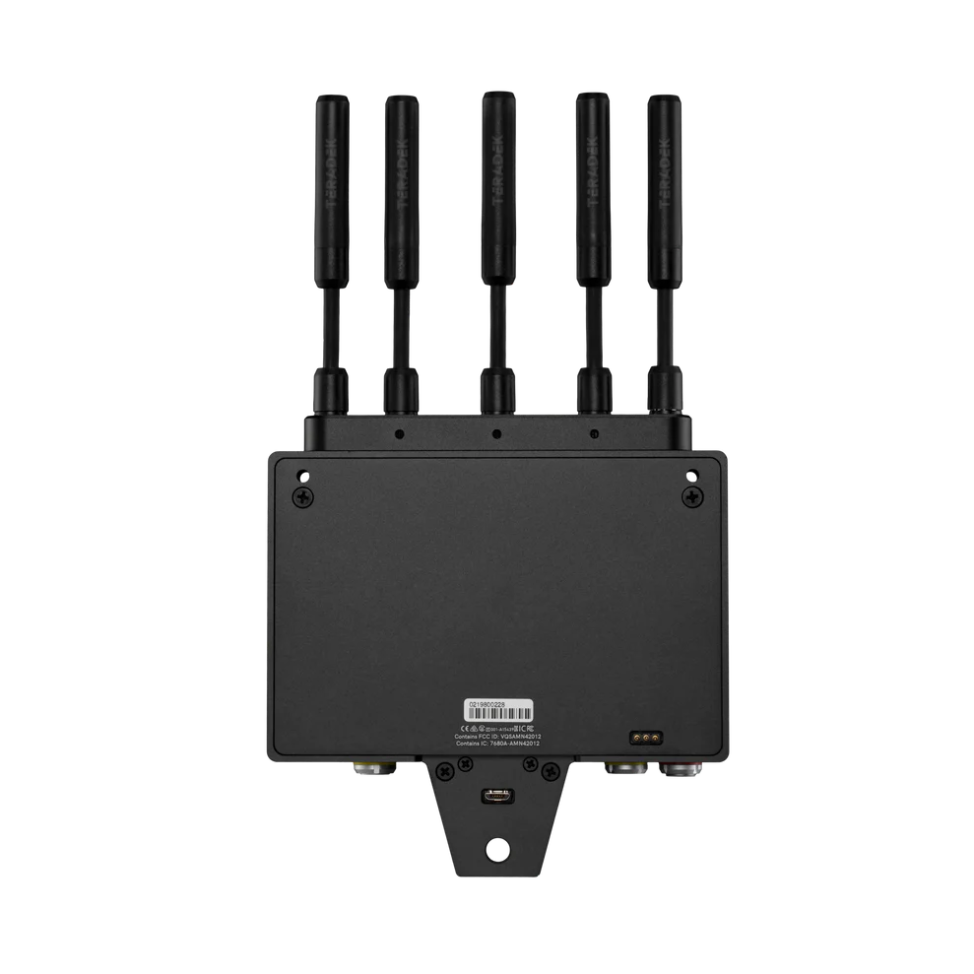

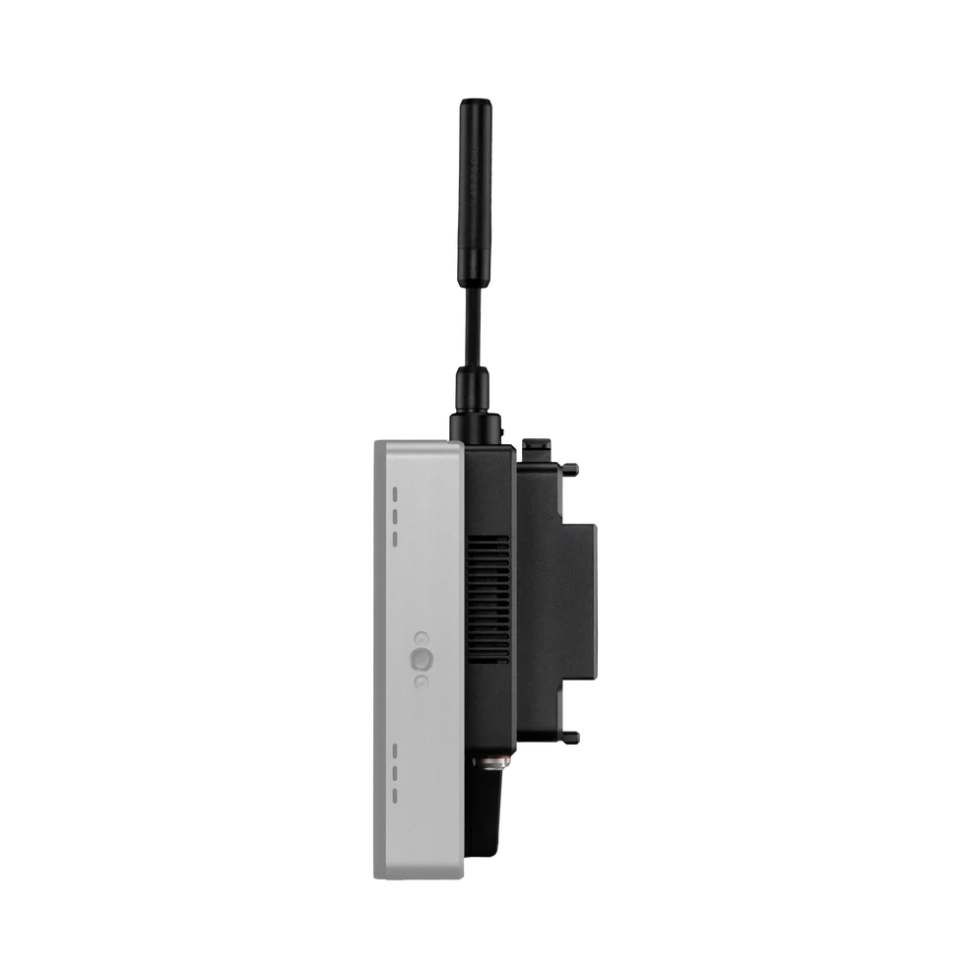

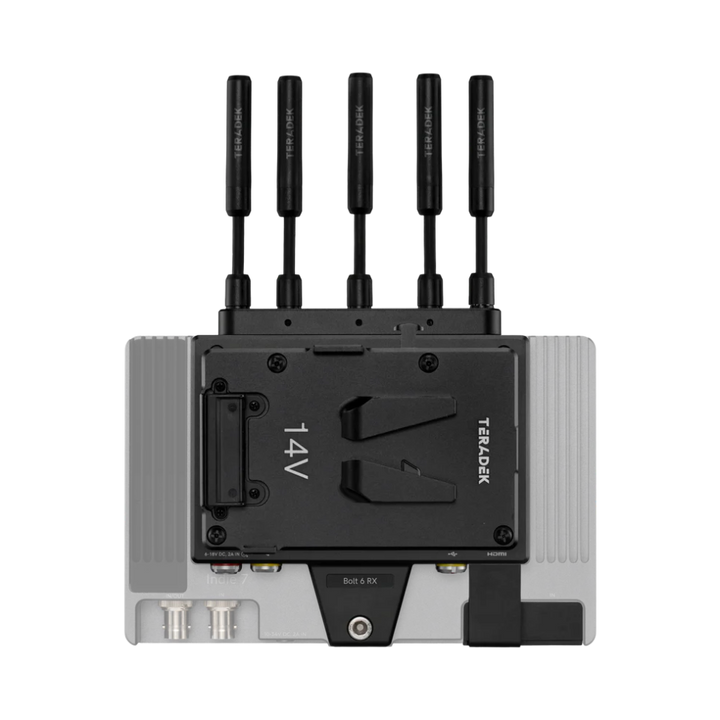

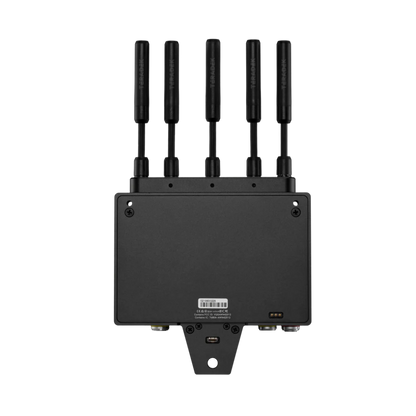

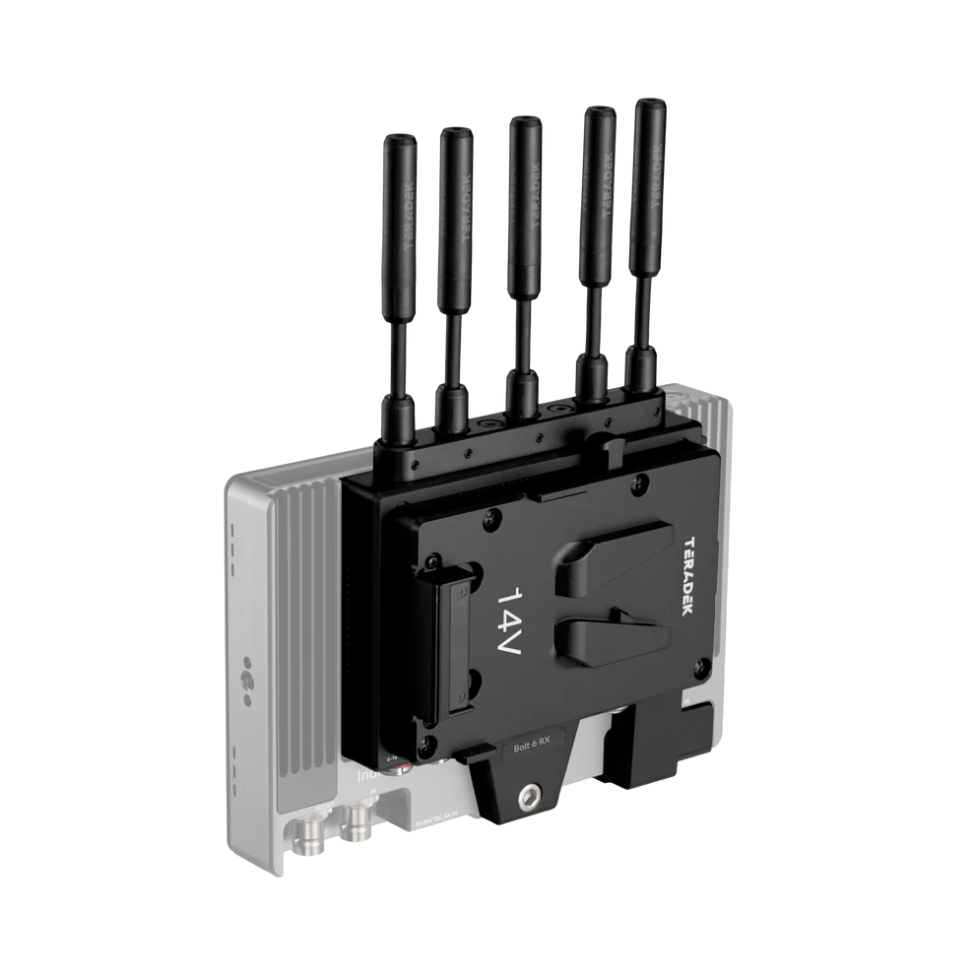

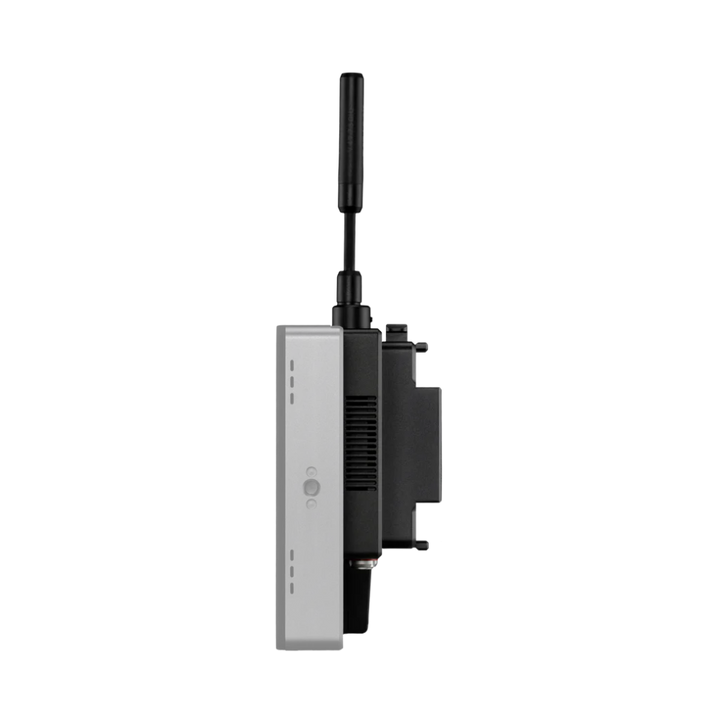

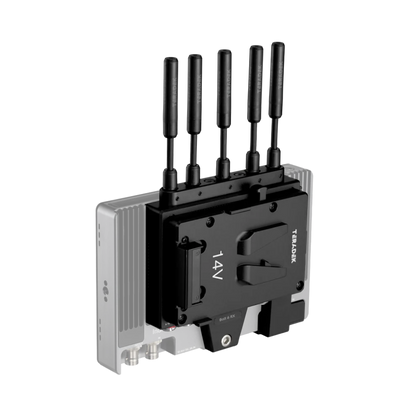

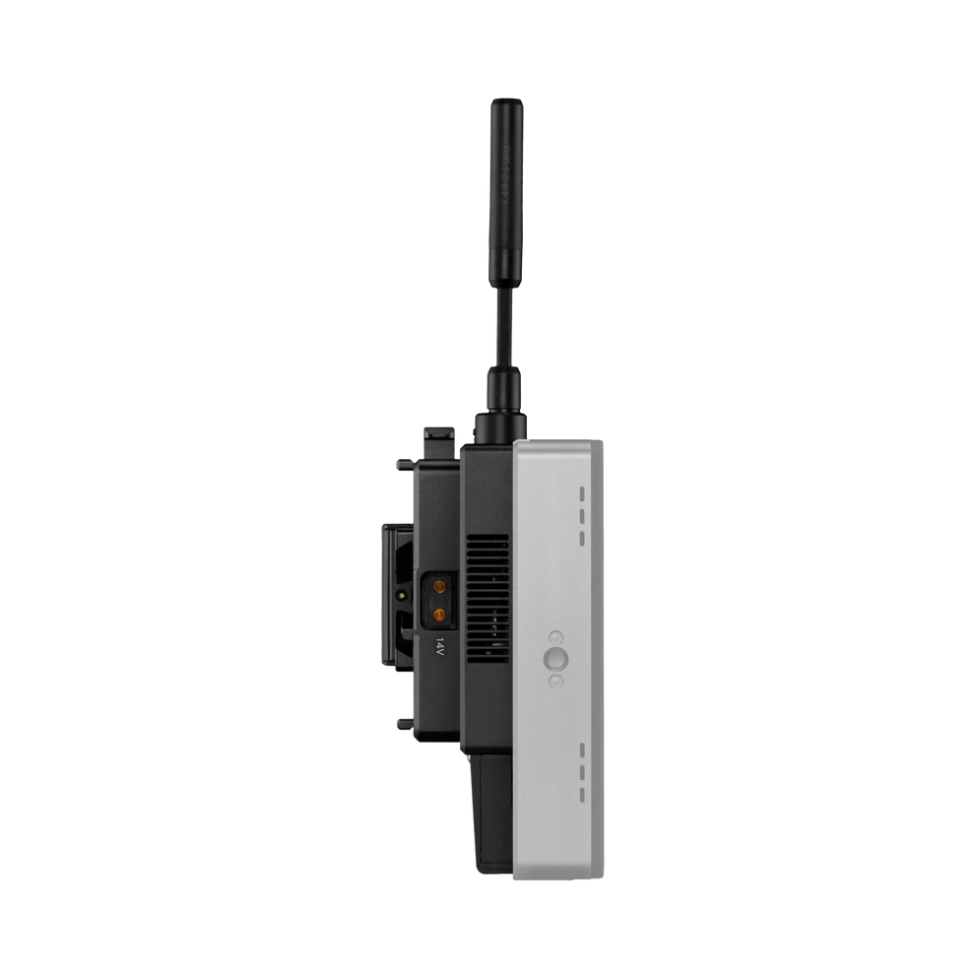

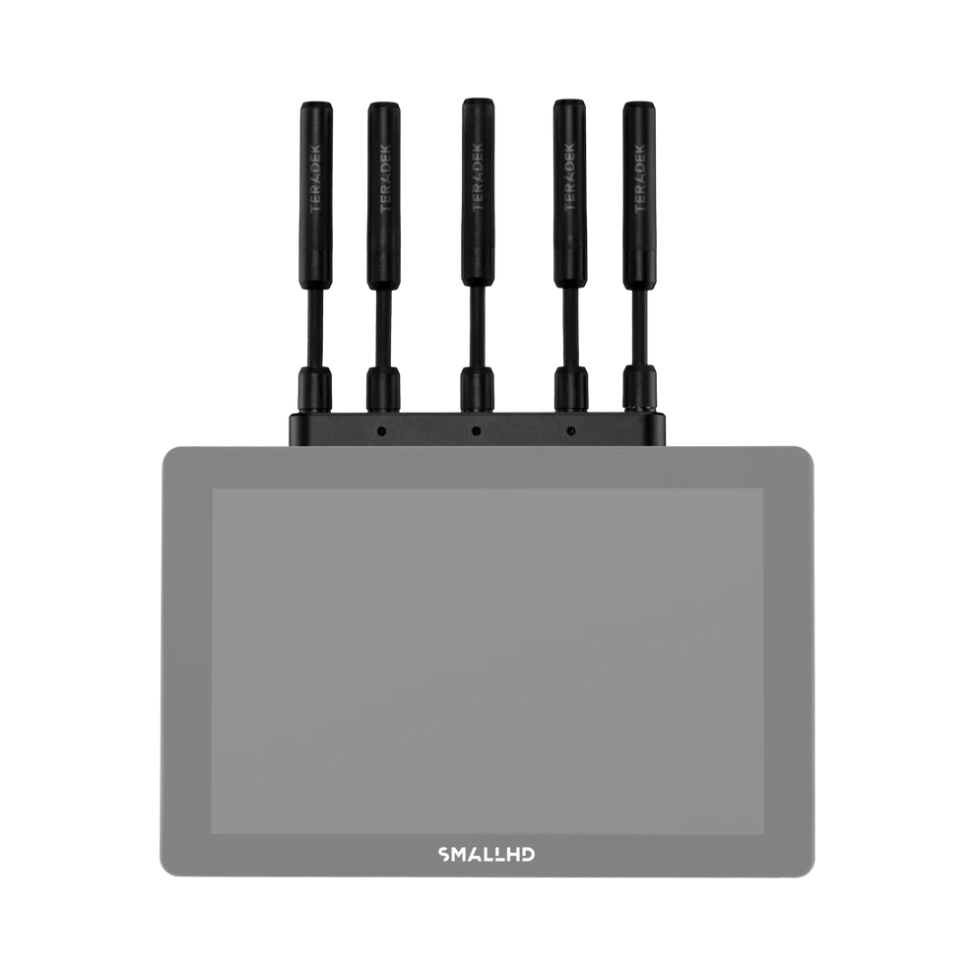

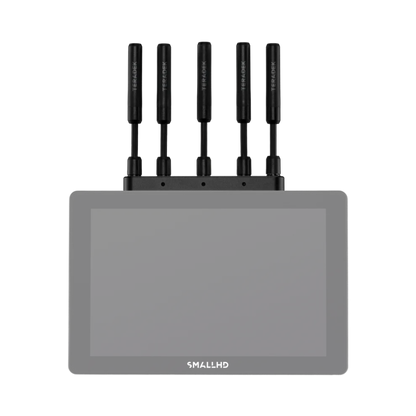

The Teradek Bolt 6 Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 Monitor Module RX can include a permanent internal antenna to allow for reliable zero-delay transmission in a more compact and durable form factor.

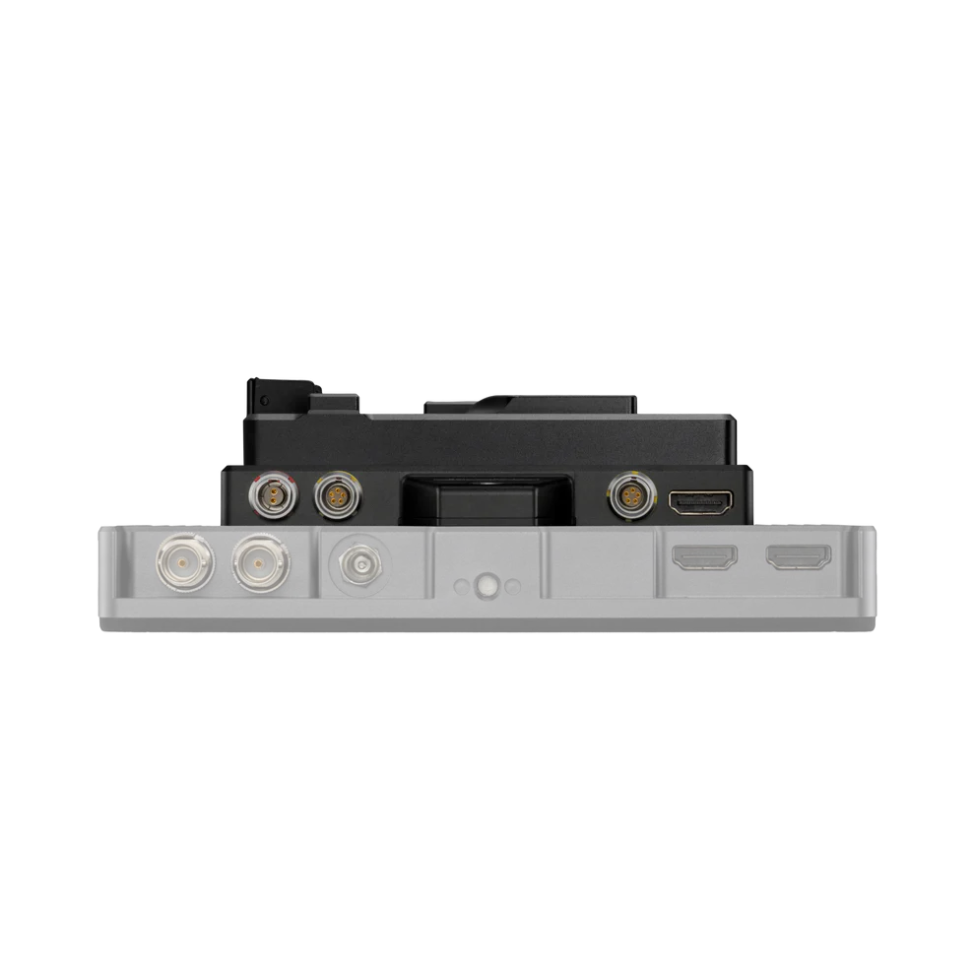

Video Outputs

• 1 x HDMI 1.4b Type-A receptacle

Sdi Ancillary Data Support

• Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

• SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

• <0.001sec

Supported Resolutions

• 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30
• 1080i50/59.94/60 720p50/59.94/60

Video Compression

• Visually Lossless

Color Correction

• None

Audio Compression

• 48kHz 24-bit PCM

Audio Output

• Embedded HDMI Audio Output (2 Channel)

Dimensions

• 122mm x 94mm x 27mm

Weight

• 292g (10.3oz)

Construction

• Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

• SmallHD 7" Monitor

Configuration Interfaces

• SmallHD Monitor UI

Mobile App

• Bolt App

Usb Interface Functionality

• SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host)

Bluetooth

• Via SmallHD Monitor

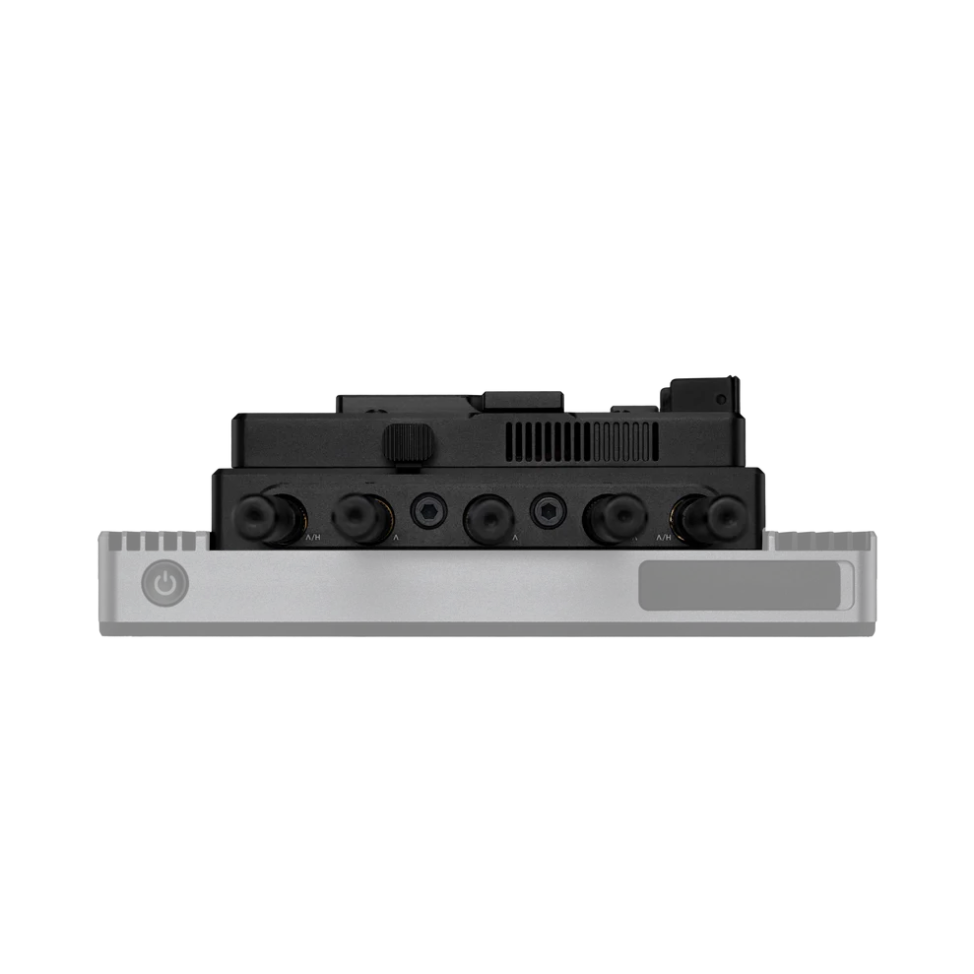

Antennas

• 5 External 2 dBi antennas (included)

Wireless

• Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies:
• 5.270 ~ 5.670 GHz

Rf Channel Selection

• Auto, Manual

Encryption

• AES-256, RSA-1024 key exchange

Rf Power

• 21 dbm EIRP

Range

• Up to 750 ft, line of sight

Unicast Multicast

• Can connect one Transmitter to up to 6 Receivers

Noise Rejection

• Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location

Interoperability Compatibility

• Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest
• range device)

Power Input

• 2-Pin Circular locking Connector 6-18 VDC

Battery

• None, optional Sony/Canon dual battery plate

Nominal Power Consumption

• 6 Watts

Operating Temperature

• 0-40℃

1 x Bolt 6 Monitor Module 750 RX Gold Mount
5 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x HDMI Adapter Bolt 4K RX Monitor Module
