Regular price$6,490.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): TER102300
MFR Part # (MPN): 10-2300

Short Description:
  • Free Shipping & Tech Support

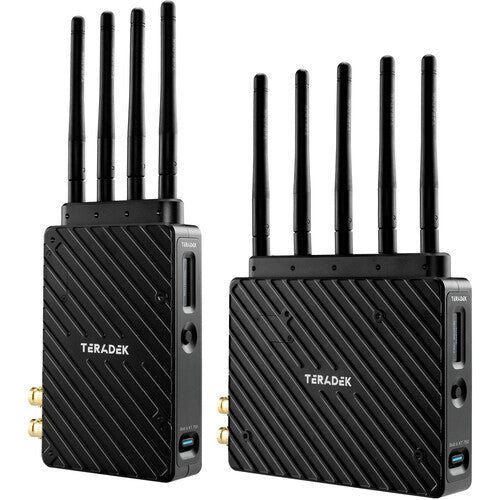

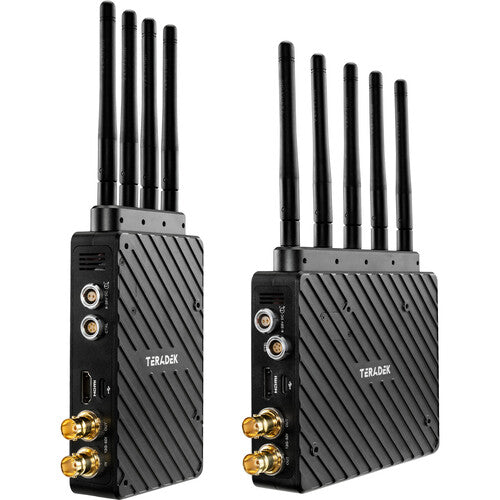

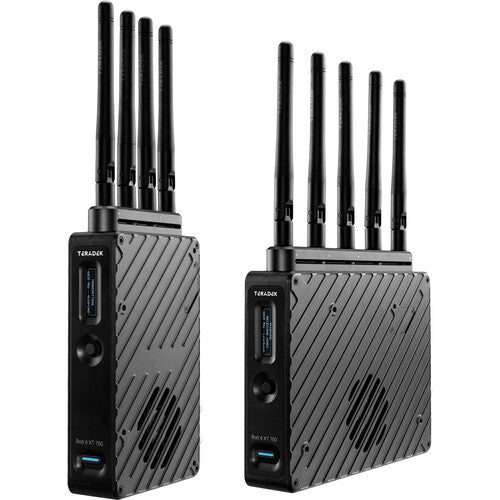

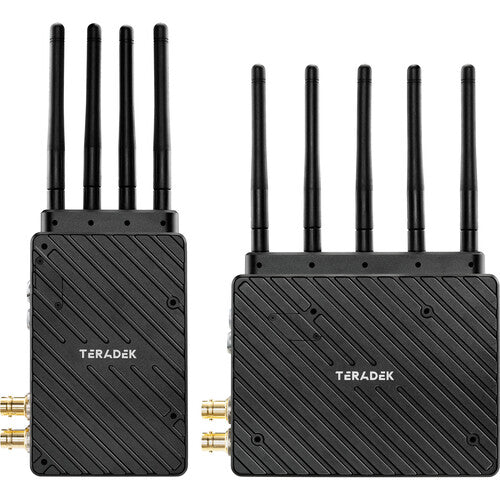

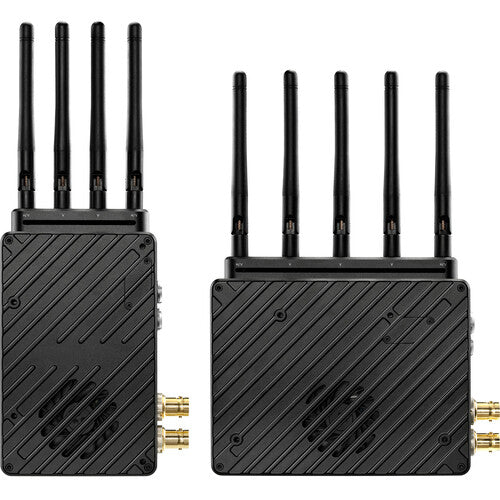

The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 milliseconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

Product Highlights
  • Zero Delay
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0
  • Outputs: 12G-SDI, HDMI 2.0


Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.

Bolt 6 XT 750 12G-SDI/HDMI Wireless TX


Video

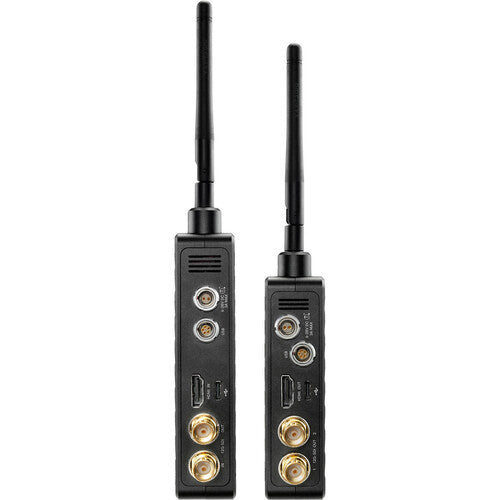

Video Inputs
  • 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  • 1 x HDMI 2.0 Type-A receptacle
Video Outputs
  • 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support
  • Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx
  • <0.001sec
Input Cross Conversion
  • Yes, HDMI to SDI

Supported Resolutions

Supported Resolutions
  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Processing

Video Compression
  • Visually Lossless
Color Correction
  • None

Audio Processing

Audio Compression
  • 48kHz 24-bit PCM
I
nputs


Audio Input
  • Embedded SDI/HDMI Audio Input (2 Channel)
Physical

Dimensions
  • 132 x 91 x 27 mm
Weight
  • 344g (12.1 Oz)
Construction
  • Milled Aluminum(Chassis) and regulation-compliant PCB

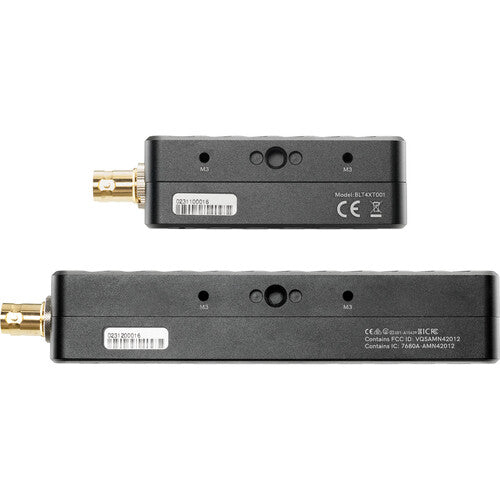

Mountability
  • Multiple mounting options with 1/4"x20 and M3 holes

Interfaces

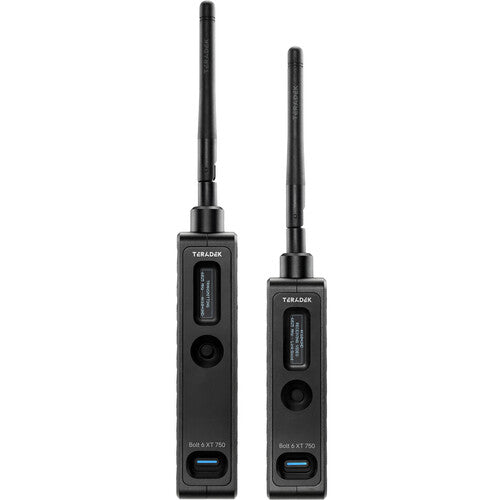

Configuration Interfaces
  • OSD with Menu, Joystick Navigation
Switches
  • On/Off Switch
Usb Interface Functionality
  • Upgrade via USB-C
  • 5pin Locking Connector CCU
Bluetooth
  • 2.4 GHz

Network

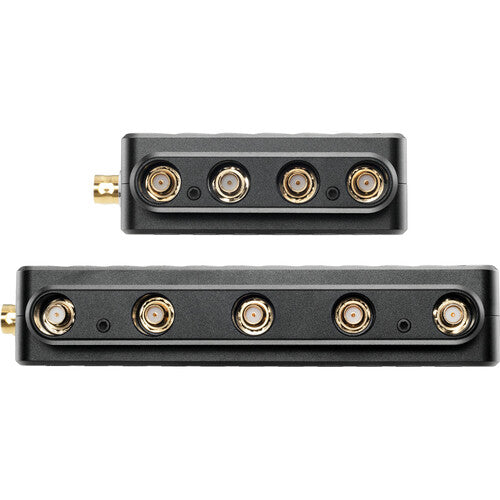

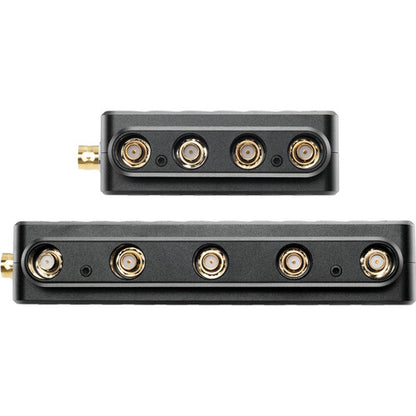

Antennas
  • 4 External 2dBi antennas (included)
Wireless
  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz
Rf Channel Selection
  • Auto, Manual
Encryption
  • AES-256, RSA-1024 key exchange
Rf Power
  • 23 dbm EIRP
Range
  • Up to 750 ft, line of sight
Unicast Multicast
  • Can connect one Transmitter to up to 6 Receivers
Noise Rejection
  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power

Power Input
  • 2-Pin Circular locking Connector 6-28 VDC
Battery
  • None, optional Sony/Canon dual battery plate
Battery Runtime
  • 20 Watts

Environmental

Operating Temperature
  • 0-40℃


Bolt 6 XT 750 12G-SDI/HDMI Wireless RX


Video

Video Outputs
  • 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  • 1 x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support
  • Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx
  • <0.001sec
Output Video Scaling
  • Yes, Framerate and Resolution Scaling

Supported Resolutions

Supported Resolutions
  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Processing

Video Compression
  • Visually Lossless
Color Correction
  • 17x17x17 3D LUT (supports 10-bit color)

Audio Processing

Audio Compression
  • 48kHz 24-bit PCM

Outputs

Audio Output
  • Embedded SDI/HDMI Audio Output (2 Channel)

Physical

Dimensions
  • 112 x 139 x 27 mm
Weight
  • 430g (15.2 Oz)
Construction
  • Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability
  • Multiple mounting options with 1/4"x20 and 3/8"x16 holes

Interfaces

Configuration Interfaces
  • OSD with Menu, Joystick Navigation
Switches
  • On/Off Switch
Usb Interface Functionality
  • Upgrade via USB-C
  • 5pin Locking Connector CCU
Bluetooth
  • 2.4 GHz

Network

Antennas
  • 5 External 2 dBi antennas (included)
Wireless
  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz
Rf Channel Selection
  • Auto, Manual
Encryption
  • AES-256, RSA-1024 key exchange
Rf Power
  • 21 dbm EIRP
Range
  • Up to 750 ft, line of sight
Unicast Multicast
  • Can connect one Transmitter to up to 6 Receivers
Noise Rejection
  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power

Power Input
  • 2-Pin Circular locking Connector 6-28 VDC
Battery
  • None, optional Gold or V mount battery plate
Battery Runtime
  • 18 Watts

Environmental

Operating Temperature
  • 0-40℃

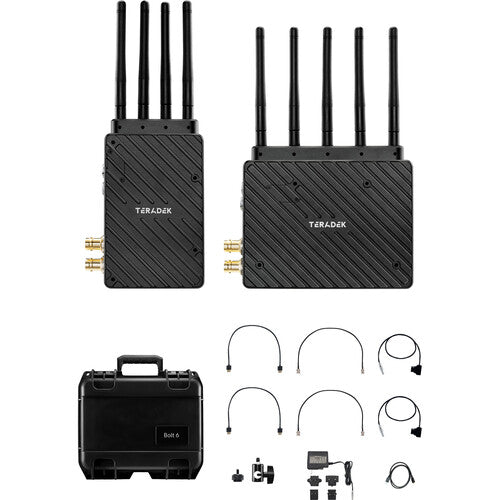

  • 1 x Bolt 6 XT 750 TX
  • 1 x Bolt 6 XT 750 RX
  • 1 x Lightstand Adapter 1/4-20in
  • 1 x Hot Shoe Adaptor
  • 2 x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
  • 2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
  • 2 x SDI 12G BNC to BNC 18in/46cm Cable
  • 1 x Teradek Case Large - Bolt XT TX/2RX
  • 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
  • 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
