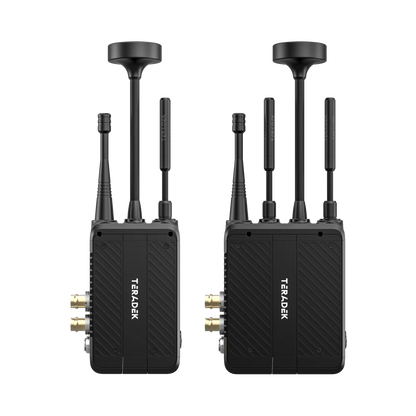

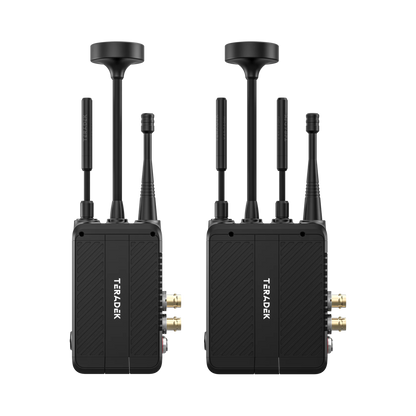

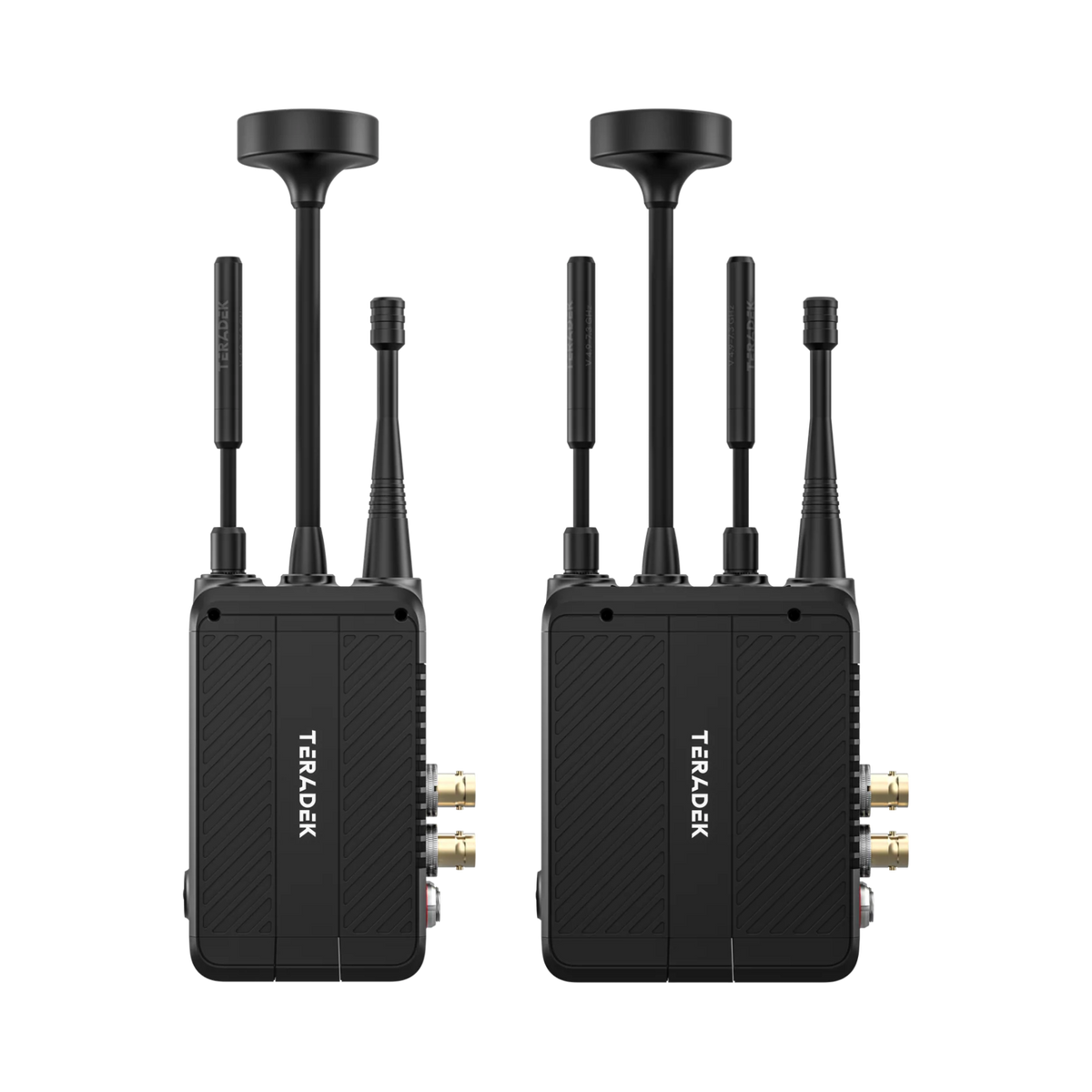

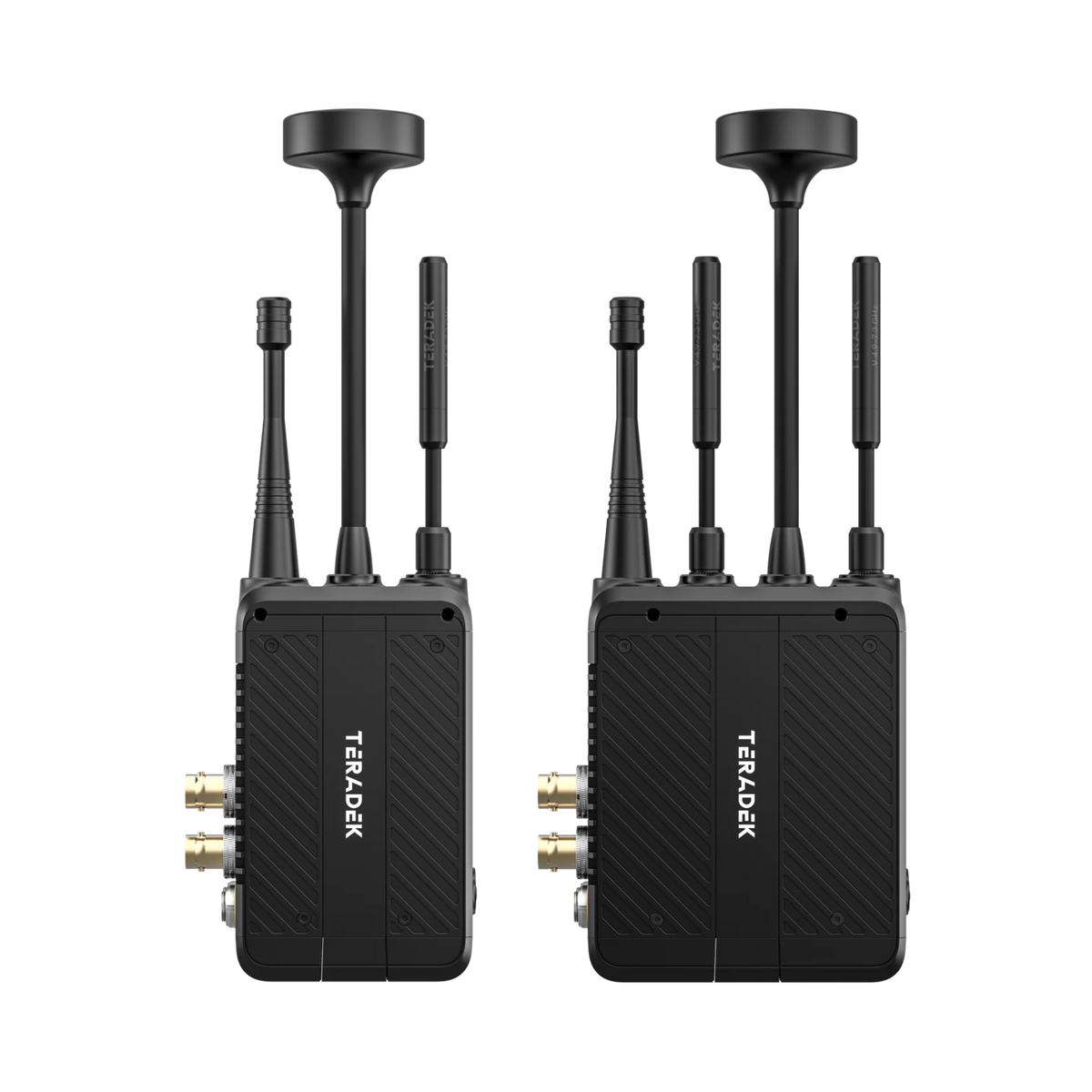

Teradek Bolt 7 1500 4K Wireless Video Transmitter & Receiver

Teradek Bolt 7 1500 4K Wireless Video Transmitter and Receiver

Zero-Delay 4K HDR Wireless Video Up to 1,500 Feet

The Teradek Bolt 7 1500 is a professional 4K HDR wireless video transmitter and receiver system designed for cinema, broadcast, sports, live events, and commercial production. It delivers zero-delay wireless video over 12G-SDI and HDMI with a range of up to 1,500 feet (450 meters), plus a dedicated 900 MHz wireless data channel for camera control, monitor control, color workflows, and Ethernet transport.

Key Features

• Zero-delay 4K HDR wireless video for professional cinema, broadcast, sports, and live production
• Up to 1,500 ft (450 m) wireless range for extended production environments
• 12G-SDI and HDMI connectivity for flexible professional video workflows
• Dedicated 900 MHz wireless data channel for camera control, monitor control, color workflows, and Ethernet
• Smaller, lighter chassis for easier integration with modern camera builds
• New full-color OLED display for faster pairing and simplified setup
• Teradek Bolt App support for convenient system configuration and control
• Backward compatible with Bolt 4K, Bolt 6, and RF-X systems
• DisplayPort Alt Mode over USB-C for compatible cameras using a single cable for video and communications
• Compatible with optional Gold Mount, Gold Mount Plus, and V-Mount battery cradles
• Part of the Bolt 7 family, also available in 750 ft (228 m) and MAX up to 5,000 ft (1.5 km) configurations

4K Wireless Video with 1,500-Foot Range

Bolt 7 is the next generation of Teradek's zero-delay wireless video ecosystem. The Bolt 7 1500 combines high-quality 4K HDR wireless video with production-critical data connectivity, giving professional production teams a flexible way to transmit video and control data without relying on long cable runs.

With a wireless range of up to 1,500 feet (450 meters), Bolt 7 1500 is designed for larger sets, stages, venues, sports productions, and other applications where cameras and monitoring equipment need to operate farther apart.

The system supports zero-delay 12G-SDI and HDMI wireless video, providing the low-latency performance needed for real-time monitoring and professional live production workflows.

Dedicated 900 MHz Wireless Data Channel

Beyond wireless video, Bolt 7 includes a dedicated 900 MHz wireless data channel for production-critical communications. This channel supports wireless camera control, monitor control, color workflows, and Ethernet transport.

By combining wireless video and data in one integrated system, Bolt 7 can help production teams reduce cable runs, simplify camera builds, and eliminate the need for multiple standalone wireless devices.

Compact Design and Simplified Setup

The redesigned Bolt 7 chassis is smaller and lighter, making it easier to mount on modern cinema cameras, broadcast cameras, and professional production rigs.

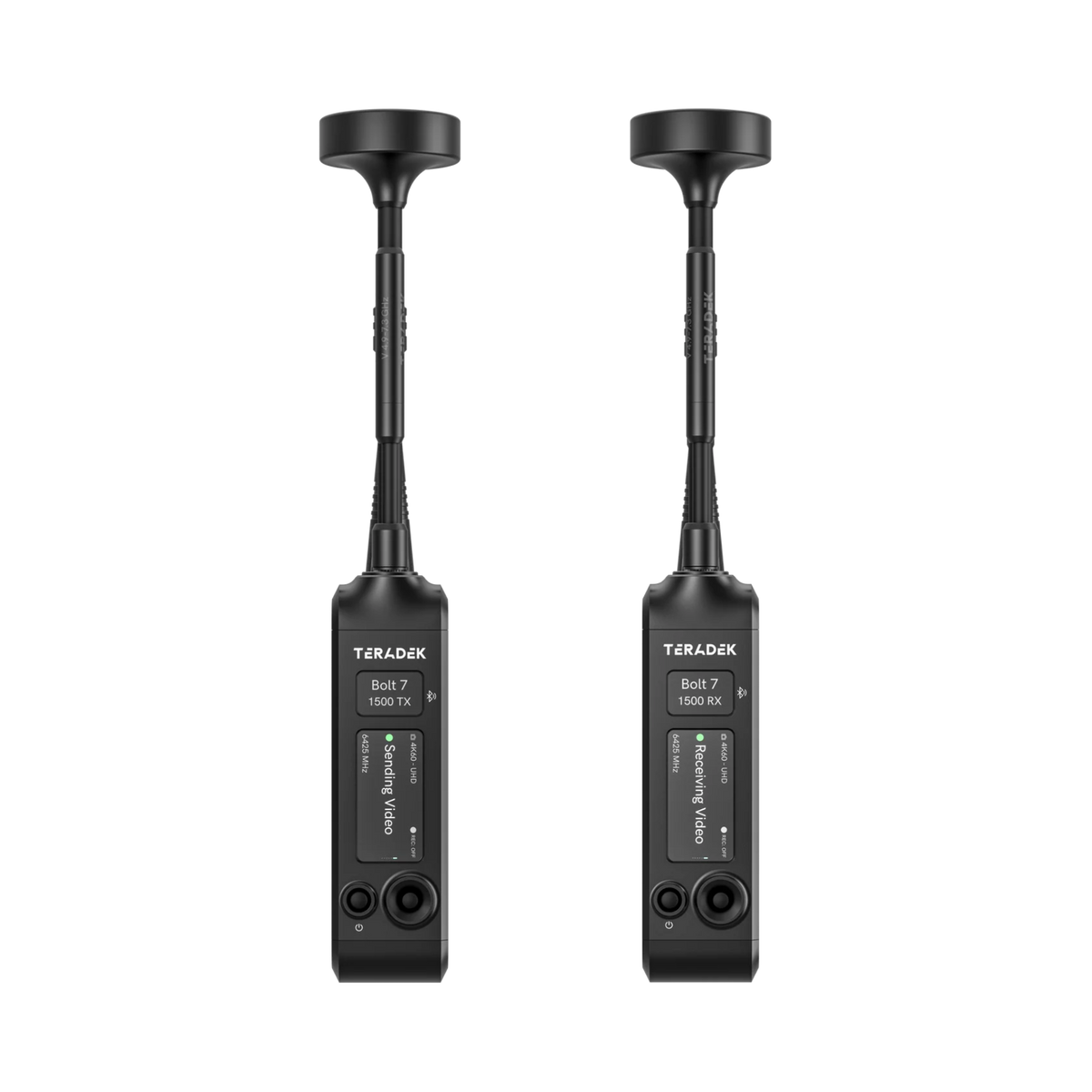

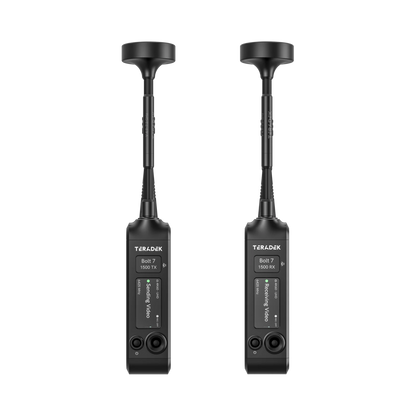

A new full-color OLED display makes it easier to view system information, pair devices, and configure the wireless link. Streamlined pairing and support through the Teradek Bolt App help speed up deployment and simplify day-to-day operation.

Backward Compatible with Bolt 4K, Bolt 6, and RF-X

Bolt 7 is backward compatible with Teradek Bolt 4K, Bolt 6, and RF-X systems, allowing production teams to expand their wireless video capabilities while continuing to work with compatible equipment already in their Teradek ecosystem.

This makes Bolt 7 1500 a flexible option for production companies, broadcasters, rental houses, and other organizations managing multiple generations of Teradek wireless video equipment.

USB-C Connectivity for Emerging Camera Workflows

Bolt 7 also supports DisplayPort Alt Mode over USB-C on compatible cameras. This enables supported camera systems to use a single USB-C connection for video and communications, helping simplify physical connections on the camera.

Optional battery solutions include Gold Mount, Gold Mount Plus, and V-Mount battery cradles, providing flexible power options for professional camera configurations.

750 ft, 1,500 ft, and MAX Range Options

The Bolt 7 family is available in multiple wireless range configurations:

• Bolt 7 750: Up to 750 ft (228 m)
• Bolt 7 1500: Up to 1,500 ft (450 m)
• Bolt 7 MAX: Up to 5,000 ft (1.5 km)

The Bolt 7 1500 provides an extended wireless range for productions that require reliable 4K video connectivity across larger sets, venues, stages, and production environments.

Professional Wireless Video for Cinema, Sports, and Live Production

The Teradek Bolt 7 1500 is built for professional video applications where low-latency wireless video, extended range, and reliable production connectivity are essential.

Common applications include:

• Feature film and television production
• Commercial video production
• Broadcast sports
• Live events
• Wireless camera-to-monitor workflows
• Multi-camera production
• Professional cinema camera rigs
• On-set video monitoring
• Camera and monitor control
• Large studio and production environments

With zero-delay 4K HDR wireless video, 12G-SDI and HDMI connectivity, a dedicated 900 MHz data channel, and up to 1,500 feet (450 meters) of range, the Teradek Bolt 7 1500 provides professional production teams with a flexible way to move video and production data wirelessly while reducing cable complexity.

Bolt 7 1500 12G-SDI/HDMI Wireless RX

• Video

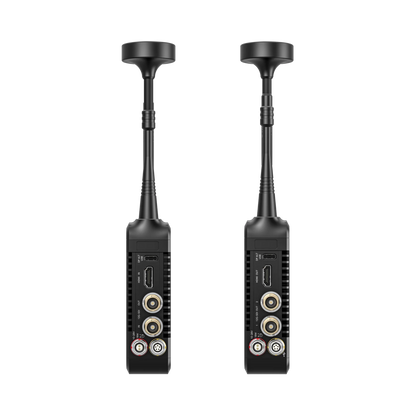

  • Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output
  • Sdi Ancillary Data Support: Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
  • Delay Tx To Rx: <0.001sec
  • Output Video Processing: Deinterlacer, frame rate converter, scaler, 3D LUTs
  • Other Tools: Spectrum Analyzer, Test Pattern Generator
• Supported Resolutions
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50, 480i(NTSC)/576i(PAL)
• Video Processing
  • Video Compression: Visually Lossless
  • Color Correction: 33x33x33 3D LUT (supports 10-bit color)
• Audio Processing
  • Audio Format: 48kHz 24-bit PCM
• Physical
  • Dimensions: 112 x 88 x 32 mm
  • Weight: 463g (16.3 Oz)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

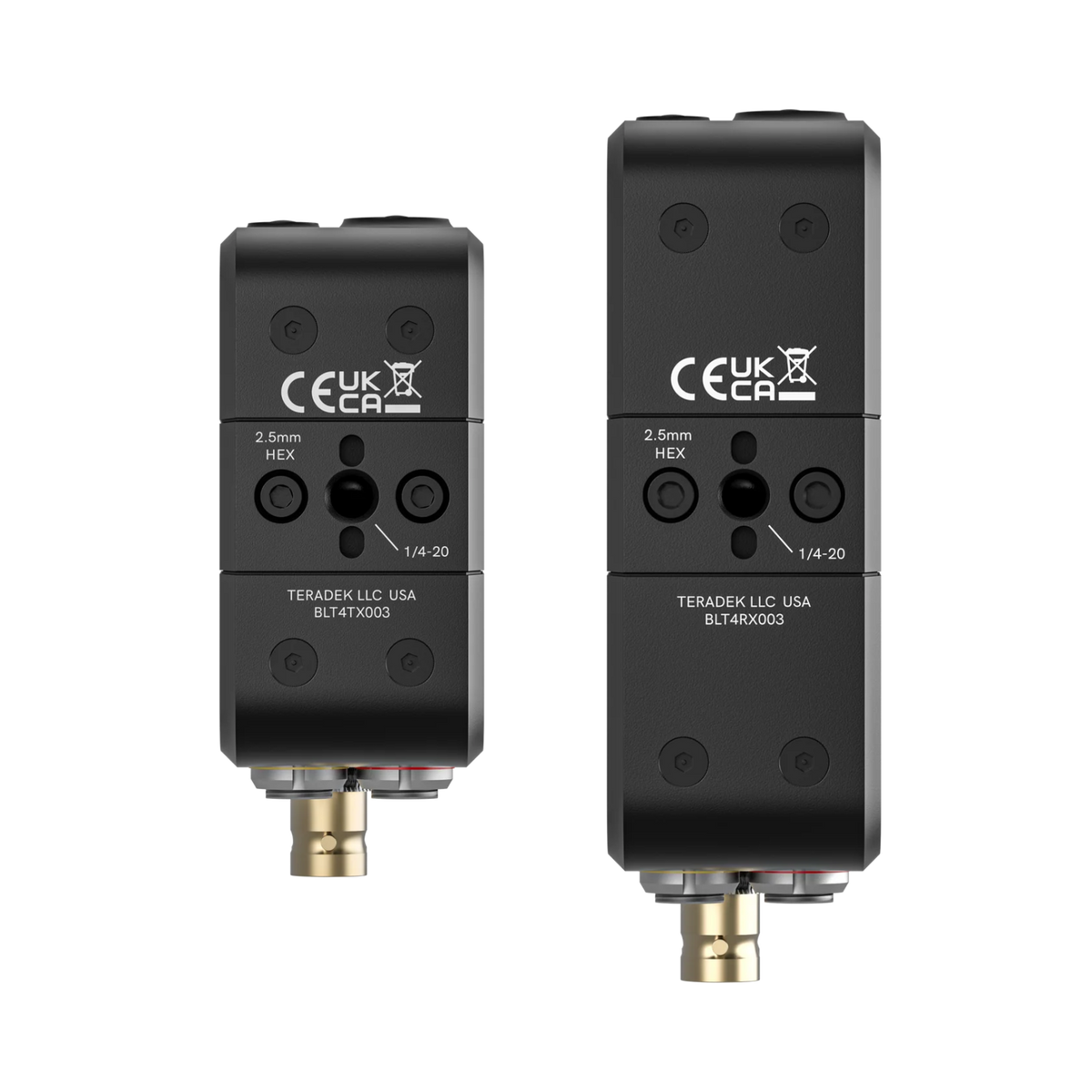

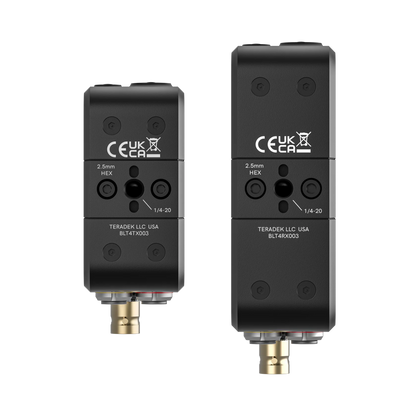

  • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
• Interfaces
  • Configuration Interfaces: Color OLED with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Usbc Port: Firmware upgrade Display Port ALT mode video out Device setup via Bolt Manager desktop app
  • Locking5Pin Usb Port: USB host port for camera control via smart cables (optional)
  • Bluetooth Compatibility: BLE for device setup and monitoring via smart phone app
• Network
  • Ethernet: Via smart cable connected to Locking 5 pin USB port
  • Antennas: 6 External, can connect to long range panel antenna
  • Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
  • Bluetooth: 2.4 GHz
  • Rf Channel Selection: Auto, Manual
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 21 dbm EIRP
  • Range: Up to 750/1500 ft, line of sight
  • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
  • Interoperability Compatibility: Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
  • Broadcast: No
  • Camera Control Radio: 900 MHz
• Power
  • Power Input: 2-Pin Circular locking Connector 6-28 VDC
  • Battery: None, optional field installable Gold- or V-Mount dual battery plate
  • Nominal Power Consumption: 18 Watts
• Environmental
  • Operating Temperatur: 0-40℃
• Outputs
  • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Bolt 7 1500 12G-SDI/HDMI Wireless TX

• Video

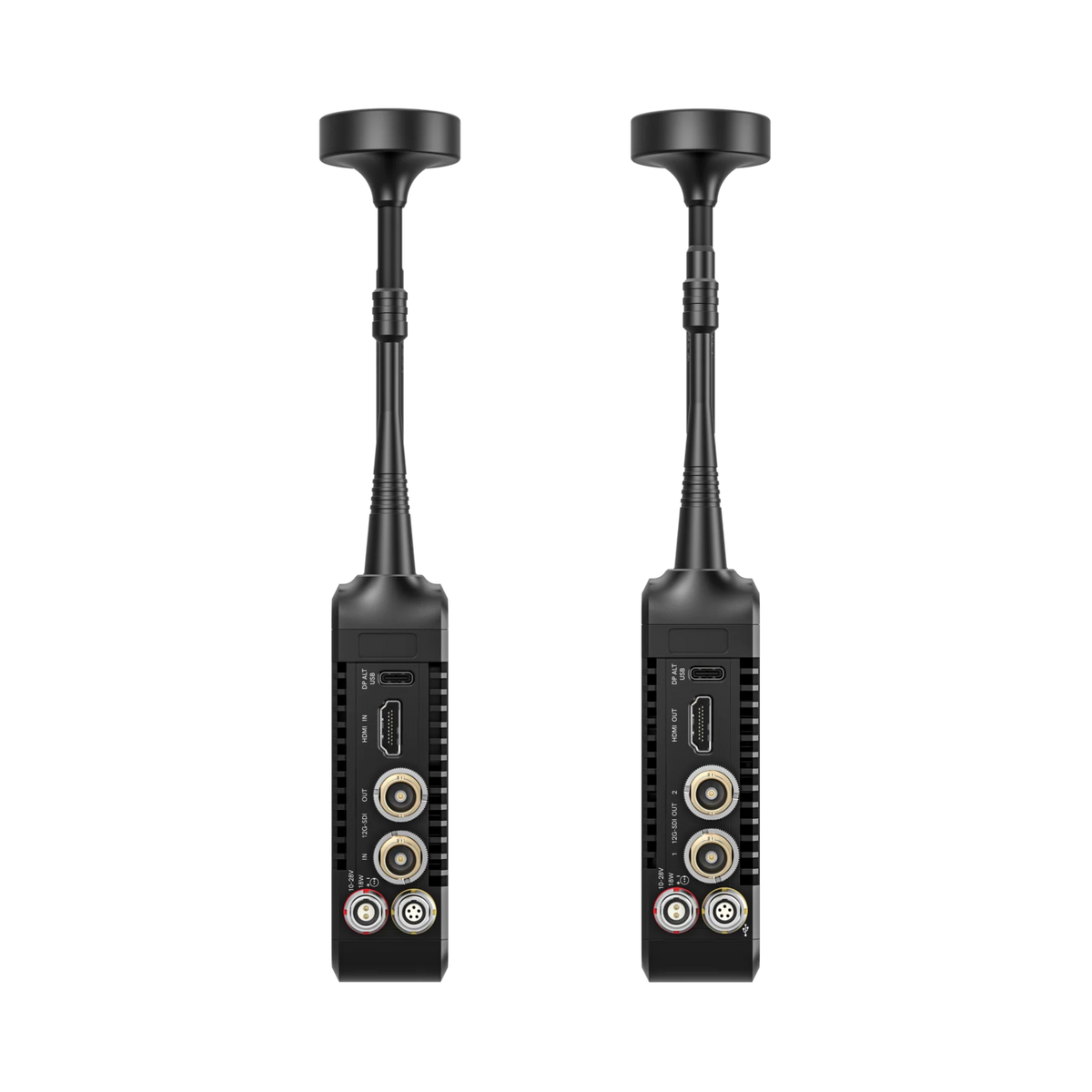

  • Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video input
  • Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
  • Sdi Ancillary Data Support: Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit. HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
  • Delay Tx To Rx: <0.001sec
  • Input Cross Conversion: Yes (HDMI input to SDI loopout)
  • Other Tools: SDI Eye Pattern Display
• Supported Resolutions
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50, 480i(NTSC)/576i(PAL)
• Video Processing
  • Video Compression: Visually Lossless
  • Color Correction: None
• Audio Processing
  • Audio Format: 48kHz 24-bit PCM
• Physical
  • Dimensions: 112 x 66 x 32 mm
  • Weight: 400g (14.1 Oz)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
• Interfaces
  • Configuration Interfaces: Color OLED with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Usbc Port: Firmware upgrade Display Port ALT mode video in Device setup via Bolt Manager desktop app
  • Locking5Pin Usb Port: USB host port for camera control via smart cables (optional)
  • Bluetooth Compatibility: BLE for device setup and monitoring via smart phone app
• Network
  • Ethernet: Via smart cable connected to Locking 5 pin USB port
  • Antennas: 3 External, 2 Internal
  • Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
  • Bluetooth: 2.4 GHz
  • Rf Channel Selection: Auto, Manual
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 23 dbm EIRP
  • Range: Up to 750/1500 ft, line of sight
  • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
  • Interoperability Compatibility: Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
  • Broadcast: No]
  • Camera Control Radio: 900 MHz
• Power
  • Power Input: 2-Pin Circular locking Connector 6-28 VDC
  • Battery: None, optional field installable Gold- or V-Mount dual battery plate
  • Nominal Power Consumption: 20 Watts
• Environmental
  • Operating Temperature: 0-40℃
• Inputs
  • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

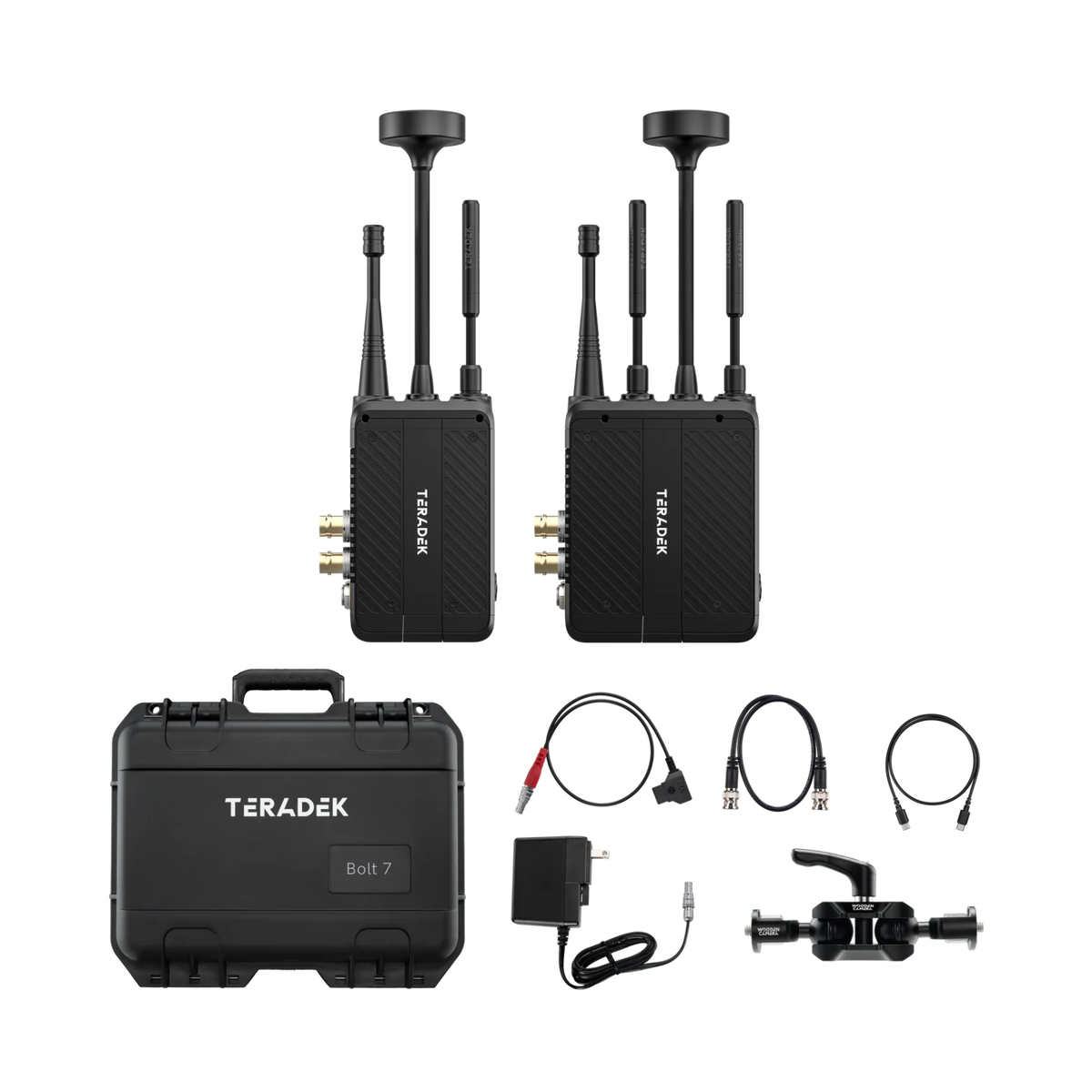

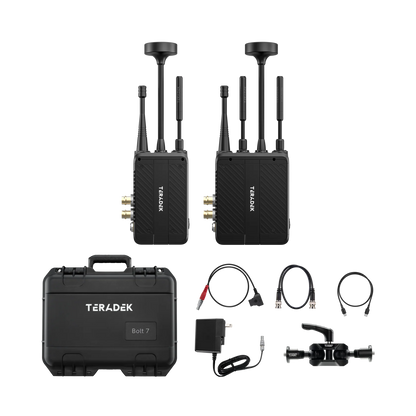

• 3 x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA
• 2 x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA
• 2 x Antenna 865 - 926 MHz SMA
• 2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
• 1 x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in
• 2 x 2pin Conn. to PowerTap - 18in Cable
• 1 x PSU 2pin Conn. to 36W AC Adapter (Int) - 6ft Cable
• 1 x 5 pin Lemo to USB-C - 36in Cable
• 1 x Wooden Camera - Universal Ultra Arm Mini (Combo 1/4-20 & 3/8-16)
