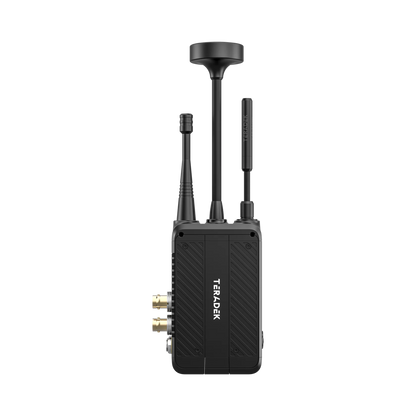

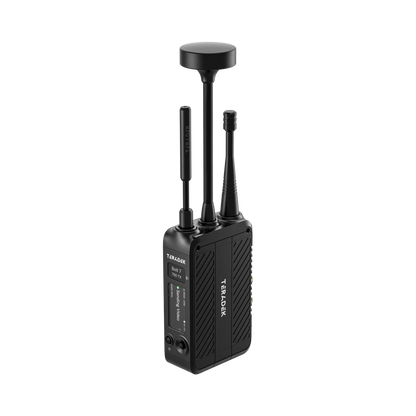

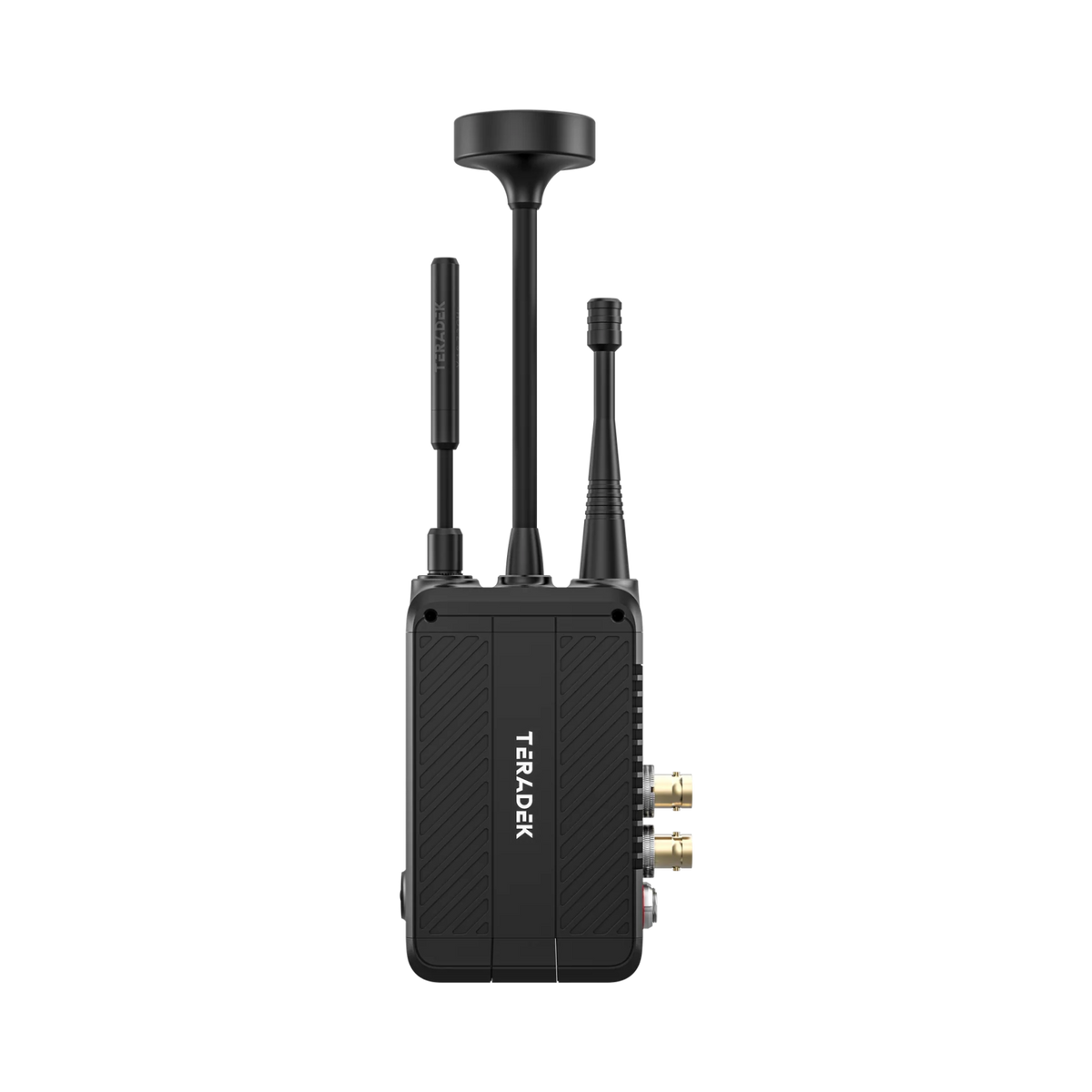

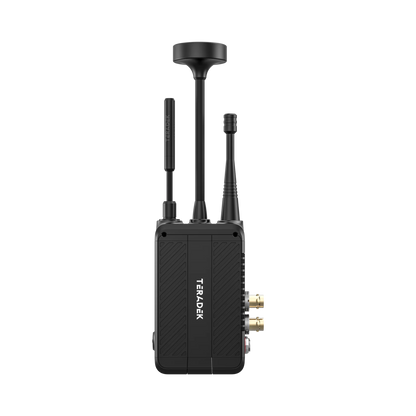

Name: Teradek Bolt 7 750 4K Wireless Video Transmitter
Brand: TERADEK
SKU: 102701
Price: 3190.00 USD
Availability: InStock

Description

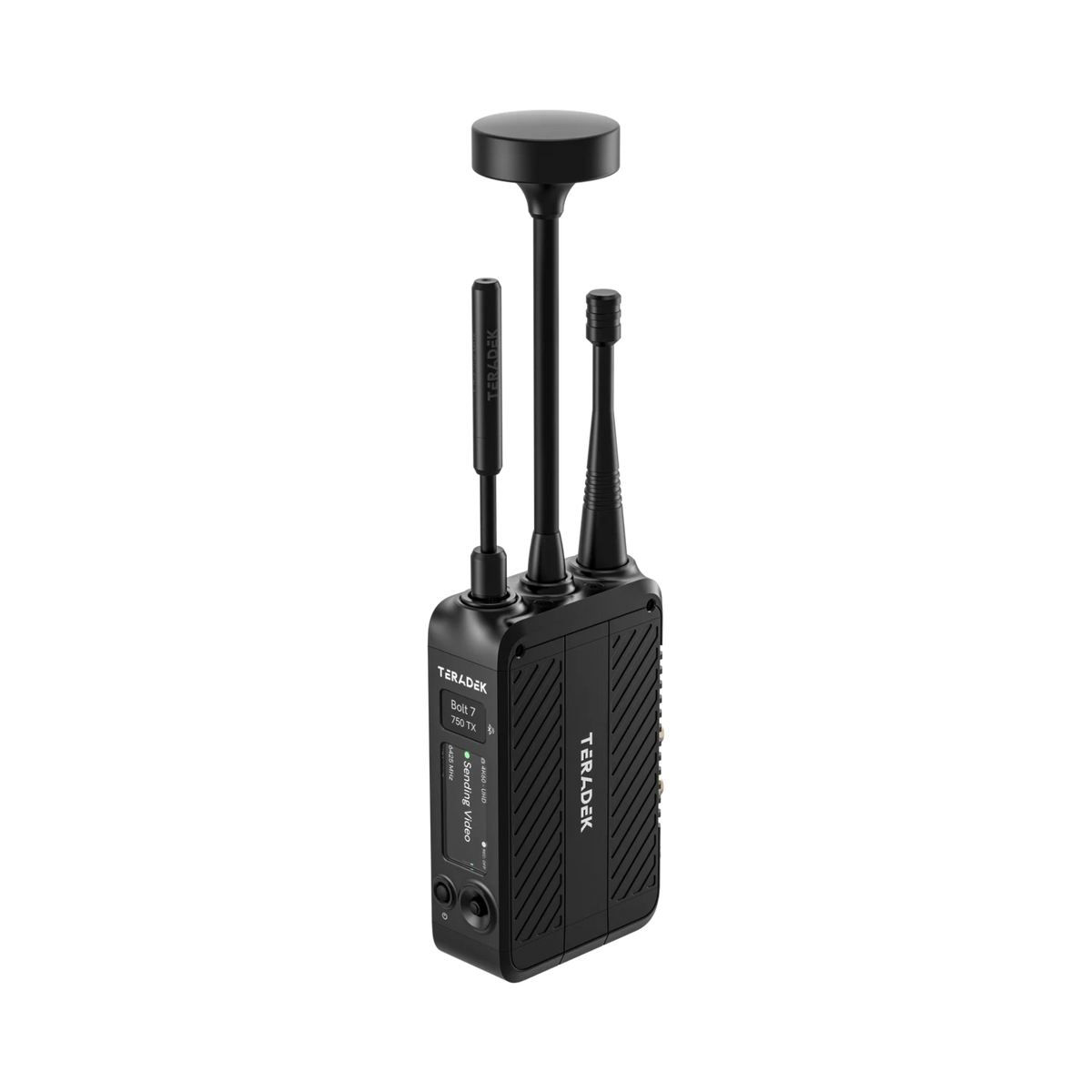

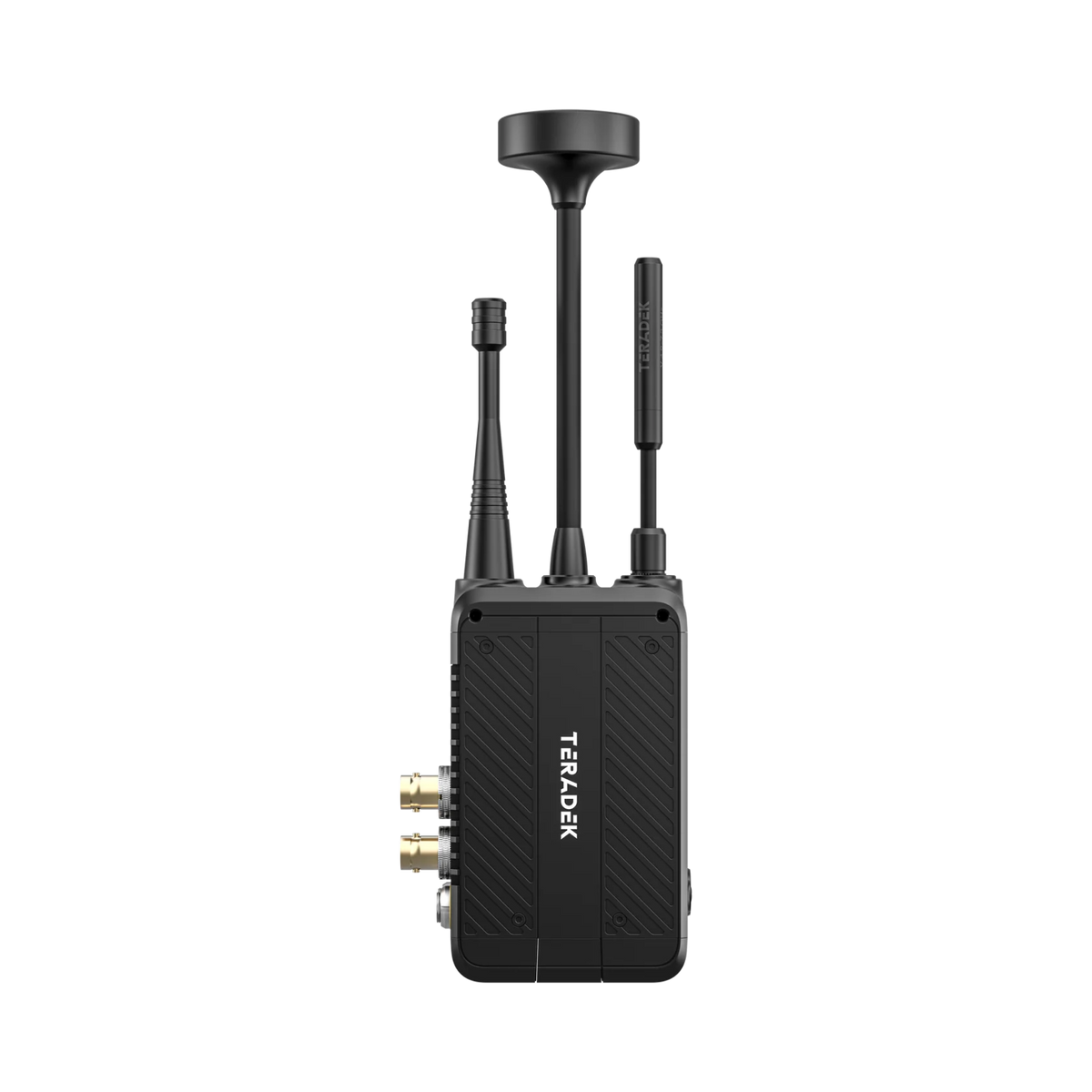

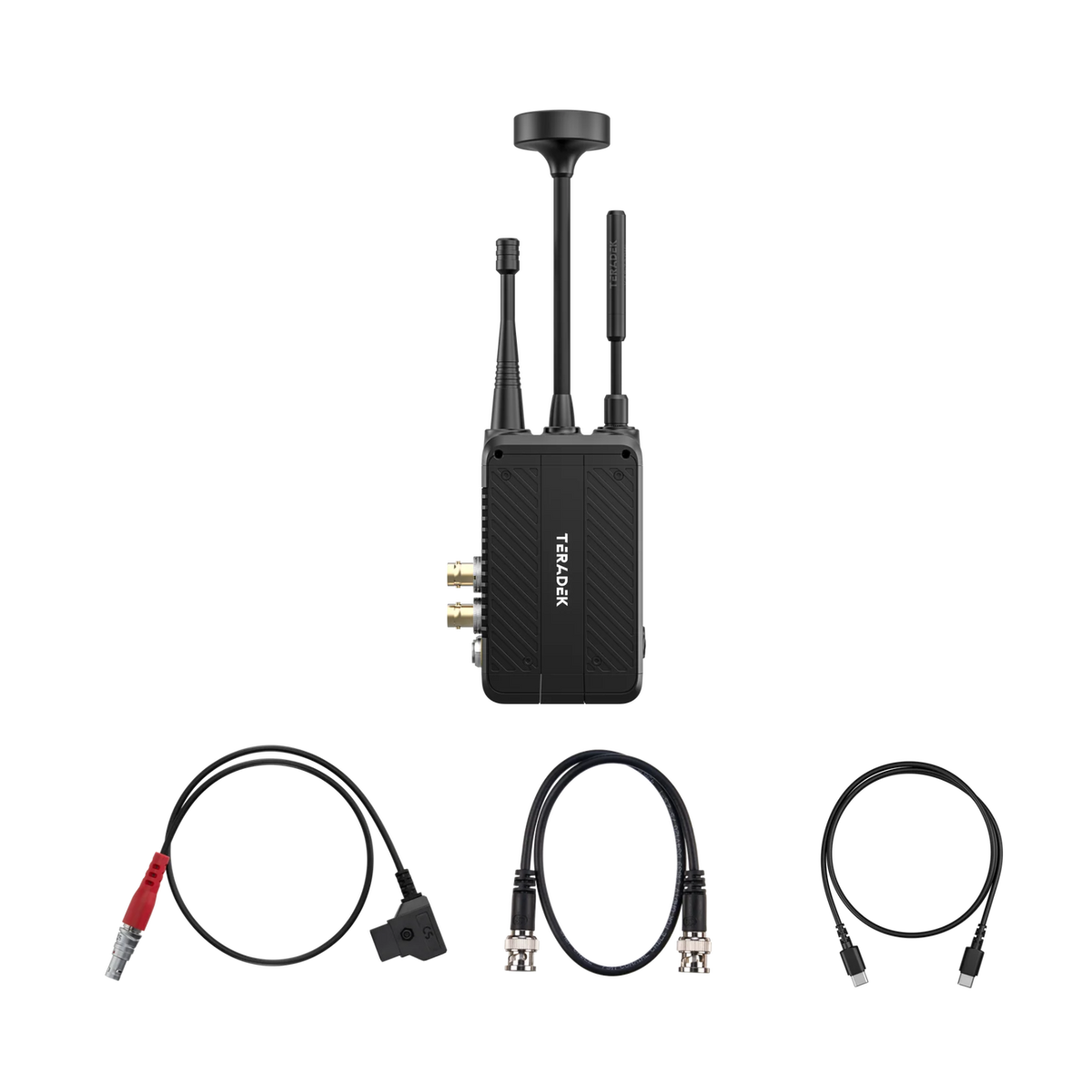

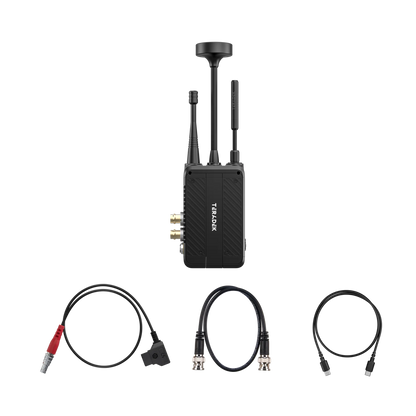

Teradek Bolt 7 750 4K Wireless Video Transmitter

Zero-Delay 4K Wireless Video for Professional Production

The Teradek Bolt 7 750 is a professional 4K HDR wireless video transmitter and receiver system designed for cinema, broadcast, sports, live events, and commercial production. It delivers zero-delay wireless video over 12G-SDI and HDMI with a range of up to 750 feet (228 meters), while a dedicated 900 MHz wireless data channel provides additional connectivity for camera control, monitor control, color workflows, and Ethernet.

Key Features

Zero-delay 4K HDR wireless video for professional cinema, broadcast, sports, and live production
12G-SDI and HDMI connectivity for flexible video workflows
750 ft (228 m) wireless range for reliable on-set and production-area connectivity
Dedicated 900 MHz data channel for wireless camera control, monitor control, color workflows, and Ethernet
Compact, lightweight design for modern camera builds and production rigs
New full-color OLED display for faster setup, pairing, and system configuration
Bolt App support for convenient system control and configuration
Backward compatible with Teradek Bolt 4K, Bolt 6, and RF-X systems
DisplayPort Alt Mode over USB-C supports compatible cameras with a single-cable video and communications workflow
Compatible with optional Gold Mount, Gold Mount Plus, and V-Mount battery cradles
Also available in 1,500 ft (450 m) and MAX up to 5,000 ft (1.5 km) configurations

4K HDR Wireless Video with Zero Delay

Bolt 7 is the next generation of Teradek's professional zero-delay wireless video ecosystem. The Bolt 7 750 combines high-quality 4K HDR wireless video with production-critical data connectivity, giving camera operators and production teams a flexible alternative to multiple wired connections.

The system supports 12G-SDI and HDMI wireless video, making it suitable for professional cameras, monitors, switchers, and other production equipment. With a wireless range of up to 750 feet (228 meters), Bolt 7 750 can help simplify camera-to-monitor and camera-to-production workflows while maintaining the responsiveness required for live production.

Dedicated Wireless Data for Camera and Production Control

Beyond wireless video, Bolt 7 includes a dedicated 900 MHz wireless data channel designed to carry production-critical information. This enables wireless camera control, monitor control, color workflows, and Ethernet transport through the same integrated system.

By combining video and data connectivity, Bolt 7 can reduce the need for additional cables and standalone wireless devices. This can help simplify camera builds, speed up setup, and reduce cable complexity on professional production sets.

Compact Design and Faster Setup

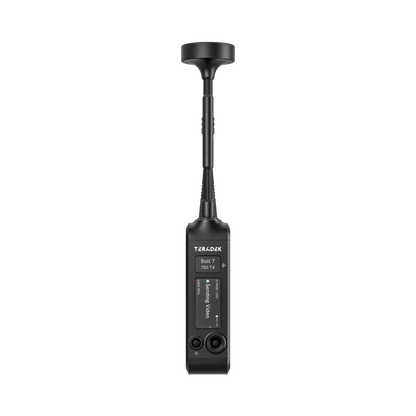

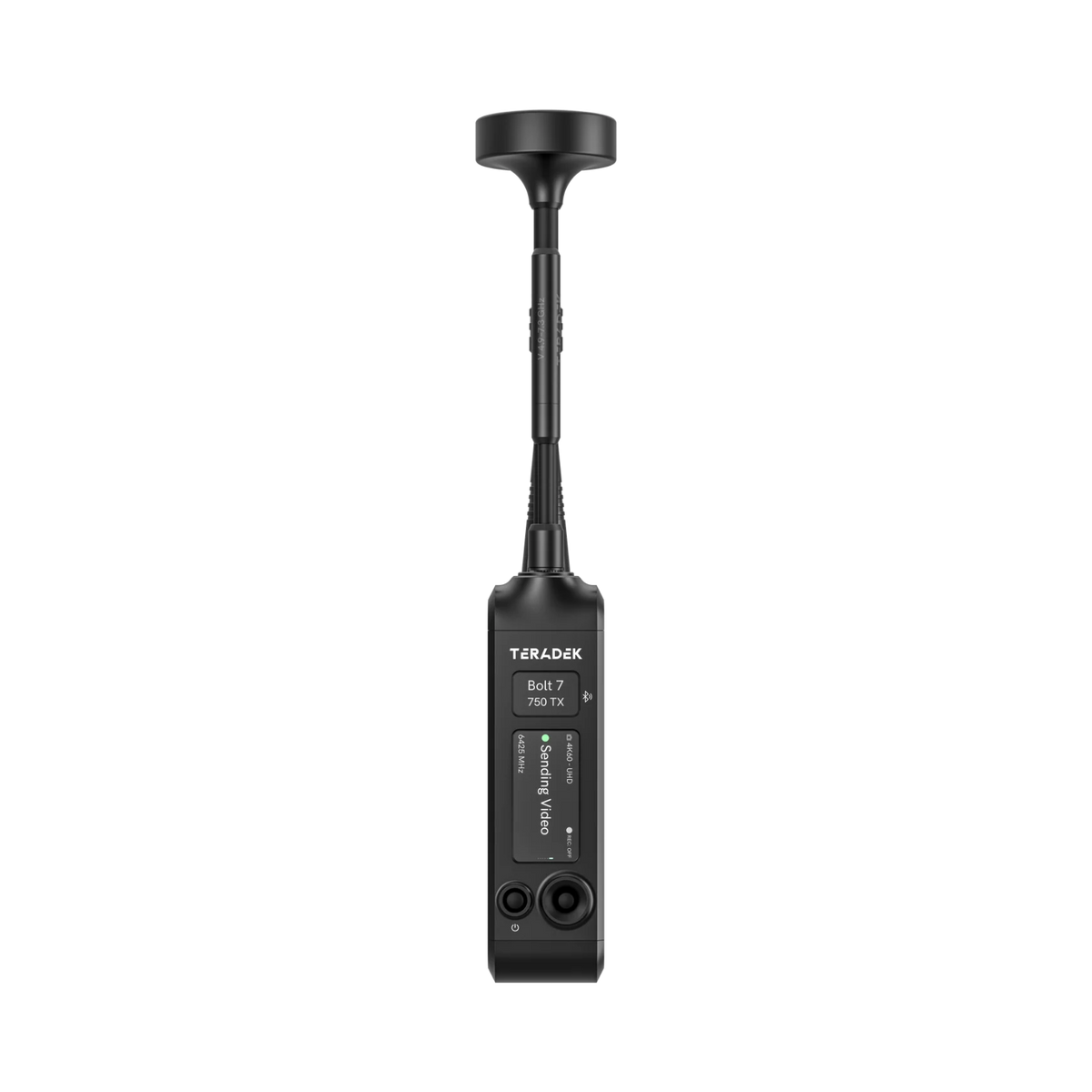

The redesigned Bolt 7 chassis is smaller and lighter, making it easier to integrate into modern cinema cameras, broadcast cameras, and production rigs. A new full-color OLED display provides at-a-glance system information and helps streamline configuration and pairing.

Bolt 7 also works with the Teradek Bolt App, providing additional control and configuration options for production teams.

Backward Compatibility with Teradek Bolt Systems

Bolt 7 is designed to work with existing Teradek Bolt 4K, Bolt 6, and RF-X systems, helping productions expand their wireless video capabilities while maintaining compatibility with equipment already in their workflow.

This backward compatibility can be particularly useful for production companies and rental organizations managing multiple generations of Teradek wireless video equipment.

Flexible Wireless Video Range Options

The Bolt 7 family is available in multiple range configurations to accommodate different production environments:

Bolt 7 750: Up to 750 ft (228 m)
Bolt 7 1500: Up to 1,500 ft (450 m)
Bolt 7 MAX: Up to 5,000 ft (1.5 km)

The Bolt 7 750 provides a compact wireless video solution for productions that need reliable 4K connectivity across a typical set, stage, venue, or production area.

USB-C and Professional Camera Workflows

Bolt 7 also supports DisplayPort Alt Mode over USB-C on compatible cameras. This allows emerging camera workflows to use a single USB-C connection for video and communications, helping reduce the number of physical connections required on supported camera systems.

Optional battery solutions are available with Gold Mount, Gold Mount Plus, and V-Mount battery cradles, providing additional flexibility for professional camera configurations.

Built for Cinema, Sports, Broadcast, and Live Events

The Teradek Bolt 7 750 is designed for professional video applications where low-latency wireless video and dependable connectivity are essential. Common applications include:

Feature film and television production
Commercial and corporate video production
Live sports production
Broadcast and live events
Camera-to-monitor wireless video
Wireless camera control
Multi-camera production environments
Professional cinema camera rigs
On-set video monitoring

With zero-delay 4K HDR wireless video, 12G-SDI and HDMI connectivity, a dedicated 900 MHz data channel, and a 750-foot range, Bolt 7 750 provides a flexible wireless production solution while reducing cable complexity on set.

Specifications

Video

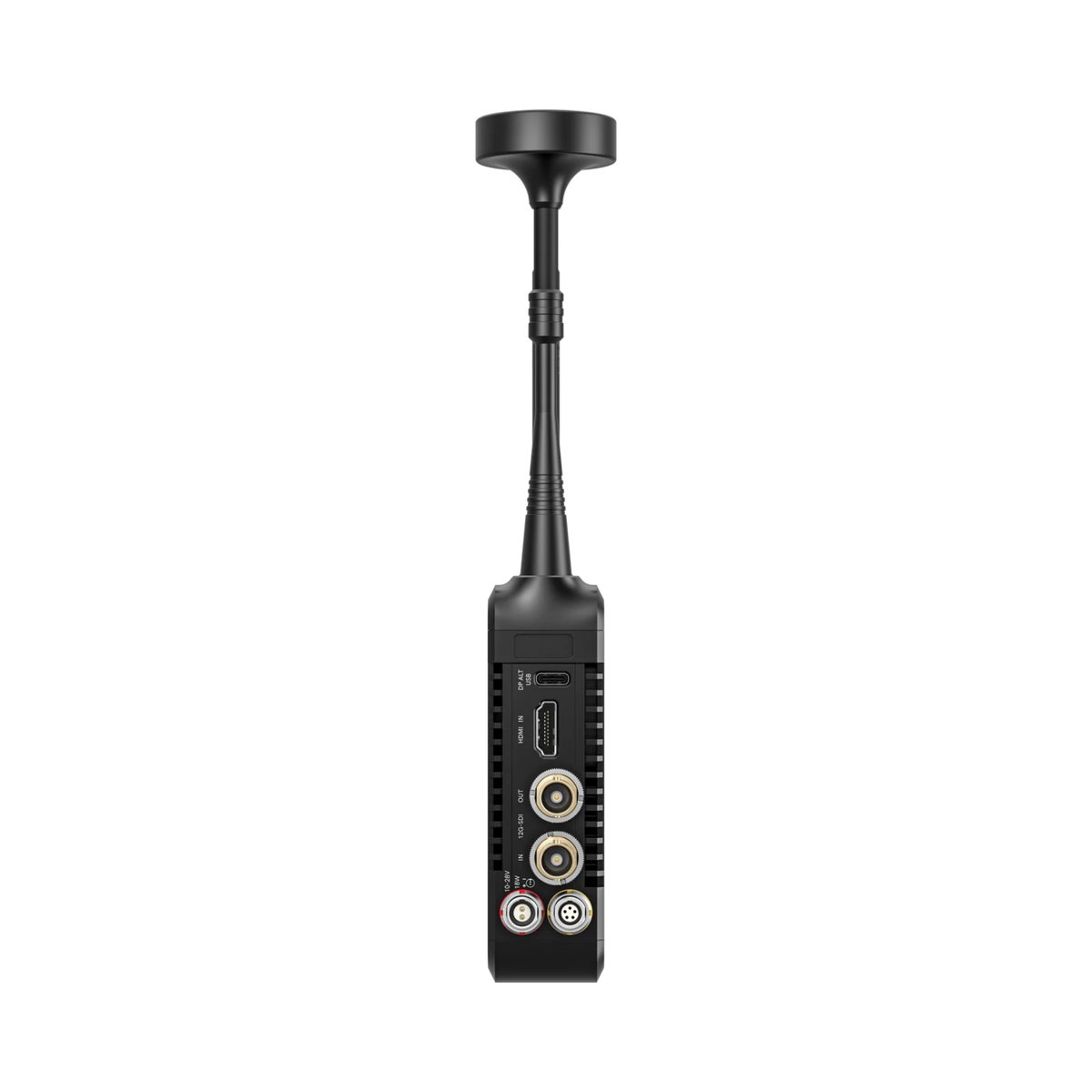

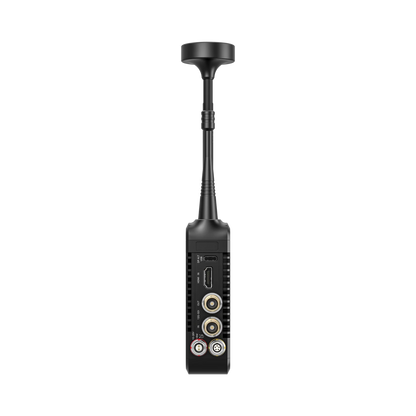

- Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video input
- Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
- Sdi Ancillary Data Support: Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras.
- Color Sampling: SDI: YCbCr 4:2:2, 10-bit. HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
- Delay Tx To Rx: <0.001sec
- Input Cross Conversion: Yes (HDMI input to SDI loopout)
- Other Tools: SDI Eye Pattern Display
Supported Resolutions
- Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50, 480i(NTSC)/576i(PAL)
Video Processing
- Video Compression: Visually Lossless
- Color Correction: None
Audio Processing
- Audio Format: 48kHz 24-bit PCM
Physical
- Dimensions: 112 x 66 x 32 mm
- Weight: 400g (14.1 Oz)
- Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

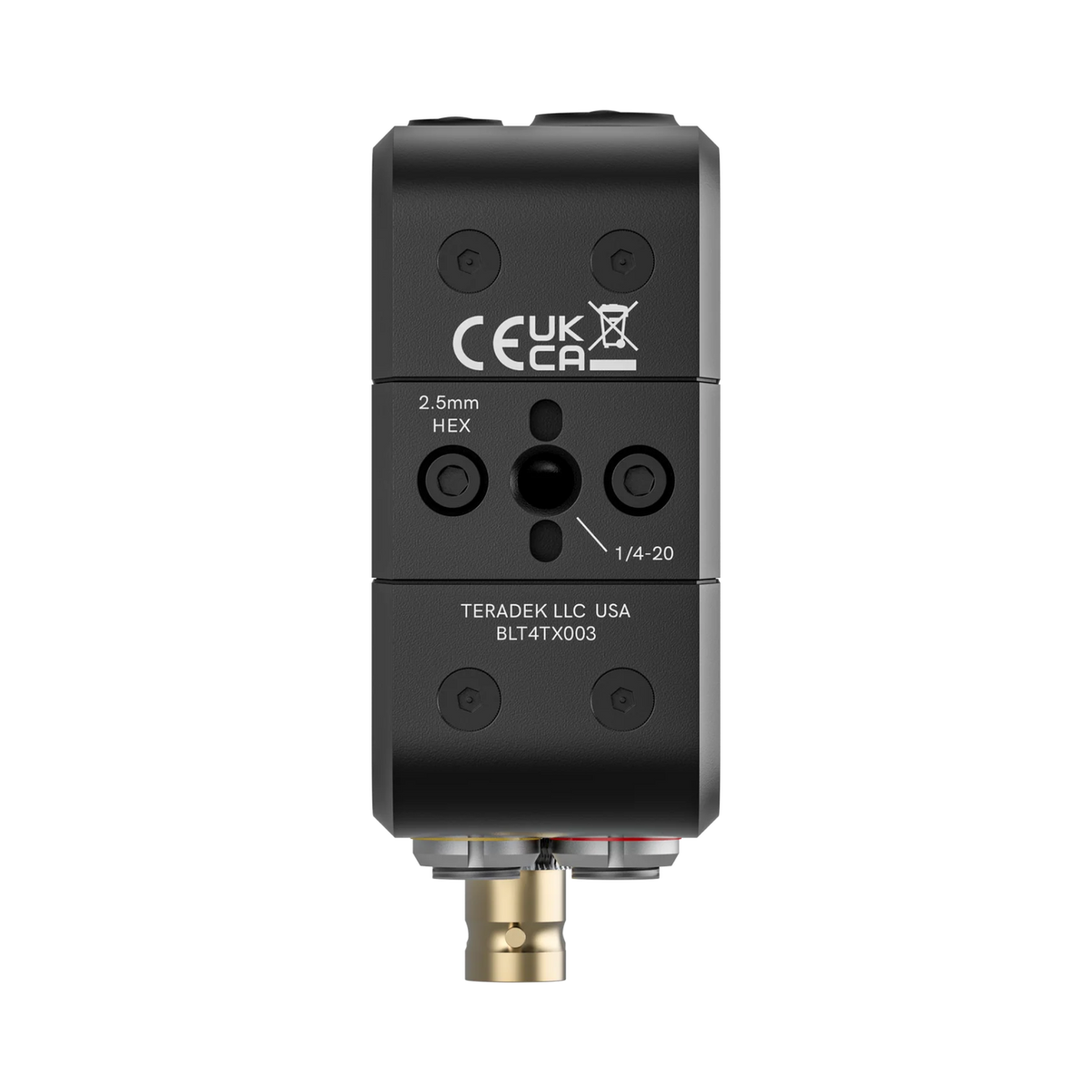

- Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Interfaces
- Configuration Interfaces: Color OLED with Menu, Joystick Navigation
- Switches: On/Off Switch
- Usbc Port: Firmware upgrade Display Port ALT mode video in Device setup via Bolt Manager desktop app
- Locking5Pin Usb Port: USB host port for camera control via smart cables (optional)
- Bluetooth Compatibility: BLE for device setup and monitoring via smart phone app
Network
- Ethernet: Via smart cable connected to Locking 5 pin USB port

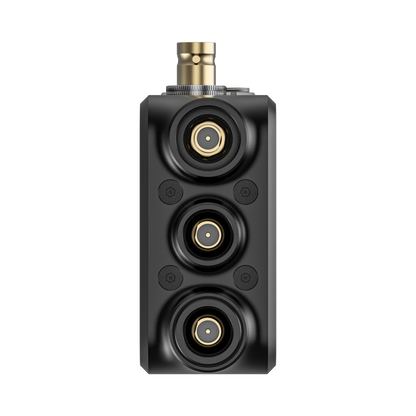

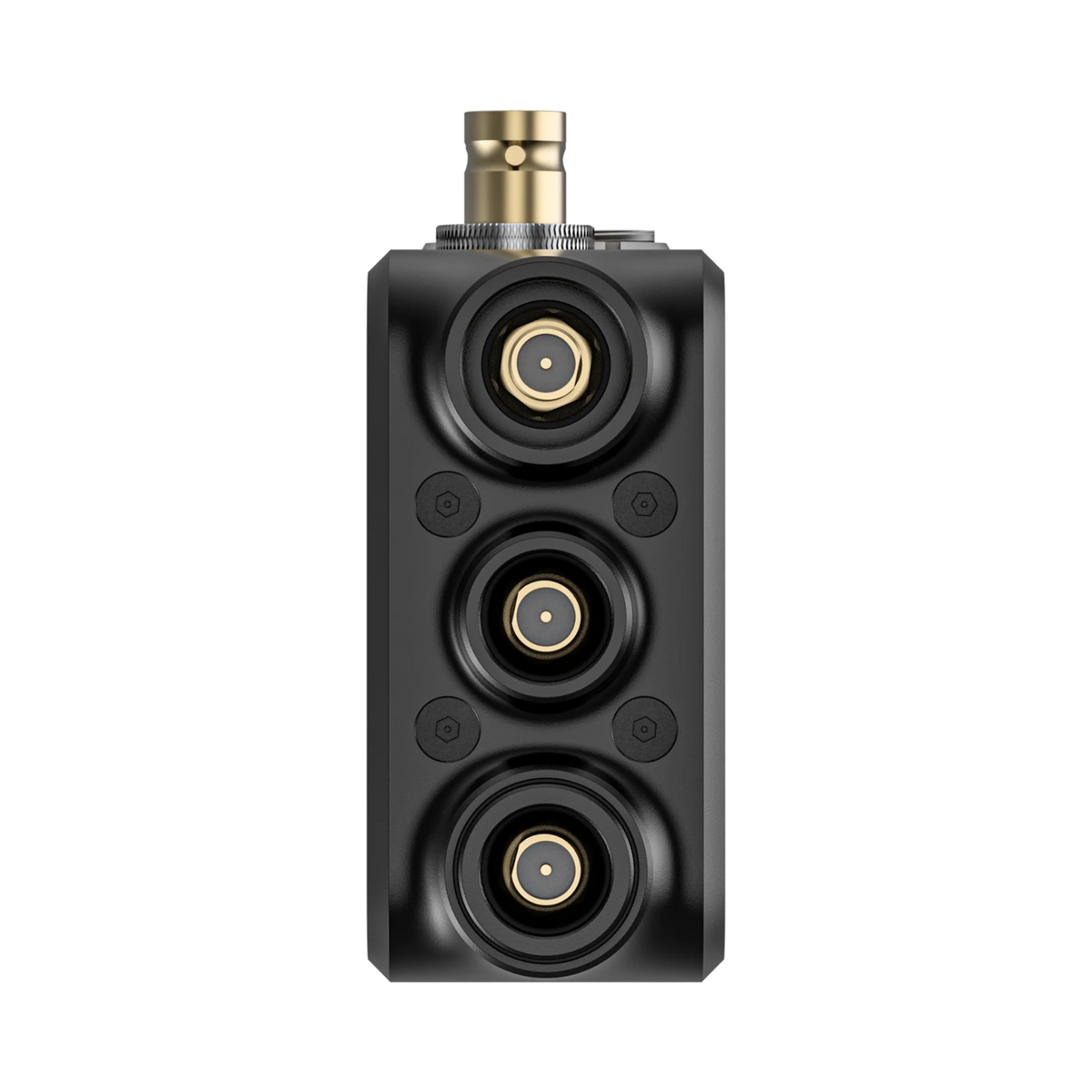

- Antennas: 3 External, 2 Internal
- Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
- Bluetooth: 2.4 GHz
- Rf Channel Selection: Auto, Manual
- Encryption: AES-256, RSA-1024 key exchange
- Rf Power: 23 dbm EIRP
- Range: Up to 750/1500 ft, line of sight
- Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
- Interoperability Compatibility: Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products
- Broadcast: No]
- Camera Control Radio: 900 MHz
Power
- Power Input: 2-Pin Circular locking Connector 6-28 VDC
- Battery: None, optional field installable Gold- or V-Mount dual battery plate
- Nominal Power Consumption: 20 Watts
Environmental
- Operating Temperature: 0-40℃
Inputs
- Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
