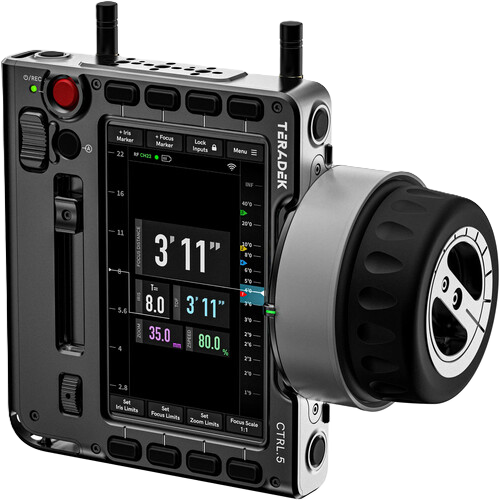

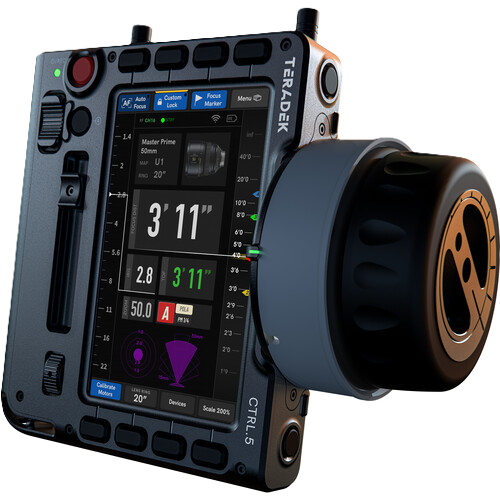

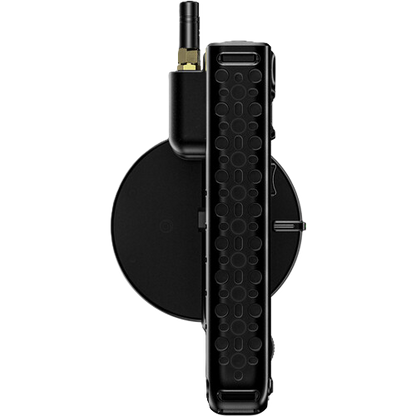

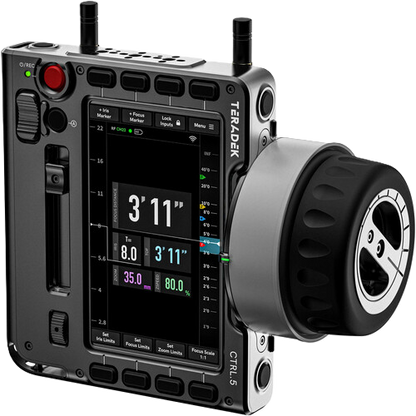

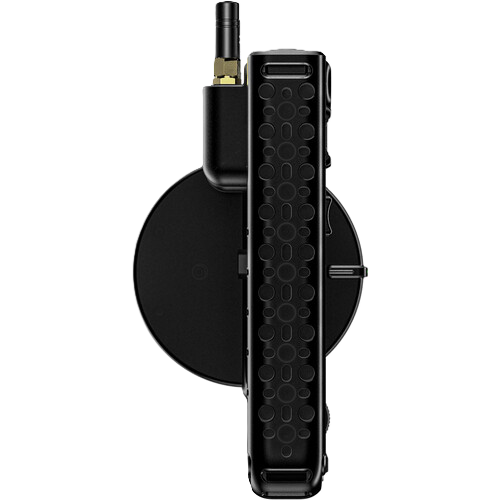

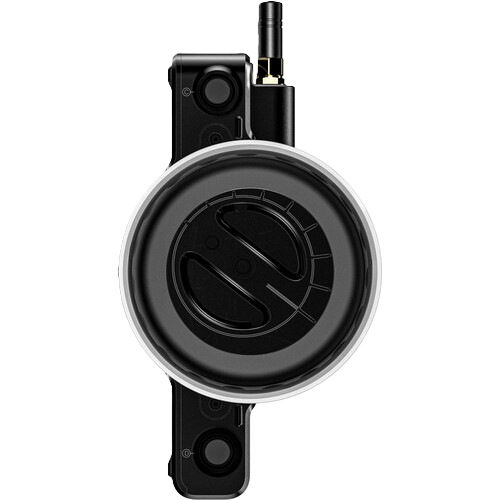

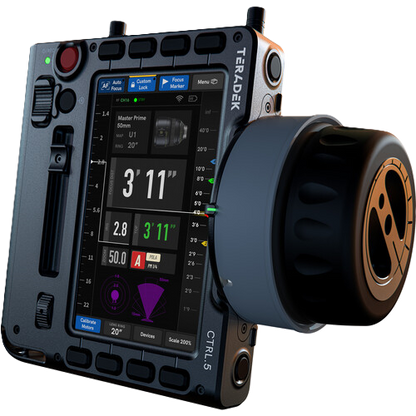

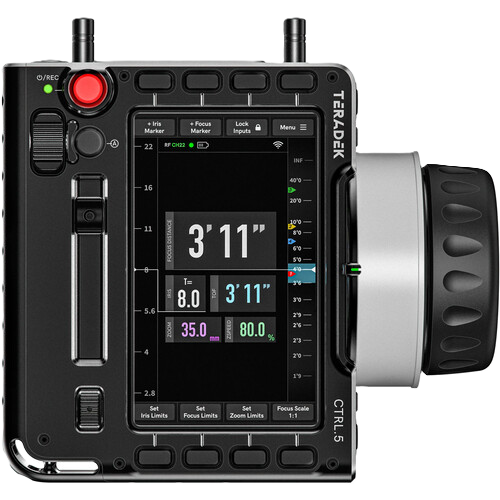

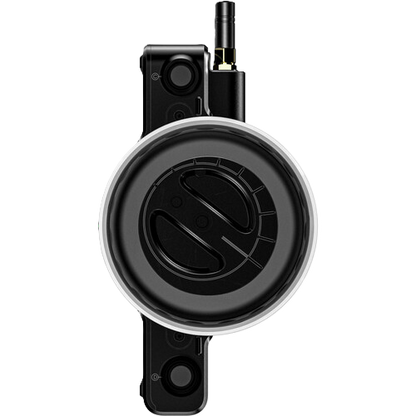

Teradek CTRL.5 Multi-Axis Hand Unit with Interactive Display

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

The CTRL.5 is not compatible with the older RT overlay cables. You will need either this 5-pin to USB A or this 5-pin to 5-pin cable and depending on your monitor, this dual 5-pin USB Adapter to convert your USB connection.

Features:

• 5-inch Ultra-bright Touchscreen
• CTRL.OS - page-based operating system
• WiFi based Camera control with license
• Visual Lens Library
• Cross-compatible with full Teradek RT Ecosystem

Power

• Power Input: NP-F
• Power Draw: 4w with back light off, 9w with back light full

Interfaces

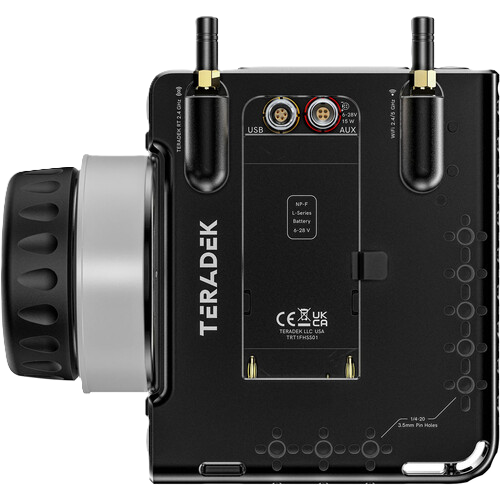

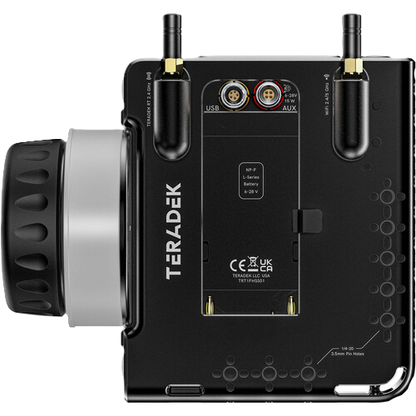

• Connectors: 5-pin USB port and 4-pin AUX port
• Runstop Control: RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
• Axes: 4 total: knob slider rocker wheel
• Bluetooth: Bolt Pairing and Control (coming soon)
• Display: 5 inch Highbright SmallHD

Network

• Wireless: FW Updates Camera Control (coming soon)
• Wireless Range: 5000 ft

Physical

• Dimensions: 6.6 x 6.6 x 3.3 (168.28 x 168.29 x 82.90 mm)
• Weight: 1lb 83 oz (830g)


• 1x CTRL.5
• 1x Blank Ring
• 2x 2.4GHz 28.4mm Antenna
• 1x Black Silicone Knob Grip
