Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Kit

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Kit

The Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Deluxe Kit provides professional zero-delay wireless video transmission up to 2,500 feet for live production, broadcast, sports, events, ENG, drones, gimbals, and handheld camera rigs. The system supports up to 1080p60 video over HDMI and 3G-SDI, with visually lossless transmission, 10-bit HDR support, and AES-256 encryption.

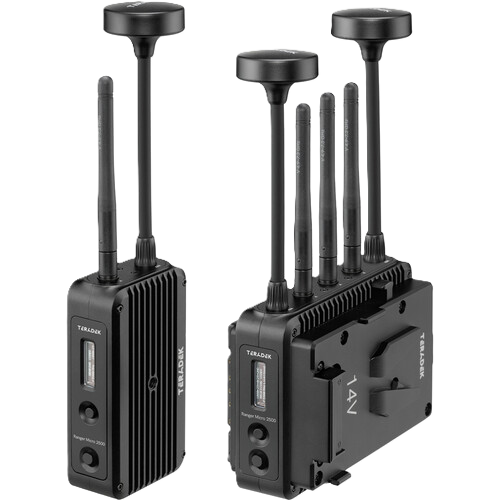

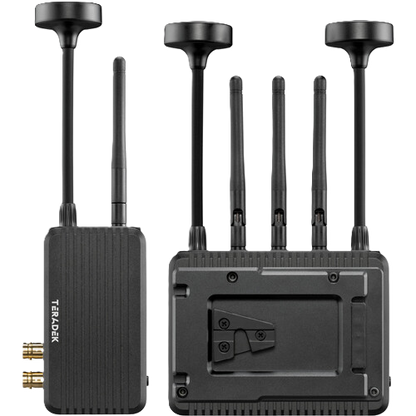

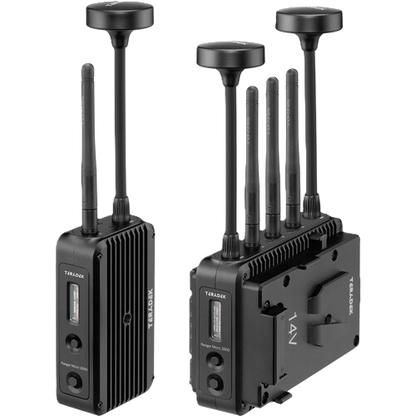

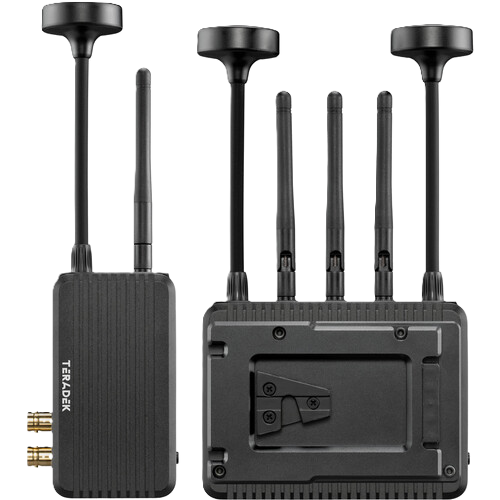

The kit includes a Ranger Micro 2500 transmitter, Ranger Micro 2500 V-Mount receiver, and Wooden Camera offset mounting bracket, giving production teams a complete wireless video solution for mobile and professional camera setups.

Key Features

• 2,500-foot wireless transmission range line of sight
• Supports up to 1080p60 video
• 3G-SDI and HDMI connectivity
• Zero-delay, visually lossless wireless video transmission
• Supports 10-bit HDR
• Transmit to up to six Ranger receivers
• AES-256 encryption for secure wireless video
• Broad 4.9 to 6.4 GHz frequency range
• Supports 5 GHz, licensed frequencies, and 6 GHz U-NII-5
• Bluetooth 5 LE for wireless configuration
• Configure and monitor the system with Teradek Launchpad software and mobile app
• Receiver supports V-Mount battery power
• Compatible with other Teradek Ranger series transmitters and receivers

Professional 2,500-Foot Wireless Video Transmission

The Ranger Micro 2500 is designed for demanding wireless video applications where reliable, low-latency transmission is critical. The system can transmit 1080p60 video up to 2,500 feet line of sight, making it well suited for live events, broadcast production, sports, houses of worship, film sets, ENG, drones, gimbals, and shoulder-mounted cameras.

Teradek's zero-delay wireless technology provides a responsive video feed without the noticeable delay associated with many compressed wireless transmission systems.

3G-SDI and HDMI Connectivity

The Ranger Micro 2500 transmitter accepts video through 3G-SDI or HDMI, providing flexible connectivity for professional cameras and production equipment. The transmitter also features an SDI loop output for local monitoring.

The receiver outputs video through 3G-SDI or HDMI, making it easy to connect the wireless feed to a monitor, switcher, recorder, or other production equipment.

Flexible Wireless Frequency Options

The Ranger Micro 2500 supports a wide 4.9 to 6.4 GHz wireless frequency range, giving production teams more options for managing RF congestion. Depending on configuration and regional requirements, the system supports 5 GHz, licensed frequencies, and the 6 GHz U-NII-5 band.

The 6 GHz U-NII-5 band provides access to additional channels of wireless spectrum, helping production teams find cleaner frequencies in crowded RF environments.

Secure, Visually Lossless Video

Built-in AES-256 encryption helps protect wireless video transmissions from unauthorized access. The Ranger Micro 2500 is designed to deliver visually lossless 1080p60 video with zero delay, making it appropriate for applications where image quality and real-time monitoring are essential.

Configure Ranger with Launchpad

Teradek Launchpad provides convenient system configuration and RF monitoring from a computer or mobile device. Using the Launchpad software or iOS/Android app, operators can:

• Pair transmitters and receivers
• Configure wireless channels
• Analyze RF frequency and signal amplitude
• Monitor channel strength
• View licensed and unlicensed frequency bands
• Monitor available RF spectrum
• Configure the system remotely using Bluetooth 5 LE

V-Mount Wireless Receiver

The included Ranger Micro 2500 receiver features a V-Mount battery plate, making it ideal for mobile production setups and camera-side monitoring. The receiver can also be powered through its 2-pin DC input and includes mounting threads for integration with cameras, cages, and production rigs.

What's Included

• Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter
• Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver with V-Mount
• Wooden Camera Offset Mounting Bracket for Teradek Bolt 4K LT TX

Built for Professional Live Production

The Teradek Ranger Micro 2500 wireless TX/RX kit combines long-range transmission, zero-delay performance, 3G-SDI and HDMI connectivity, secure AES-256 encryption, and flexible RF options in a compact system designed for professional production. With support for up to six receivers and compatibility across the Ranger product family, it can scale from compact camera rigs to larger live production workflows.

• Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter
  • 2 x N-Type Antenna
  • Limited 1-Year Manufacturer Warranty
• Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver (V-Mount)
  • 5 x 2 dBi Antenna
  • V-Mount Battery Plate
• Wooden Camera Offset Mounting Bracket for Teradek Bolt 4K LT TX
  • 2 x 1/4"-20 Captive Screw
  • Limited 1-Year Manufacturer Warranty
• Ranger Micro Deluxe Ship Kit
• Antenna Array
• 5 x RP-SMA Female Cable (4")
• 4 x Ranger 6 Battery Door (Machined Anodized)
• Light Stand Adapter (1/4"-20)
• Shoe Adapter Mount
• 8 x Flat Head Screw
• 2 x Ultrathin HDMI Type A Male Cable (18")
• 2-Pin to D-Tap Cable (18")
• 12G-SDI BNC Cable (18")
• USB-A 2.0 Male to USB-C Male Cable (3.3')
• Carry Case XL
• 2 x 2-Pin 18W Power Supply with 6' Cable
• Clear Self-Sealing Bag
• Large Accessories Bag
