Description
- Experience uncompromising wireless performance with Ranger, the
only solution with true zero-delay (<1ms) transmission, visually
lossless image quality, and wide spectrum operation over licensed
and unlicensed bands. And now with support for 6GHz (U-NII-5),
Ranger offers 12 additional RF channels free of interference.
- ZERO-DELAY
Go from TX to RX in .001 seconds –
perfect for IMAG and live event
production.
- VISUALLY LOSSLESS 4K HDR
Transmit video in exceptional detail –
superior to HEVC and H.264 solutions.
- AES-256 ENCRYPTION
Keep your video transmission
confidential and secure.
- GRANULAR FREQUENCY CONTROL
Make adjustments to the frequency of
your signal in 5 MHz increments.
- LICENSED & UNLICENSED
FREQUENCIES
Operate from 4.9 GHz to 6.4 GHz on
licensed and unlicensed bands.
- INTERCOMPATIBLE
Pair any previous and current Ranger systems together.
-
State-of-the-art hardware. Designed for professional video production. The Ranger Series is
powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video
transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly
within a variety of professional broadcast, sports, and ENG applications, including hand-held
gimbals, drones, and shoulder-mounted production cameras.
Specifications
- Video I/O
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
- Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
- Latency
< 0.01 ms
- Video Format
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
- Battery Type
1x Gold Mount
- Power Consumption
11 W
- Mounting
1x 1/4"-20 Female

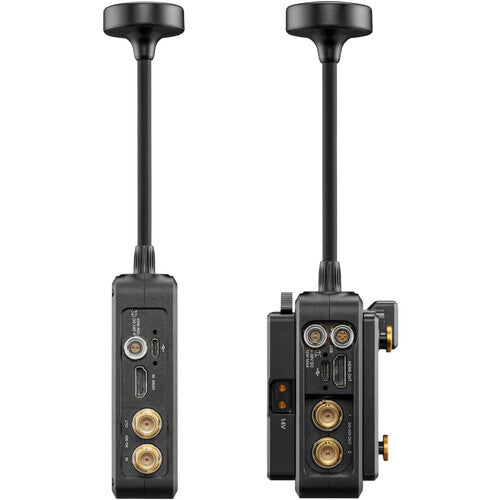

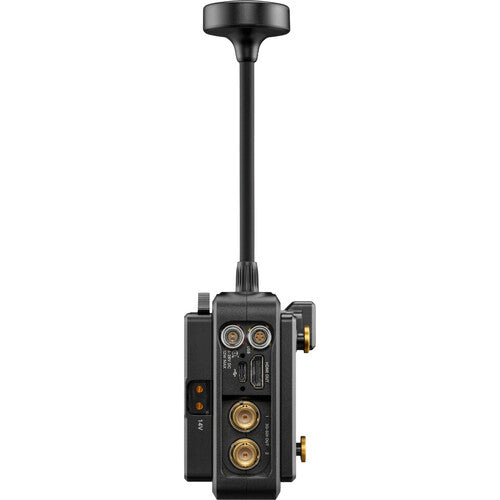

- Inputs / Outputs:

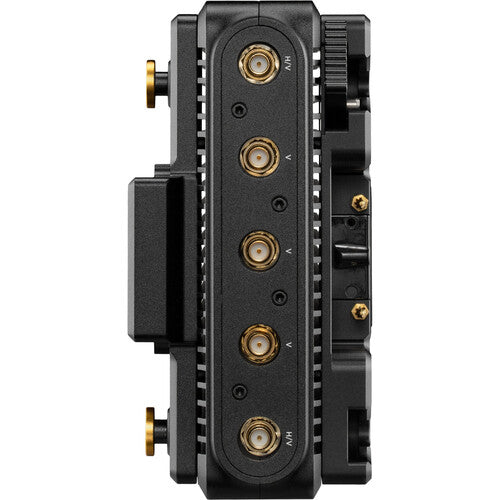

- Antenna I/O
5x RP-SMA Female
- Video I/O
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
- Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
- Audio I/O
No
- Power I/O
1x LEMO 2-Pin (28 VDC) Input
- Other I/O
1x USB-C (Firmware) Input
- Encryption
256-Bit AES
- Wireless:
- Wireless Range
750' / 228.6 m (Line-of-Sight)
- Channel Bandwidth
40 MHz, 20 MHz
- Frequency Range
US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz
US: 5.35 to 5.47 GHz
US: 5.85 to 5.92 GHz
Non-DFS Frequencies
US: 5.15 to 5.25 GHz
US: 5.72 to 5.85 GHz
DFS Frequencies
US: 5.25 to 5.35 GHz
US: 5.47 to 5.72 GHz
- Latency
< 0.01 ms
- RF Power
21 dBm
- Wi-Fi
No
- Bluetooth
5.0 LE
- Mobile App Compatible
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
- Cellular Support
No
- Format Support:
- Video Format
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
- Video Standard Compliance
SMPTE 424M
- Audio Format
2-Channel 24-Bit 48 kHz
- Wireless Video Compression
Uncompressed
- Timecode Support
Yes
- Power:
- DC Input Power
7 to 28 VDC
- Battery Type
1x Gold Mount
- Power Consumption
11 W

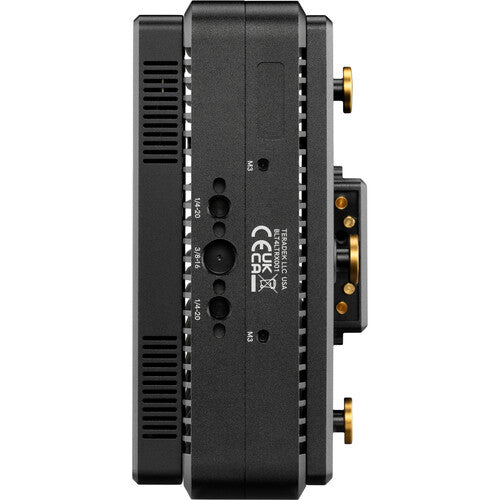

- Mounting:
- Mounting
1x 1/4"-20 Female
- Environmental:
- Operating Temperature
32 to 72°F / 0 to 40°C
- General:
- Material of Construction
Aluminum, Polycarbonate
- Dimensions
4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
- Weight
10.3 oz / 292 g
- Packaging Info:
- Package Weight
4.26 lb
- Box Dimensions (LxWxH)
16.7 x 9.2 x 3.5"
What's Included
5 x 2 dBi Antenna

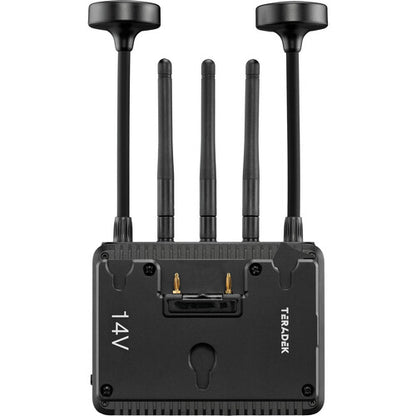

Gold Mount Battery Plate
Limited 1-Year Manufacturer Warranty
