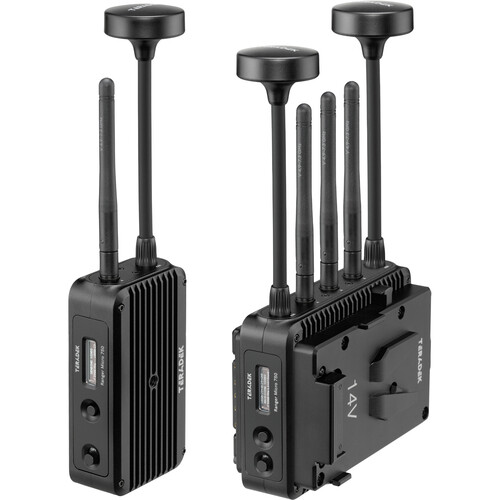

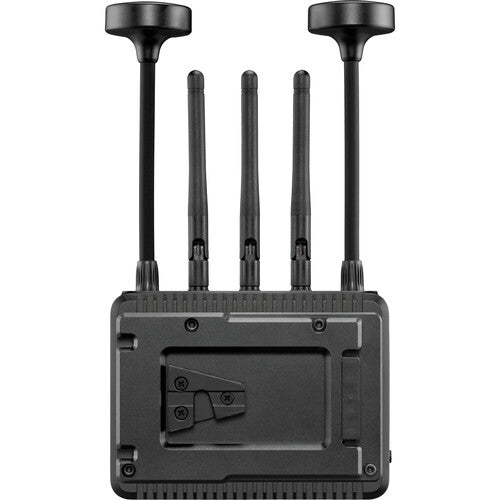

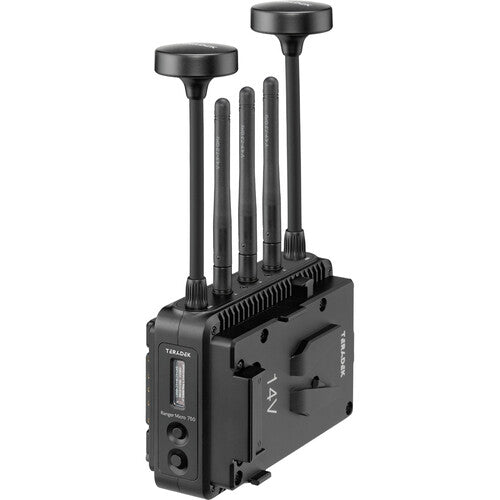

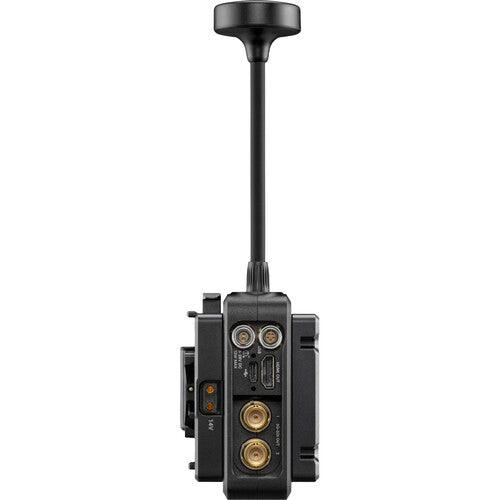

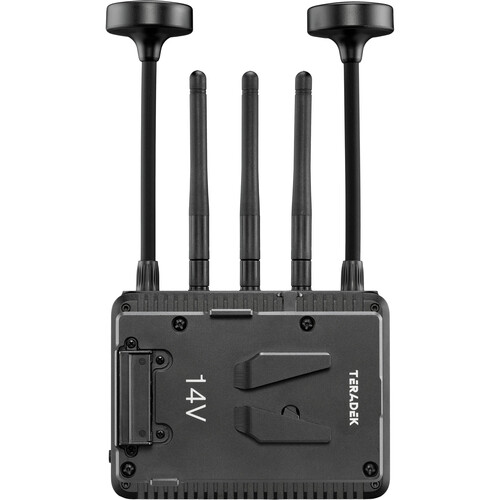

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)

Regular price$4,990.00
/
Free Shipping & Tech Support.

MFR Part # (MPN): 10-2530-V
Videoguys Part # (SKU): TER102530V

Short Description:
  • Free Shipping & Tech Support
  • Experience uncompromising wireless performance with Ranger, the
    only solution with true zero-delay (<1ms) transmission, visually
    lossless image quality, and wide spectrum operation over licensed
    and unlicensed bands. And now with support for 6GHz (U-NII-5),
    Ranger offers 12 additional RF channels free of interference.



  • ZERO-DELAY
    Go from TX to RX in .001 seconds –
    perfect for IMAG and live event
    production.



  • VISUALLY LOSSLESS 4K HDR
    Transmit video in exceptional detail –
    superior to HEVC and H.264 solutions.



  • AES-256 ENCRYPTION
    Keep your video transmission
    confidential and secure.



  • GRANULAR FREQUENCY CONTROL
    Make adjustments to the frequency of
    your signal in 5 MHz increments.



  • LICENSED & UNLICENSED
    FREQUENCIES
    Operate from 4.9 GHz to 6.4 GHz on
    licensed and unlicensed bands.



  • INTERCOMPATIBLE
    Pair any previous and current Ranger systems together.




  • State-of-the-art hardware. Designed for professional video production. The Ranger Series is
    powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video
    transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly
    within a variety of professional broadcast, sports, and ENG applications, including hand-held
    gimbals, drones, and shoulder-mounted production cameras.



  • Video I/O
    1x HDMI 2.0 Output
    1x BNC (3G-SDI) Output

  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel

  • Latency
    < 0.01 ms

  • Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    480p: 60/59.94
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 59.94


  • Battery Type
    1x V-Mount

  • Power Consumption
    11 W

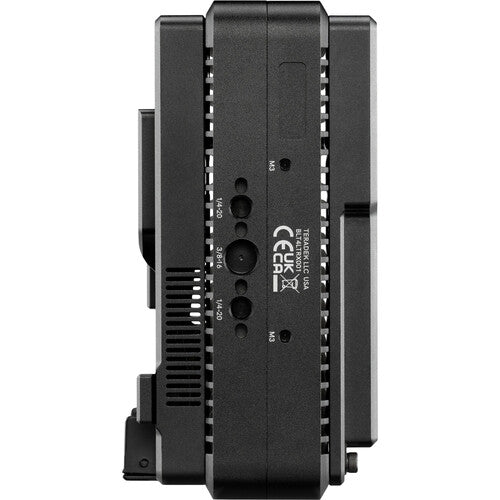

  • Mounting
    1x 1/4"-20 Female

  • Inputs / Outputs:

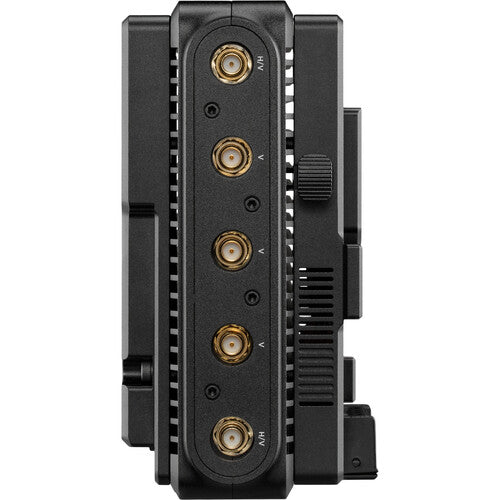

  • Antenna I/O
    5x RP-SMA Female

  • Video I/O
    1x HDMI 2.0 Output
    1x BNC (3G-SDI) Output

  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel

  • Audio I/O
    No

  • Power I/O
    1x LEMO 2-Pin (28 VDC) Input

  • Other I/O
    1x USB-C (Firmware) Input

  • Encryption
    256-Bit AES

  • Wireless
    Wireless Range:
    750' / 228.6 m (Line-of-Sight)

  • Channel Bandwidth
    40 MHz, 20 MHz

  • Frequency Range
    US: 5.92 to 6.42 GHz
    US: 4.85 to 5.15 GHz
    US: 5.35 to 5.47 GHz
    US: 5.85 to 5.92 GHz
    Non-DFS Frequencies
    US: 5.15 to 5.25 GHz
    US: 5.72 to 5.85 GHz
    DFS Frequencies
    US: 5.25 to 5.35 GHz
    US: 5.47 to 5.72 GHz

  • Latency
    < 0.01 ms

  • RF Power
    21 dBm

  • Wi-Fi
    No

  • Bluetooth
    5.0 LE

  • Mobile App Compatible
    Yes: Android & iOS
    Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

  • Cellular Support
    No

  • Format Support
    Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    480p: 60/59.94
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 59.94

  • Video Standard Compliance
    SMPTE 424M

  • Audio Format
    2-Channel 24-Bit 48 kHz

  • Wireless Video Compression
    Uncompressed

  • Timecode Support
    Yes

  • Power:

  • DC Input Power
    7 to 28 VDC

  • Battery Type
    1x V-Mount

  • Power Consumption
    11 W

  • Mounting:

  • Mounting
    1x 1/4"-20 Female

  • Environmental
    Operating Temperature
    32 to 72°F / 0 to 40°C

  • General:

  • Material of Construction
    Aluminum, Polycarbonate

  • Dimensions
    4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm

  • Weight
    10.3 oz / 292 g


5 x 2 dBi Antenna

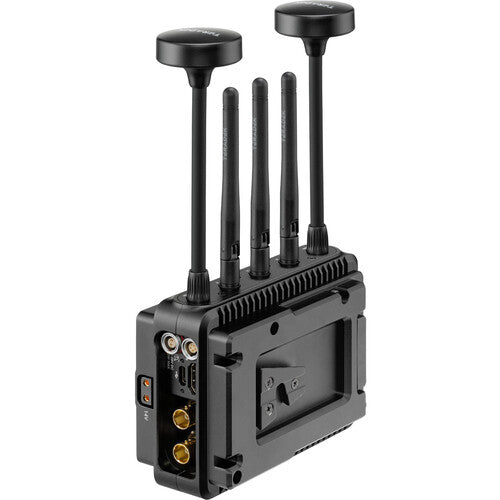

V-Mount Battery Plate
Limited 1-Year Manufacturer Warranty
