Teradek Slice Rack Mount HD-SDI H.264 Decoder
Teradek Slice Rack Mount HD-SDI H.264 Decoder

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): SLICE356
Slice Rack Mount HD-SDI H.264 Decoder
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

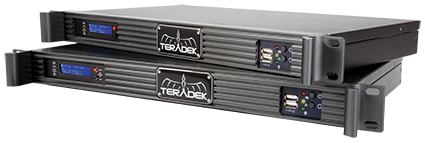

Slice 356 is a 1U rack mount H.264 decoder built for OB vans and enterprise applications. It enables video professionals to output low latency high definition 1080p video at up to 10Mbps via HD-SDI. Slice 356 includes 2.4/5Ghz MIMO WiFi, ethernet, and cellular connectivity options and supports multiple transport protocols, including MPEG Transport Stream, RTP/RTSP, and Zixi. With the addition of Teradek's Sputnik server, Slice 356 rack mount encoders gain IFB and remote monitoring capabilities that give broadcasters full control over their IP video deployments.


Technical Specifications





VIDEO OUTPUTS


HD-SDI, SD-SDI: BNC





SUPPORTED RESOLUTIONS


1080i 50/59.94/60


1080p 23.98/24/25/30


1080PsF 23.98/24/25


720p 50/59.94/60


576i


480i





VIDEO CODEC


Compression Algorithm: Baseline, Main and High Profile H.264


Main and Baseline profiles


Bit Rate: 250 Kbps to 10 Mbps


Built in Video Scaler and Deinterlacer





VIDEO STREAMING SUPPORT


Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP


Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS**


HTTP Live Streaming


Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)**





AUDIO


Audio Compression: AAC-LC, MPEG Layer 2


Embedded Audio Input


Analog Line Out


Mic in, adjustable gain


Headphone output, adjustable volume





PHYSICAL


Dimensions: 1U rack mount


Weight: 9lbs (144oz)





INTERFACES


Feature-rich WebUI for configuration and control


OLED LCD Display with joystick Navigation buttons


On/Off and Reset Switch


Micro SD


Powered USB 2.0 host port








NETWORK


Ethernet: 10/100BASE-T





POWER


110/240V AC Power input


Nominal Power Consumption: 2.5W + 2.5W (max) per USB device
