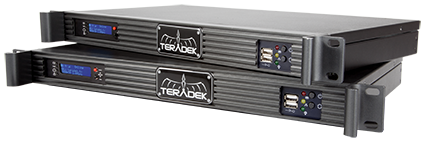

Teradek Slice 166 Rack Mount HD-SDI H.264 Encoder (includes MPEG-TS)
Teradek Slice 166 Rack Mount HD-SDI H.264 Encoder (includes MPEG-TS)

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): SLICE166
Teradek Slice 166 Rack Mount HD-SDI H.264 Encoder
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

Rack Mount H.264 Encoder



Slice is a rack mount HD-SDI high profile H.264 encoder and decoder solution for mission critical enterprise applications. Slice enables video professionals to broadcast low latency high definition 1080p video for IPTV, streaming servers, OTT content, set-top boxes, and recorders at an unprecedented price.



Comprehensive Protocol Support



Slice encoders output a variety of stream types, including MPEG Transport Stream, RTMP, RTSP, and RTP Multicast. When broadcasting over Ethernet, Slice can utilize the powerful Zixi protocol, which ensures pristine HD quality video over challenging network environments.



Additional Features



Slice supports all standard resolutions up to 1080p at 10mbps. With the addition of a Sputnik server, Slice can utilize IFB communication and remote monitoring features that give broadcasters full control over their IP video deployments. Moreover, Sputnik allows Slice encoders to tunnel through firewalls, which means opening ports is a thing of the past.



Sputnik 2.0



Sputnik is Teradek's free software application between Edge and your streaming destination. Sputnik is designed to run on a Linux computer either in the Cloud (using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines packets from connected cellular modems into a cohesive video stream that can be sent to an H.264 decoder, computer, or viewed online.



Core Fleet Management



Core is Teradek's new cloud-based encoder fleet management system. From a single elegant web GUI, you can monitor and control all of your Teradek encoders, cellular bonding systems, and decoders effortlessly. The interface allows you to direct streams from any one encoder to any number of decoders, even if both are behind firewalls or on private networks. All the encoding and transmission parameters can be controlled remotely from any location, allowing your field reporters to focus on the content and not the transmission gear. The automatic device discovery and drag and drop workflow makes entering IP addresses a thing of the past, while customizable warnings and notifications ensure that things keep operating smoothly.

VIDEO INPUTS


HD-SDI, SD-SDI: BNCs





Looping VIDEO OUTPUTS


HD-SDI, SD-SDI: BNC





SUPPORTED RESOLUTIONS


1080i 50/59.94/60


1080p 23.98/24/25/30


1080PsF 23.98/24/25


720p 50/59.94/60


576i


480i





VIDEO CODEC


Compression Algorithm: Baseline, Main and High Profile H.264


Main and Baseline profiles


Bit Rate: 250 Kbps to 10 Mbps


Built in Video Scaler and Deinterlacer





VIDEO STREAMING SUPPORT


Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP


Transport Protocols: Zixi, RTP, RTSP, RTP over HTTP, MPEG-TS**


RTMP (Adobe Flash Streaming)


HTTP Live Streaming


Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)**





AUDIO


Audio Compression: AAC-LC, MPEG Layer 2


Embedded Audio Input


Analog Line or Mic in, adjustable gain


Headphone output, adjustable volume





PHYSICAL


Dimensions: 1U rack mount


Weight: 9lbs (144oz)





INTERFACES


Feature-rich WebUI for configuration and control


OLED LCD Display with joystick Navigation buttons


On/Off and Reset Switch





NETWORK


Ethernet: 10/100BASE-T


WiFi: Dual Band 802.11 a/b/g/n MiMO





Power


110/240V AC Power input


Nominal Power Consumption: 5W + 2.5W (max) per USB device
