Regular price$749.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): TER101856
MFR Part # (MPN): 10-1856

Short Description:

Teradek Spark 4K TX

Built on award-winning tech. Built for reliability. Built with your A/V needs in mind.

Spark 4K TX is a wireless transmitter that sends video signals up to 4Kp30 via HDMI, at a distance of up to 500 ft line-of-sight, with less than 1ms of delay.* Transport your 4K HDR video from source to screen with no perceivable delay.

Unleash high-quality, zero-delay wireless A/V transmission for conferences, live events, worship services, sports, and more.

Key features include dual-powering options for backup battery redundancy, lightweight design, signal status and pairing with the Launchpad desktop and mobile app, and multicast transmission.

Zero-Delay Signal Integrity
Transmit video with less than 1ms of delay.

Mobility
Get wireless coverage for up to 500 feet of range. Now, your computers, cameras, switchers, and gimbals are all within range with robust wireless connectivity.

4K HDR Color
Maintain premium video quality at 10-Bit 4:2:2 color sampling.

Smart Transmission
Transmit in crowded areas with confidence. Spark 4K uses the 5GHz frequency for less sensitivity to line-of-sight obstructions, and smart frequency hopping to automatically find a clear channel.

Lighter than lightweight
Spark TX weighs just 5.6oz, perfect for on-the-move camera work.

Video Processing
Visually Lossless

Audio Processing
48kHz 24-bit PCM

TX Internal Battery Life
Up to 2 hours.

Transmitter tested at 125 mins when transmitting at 1080i59, 104 mins when transmitting at 4Kp30.

Video


Video Inputs

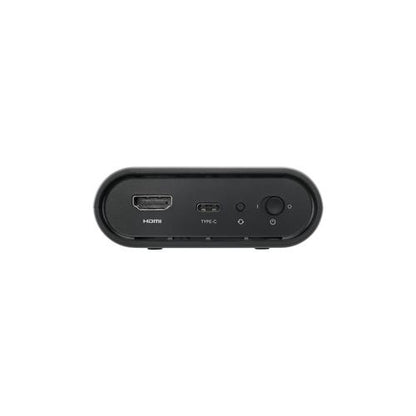

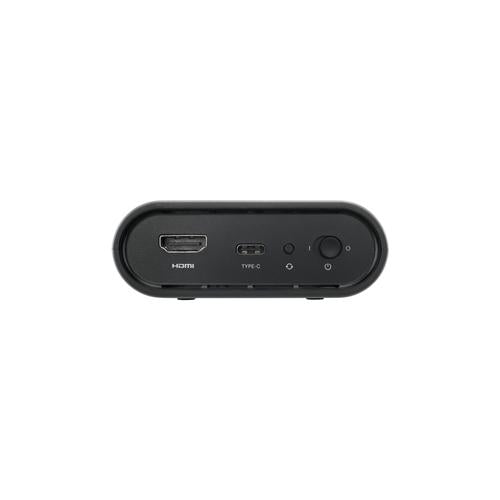

  • 1x HDMI 1.4b Type-A receptacle

Color Sampling
  • RGB 4:2:2, 10-bit

Delay Tx To Rx
  • <0.001sec (without format conversions)

Supported Resolutions


Supported Resolutions
  • 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60

Video Processing


Video Compression
  • Visually lossless

Audio Processing


Audio Compression
  • 48kHz 24-bit PCM
Inputs


Audio Input
  • Embedded HDMI Audio Input (2 channel)


Physical


Dimensions
  • 3.44” x 2.66” x 1.22” (87mm x 68mm x 31mm)

Weight
  • 158g (5.6 oz)

Construction
  • ABS Plastic

Mountability

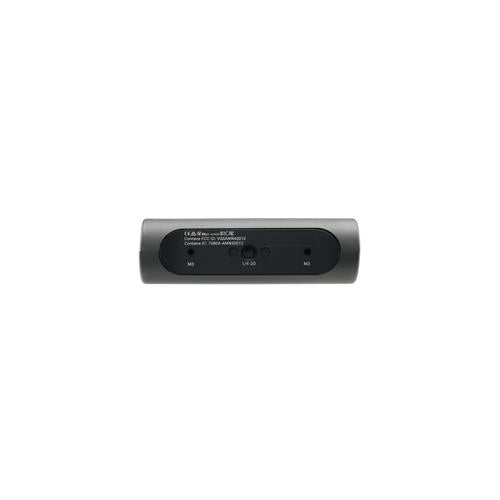

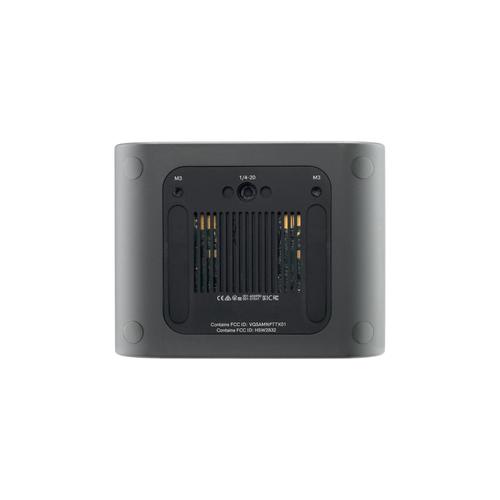

  • Multiple mounting options with M3 and 1/4-20” holes

Interfaces

Configuration Interfaces

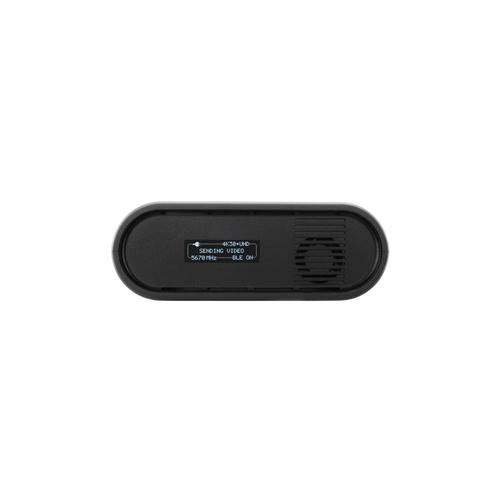

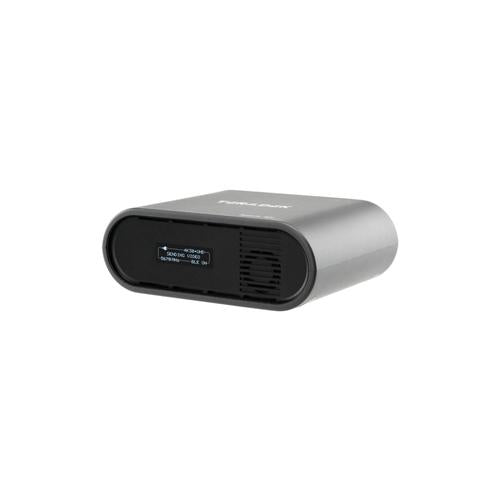

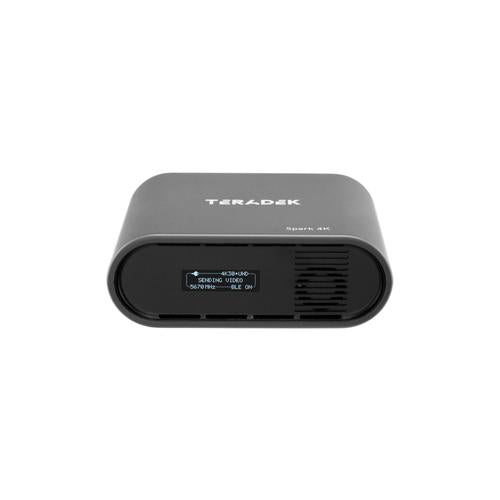

  • OLED display - Input video format, Selected frequency, Video Quality % , Link status
Switches
  • On/Off Switch
Mobile App
  • Launchpad App
Desktop App
  • Launchpad application for OSX & Windows
Usb Interface Functionality
  • Upgrade via Micro-USB
External Control
  • Enable/disable Bluetooth
Bluetooth
  • 2.4 GHz

Network
Wireless
  • DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz

Rf Channel Selection
  • Auto only, 40 MHz only, no blocked frequencies

Encryption
  • AES-128, RSA-1024 key exchange

Rf Power
  • 19 dbm EIRP (<80mW transmit power)

Range
  • Up to 500 ft line of sight

Unicast Multicast
  • Can connect one transmitter to up to 2 receivers

Noise Rejection
  • Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location

Power

Power Input
  • USB-C power input

Battery
  • Internal 9.5Wh battery (1.5hr run time)

Nominal Power Consumption
  • 5 Watts

Environmental

Operating Temperature
  • 0~40 deg-C

  • 1 x Spark 4K TX
  • 1 x Hot Shoe Adapter
  • 1 x Ultra Thin HDMI 18in Cable
  • 1 x PSU 30W USB-C Power Adapter
  • 1 x Quickstart Guide - Spark 4K
