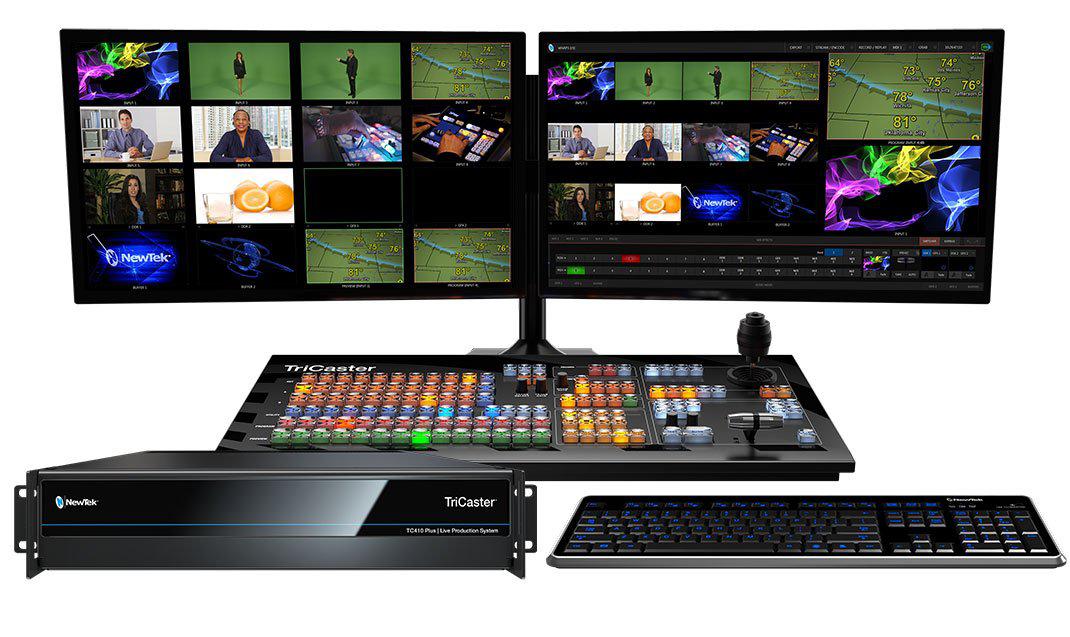

Vizrt TriCaster® TC410 Plus

Vizrt TriCaster® TC410 Plus

Regular price$10,495.00
/
Free Shipping & Tech Support.

{formbuilder:ODg5MTQ=}
Videoguys Part # (SKU): TC410P
MFR Part # (MPN): FG-003308-R001
Short Description:

TriCaster® TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand.

True broadcast-quality shows and more,
anywhere production takes you.

TriCaster® TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished, engaging to viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand. TriCaster 410 Plus is scaled for smaller racks and mobile units and gives you an end-to-end IP workflow from acquisition to delivery.

Revolutionize your mobile and studio productions with:

  • Mid-size production power including 4 M/E mixing, up to 8 external inputs, and 4 mix outputs
  • NDI® integration for video, audio, and data transmission over IP
  • Real-time social media publishing
  • Streaming to Facebook Live, Twitch, and more
  • Multi-channel recording and internal storage
  • Video playback without any additional hardware
  • Integrated multiviewers for monitoring
  • Multi-channel audio mixing
  • Built-in video playback, data-driven graphics, compositing, effects, and more.

Reach Diverse Viewers

Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more

Share media to multiple user accounts on your favorite social networks, like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more

Customize Workflows

  • Connect cameras directly or expand your available live sources over IP
  • Flex your workspace and control to suit a single operator or a small team
  • Output to one or multiple destinations simultaneously—on site or across the network

Automate Tasks

Record common moves with macros, and expand your production possibilities while reducing any on-air mistakes


Streamline sequences with a single action when they’re too complicated to execute live. Use MIDI control, on-camera hotspots, and PTZ cameras to make smaller productions look like larger shows.

World-Class Live Virtual Sets

Save on studio and set expenses without sacrificing production value. With integrated LiveSet technology, TriCaster® TC410 Plus can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software (sold separately).

Video Input
8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input
8 x IP video inputs via NDI, resolution-independent, with support for key and fill
SDI Video Input
4 x HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates 1
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25
  • 576i 25
  • 480i 59.94

1Available frame rates determined by session video standard (NTSC or PAL)

PTZ
Support for Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX
Native support for Skype® video call input via Skype TX software integration
Network Video Output
4 x independent IP video mix outputs via NDI®
SDI Video Output
2 x independently configurable HD/SD video outputs, with support for up to 4 simultaneous external connections
Stream Output
2 x resolution-independent streaming video output, independently configurable, with simultaneous stream archive
Multiviewer Output
1 x DVI user interface with multiviewer
1 x HDMI multiviewer
1 x DisplayPort multiviewer
Mix/Effect Buses (M/E)
4 x M/E buses supporting video re-entry
  • 1 x Mix/Effect channel per bus with support for up to 2 sources
  • 2 x KEY layers per bus
1 x PREVIZ configuration and preview bus
DSK Channels
2 x DSK channels
Media
5 x media players
  • 2 x DDR
  • 2 x GFX
  • 1 x Sound
Media Buffers
15 x media buffers
  • 5 x animation buffers
  • 10 x graphic buffers
Keyers
Integrated LiveMatte® chroma and luma keying technology on all source channels and M/E buses
  • 8 x input keyers
  • 4 x media player keyers
  • 4 x M/E keyers
  • 1 x PREVIZ keyer
  • 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configuration and DVE-style motion sequences
  • 16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet® technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink® technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Record, store, edit, and automate commands and user-configured operation sequences
  • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys® buttons or GPI triggers
  • Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
  • Supports control via web-based interface
Recording
6 x configurable video recording channels via IsoCorder® technology
  • 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2
  • 2 x H.264 local video recorder (multiple profiles)
  • Ability to trigger up to 6 additional recordings on select NDI-enabled devices
  • 1 x MP3 audio recorder
2 QuickTime Player not required for playback in common NLE applications
Storage
1 x 3TB internal drive
  • Capacity varies by format, resolution, and file specification
  • Supports recording to external storage via USB 3.0
  • Supports shared storage integration and third-party partner solutions
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer
Integrated multi-channel audio mixer with support for quad-channel audio, DSPs, 4 x 4 x 4 audio input channel routing
Local Audio Input
4 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4” stereo pairs Line)
Support for USB audio device input via compatible WDM audio drivers
Local Audio Output
4 x SDI embedded
1 x Balanced XLR stereo pair
1 x Balanced 1/4” stereo pair
1 x Stereo ¼” (phones)
Network Audio
Native support for network audio input and output via NDI®
Embedded audio supported for all NDI® input and output video signals
Integrated support3 for Dante® networking protocol from Audinate® Support for AES67 protocol via compatible WDM audio drivers 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) 4Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
Monitoring
Support for up to 3 multiviewer displays with configurable workspaces and viewports
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing
Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
A/V Standards
HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally
Support for hardware tally via HD15 GPI connector, network tally via NDI®, and Blackmagic Design® SDI tally standard
Genlock
Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive 250GB SSD
NIC
2 x 1 Gigabit NIC
System Physical
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
  • 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
