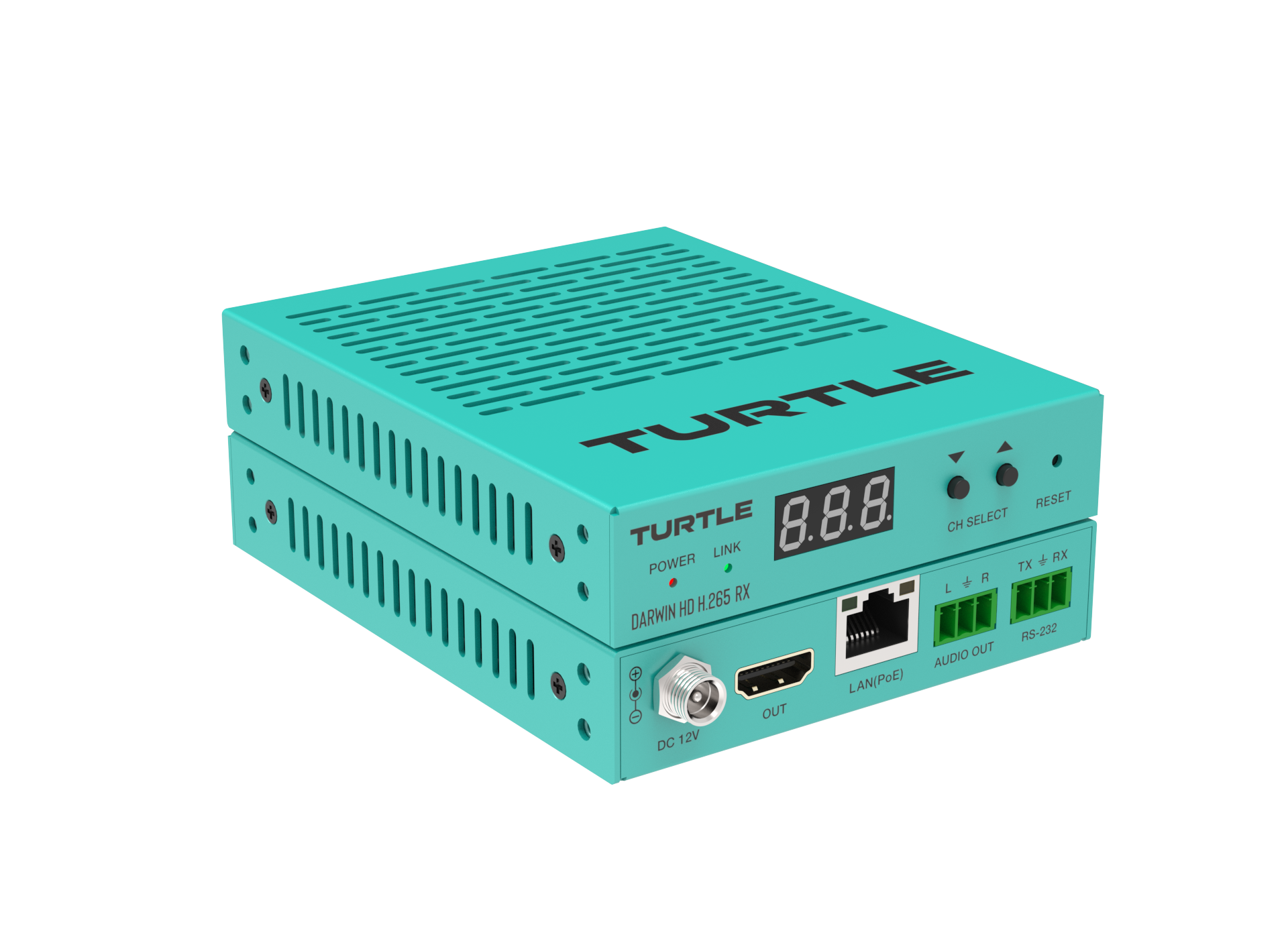

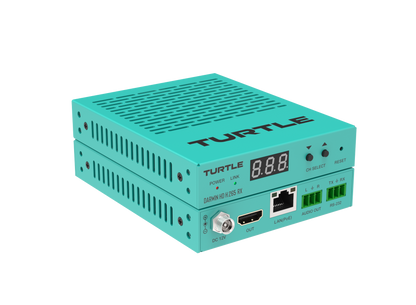

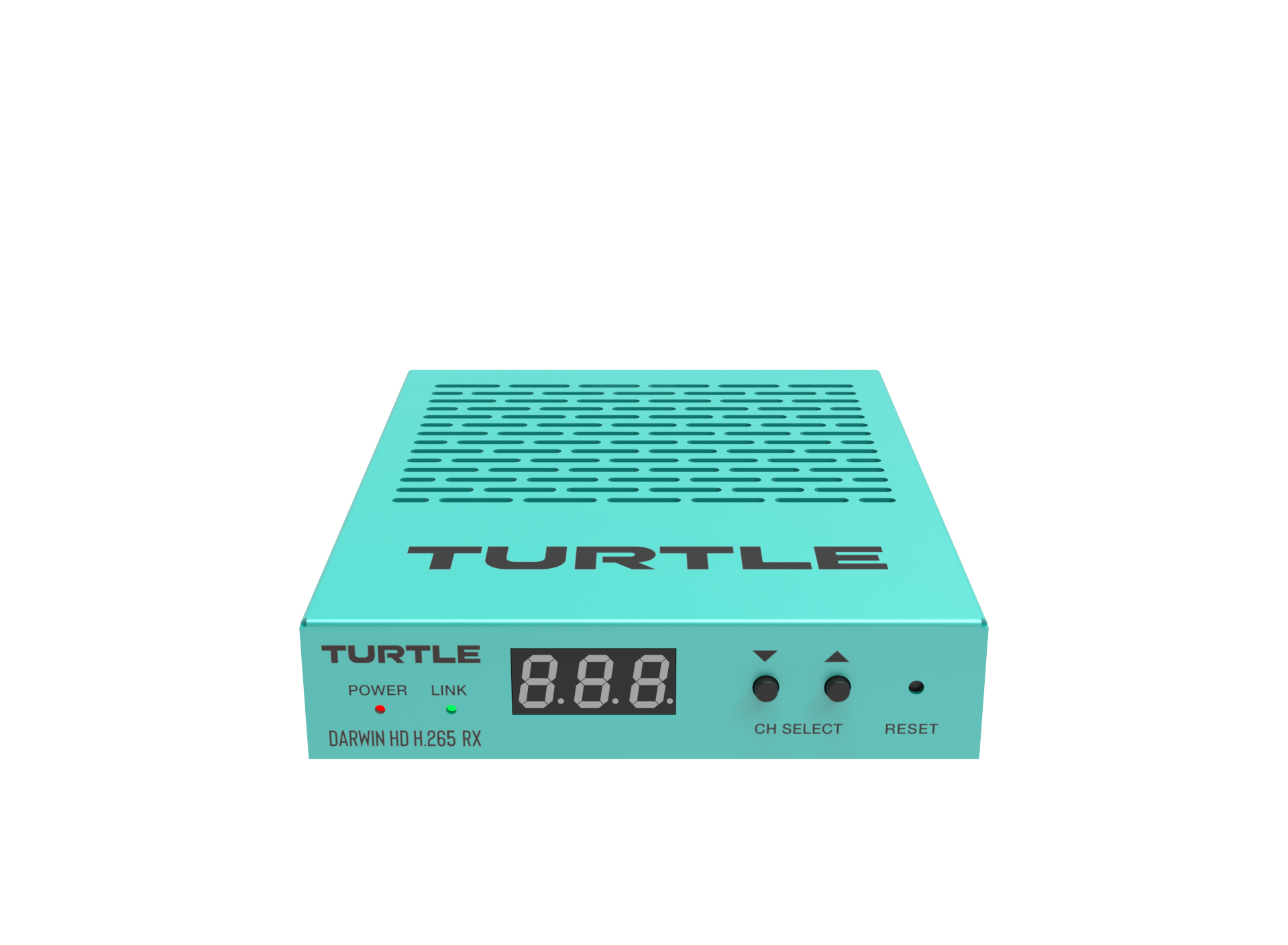

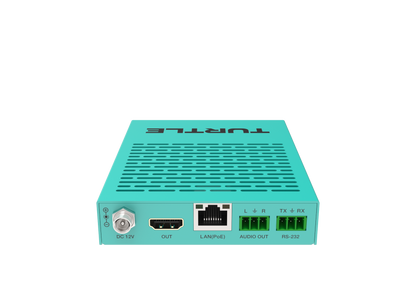

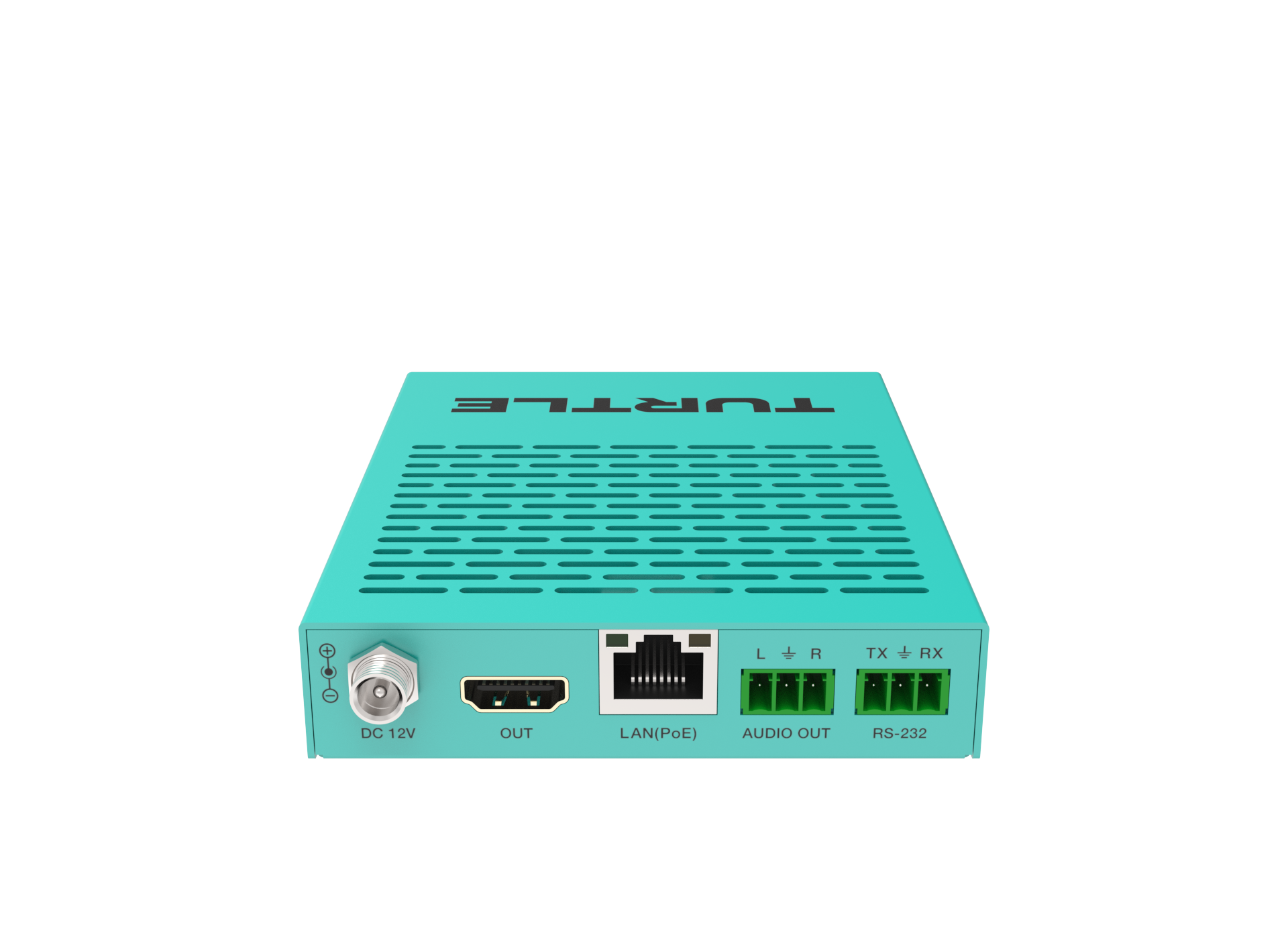

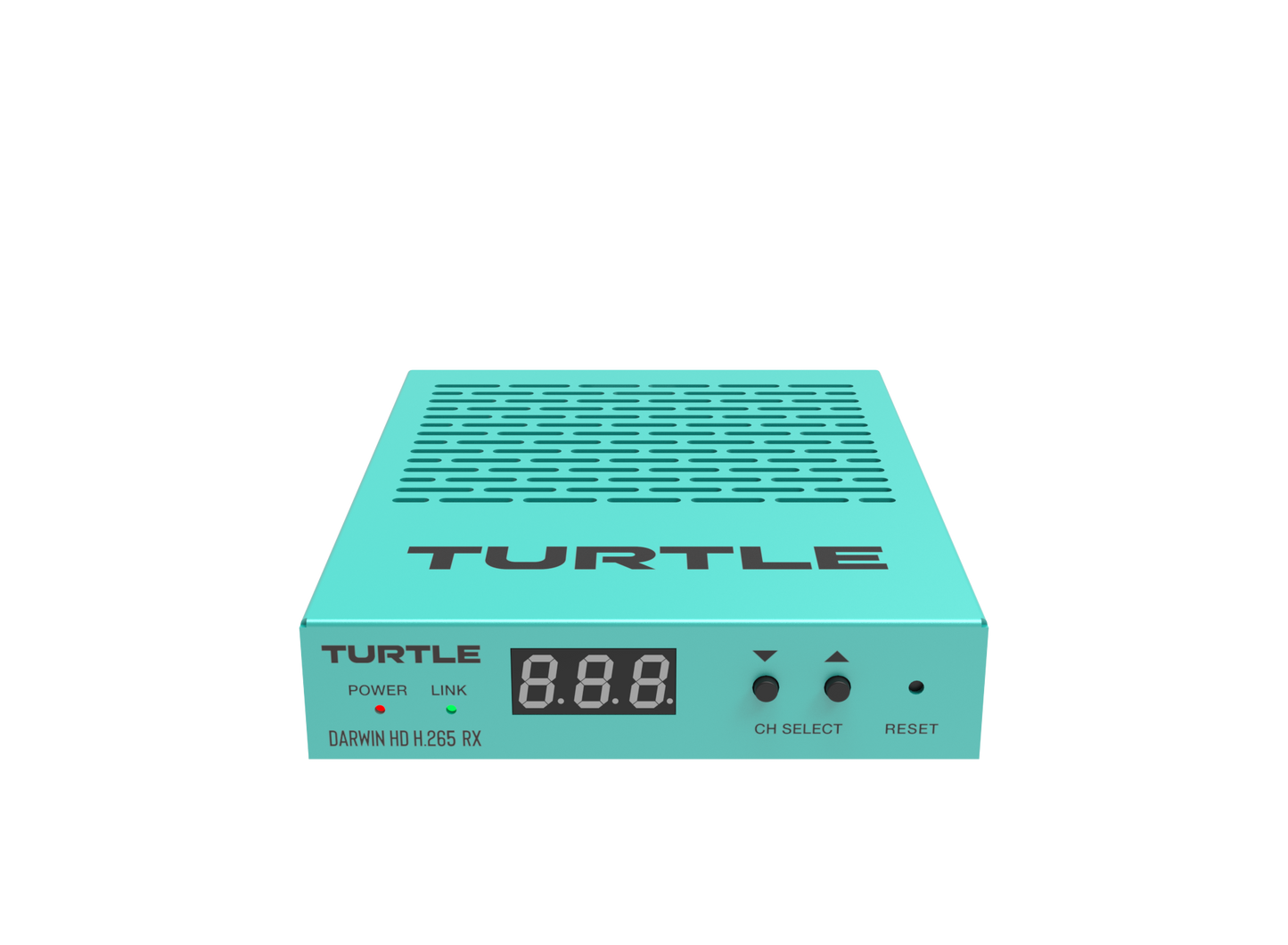

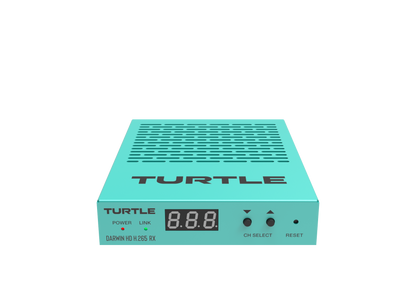

Turtle AV DARWIN HD H.265 Receiver

The Turtle AV DARWIN HD H.265 Receiver receives stunning 1080p 60Hz 4:4:4 video with H.265 hardware acceleration, ensuring exceptional image quality at reduced bitrates. Equipped with PoE for simplified installation, it supports one-to-one and one-to-many multicast or unicast configurations, making it ideal for scalable AV environments. Advanced features include EDID management with scaling, HDCP 1.4, Phoenix analog audio breakout, and video wall support up to 9×9. Darwin HD Rx is fully TAA compliant and comes with a 5-year warranty.

HDMI: 1.3 compliant
HDCP: 1.4 compliant
Video Bandwidth: 4.95Gbps
Compression Codec: H.265/HEVC
Network Bandwidth: 1Gbps
Color Depth: Input: 8/10/12-bit; Output: 8-bit
Colour Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats: LPCM 2.0
ESD Protection: IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge)

OUTPUT:

• 1x HDMI (Type A, 19-pin female)
• 1x L/R Audio (3-pin 3.81mm Phoenix connector)

CONTROL

• 1x LAN (PoE IEEE 802.3af) RJ45 jack
• 1x RS-232 (3-pin 3.81mm Phoenix connector)

Housing: Metal enclosure
Color: Turtle Aqua
Dimensions: 120 [W] x 95mm [D] x 21.5mm [H]
Weight: 295g
Power Supply:

• Input: AC100-240V 50/60Hz
• Output: DC 12V/2.5A
• PoE IEEE 802.3af

Power Consumption: 2.88W
Operating Temperature: 32 – 104° F / -20 – 60° C
Relative Humidity: 20% – 90% RH (no condensing)

1 X DARWIN HD H.265 Receiver
