Key Features:
- Two-channel analog audio to Dante® 2CH digital audio
- Balanced/unbalanced analog audio input
- Dante® audio sampling rate supports 24bit 44.1/48/88.2/96KHz
- Configurable Dante® audio delay with support for 1, 2, or milliseconds
- Supports AES67 RTP audio transmission
- Analog audio input with support for 3-level gain adjustment: +18dBu, 0dBu (default), and -10dBV
- PoE and 12V DC power via phoenix connector
- All-Metal Chassis
- TAA Compliant
- 5 Year Warranty
Dante to Analog. Plug in. Play Anywhere.
Unlock the power of pristine digital audio with the Dante® 2CH Line Input Adapter. Built on the cutting-edge Dante® Ultimo 2x2 solution, this adapter converts two-channel balanced or unbalanced analog audio into crystal-clear Dante® digital audio.
With 3-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. The Dante Pro Dual Line INput is in a rugged metal chassis and can be powered PoE or 12V DC using the phoenix connectors.
Built tough with all metal chassis.
Dante Pro Dual Line Input is housed in an all-metal chassis for maximum ruggedness. And yes, we painted it Turtle Aqua so you know it looks cool even if mounted under a table where no one can see it.
Dante Ultimo. Accept no substitutes.
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.
100% Dante Software compatible.
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.
Easy Control.
Take command with Dante Controller. Our adapters are fully controllable through this intuitive platform, allowing you to easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.
Audio stuff.
This adapter converts Dante® 2CH digital audio into two-channel analog audio, supporting both balanced and unbalanced analog outputs. It offers a versatile Dante® audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante® audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio input features 3 levels of sensitivity adjustment, +18dBu, 0dBu, and -10dBV
TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
5 Year Warranty with Advance Replacement
Turtle proudly offers a 5 Year warranty on our Dante Pro Adapters. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle, no questions advance replacement warranty on all our products, including the Dante Pro Adapters. More information about our warranty at www.turtleav.com
Technical
Input
- Two-channel balanced/unbalanced analog audio
Output
- Dante® 2CH digital audio
Control
- Dante® Controller
Network Bandwidth
- 100Mb
Audio Latency
- Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
Audio Formats
- LINE IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu]
- DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
Audio Parameters
LINE IN
- Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
- Line Input Level (Maximum): +24dBu (12.28Vrms) @balanced audio, +18dBu (6.15Vrms) @unbalanced audio
- Frequency Response: 20Hz to 20kHz (-/+0.5dB)
- Dynamic Range: >100dB@0dBu, 1kHzA-weighted
- Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
- Audio THD+N: < 0.01% at +4dBu, 1KHz
- Audio Output Sync Delay: <10ms
ESD Protection
- IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

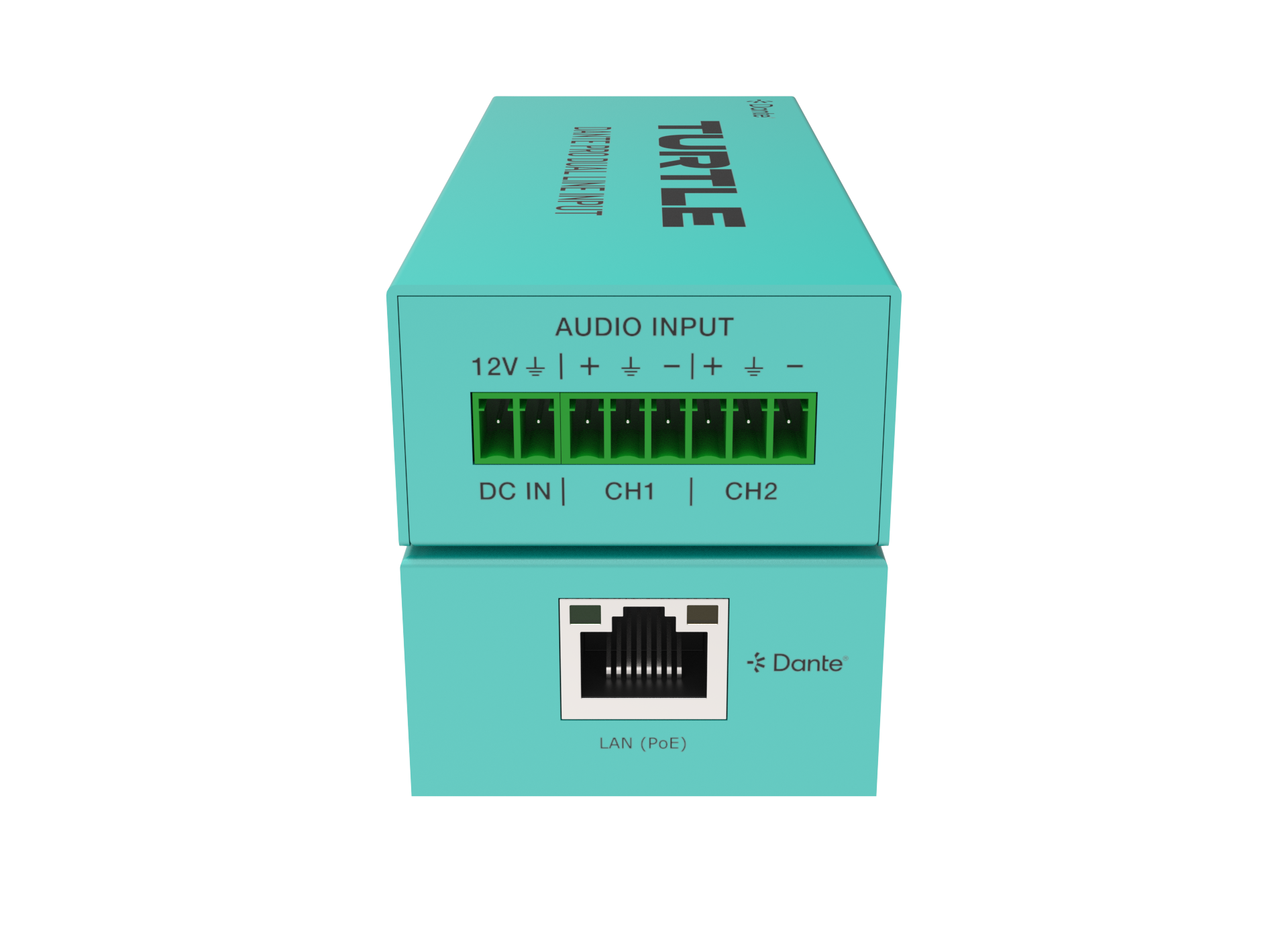

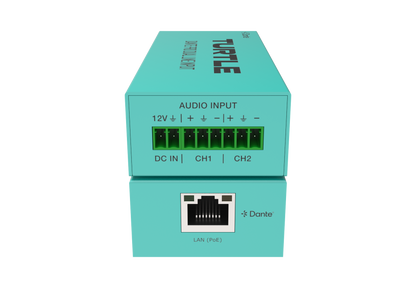

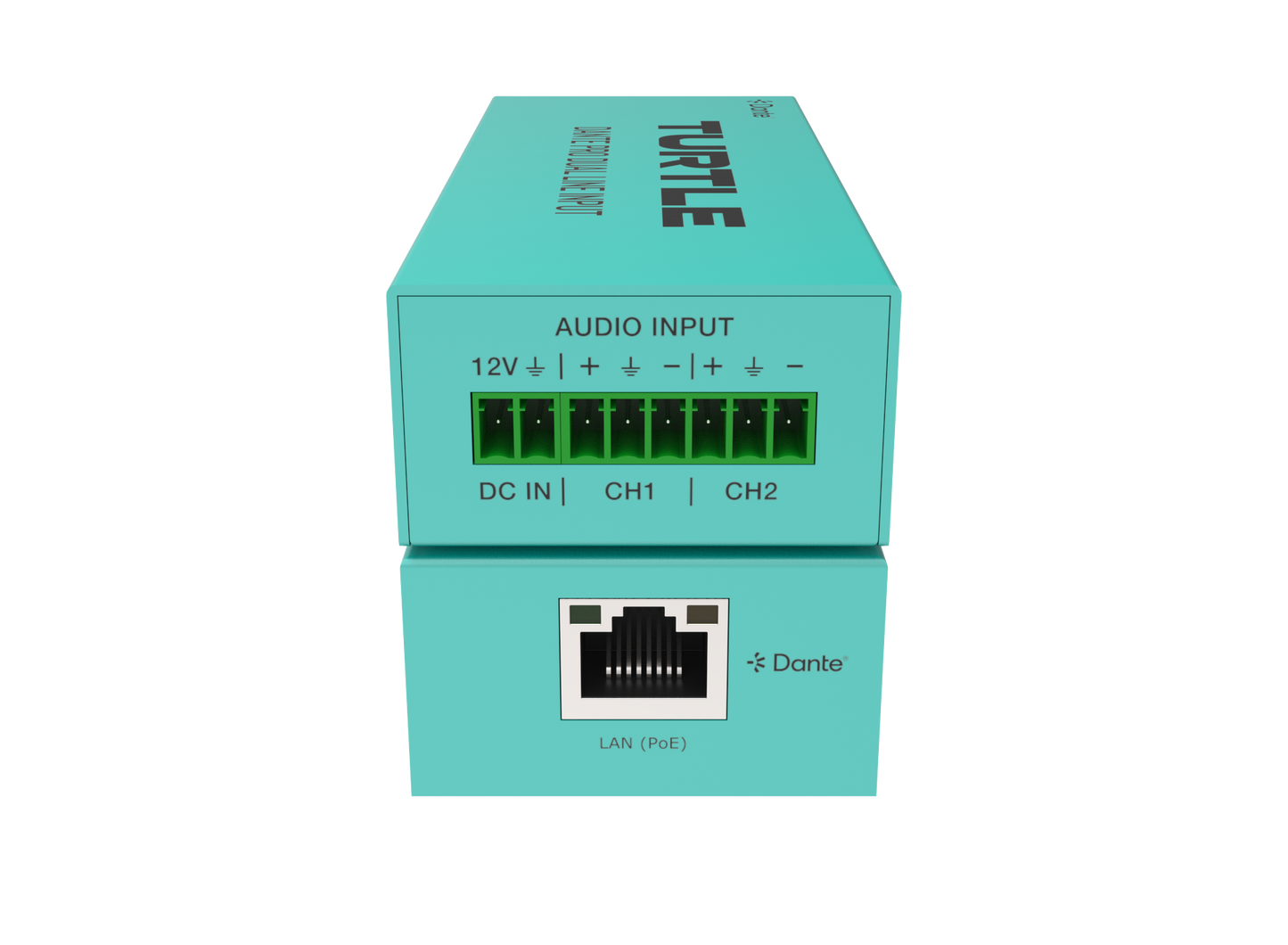

Connections
INPUT

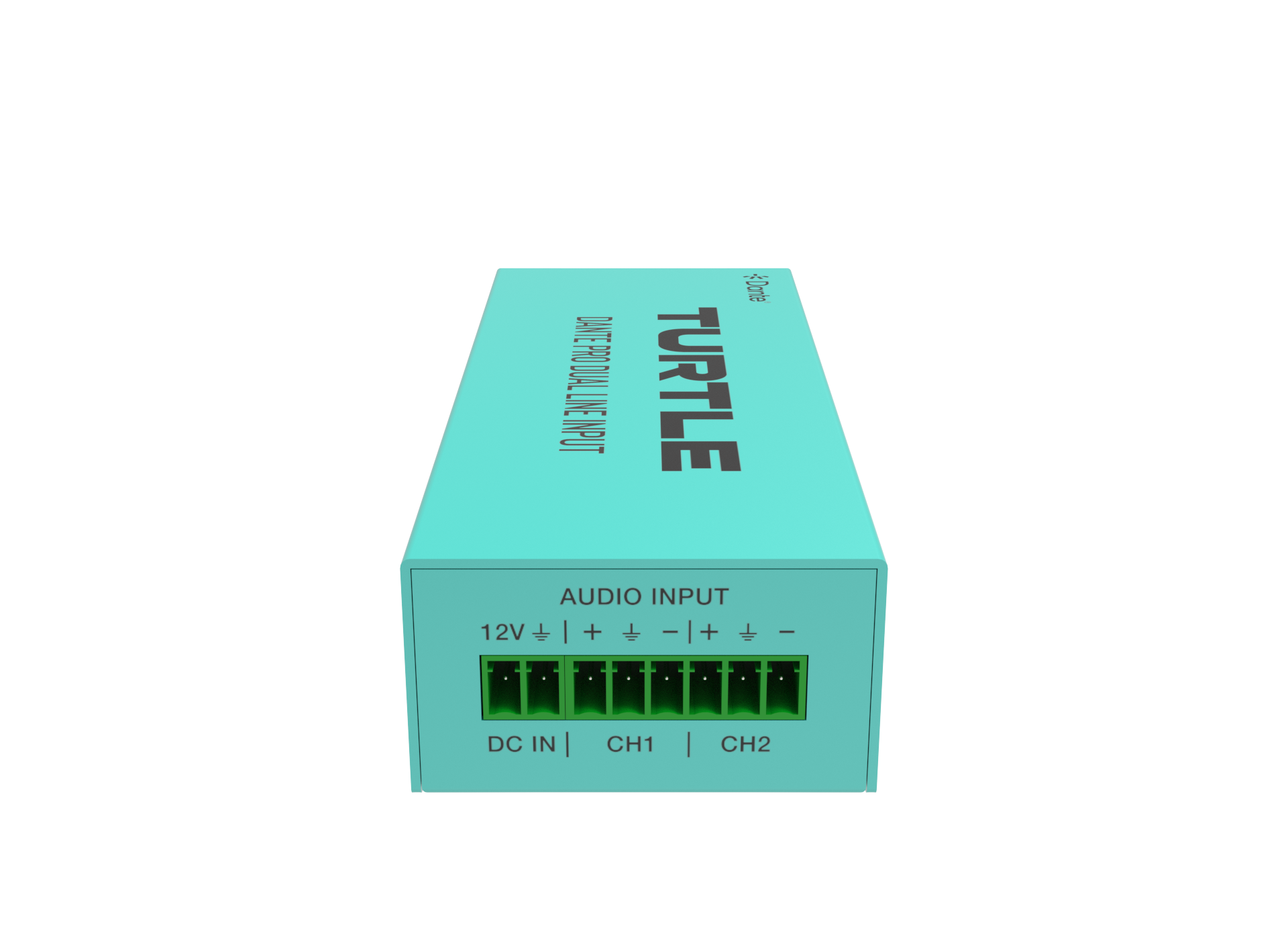

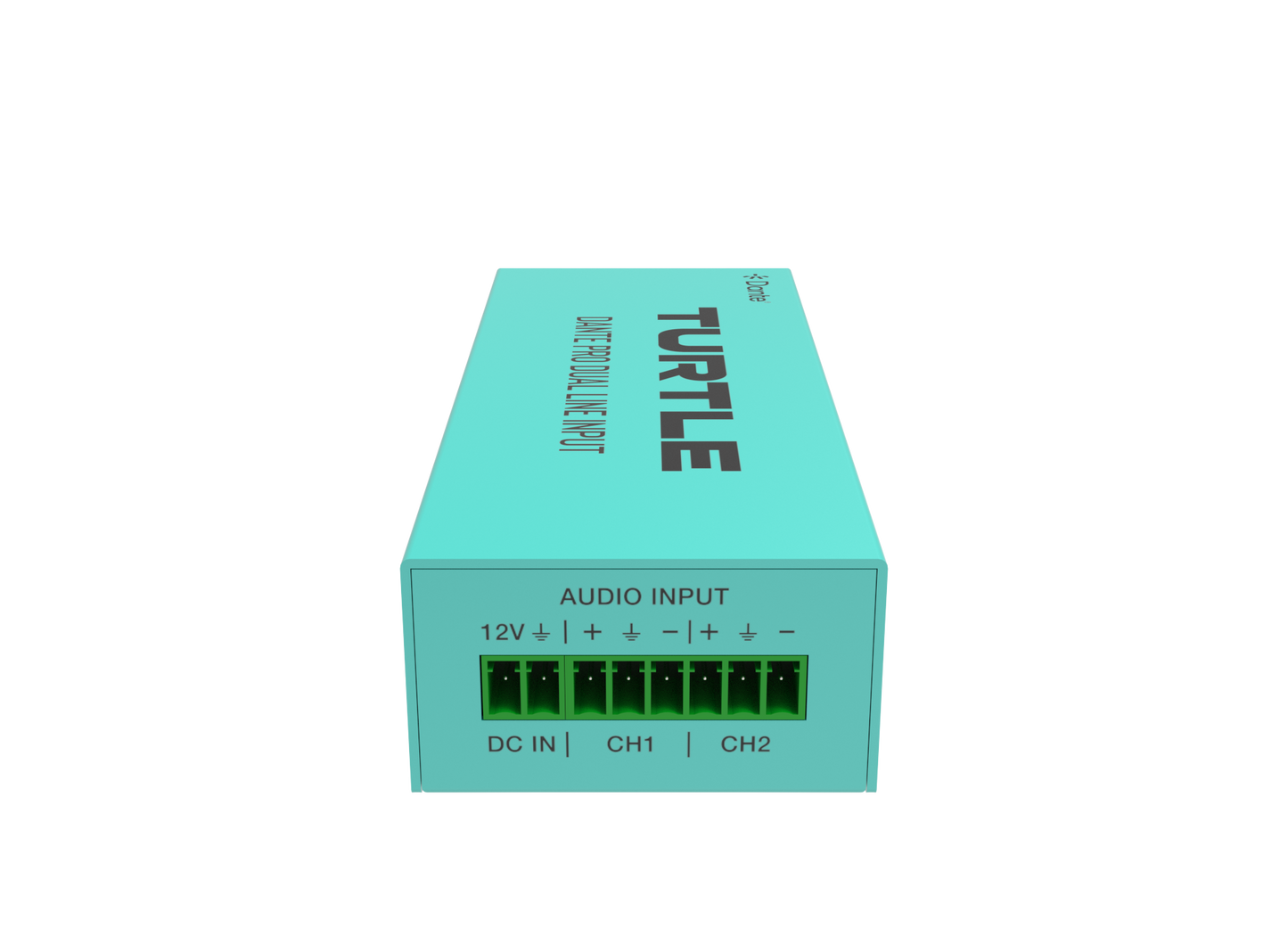

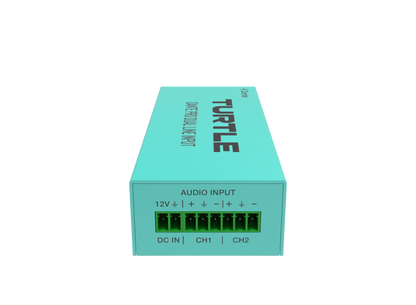

- 1x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector]
- 1x POWER [2-pin phoenix, 3.81mm]
OUTPUT

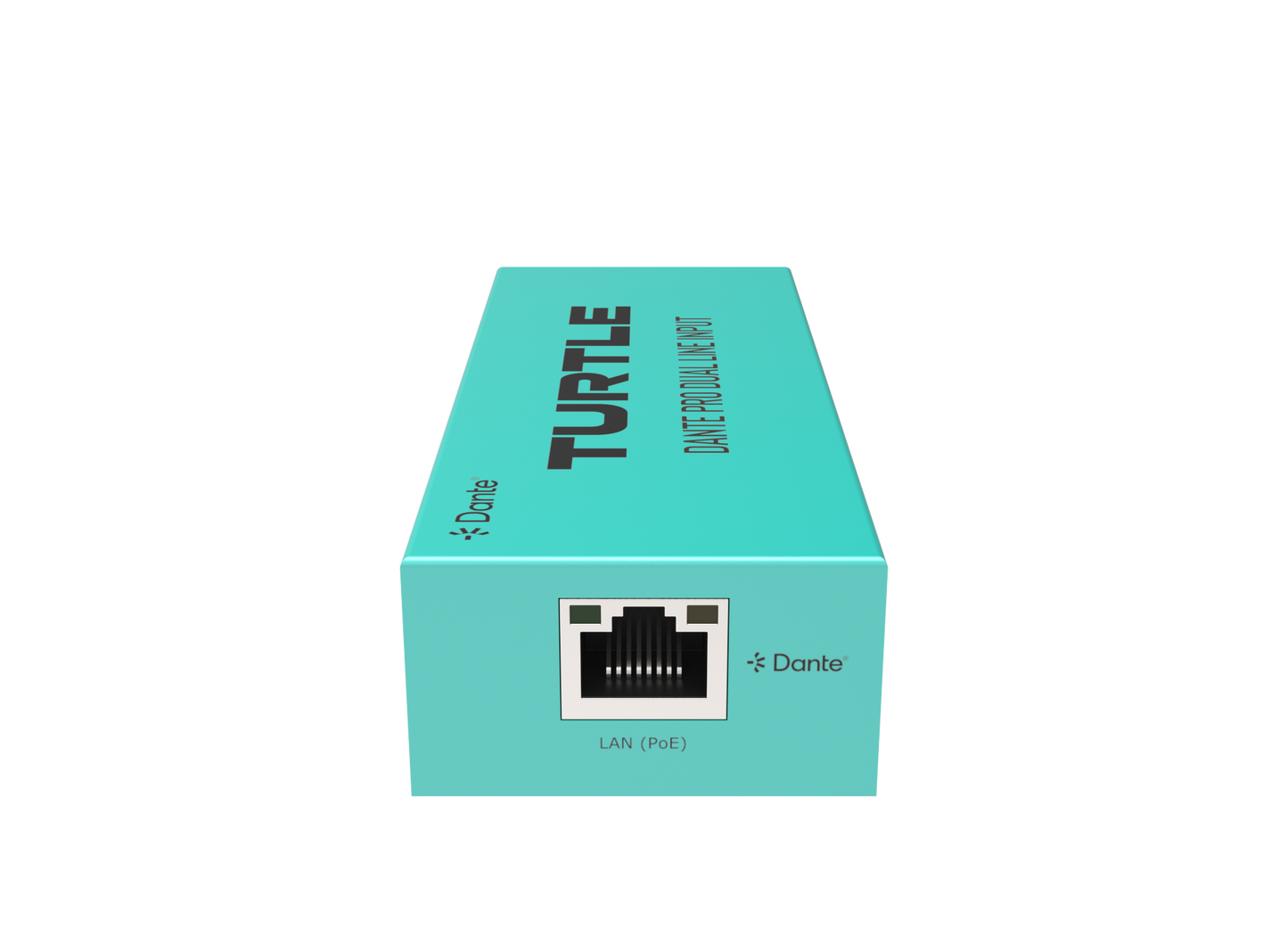

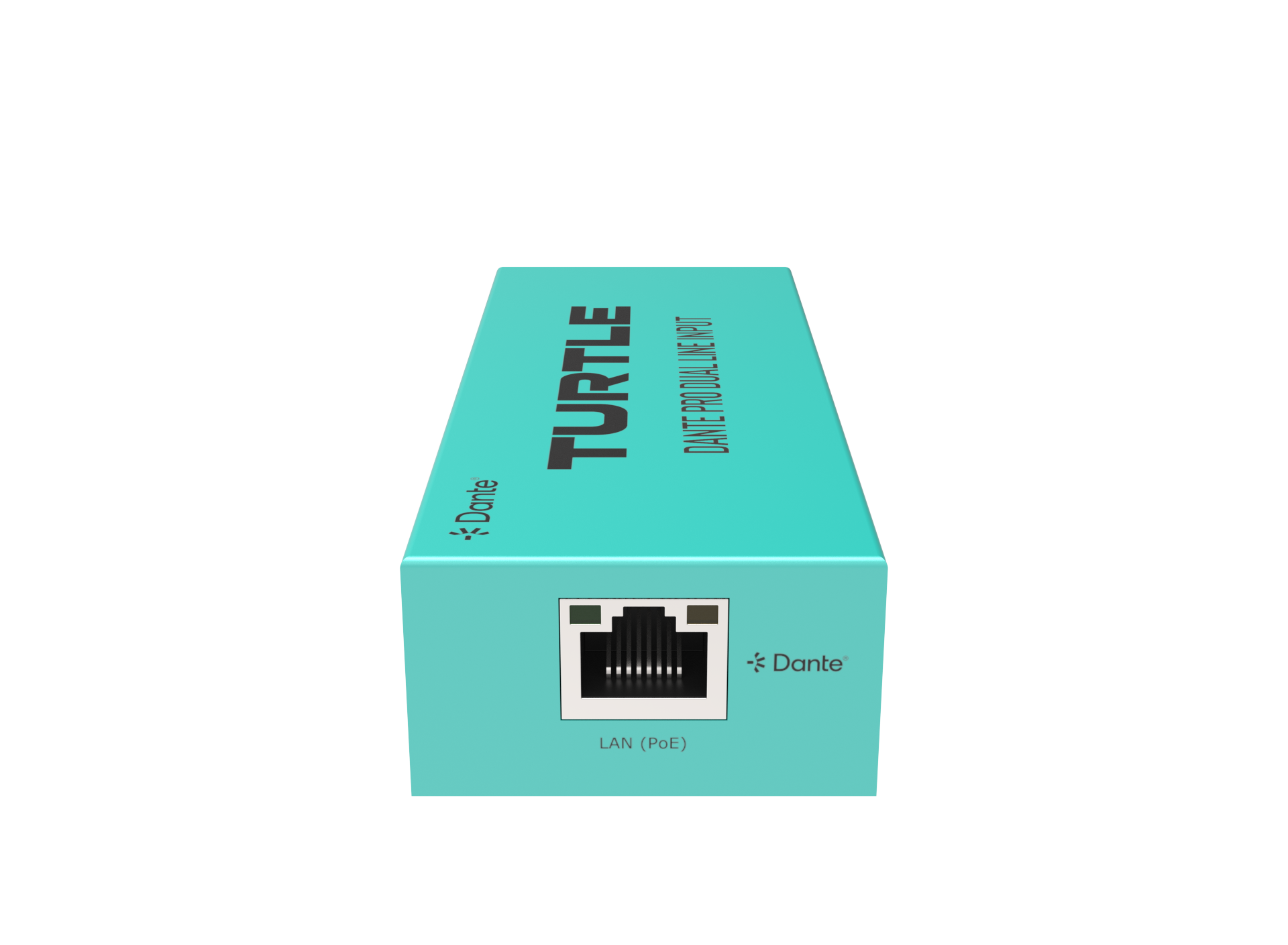

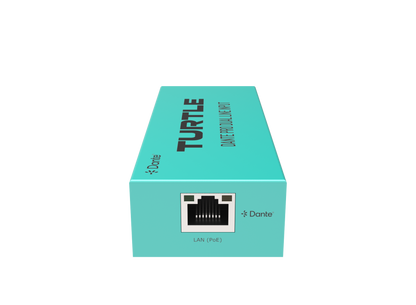

- 1x DANTE [RJ45 LAN, PoE]
Mechanical
Housing
- Metal enclosure
Color
- Turtle Aqua
Dimensions
- 120mm [W] x 47mm [D] x 26mm [H]
Weight
- 186g
Power Supply
- PoE: PoE IEEE802.3af Class 0
- USB: 5V/500mA
Power Consumption
- 2W(MAX)
Operating Temperature
- 32 – 104° F / -20 – 60° C
Relative Humidity
- 20% – 90% RH (no condensing)
