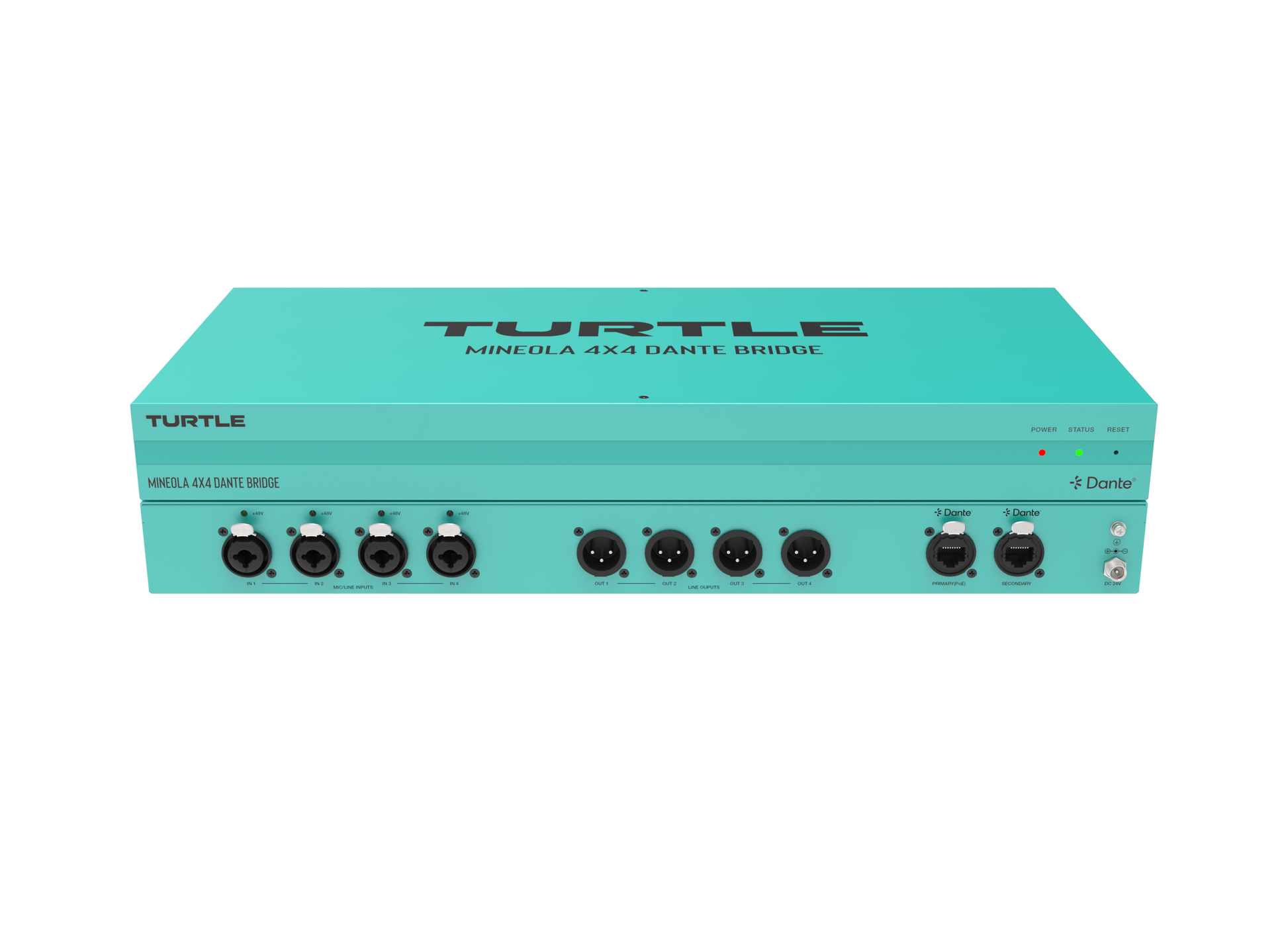

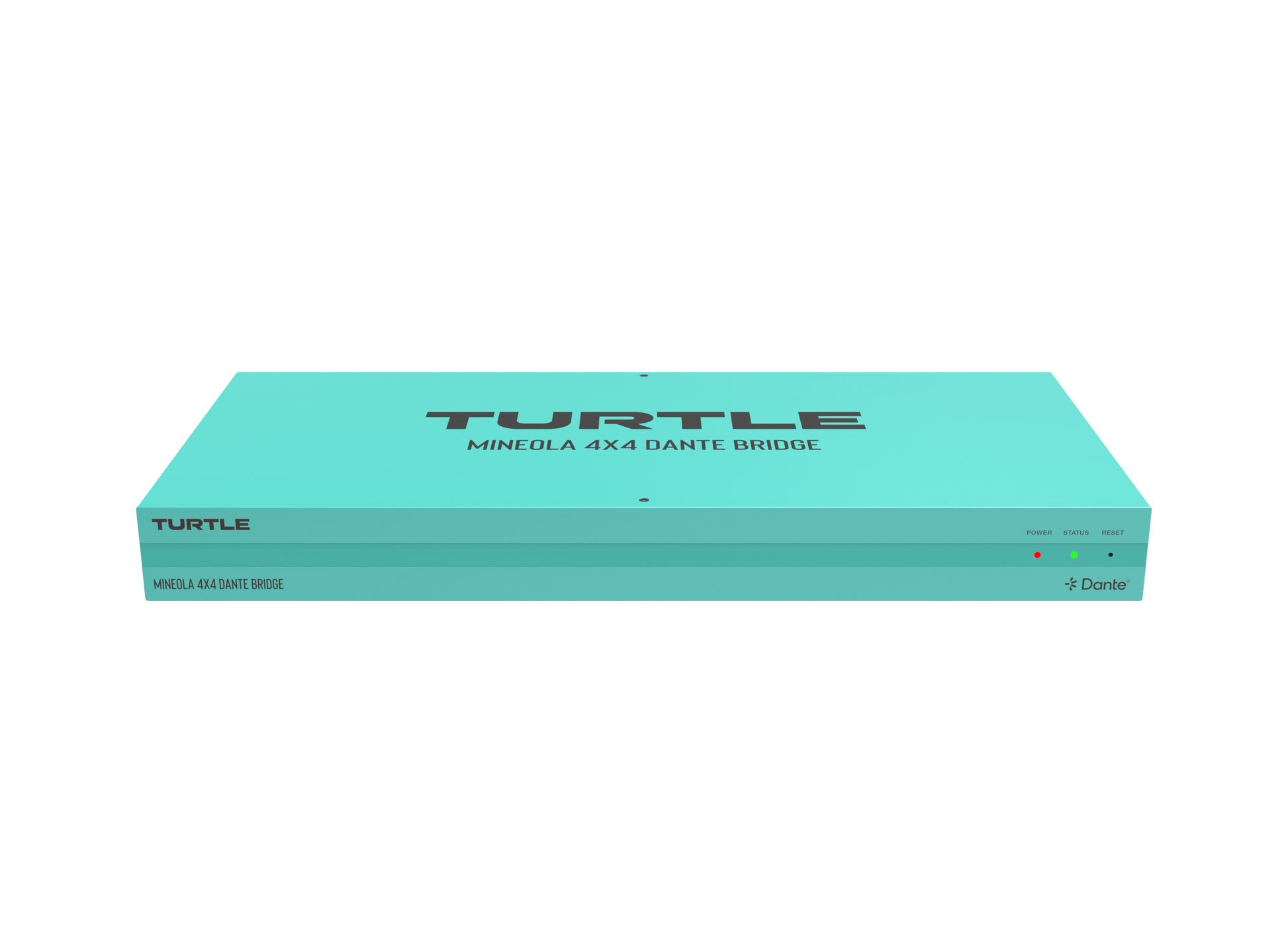

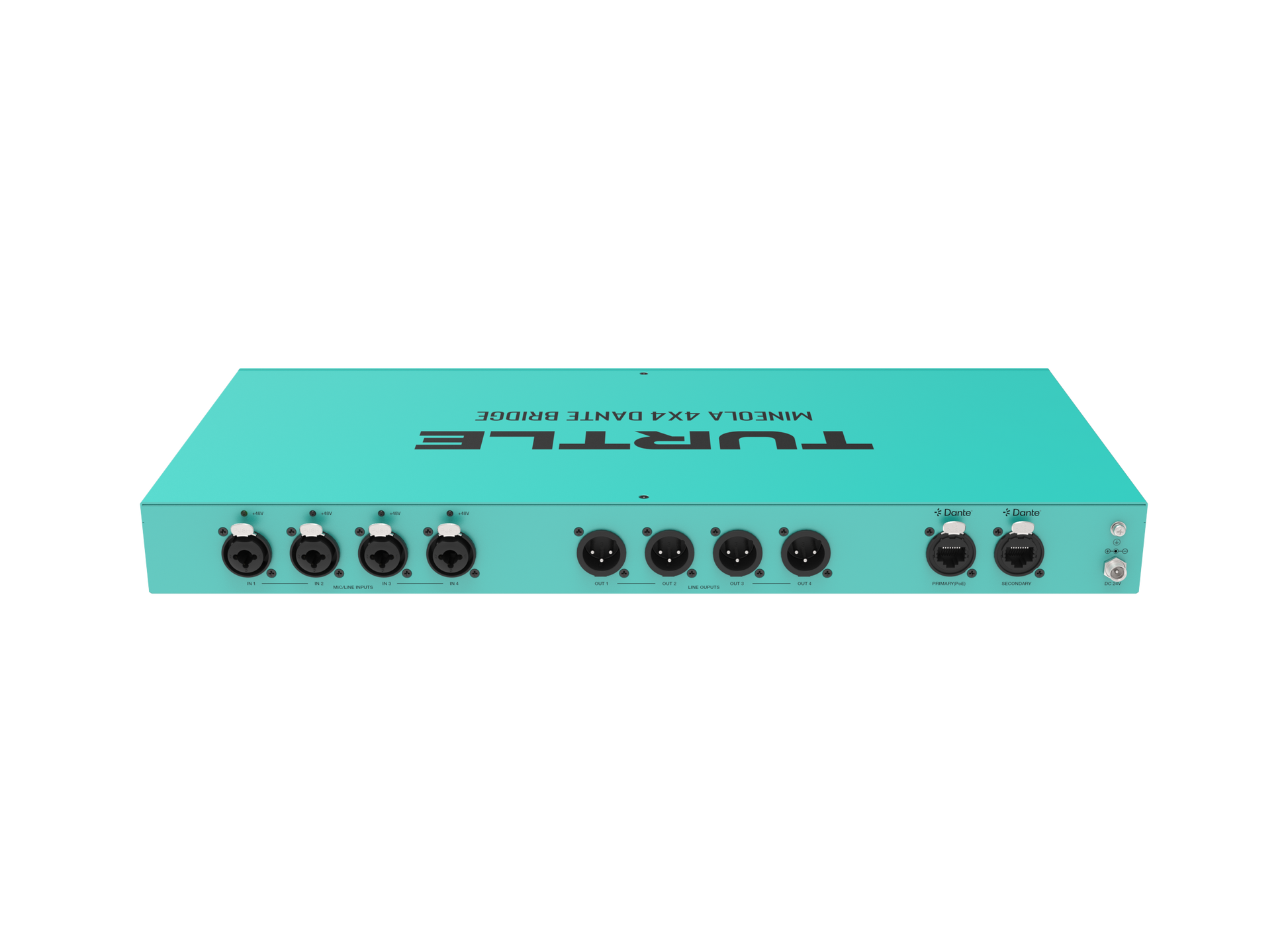

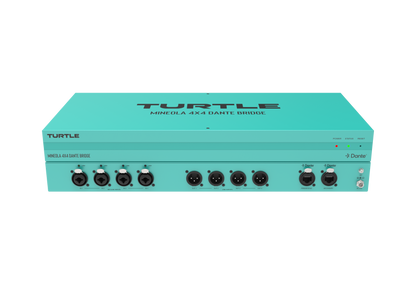

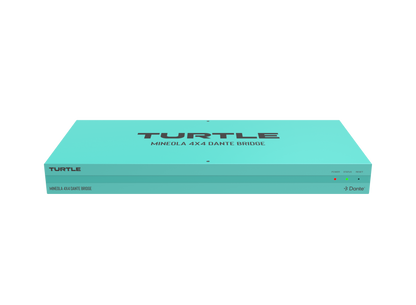

Mineola 4x4 Dante Audio Bridge
4x XLR inputs with 48V Phantom Power, and 4x XLR outputs with locking. The Mineola 4x4 is the ideal solution for setups requiring four inputs and four outputs. Designed to seamlessly connect digital and analog audio, it offers reliable performance with enhanced capacity. Perfect for live events, studios, or installations, the Mineola 4x4 delivers pristine audio and unmatched flexibility for professional environments.
Key Features:
- 4x XLR to Dante, 4x Dante to XLR
- 48V Phantom Power on all XLR inputs
- PoE & 12V DC
- Primary and Secondary Dante network ports
- Locking etherCON connectors
- 4x XLR/1/4” TRS combo ports.
- Includes rackmount kit
- TAA Compliant
- 5 Year Warranty
Meet Mineola. The Ultimate 4x4 Dante Audio Bridge.
The Mineola 4x4 connects the digital Dante and analog XLR worlds with two inputs and two outputs, perfect for compact setups. PoE-powered and equipped with 48V phantom power on both XLR inputs, it’s ideal for easy microphone connections. All connectors are locking, with Neutrik etherCON on the dual network ports for reliable redundancy. Fully compatible with the entire Dante software suite, the Mineola 4x4 integrates seamlessly into live event production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS, Telestream Wirecast. Designed for versatility and high performance, it’s the perfect solution for professional audio environments.
PoE with Phantom Power.
Mineola streamlines setups by combining Power over Ethernet (PoE) with 48V Phantom Power on both XLR inputs. One cable to rule them all.
Power Redundancy.
Use PoE and external PSU for power redundancy. Two cables to rule them all.
Primary and Secondary Dante networks for redundancy.
Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications. Four cables to rule them all.
Locking Connectors. Designed for Live.
All connectors on Mineola are locking, providing maximum security. The network ports are equipped with locking Neutrik etherCON connectors, the external PSU connector is locking, and of course all XLR connectors are locking too.
Total Dante Software Compatibility.
Mineola 4x4 is 100% compatible with all Dante software products including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.
Audio for Live Production.
When combined with Dante Virtual Soundcard (DVS), Mineola connects easily to software-based live production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS Studio, and Telestream Wirecast, and all Dante compatible audio systems to provide audio inputs for live event production.
Rack ’Em or Stack ’Em
The Mineola 4x4 is super versatile and can be used as a throwdown box, or mounted in a 19” rack using the included rack mount.
Built tough with all metal chassis.
Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.
TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
5-year advance replacement warranty.
Turtle proudly offers a 5 Year warranty on our Mineola family. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle, no questions advance replacement warranty on all our products, including the Mineola family. More information about our warranty at www.turtleav.com
Technical
Input
4 channels balanced/unbalanced analog audio with 48V Phantom power
Output
4 channels Dante® digital audio
Control
Dante® Controller, WebUI
Network Bandwidth
100M
Audio Latency
Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connections
INPUT
4x LINE IN/MIC IN [XRL/TRS combo]
OUTPUT
4x LINE OUT/MIC OUT [XRL]
NETWORK
1x Dante Primary [RJ45 LAN, PoE]
1x Dante Secondary [RJ45, LAN]
Mechanical
Housing
Metal enclosure
Color
Turtle Aqua
Dimensions
1U 19″ rack mount
Power Supply
PoE: PoE IEEE802.3af Class 0
12V DC
Operating Temperature
32 – 104° F / -20 – 60° C
Relative Humidity
20% – 90% RH (no condensing)
