Turtle Video Wall 8x8
4K60 4:4:4 8x8 Video Wall, Matrix, and Multi-Viewer with preset layouts. 8x HDMI 2.0 inputs, seamless switching, multi-channel audio and CEC control.
Key Features:
- 4K60 4:4:4. 18Gbps HDMI 2.0.
- 8x8 Video Wall, Matrix, Multivew all in one
- Audio Embedding / De-embedding
- API Support
- Seamless switching
- HDCP 2.2. Advanced EDID management.
- Easy set up via WebGUI
- TAA Compliant
- 5 Year Warranty
Video Wall 8x8
Is it a Video Wall?
Is it a Matrix?
Is it a Multiview?
Yes.
The Turtle 8x8 Video Wall can be configured as a 1x4 Video Wall, 8x8 Matrix, or 1x4 Multiview. Each input and output supports up to 4K60, 4:4:4 video via HDMI 2.0 with seamless scaling, and audio embedding and de-embedding via optical or line in/out over Phonex connectors. With WebGUI controls and API integration, it’s the ultimate versatile solution for professional AV environments.
4K60 4:4:4. 18Gbps HDMI 2.0.
Experience uncompromising video quality with full 4K60 resolution, HDR support, and an 18Gbps HDMI 2.0 pipeline for vibrant, crystal-clear visuals.
Video Wall, Matrix, Multiview - All in One.
Switch effortlessly between a Video Wall, 8x8 Matrix, or Multiview configurations—all in a single, powerful device tailored to your needs.
Extremely Powerful Video Wall.
The Turtle 8x8 Video Wall offers a wide range of configurations. Build impressive 4x4 walls, dynamic 2x2 grids, or large 3x3 setups. Create unique layouts like 1x8 panoramas, 2x4 grids, or combine zones for mixed displays. With support for a variety of modes, this system provides the flexibility you need for command centers, public spaces, live events, and more. All in stunning 4K60 resolution.
Dual Independent Multiview.
Two is better than one. Video Wall Display offers dual Multiview outputs each with up to 16 customizable layouts on a single screen for monitoring, presentations, or control rooms. Effortlessly switch between layouts using the WebGUI, API, or front panel controls.
8x8 Matrix.
Route any input to any output or create multiple simultaneous configurations with the robust 8x8 Matrix functionality.
Audio Matrix.
The Turtle 8x8 Video Wall features 8 L/R balanced audio outputs with an intuitive Audio Matrix mode. Easily route extracted audio by selecting outputs and assigning sources, while toggling channels on or off.
Audio Embedding / De-Embedding.
Seamlessly embed or de-embed audio as needed via the Optical or Phoenix connectors for total flexibility in any AV setup.
Seamless Switching.
Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.
Scaling.
Individually scale each source with precision, supporting resolutions up to 4K60 4:4:4 and each output has individual downscaling control.

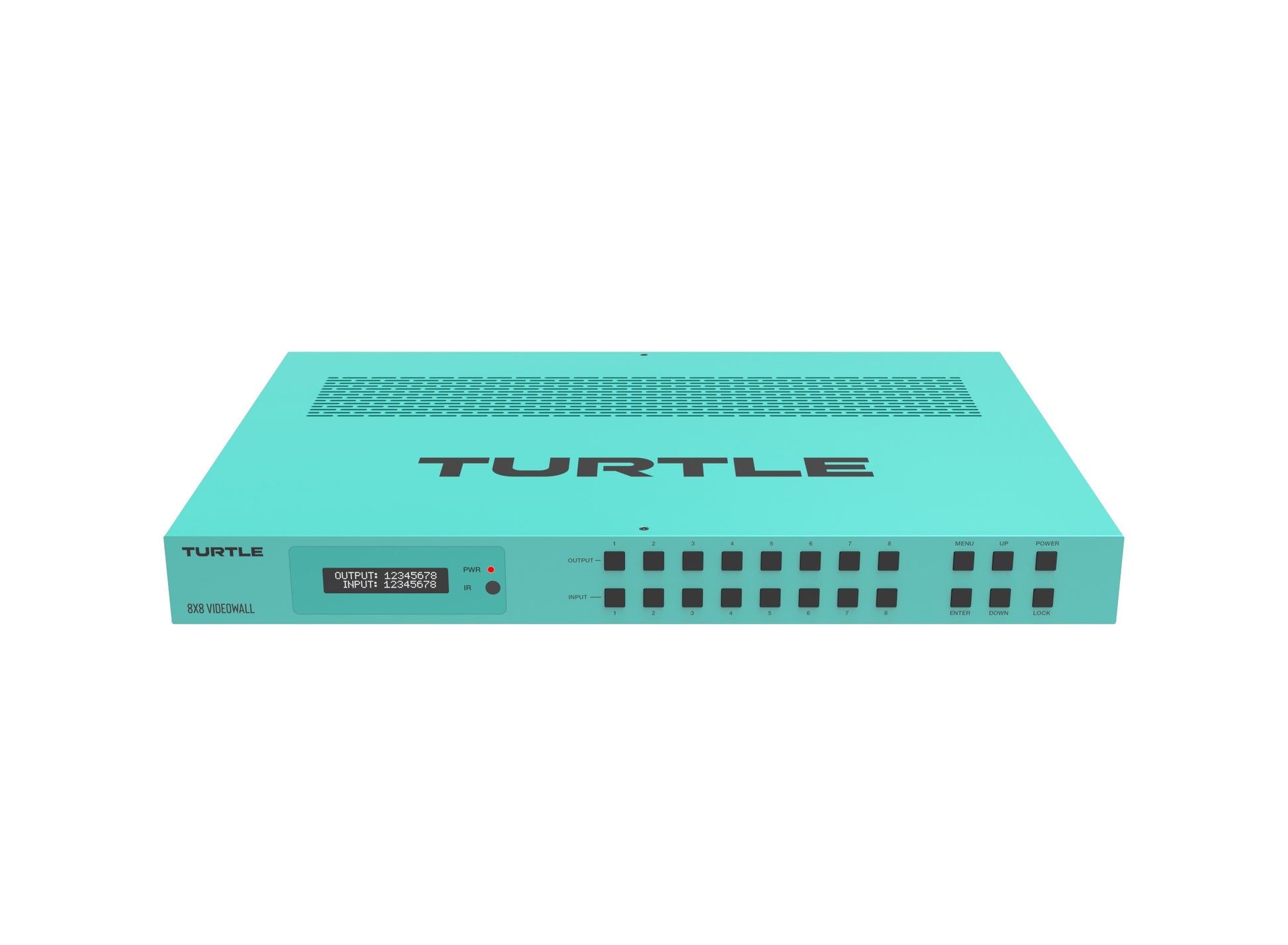

Easy Setup via WebGUI or Front Buttons.
Set up and manage configurations effortlessly using the intuitive WebGUI, or go hands-on with the front panel controls.
API Support.
Integrate easily with third-party systems via robust API support for advanced control and automation.
HDCP 2.2.
Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices.
Advanced EDID Management.
Manage EDID with ease using 12 factory-defined settings, 2 user-defined modes, and 4 copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.

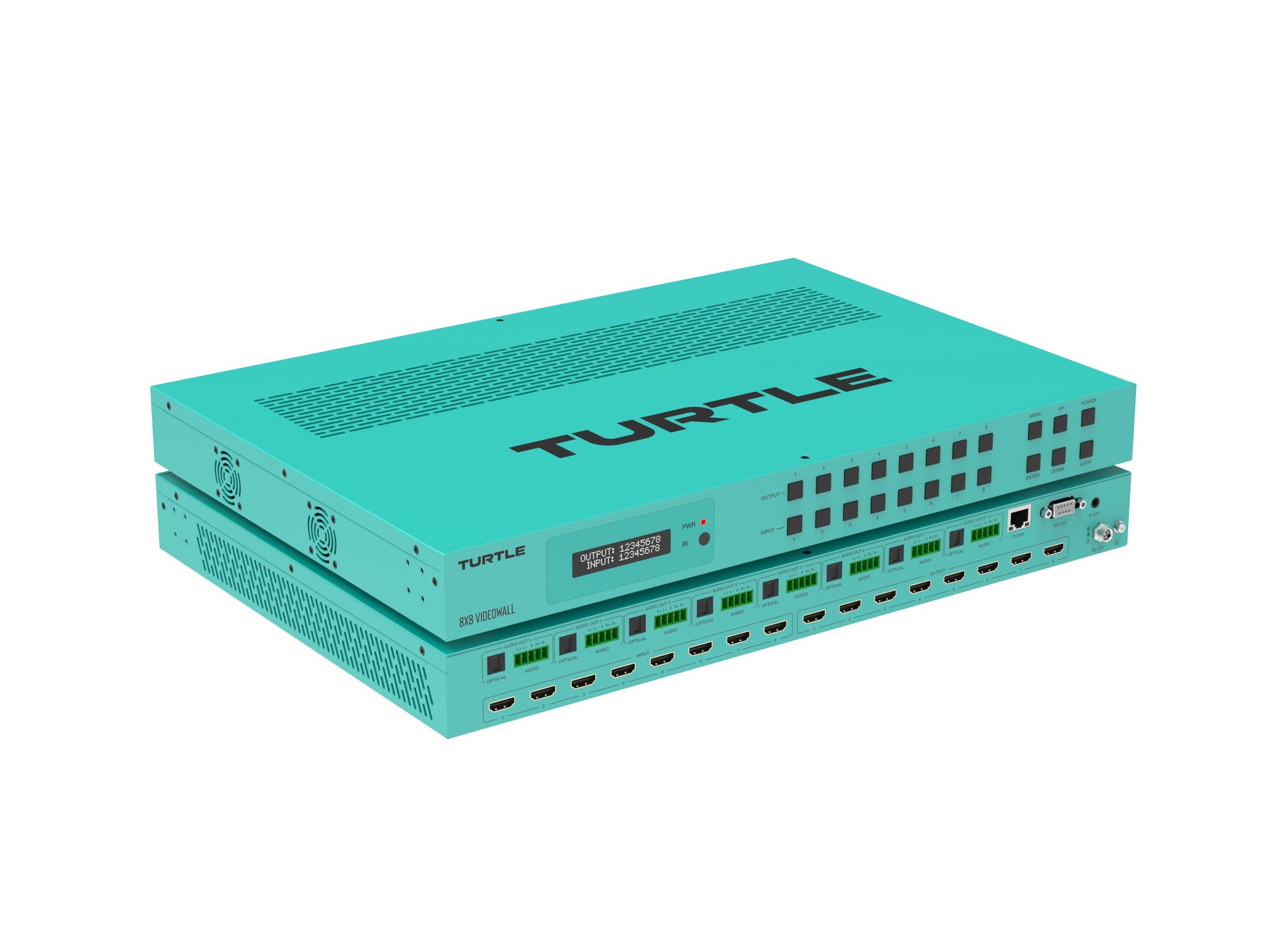

Built tough with all metal chassis.
Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.
TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4K@60Hz 4:4:4
Color Space
RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
Color Depth
8/10/12bit
Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO Extracted:
Optical Outputs: LPCM 2.0CH/Dolby/DTS 5.1CH
Balanced Analog Audio Outputs: LPCM 2CH
IR Level
5Vp-p
IR Frequency
Wideband 20K-60KHz
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

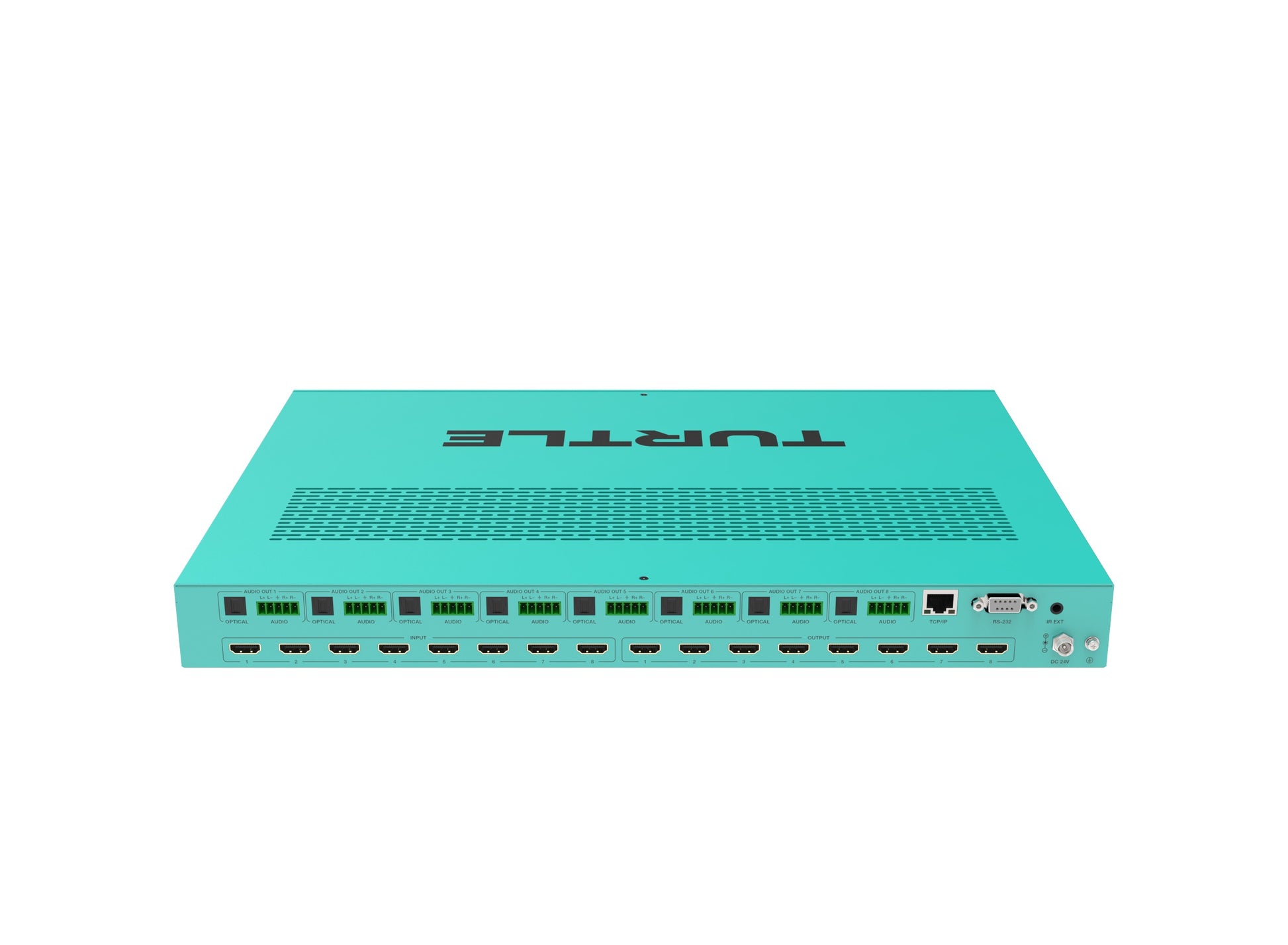

Input ports
8 × HDMI INPUT [Type A, 19-pin female]
Output ports
8 × HDMI OUTPUT [Type A, 19-pin female] 8 × OPTICAL AUDIO OUT [S/PDIF]
8 × L/R AUDIO OUT [3.5mm, 5pin Phoenix Connector]
Control ports
1 × TCP/IP [RJ45]
1 × RS-232 [D-Sub 9]
1 × IR EXT [3.5mm, Stereo Mini-jack]
Mechanical
Housing
Metal Enclosure
Color
Turtle Aqua
Dimensions
440mm [W] × 300mm [D] × 44.5mm [H]
Weight
3.95kg
Power Supply
Input: AC 100-240V 50/60Hz, Output: DC 24V/3.75A
(US/EU standard, CE/FCC/UL certified)
Power Consumption
70W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no-condensing)
Video Resolution | HDMI Cable Length (HDMI IN / OUT)
4K60 | 5m/16ft
4K30 | 10m/32ft
1080P60 | 15m/50ft
