Wooden Camera D-Box System for Blackmagic URSA Cine 12K/17K

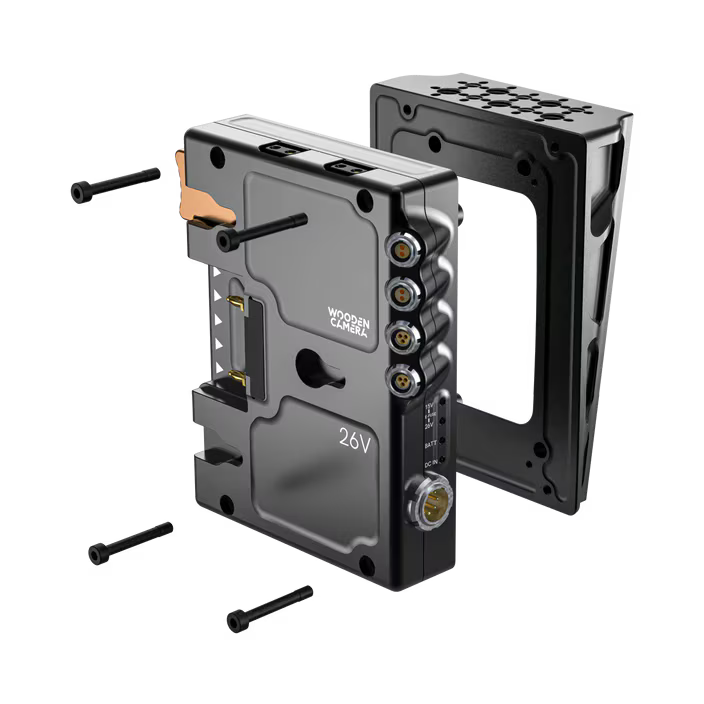

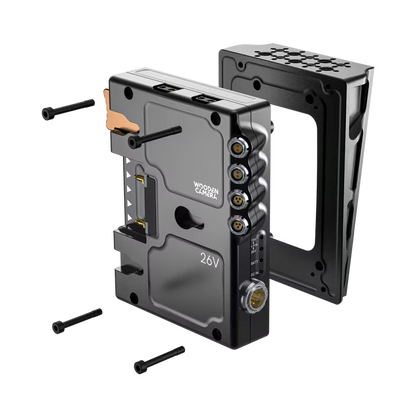

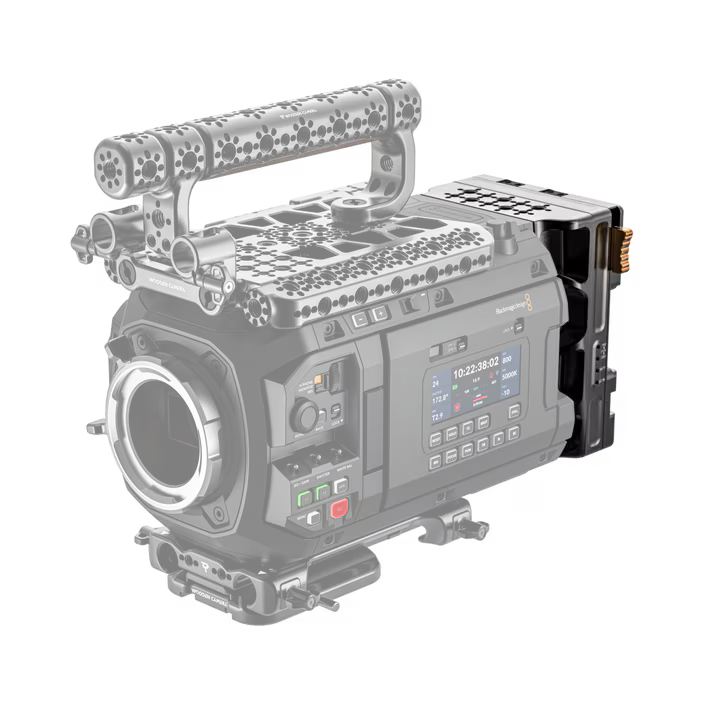

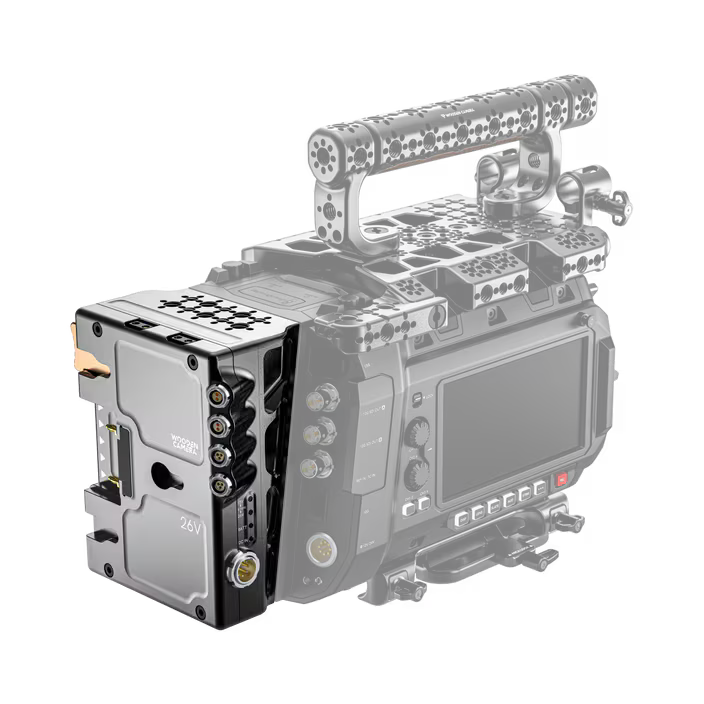

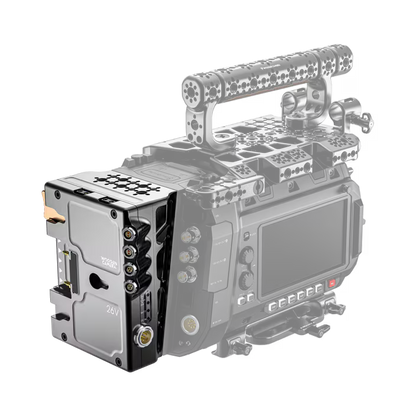

Add power and mounting options to the camera and your accessories with this 26V Gold Mount Plus D-Box™ and Wedge. With the included wedge, it mounts directly to the back of the camera and sets the camera's battery plate perpendicular to the camera, allowing the D-Box to mount battery plate accessories in line with your camera setup. In addition, ¼”-20 and ⅜”-16 mounting points are added to the top of the wedge for mounting accessories to the build.

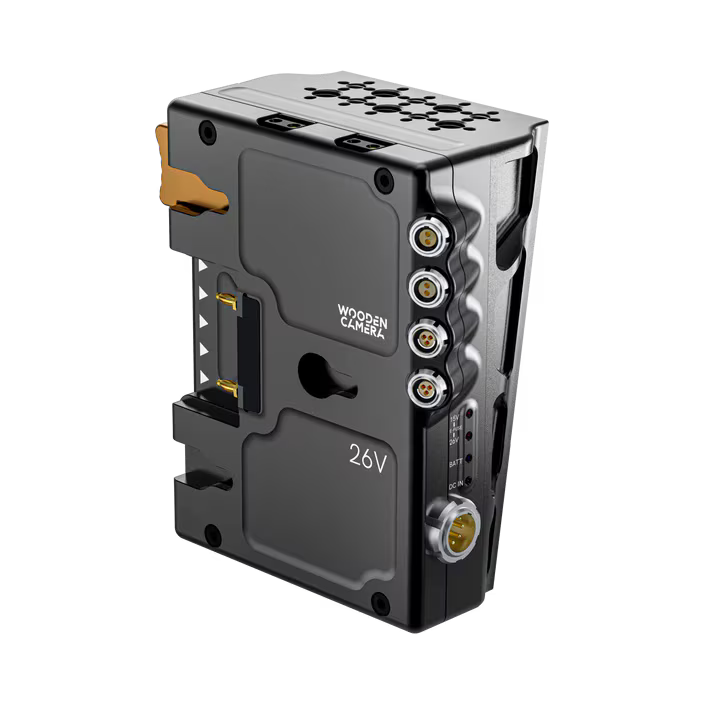

The D-Box was designed as a one-stop shop, providing power options for on-board accessories. Included options on this D-Box are:

• Two 2-pin 12V - 5.8A (shared over all 12V outputs)
• Two D-tap ports
• Two 3-pin 24V - 3.8A (shared over all 24V outputs) without trigger

Other notable features:

• The D-Box offers hot-swappable power for on-board batteries when DC-In power is connected via the 8-pin connector like our 3-pin to 8-pin Power Cable.
• To make a connection directly to the camera, this plate utilizes a Molex connector on the back of the plate for a seamless connection to the camera.
• Incorporated within this plate is a self resetting electronic fuse inside the plate.

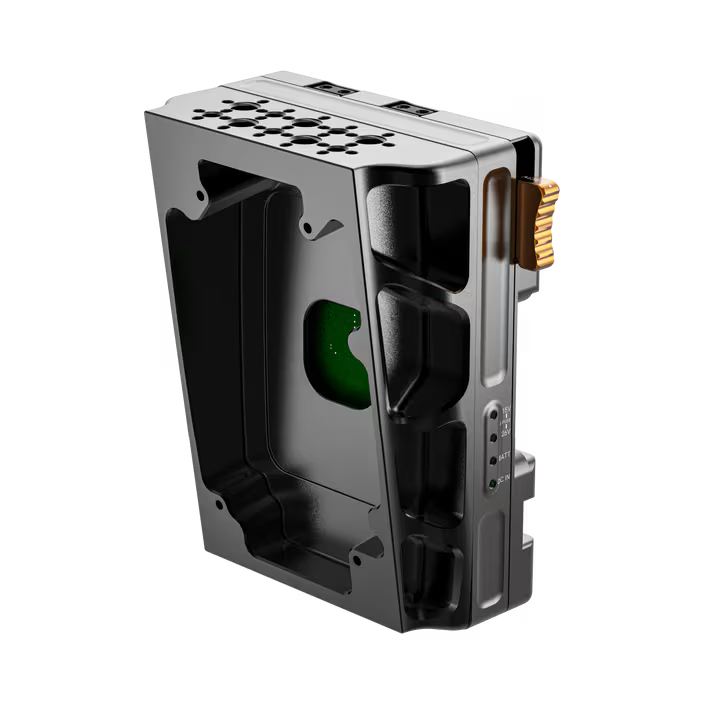

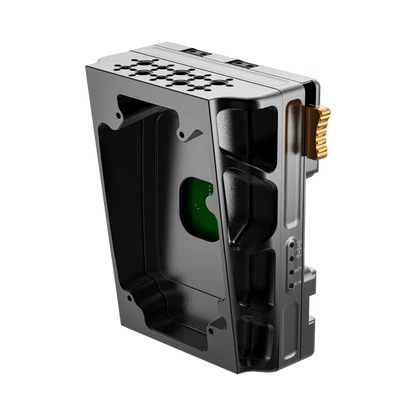

• The design of the wedge accents the camera's body design and places the battery perpendicular to the camera.

This battery plate is compatible with the 26V Gold Mount Plus Batteries from Anton Bauer.


• Weight: 603.3g (1.33 lbs)
• Dimensions: 156 x 127.6 x 41.1 mm (6.14 x 5 x 1.62 in)

• D-Box Gold Mount Plus for Blackmagic URSA Cine 12K/17K
• Wedge for Blackmagic URSA Cine 12K/17K
