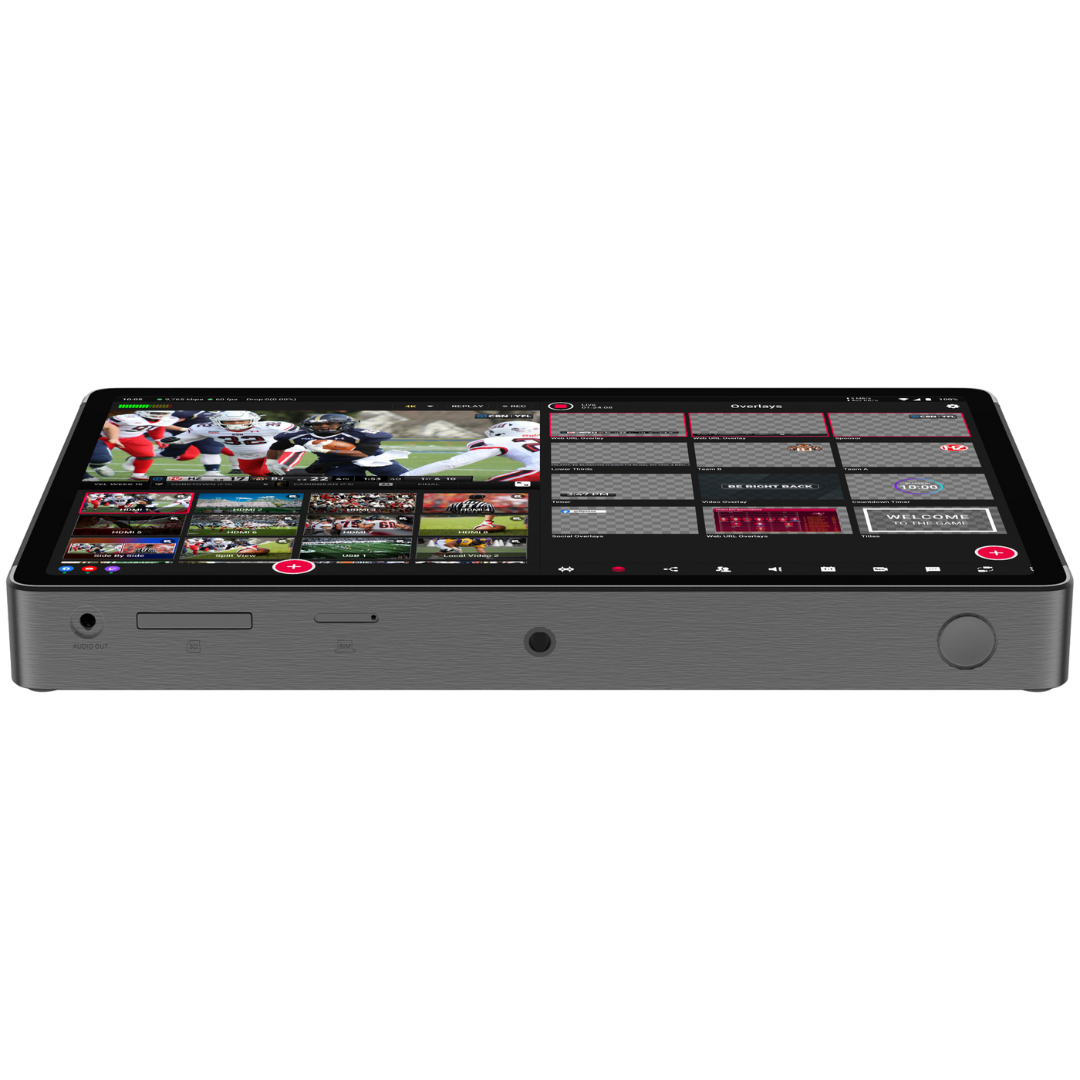

YoloBox Extreme Live Streaming System

The YoloBox Extreme is an all-in-one live streaming, switching, recording, and production system built for creators, broadcasters, houses of worship, educators, businesses, and event professionals. Whether you're streaming a church service, sporting event, conference, podcast, or concert, this portable production studio helps you create professional broadcasts with minimal equipment.

Additionally, the YoloBox Extreme combines a video switcher, encoder, monitor, recorder, and streaming device into one compact unit. As a result, you can simplify your workflow and reduce the amount of gear you need. Instead of relying on a laptop and multiple accessories, you can control your entire production from a single touchscreen.

Furthermore, the YoloBox Extreme features a Qualcomm 8 Gen 2 processor, eight HDMI inputs, two assignable HDMI outputs, up to eight NDI® HX inputs, and an 11.2-inch OLED touchscreen. Together, these features deliver fast performance, flexible connectivity, and professional-quality production for nearly any live event.

YoloBox Extreme Key Features

• All-in-one encoder, switcher, monitor, recorder, and streamer
• 8 HDMI inputs with built-in 4K60 scaling
• 2 assignable HDMI outputs for Program, Preview, or Multiview
• Up to 8 wireless NDI® HX inputs
• Stream and record in up to 4K
• ISO recording for individual camera feeds
• 11.2-inch 2.5K OLED touchscreen with up to 1,000 nits brightness
• Qualcomm 8 Gen 2 processor
• Built-in battery with up to 10 hours of operation
• Wi-Fi 6, Ethernet, and 4G network connectivity
• RTMP and SRT streaming support
• H.264 and H.265 encoding
• Simultaneous streaming to multiple platforms

Built for Professional Live Production

Whether you're producing a worship service, sporting event, corporate meeting, concert, podcast, conference, or wedding, YoloBox Extreme makes professional live production simple. Connect multiple cameras, switch between sources, stream to your favorite platforms, and record every angle without additional hardware.

Its compact design makes it easy to transport, while its powerful hardware delivers the performance needed for demanding productions.

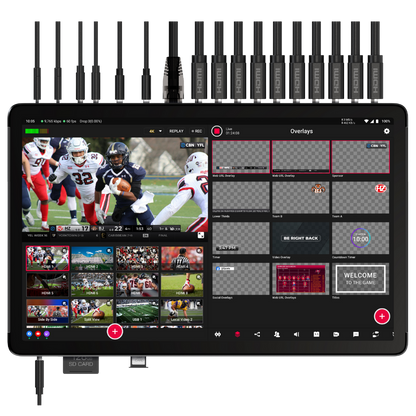

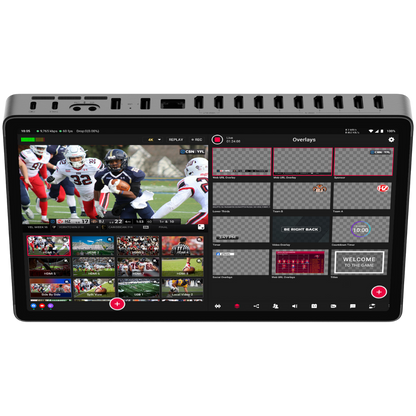

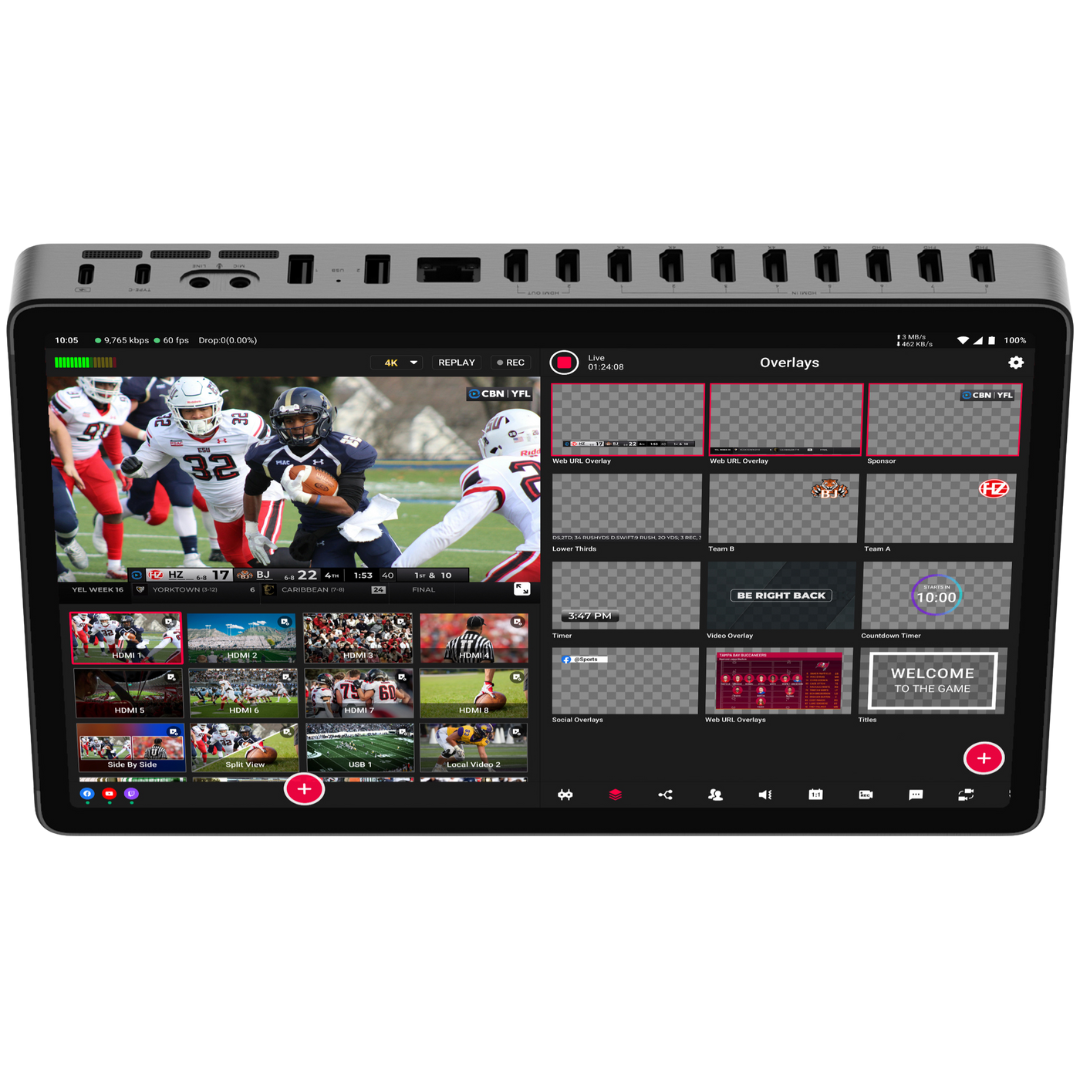

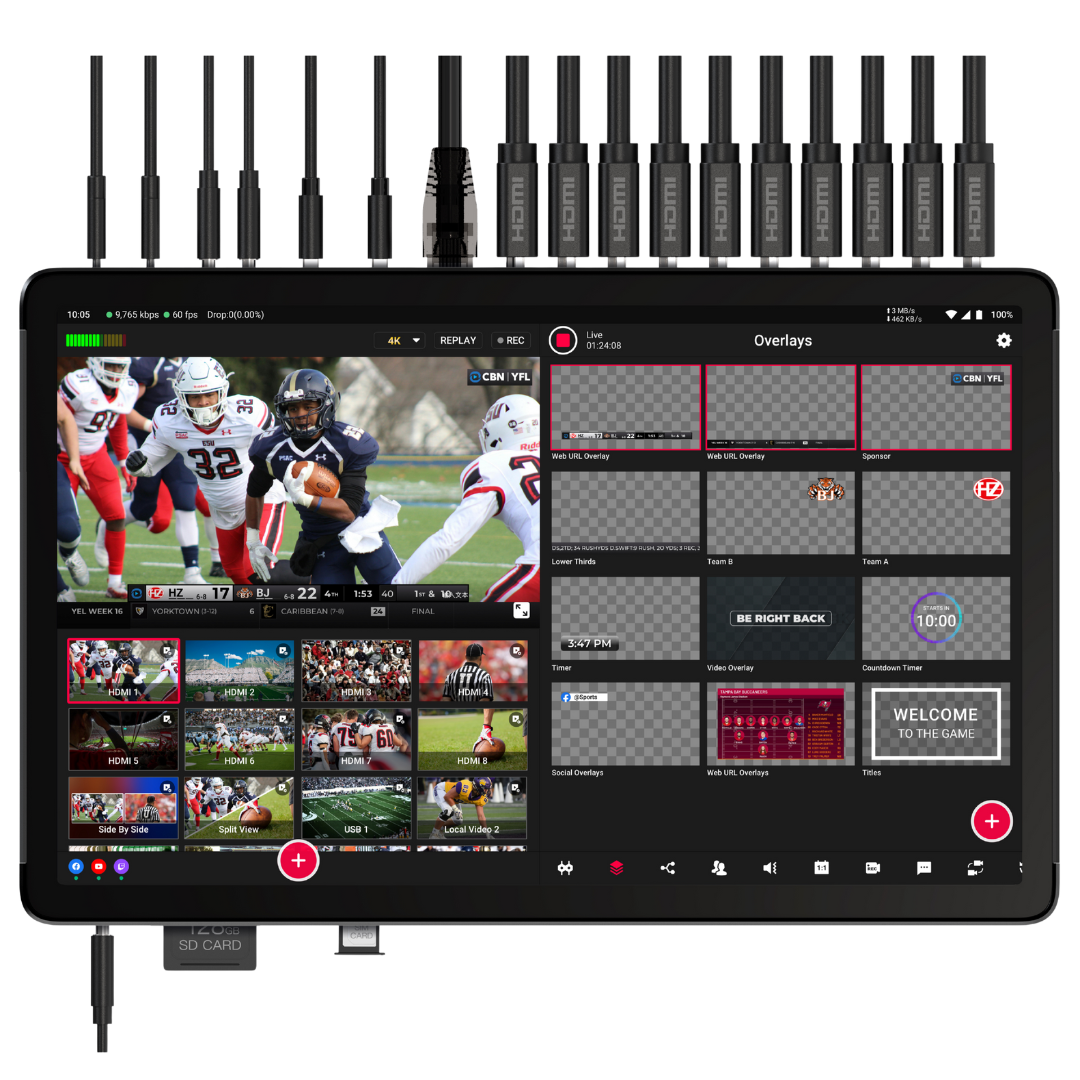

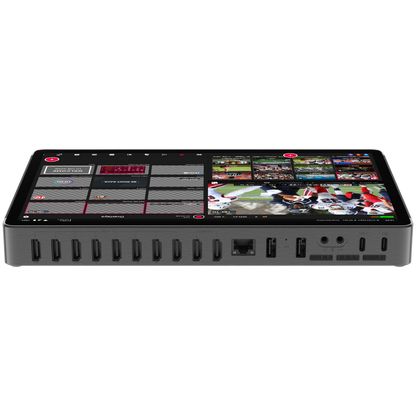

8 HDMI Inputs with Flexible Outputs

First, connect up to eight HDMI cameras, laptops, or media players to create a complete multi-camera production. Then, built-in 4K60 scaling automatically optimizes every source for a smooth viewing experience. Meanwhile, two independent HDMI outputs can be assigned as Program, Preview, or Multiview. As a result, you can adapt your setup to fit virtually any production.

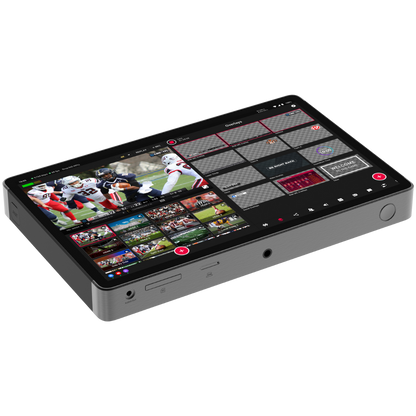

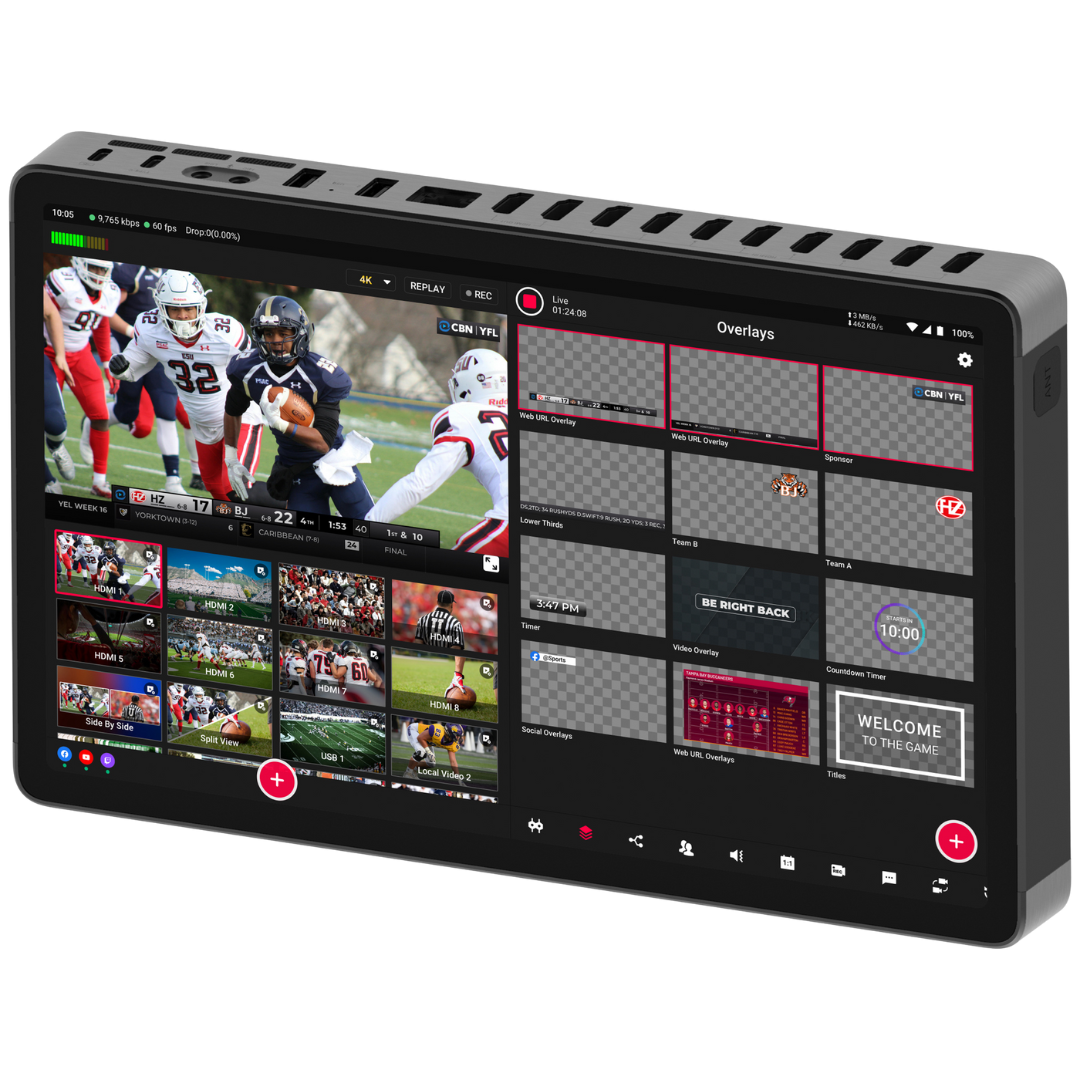

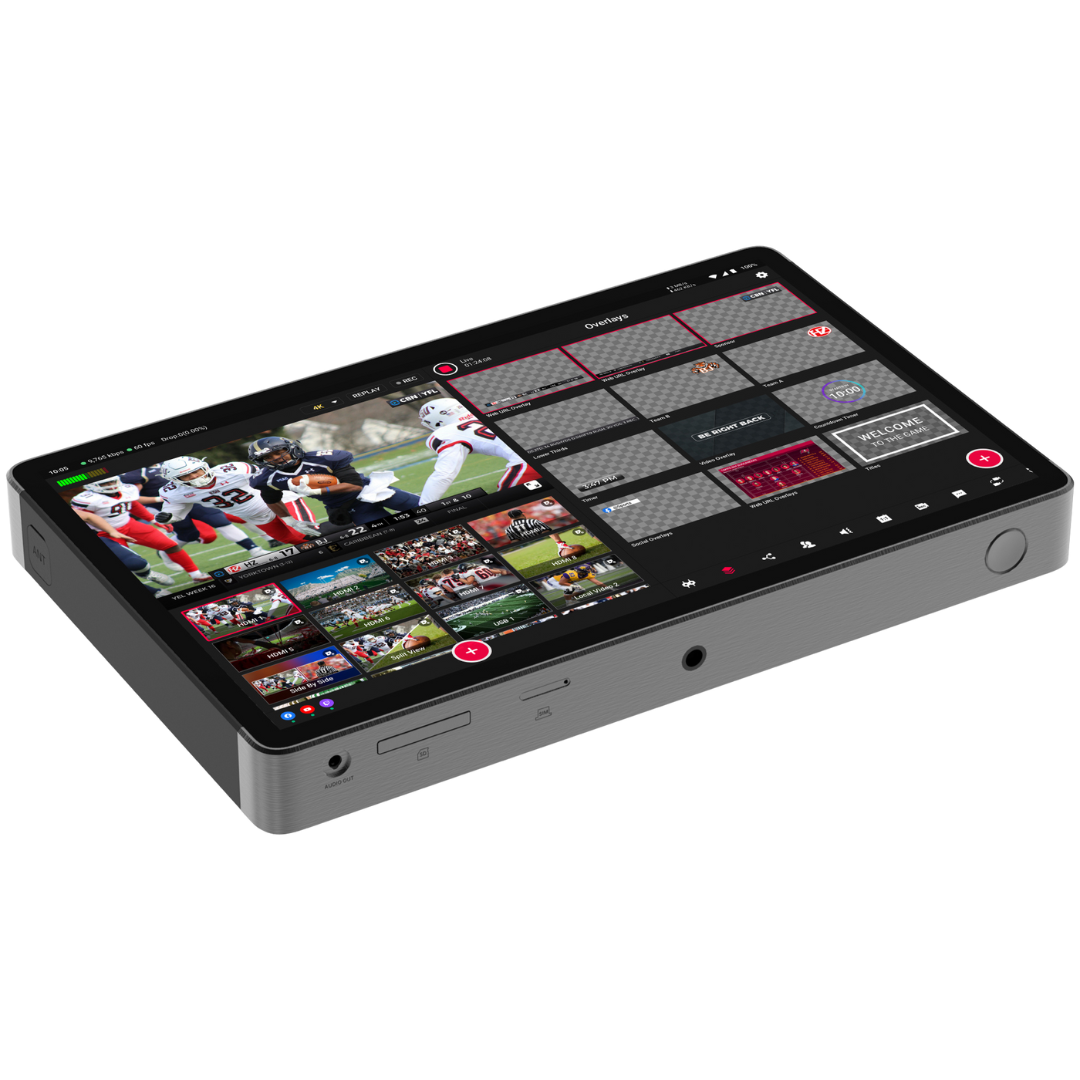

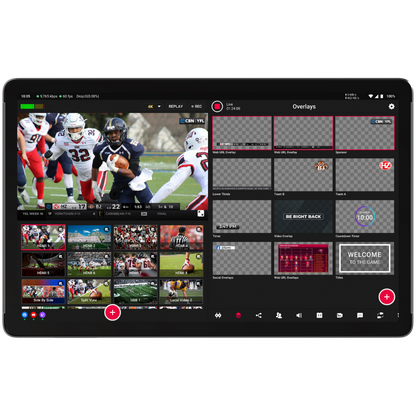

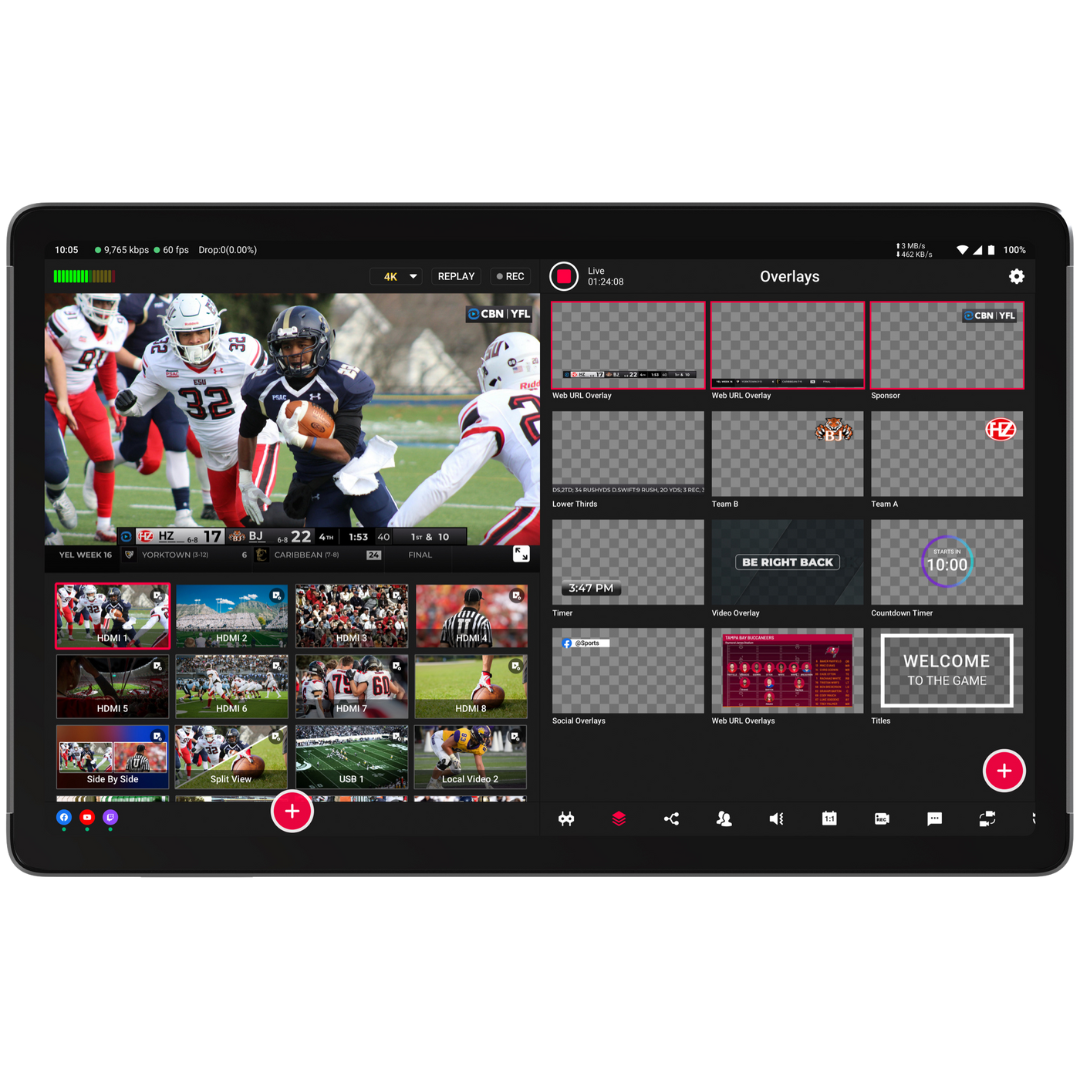

Brilliant 11.2-Inch OLED Touchscreen

Additionally, the 11.2-inch OLED touchscreen provides a bright and responsive production experience. With its 2.5K resolution, 120Hz refresh rate, and up to 1,000 nits of brightness, every control remains easy to see. Even during outdoor productions, the display stays bright and responsive.

Record Every Camera with ISO Recording

Moreover, YoloBox Extreme lets you record every camera feed independently using ISO recording. Because each input is saved separately, editing becomes much easier after the live event. As a result, you have greater flexibility when creating highlight reels, promotional videos, or archived content.

YoloBox Extreme supports:

• Up to four ISO recordings in 4K30
• Up to six ISO recordings in 1080p60
• Separate program recording

This allows editors to create polished productions after the live event without losing any camera angles.

Instant Multicam Replay

For example, sports broadcasters can instantly replay key moments without additional hardware. Likewise, event producers can highlight important moments during concerts or performances. Meanwhile, customizable replay lengths, intros, and outros help create polished broadcasts.

Replay up to:

• 6 cameras at 1080p60
• 4 cameras at 4K30

Add custom intros, outros, and replay durations to deliver broadcast-style highlights.

Integrated NDI® HX Workflow

In addition, YoloBox Extreme supports up to eight NDI® HX sources over Ethernet or Wi-Fi. Therefore, integrating IP cameras into your workflow is simple. Whether you're expanding an existing NDI network or building a new one, wireless production becomes easier to manage.

Long Battery Life for Mobile Production

Plus, the built-in battery provides up to 10 hours of operation. Because you don't need constant access to power, you can confidently stream from remote locations and all-day events.

Combined with Wi-Fi 6, Ethernet, and 4G connectivity, YoloBox Extreme is ready for remote productions, outdoor events, and mobile streaming.

Powerful Production Tools Included

In addition, YoloBox Extreme includes professional production tools without requiring additional software. Therefore, you can manage graphics, switching, audio, and streaming from one device.

Features include:

• Live switching
• Multiview layouts
• Custom scene layouts
• Chroma key
• Graphic overlays
• Lower thirds
• Logos
• Countdown timers
• Audio mixer with Mix Minus
• Audio delay adjustment
• PTZ camera control
• AutoSwitch
• Scoreboards
• Sports graphics
• Web URL overlays
• Browser-based guest invitations
• Remote app and web control
• Simultaneous multistreaming

Designed for Every Creator

YoloBox Extreme is ideal for:

• Live stream producers
• Houses of worship
• Sports broadcasters
• Schools and universities
• Corporate events
• Concerts and performances
• Weddings
• Content creators
• Podcasts
• Government meetings

Its portable design and professional features make it an excellent solution for both single operators and production teams.

Why Choose YoloBox Extreme?

Ultimately, YoloBox Extreme combines professional video switching, 4K streaming, ISO recording, multicamera replay, and advanced networking into one portable production system. Instead of carrying multiple devices, you can simplify your workflow with one powerful production solution.

If you need a reliable all-in-one live production solution with powerful connectivity, professional tools, and simple operation, the YoloBox Extreme is built to handle productions of every size.

• Height: 29mm
• Width: 167mm
• Length: 264mm
• Weight: ≈ 1500g
• Ports
  • HDMI Inputs (1-8): Up to 5*4K60 with Built-in Scaler
  • HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
  • Ethernet Connection: Wired Stable internet connection
  • USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles
  • Mic In (3.5mm): Mono, connect to wired microphone
  • Line In (3.5mm): Stereo, connect to external audio mixer
  • USB Type-C: A fully functional interface supports input
  • USB Type-C: Only for Charging
  • Audio Out (3.5mm): Connect to headphones for monitoring
  • SD Card Holder: Save files; Load videos & graphics
  • Nano-SIM Card Holder: Insert SIM card for 4G network
  • 1/4'' Screw Hole: Mount with other cameras & tripods
  • Power Button: Turn on & off, Sleep Mode
• Input Power: 9V / 12V / 15V⎓3A
• Power Consumption: 45W
• Power Supply: USB Type-C
• USB Rated Output: USB-A:5V/1A
• Battery Capacity/Power: 10000mAh/90Wh
• Dimensions: 264*167*29mm
• Power Consumption: ＜45W
• Monitor Screen Size:
  • 11.2inch 2K OLED; Resolution: 2560x1530;
  • Brightness: 450nits ( ≈ LCD 800-1000nits);
  • Frequency: Fre =120Hz; Contrast ratio (1500:1);
  • Viewing Angle (full viewing Angle); NTSC 108%
• Local Video Inputs: HDMI USB-A
• Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP
• Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
• Video Input Aspect Ratios: 16:9, 4:3, 1:1
• Video Input Deinterlacing: No
• Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
• Video Encoded Format: H.264 H.265
• Video Processing Bitrate Control: CQ, VBR, CBR
• Hardware-accelerated Video Encoding: Optional
• Video Output Signal Types: FLV-RTMP, HDMI, UVC
• Video Output Connectors: HDMI OUT, USB-C
• Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
• Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
• Analog Audio Input Connectors: Line In; Mic In; 3.5mm
• Digital Audio Outputs: USB; HDMI; RTMP (From internet); Local video (From SD card)
• Digital Audio Input Connectors: USB-A, HDMI, USB-C
• Audio Input Mute: Yes
• Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
• Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
• Analog Audio Output: 3.5mm Headphone Jack
• Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
• Record Formats: MP4
• Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
• USB Communication Standard: USB 2.0 and USB 3.0
• Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
• SIM Card Size: Nano-SIM Card
• 4G Network
  • 4G Network Countries & Frequency Band For
  • Users: [Variant for North Americao (US/Canada/Mexico)]
  • B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
  • Notes: Mexico B4 For Non-US/Canada/Mexico
  • Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
  • Asia/Latin/America/Australia/New Zealand)
  • Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
  • Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this region. For details, please refer to the approval report of this region.
• SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
• Operating Temperature: 0℃-40℃
• Operating Humidity: 15%-85%; No Condensation

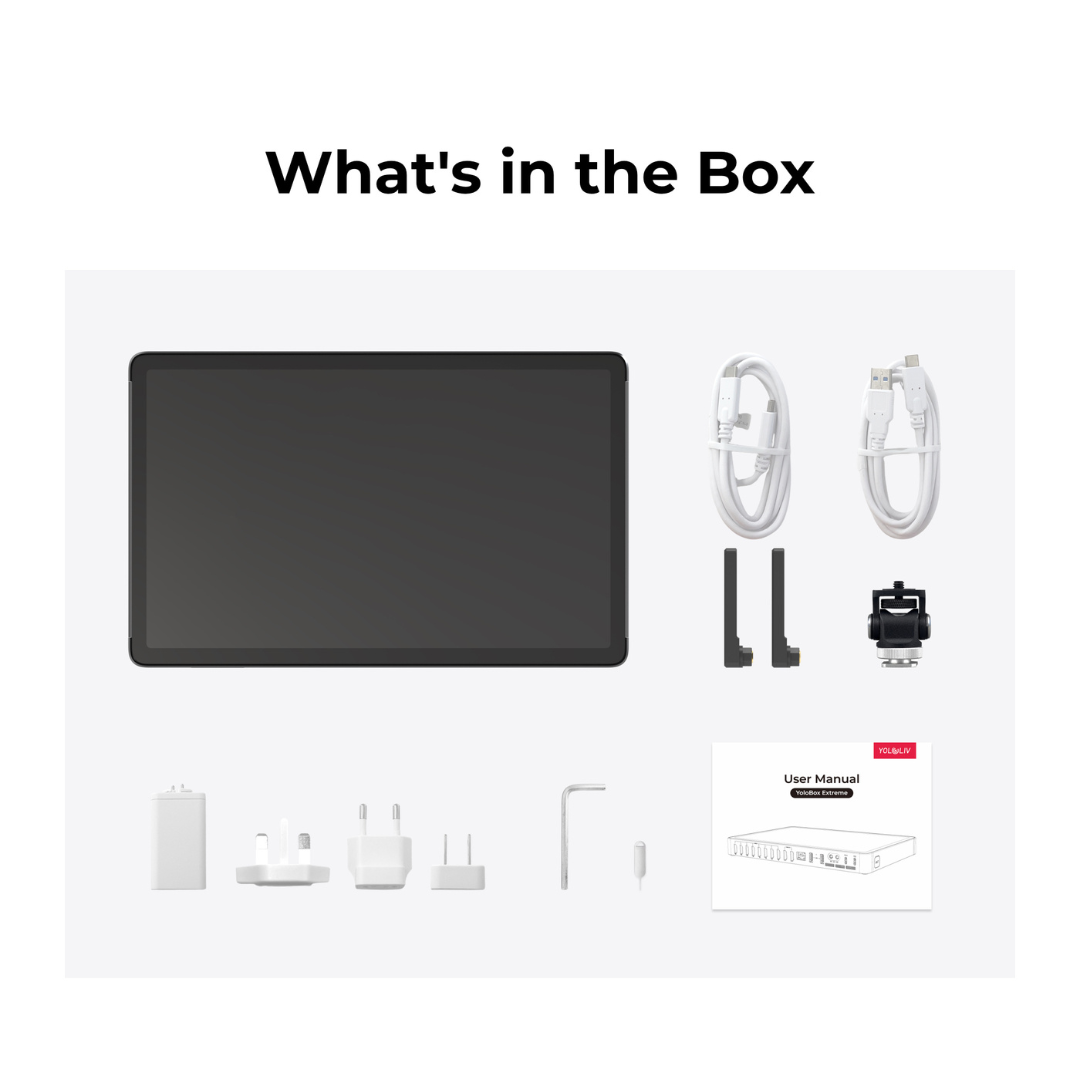

• YoloBox Extreme
• User Manual (downloadable)
• Hot Shoe Mount
• 2 External Antennas
• 2 Cables
• Power Block
• Power Adapters
• Warranty: Limited 1-Year Manufacturer Warranty
