YoloLiv YoloBox Extreme, Cage, and YoloDeck with SanDisk Creator Series 256GB SD Card Bundle

YoloLiv YoloBox Extreme, Cage, and Yolo Deck with SanDisk Creator Series 256GB SD Card Bundle
The YoloLiv YoloBox Extreme, Cage, and YoloDeck with SanDisk Creator Series 256GB SD Card Bundle brings together a complete, streamlined live-production ecosystem that’s ready to go straight out of the box. The YoloBox Extreme serves as your all-in-one streaming, recording, and switching hub, while the rugged cage provides protection and mounting versatility for multi-camera setups. Add the YoloDeck controller and you gain instant, tactile command over your production—switching sources, triggering graphics, mixing audio, and more—without needing a laptop. The included SanDisk Creator Series 256GB SD card ensures you have reliable, high-speed storage for extended recordings and replays. Together, these components create a seamless workflow that’s perfect for live events, sports, houses of worship, and mobile productions, making this bundle an excellent investment for creators looking to elevate their livestream quality and control with minimal complexity.

YoloLiv YoloBox Extreme All-in-One Multi-Camera Live Streaming and Switching System
The YoloBox Extreme is a powerful all-in-one live streaming and video production system built for professionals who want maximum performance with simple control. It combines an encoder, switcher, monitor, and recorder into one device, featuring 8 HDMI inputs, 2 assignable 4K HDMI outputs, up to 15+ live sources, 4K streaming and ISO recording, an 11.2" high-brightness OLED touchscreen, Qualcomm 8 Gen 2 processor, up to 10 hours of battery life, and support for up to 8 wireless NDI-HX inputs. With RTMP and SRT streaming, H.264/H.265 encoding, Ethernet, Wi-Fi 6, and 4G connectivity, the YoloBox Extreme delivers unmatched flexibility and reliability for multi-camera productions, events, and professional live workflows.

YoloLiv YoloDeck: Control Panel For YoloBox with 15 Macro Keys
The YoloLiv YoloDeck is a powerful hardware control surface designed to give you fast, tactile control over your YoloBox live production—no laptop required. Featuring 15 fully customizable LCD keys with support for unlimited button pages, YoloDeck lets you switch video sources, add overlays, adjust and mix audio, control scoreboards, and trigger instant replay with a single tap. Configuration is simple with drag-and-drop setup directly from the YoloBox Ultra, making it easy to tailor your workflow to any production style. Compatible with YoloBox Extreme, Ultra, and Pro, YoloDeck puts your entire streaming setup right at your fingertips for smoother, faster, and more confident live productions.

SanDisk 256GB SanDisk Creator SD UHS-II Card
The SanDisk 256GB SD UHS-II Card is built to elevate your content and workflow with professional-grade performance, delivering rapid transfer speeds up to 280MB/s for faster editing, publishing, and even 6K video recording. Part of the SanDisk Creator Series, it’s designed to amplify your creative voice and streamline every step of production. Compatible with high-end DSLR, mirrorless UHS-II, and select cinema cameras, it also includes one month of Adobe Creative Cloud, two years of RescuePRO Deluxe data recovery, and a lifetime limited warranty—giving you speed, reliability, and peace of mind for every project.

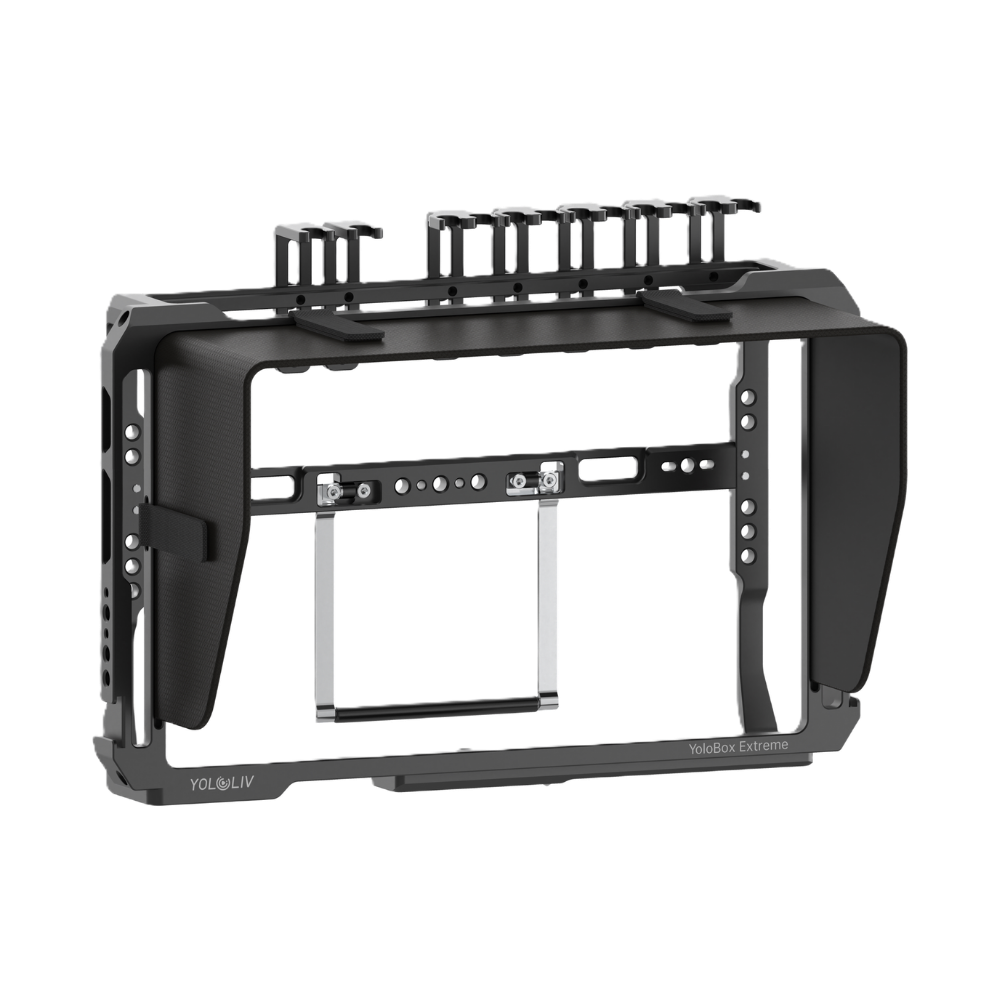

YoloLiv YoloBox Extreme Cage
The YoloLiv YoloBox Extreme Cage is a precision-engineered accessory designed to securely protect your YoloBox Extreme while adding maximum mounting flexibility. Built from aviation-grade aluminum alloy, it features precision machining, multiple expansion mounts, and adjustable angles for custom setups. A quick-release Velcro sunhood installs in seconds for glare-free outdoor use, while the built-in desk stand allows stable tabletop operation without extra tripods. An adjustable cable clamp with a 46mm range keeps connections secure, making this cage a durable, space-saving solution for both studio and on-the-go livestreaming.

Dimensions & Weight

• Height: 29mm, 1.15"
• Width: 167 mm, 6.57"
• Length: 264 mm, 10.4"
• Weight: ≈ 1500g, 3.3 lbs

Ports

• HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler
• HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
• Ethernet Connection: Wired Stable internet connection
• USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles
• Mic In (3.5mm): Mono, connect to wired microphone
• Line In (3.5mm): Stereo, connect to external audio mixer
• USB Type-C: A fully functional interface supports input
• USB Type-C: Only for Charging
• Audio Out (3.5mm): Connect to headphones for monitoring
• SD Card Holder: Save files; Load videos & graphics.
• Nano-SIM Card Holder: Insert SIM card for 4G network
• 1/4'' Screw Hole: Mount with other cameras & tripods
• Power Button: Turn on & off, Sleep Mode

Specifications

• Input Power: 9V / 12V / 15V⎓3A
• Power Consumption: 45W
• Power Supply: USB Type-C
• USB Rated Output: USB-A:5V/1A
• Battery Capacity: 10000mAh
• Dimensions: 264*167*29mm
• Power Consumption: ＜45W
• Monitor Screen Size: 11.2inch 2K OLED; Resolution: 2560x153;
• Monitor Brightness: 450nits ( ≈ LCD 800-1000nits);
• Monitor Frequency: Fre =120Hz; Contrast ratio (1500:1);
• Monitor Viewing Angle (full viewing Angle); NTSC 108%
• Local Video Inputs: HDMI USB-A
• Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP
• Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
• Video Input Aspect Ratios: 16:9, 4:3, 1:1
• Video Input Deinterlacing: No
• Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
• Video Encoded Format: H.264 H.265
• Video Processing Bitrate Control: CQ, VBR, CBR
• Hardware-accelerated Video Encoding: Optional
• Video Output Signal Types: FLV-RTMP, HDMI, UVC
• Video Output Connectors: HDMI OUT, USB-C
• Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
• Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
• Analog Audio Input Connectors: Line In; Mic In; 3.5mm
• Digital Audio Outputs: USB; HDMI; RTMP (From internet); Local video (From SD card)
• Digital Audio Input Connectors: USB-A, HDMI, USB-C
• Audio Input Mute: Yes
• Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
• Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
• Analog Audio Output: 3.5mm Headphone Jack
• Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
• Record Formats: MP4
• Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
• USB Communication Standard: USB 2.0 and USB 3.0
• Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
• SIM Card Size: Nano-SIM Card
• 4G Network: 4G Network Countries & Frequency Band For
  Users: [Variant for North Americao (US/Canada/Mexico)]
  B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
  Notes: Mexico B4 For Non-US/Canada/Mexico
  Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
  Asia/Latin/America/Australia/New Zealand)
  Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
  Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
• SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
• Operating Temperature: 0℃-40℃
• Operating Humidity: 15%-85%; No Condensation
• Country of Origin: Made in China

• YoloBox Extreme
  • User Manual (downloadable)
  • Hot Shoe Mount
  • 2 External Antennas
  • 2 Cables
  • Power Block
  • Power Adapters
• YoloBox Extreme Cage
  • 4x M3*10 Screws
  • 4x M3*5 Screws
  • 2x .25" Screws
  • 1x 2.5mm Allen Wrench
  • 1x 4mm Allen Wrench
• SanDisk Creator 256GB SD UHS-II Card
  • Adobe Creative Cloud promotional insert
  • RescuePRO Deluxe file recovery service offer
• YoloLiv YoloDeck
  • Control panel board
  • USBC Cable
  • User manual
  • Adjustable Stand
