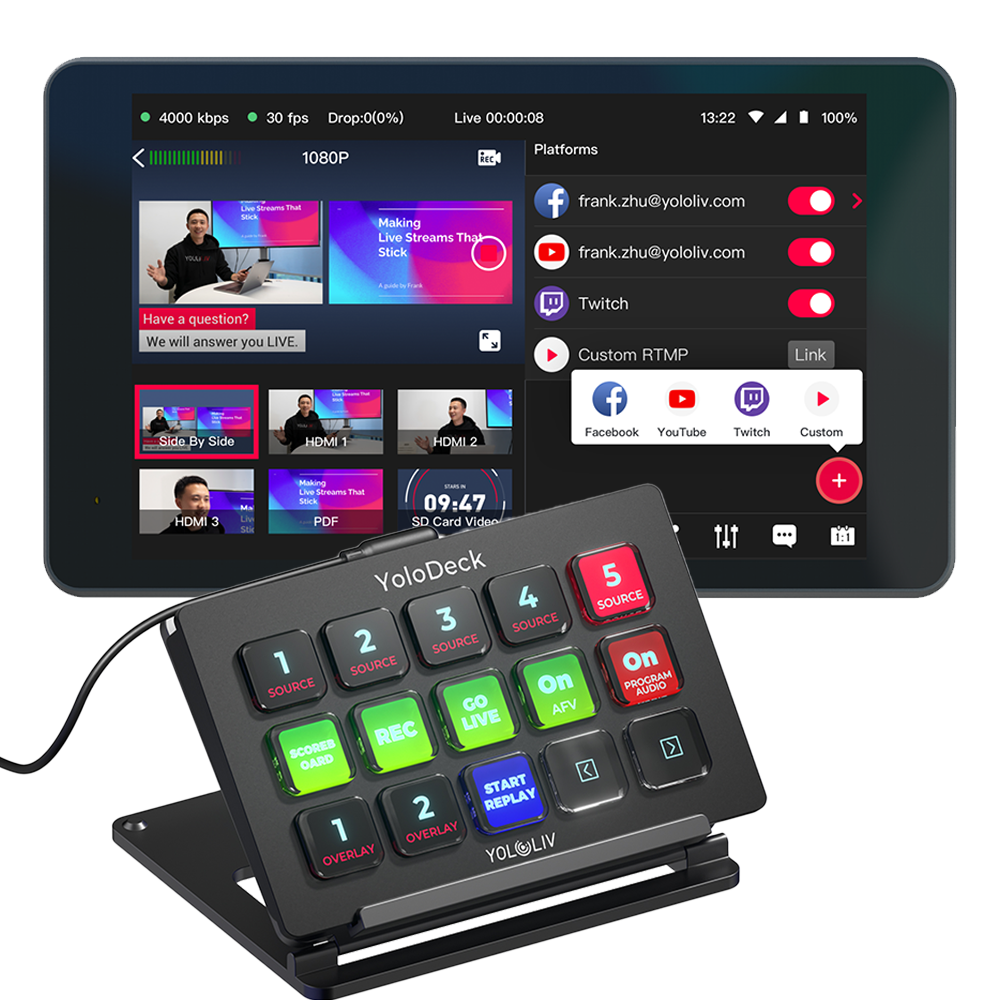

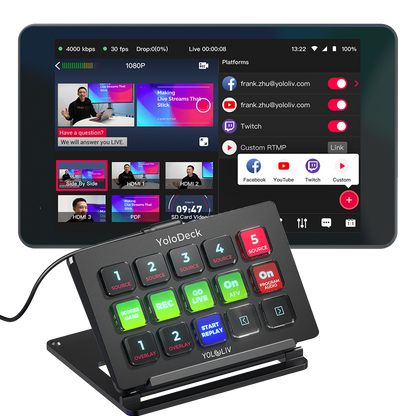

YoloLiv YoloBox Pro and YoloDeck Bundle

YoloDeck is your go-to streaming controller companion for YoloBox Pro. Add your favorite features and tools for instant, seamless control.

YoloBox Pro:
YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more.

YoloLiv YoloDeck Control Panel with 15 Macro Keys:
15 LCD keys poised to trigger unlimited actions. One-touch tactile operation lets you start/end live stream, start recording, switch video source, add graphics, adjust audio, launch instant replay, adjust scoreboard and so much more, while visual feedback confirms your every command.

Ports
· HDMI IN: Video input
· USB IN: Video input
(Please note in some usb webcams, only video can be captured.)
· HDMI OUT: Video input
· Ethernet: Connect to Internet by Ethernet cable
· AUDIO IN: Connect with lavalier microphone or mixer
· TYPE-C 3.0: A fully functional interface supports input/output
· TYPE-C: Power connector
· LINE IN: Stereo, connect to electric guitar or synthesizer
· MIC IN: Mono, connect to microphone for recording

· AUDIO OUT: Connect with headphone for sound monitor
· Sim Card Slot: Insert SIM Card to get into Internet
· HOTSHOE: Mount YoloBox with camera
· SD Card: Insert SD card for local assets
· Power Button: Turn on and turn off

Encoded Format
· Video Encoded Format：H.264
· Audio Encoded Format：AAC (44.1k)
· Video Recorded format：MP4
· Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
· Video Input Format：1080i/ 720p/ 1080p
· Live Broadcast Resolution：540P/720P/1080P

Video Storage
· Storage Card Type：SD Card
· Storage Card Capacity：Expanded to 128G in FAT32, exFAT, NTFS format

Network Connection
· WiFi：2.4G/5G
· 4G Network Countries & Frequency Band For
· Users：[NA：Variant for North America（US/Canada/Mexico）]
· B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
· Notes：Mexico B4
· For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand）Users：
· B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
· Notes：Thailand B7
· Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
· SIM Card Size：Nano card

Power
· Power Interface：Type C, Quick Charge 3.0
· Battery Capacity：10000mAh
· Rated Voltage:  5V-3A; 9V-2A; 12V-1.5A

Transmission
· Network Protocol：RTMP(S)

Working Environment
Operating Temperature：-10℃-40℃
Storage Temperature：5℃-40℃

YoloDeck:

• Height: 132 mm
• Width: 91 mm
• Length: 20 mm
• Interface: USB-C
• Input Voltage: 5V
• Working Power Consumption: 3W
• Standby Power Consumption: 0.75W
• Hardware Keyboard Numbers: 15
• Screen Luminance: 800
• Screen Contrast Ratio: 450
• Keyboard Icon Resolution 126 * 126
• Startup Logo Resolution: 800 * 480
• Keyboard bare weight: 188g

• YoloBox Pro
  • Screen Protector
  • Quick Start Guide
  • Instruction Booklet
  • Hot Shoe Mount
  • Pocket Wrench
  • Sim Card Ejector
  • USB-C Charging Cable
  • USB-C Cable
• YoloDeck
  • USBC Cable
  • User manual
  • Adjustable Stand
