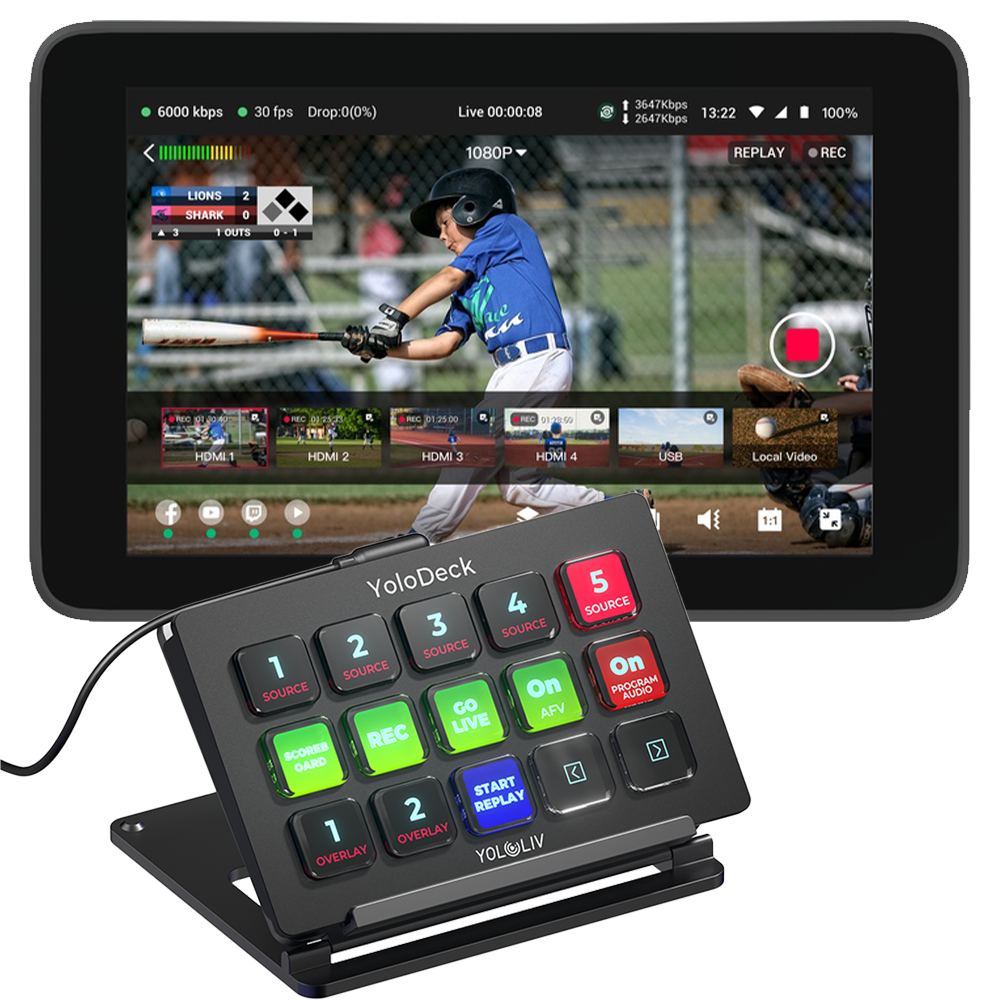

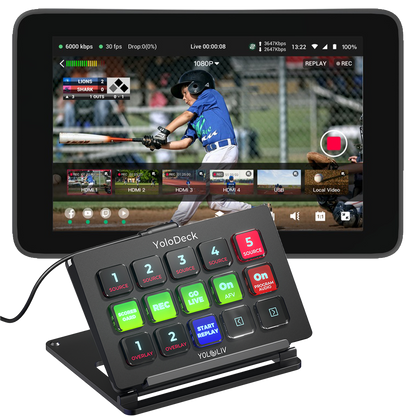

YoloLiv YoloBox Ultra and YoloDeck Bundle

Take complete control of your live productions with the YoloLiv YoloBox Ultra and YoloDeck Bundle. This powerful live streaming bundle combines the YoloBox Ultra with the YoloDeck Control Panel to give you professional production tools and instant control in one portable solution.

Whether you're streaming worship services, sporting events, business presentations, podcasts, concerts, or online content, this bundle helps you create polished, professional broadcasts with ease. As a result, you can spend less time managing equipment and more time creating engaging content.

Why Choose the YoloLiv YoloBox Ultra and YoloDeck Bundle?

The YoloLiv YoloBox Ultra and YoloDeck Bundle gives you everything you need to produce live content without a computer. In addition, it combines powerful streaming hardware with fast, one-touch controls. Therefore, your workflow becomes faster and more efficient.

Bundle Highlights

• Portable all-in-one live streaming solution
• Professional multi-camera production
• One-touch control with 15 customizable LCD keys
• Stream in up to 4K resolution
• Record every video source with ISO recording
• Stream horizontally or vertically
• Compatible with YouTube, Facebook, Twitch, Instagram, TikTok, and more

YoloBox Ultra Features

The YoloBox Ultra combines a video switcher, encoder, monitor, and recorder into one compact device. Additionally, its built-in touchscreen makes production simple. Meanwhile, the long-lasting battery lets you stream almost anywhere without external power.

Key Features

• 4 HDMI inputs
• 2 USB video inputs
• 4K live streaming
• 4K ISO recording for every input
• Horizontal and vertical streaming
• Qualcomm 865 processor
• H.265 video encoding
• Bright 8-inch touchscreen display
• Built-in 20,000mAh rechargeable battery

Professional Production Tools

Furthermore, the YoloBox Ultra includes advanced production tools that help you create more engaging broadcasts. For example, you can easily add graphics, switch layouts, and mix audio during your stream.

• Graphic overlays
• Lower thirds
• Picture-in-picture
• Chroma key
• Instant replay
• Audio mixing
• Multi-view monitoring
• Scoreboard support
• Recording while streaming

YoloDeck Control Panel Features

The included YoloDeck Control Panel gives you fast, tactile control over your production. Instead of navigating menus, simply press a button to trigger your favorite command. As a result, you can react quickly during live events.

15 Customizable LCD Macro Keys

Each LCD key can be programmed for the actions you use most. Plus, you can create multiple pages of buttons for even more shortcuts.

Quickly:

• Start or stop your live stream
• Begin recording
• Switch camera sources
• Trigger instant replay
• Add graphics
• Control audio levels
• Update scoreboards
• Launch production tools
• Navigate multiple pages of custom buttons

Visual feedback on every key lets you confirm each action instantly. Because every command is clearly displayed, you can operate with confidence throughout your production.

Perfect For

The YoloLiv YoloBox Ultra and YoloDeck Bundle is ideal for:

• Churches and houses of worship
• Sports live streaming
• Schools and education
• Corporate events
• Podcasters
• Content creators
• Live event production
• Mobile streaming teams

Finally, if you need a portable live streaming solution with professional features and instant hardware control, the YoloLiv YoloBox Ultra and YoloDeck Bundle is an excellent choice. Not only does it simplify your workflow, but it also helps you deliver high-quality live streams from virtually anywhere.

Dimensions & Weight
Height: 27.1 mm
Width: 140 mm
Length: 219 mm
Weight: ≈ 981 g

Ports

• HDMI IN 1: Video input
• HDMI IN 2: Video input
• HDMI IN 3: Video input
• HDMI IN 4: Video input
• HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
• ETHERNET PORT: Connect to Internet by Ethernet cable
• USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
• USB Type-A 3.0: Video input ( Support: webcam; portable storage device ; wireless usb dongle.)
• USB Type-C: Only for charging
• LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
• MIC IN(3.5mm): Mono, connect to microphone for recording
• AUDIO OUT(3.5mm): Connect with monitor headphones
• USB Type-C: A fully functional interface supports input
• 1/4'' Screw Hole: Mount Ultra with camera
• Nano-SIM Card Holder: Insert SIM card to connect to Internet
• SD Card Holder: Used for recording and loading graphics
• Power Button: Turn on and turn off

Input Power
DC5V/9V/, 12V/15V

Power Consumption
45W

Power Supply
USB Type-C

USB Rated Output
USB-A:5V/1A

Battery Capacity
6800mAh

Monitor Screen Size
8inch LCD Resolution: 1200*1920; Brightness: 650nits; Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%

Local Video Inputs
HDMI,USB-A

Video Over Ethernet
RTMP/RTMPS/SRT

Video Input Connectors
HDMI,USB-A,RJ-45,USB Type-C

Video Input Aspect Ratios
16:9; 4:3; 1:1

Video Input Deinterlacing
No

Live Broadcast Video input Resolution
480p/720p/1080p(up to 60fps)/4k 30fps

Video Encoded Format
H.264 H.265

Video processing Bitrate control
CQ, VBR, CBR

Hardware-Accelerated Video Encoding
Optional

Video Output Signal Types
FLV-RTMP,HDMI,UVC

Video Output Connectors
HDMI OUT, USB-C

Video Output Streaming protocols
RTMP, RTMPS, MJPEG, SRT

Live Broadcast Video Output Resolution
480p/720p/1080p(up to 60fps)/4k 30fps

Analog Audio Input Connectors
Line In, Mic In, 3.5mm

Digital Audio Inputs
USB, HDMI, RTMP(From internet), Local video(From SD card)

Digital Audio Input Connectors
USB-A, HDMI, USB-C

Audio Input Mute
Yes

Audio Input Format
32KHZ/44.1KHZ/48KHZ :16bit

Audio Encoded Format
(AAC)44.1K/48KHZ 2Ch 16bit

Analog Audio Output
3.5mm headphone jack

Digital Audio Outputs
HDMI audio (Embedded), USB Audio (Embedded)

Record Formats
MP4

Wi-Fi
2.4G/ 5G（Support WiFi6）

4G Network
4G Network Countries & Frequency Band For  Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8) Notes: Thailand B1/B3
Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.

USB Communication Standard
USB 2.0 and USB 3.0

Ethernet Data Rate
10/100/1000M, half/full duplex with autodetect

SIM Card Size
Nano-SIM Card

SDCard format
FAT32(Under 128G), NTFS, EX-FAT

Operating Temperature
0℃-40℃

Operating Humidity
15%-85%, No Condensation





YoloDeck:

• Height: 132 mm
• Width: 91 mm
• Length: 20 mm
• Interface: USB-C
• Input Voltage: 5V
• Working Power Consumption: 3W
• Standby Power Consumption: 0.75W
• Hardware Keyboard Numbers: 15
• Screen Luminance: 800
• Screen Contrast Ratio: 450
• Keyboard Icon Resolution 126 * 126
• Startup Logo Resolution: 800 * 480
• Keyboard bare weight: 188g
• Compatible with YoloBox Ultra

• YoloBox Ultra
  • USB Charging Cable (2x)
  • Hotshoe Mount
  • User Manual
  • SIM Card Eject Pin
• YoloDeck
  • USBC Cable
  • User manual
  • Adjustable Stand
