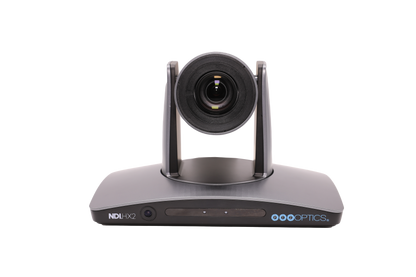

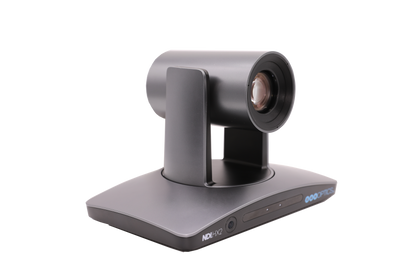

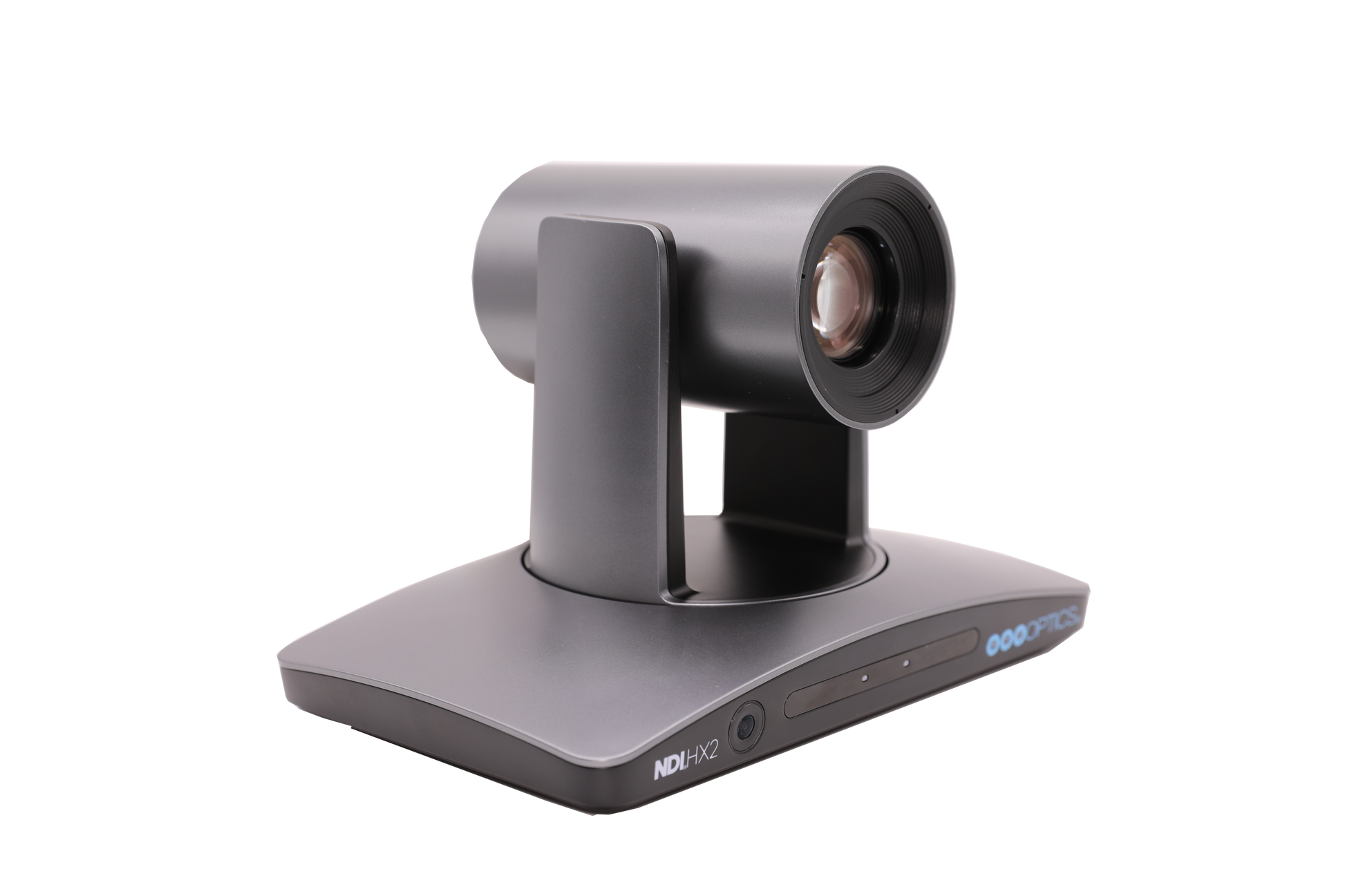

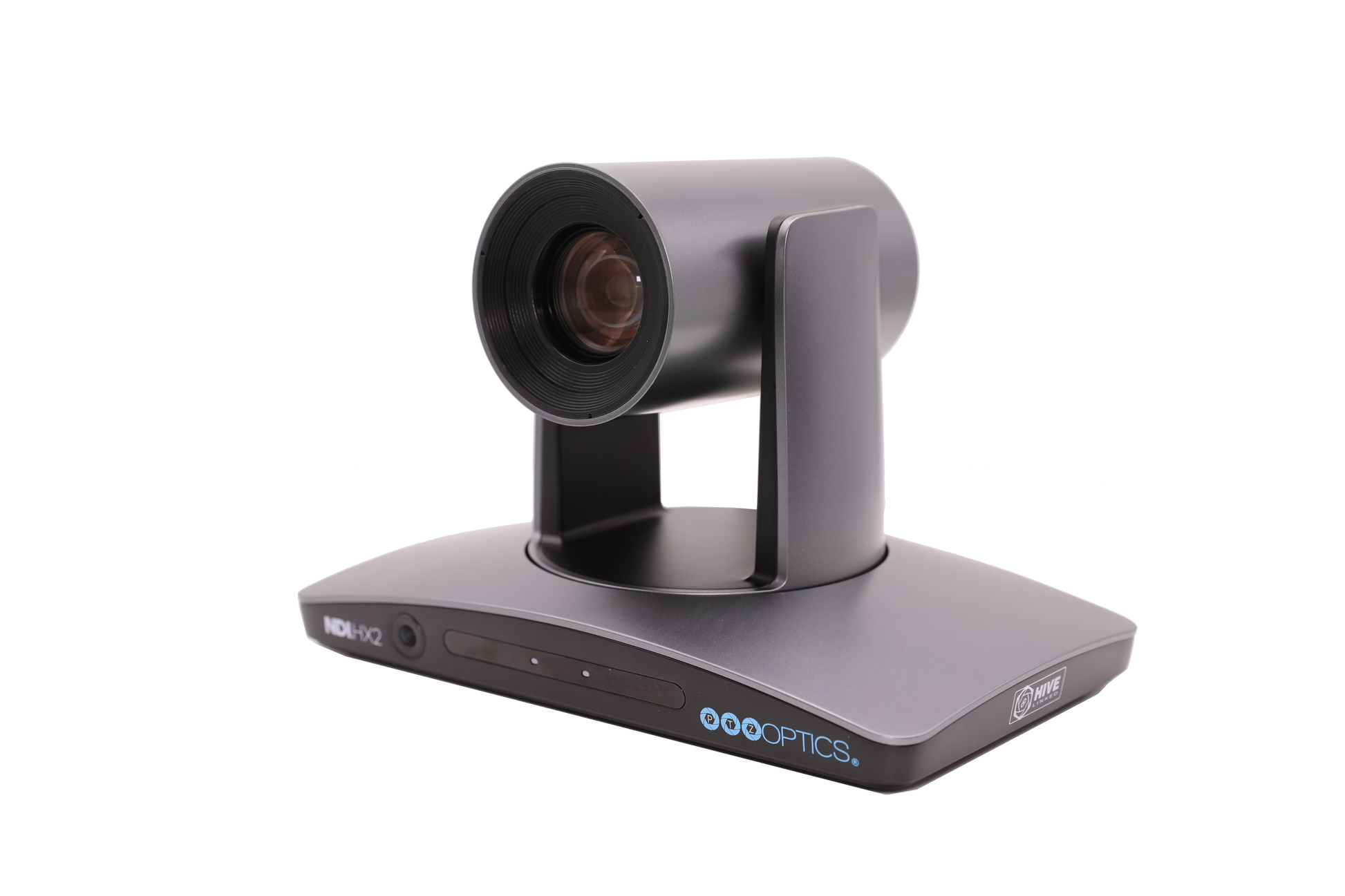

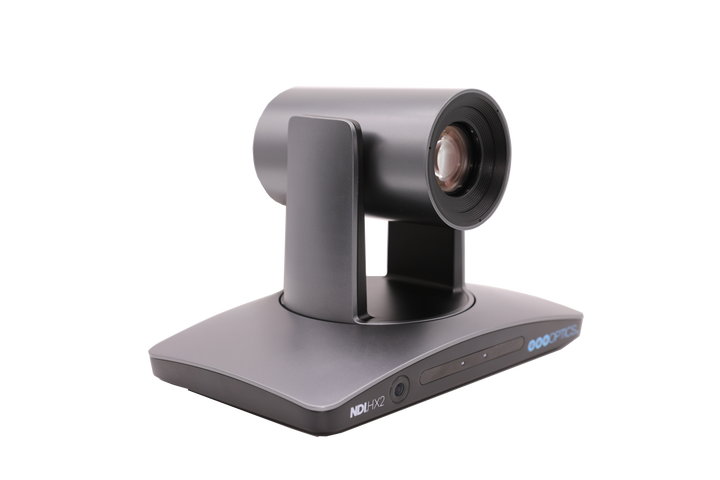

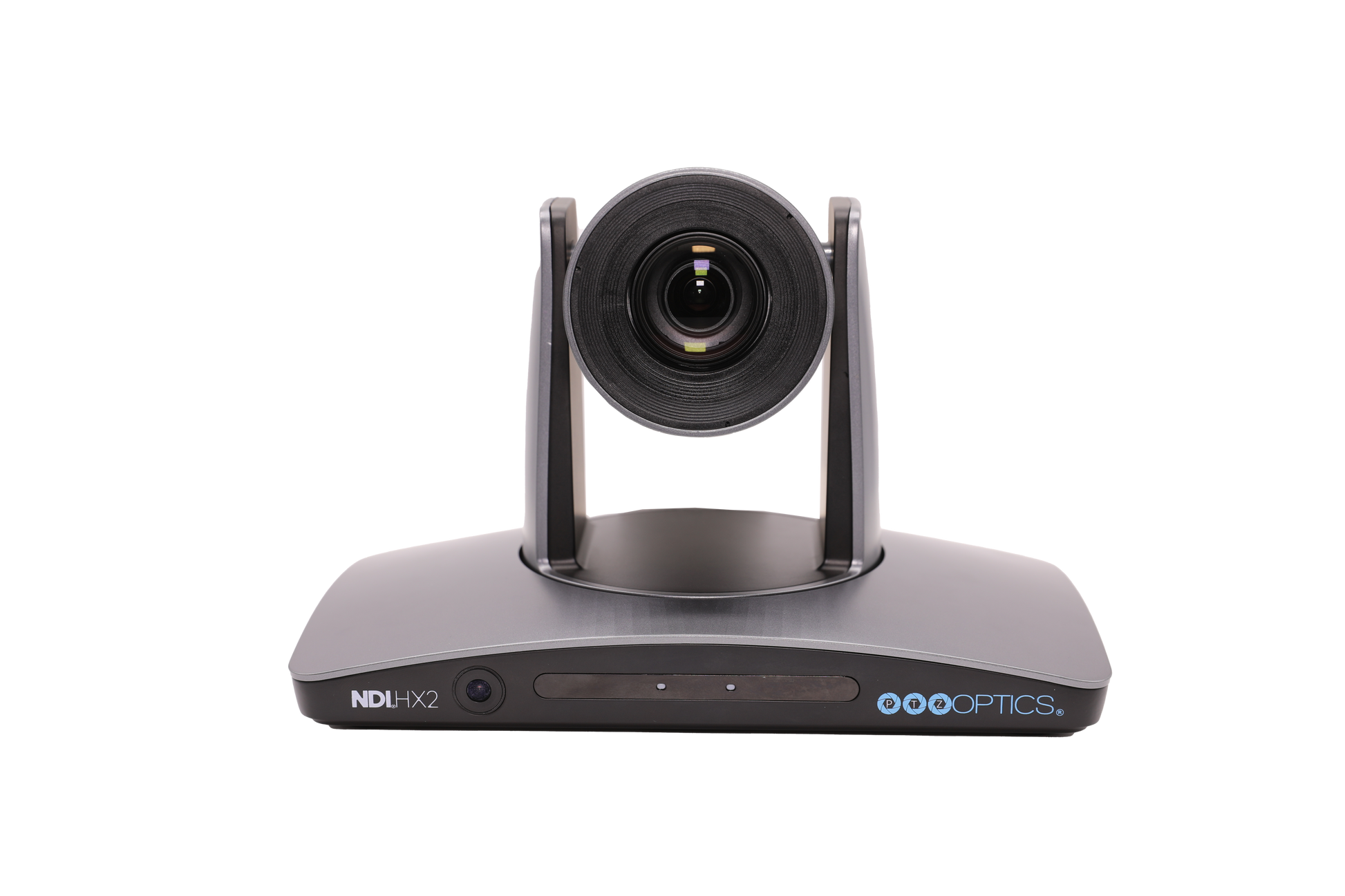

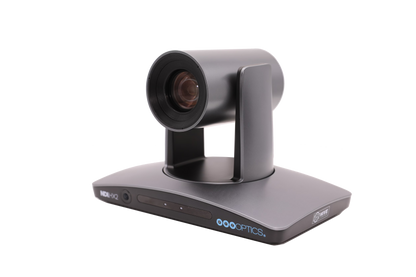

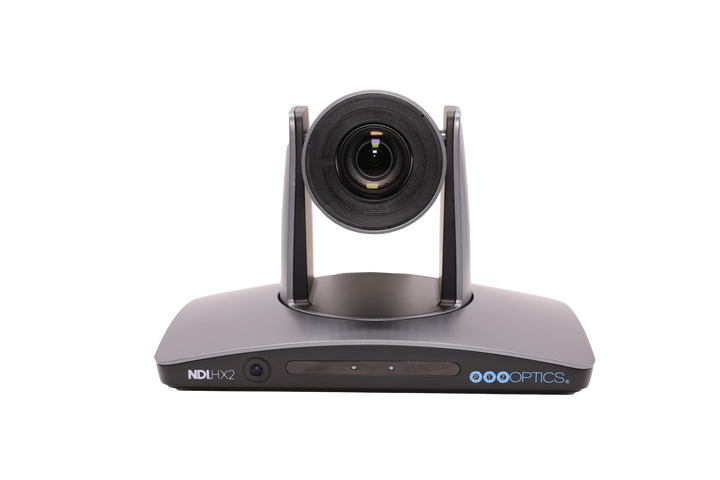

PTZOptics SimplTrack3

Auto-Tracking and Auto-Framing

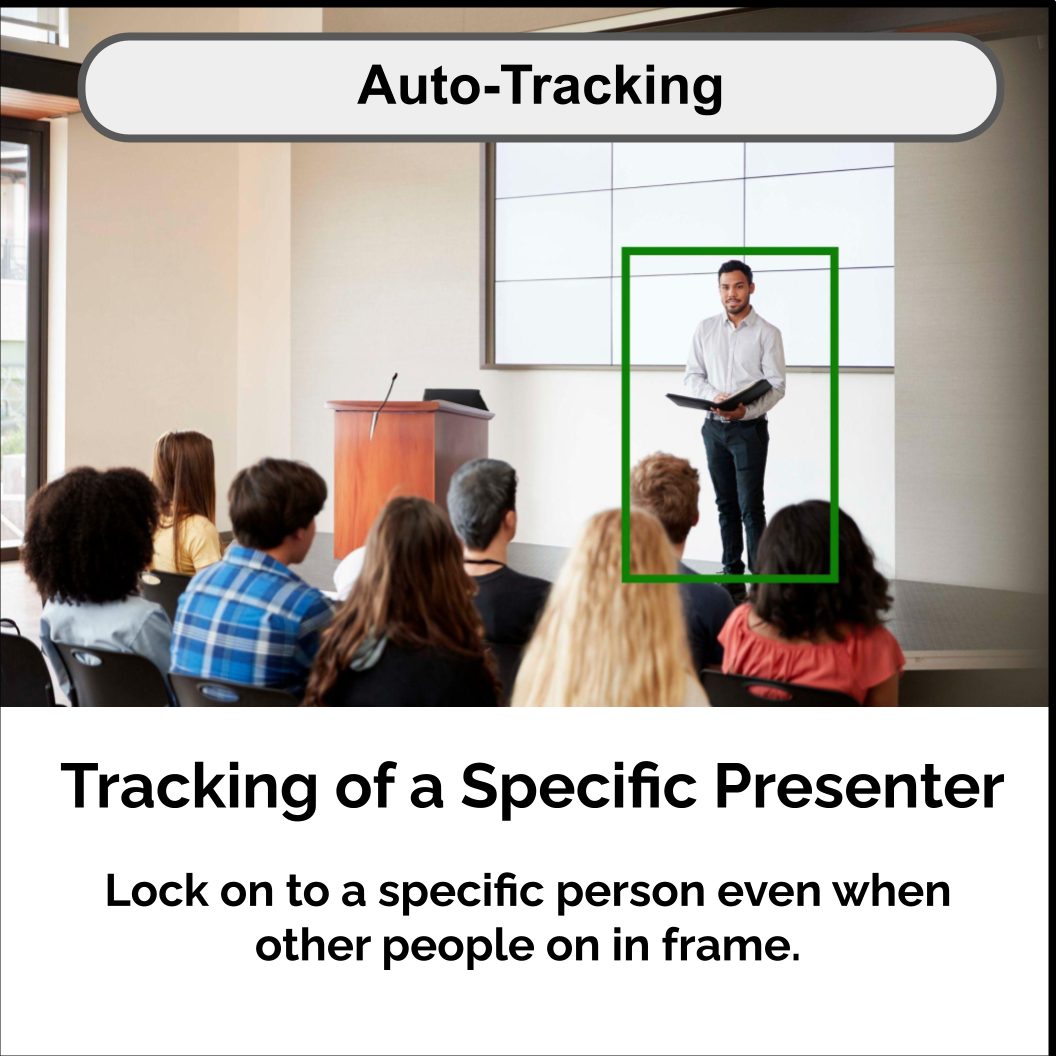

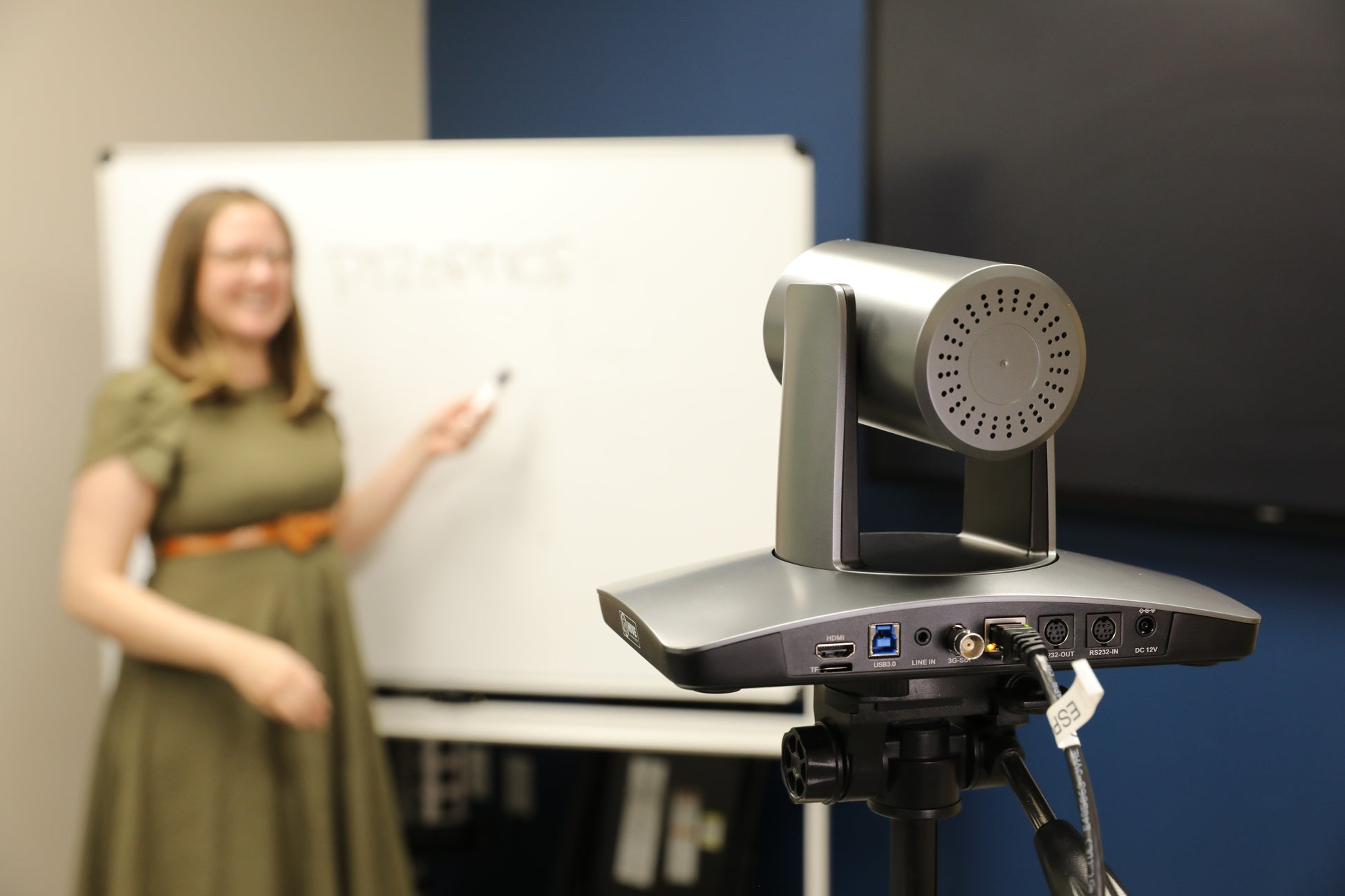

The PTZOptics SimplTrack3 streamlines high-quality conference and lecture productions without a camera operator. It offers automatic motion tracking up to 55ft, 20X zoom in 1080p at 60fps, 270° rotation, and a 59.5° field of view. Connectivity is simplified through USB 3.0 and Power over Ethernet (PoE), allowing a dual-sensor camera to be powered with a single ethernet cable. With advanced auto-tracking and auto-framing, SimplTrack3 switches effortlessly between tracking individuals and framing groups, ideal for conferences, stage productions, and classrooms. Its smart technology focuses on the subject, ignoring distractions, with easy toggling and manual PTZ control options.

Advanced Zone Management
The Tracking Zone encompasses the entire area where an auto-tracking subject might move across your frame. It’s designed to ensure smooth tracking of the presenter or lecturer, covering a wide range and offering flexibility in movement. The Preset Zone represents an innovative feature where an automated preset is triggered when the camera enters a selected area. This could include switching to a separate camera, activating a stage light, or any other preset tailored to enhance the presentation or lecture experience. The SimplTrack3 contains 8 preset zones. The wide angle reference camera provides intelligent controls for camera operation allow the camera to have stage awareness and produce the entire event automatically.

Customizability

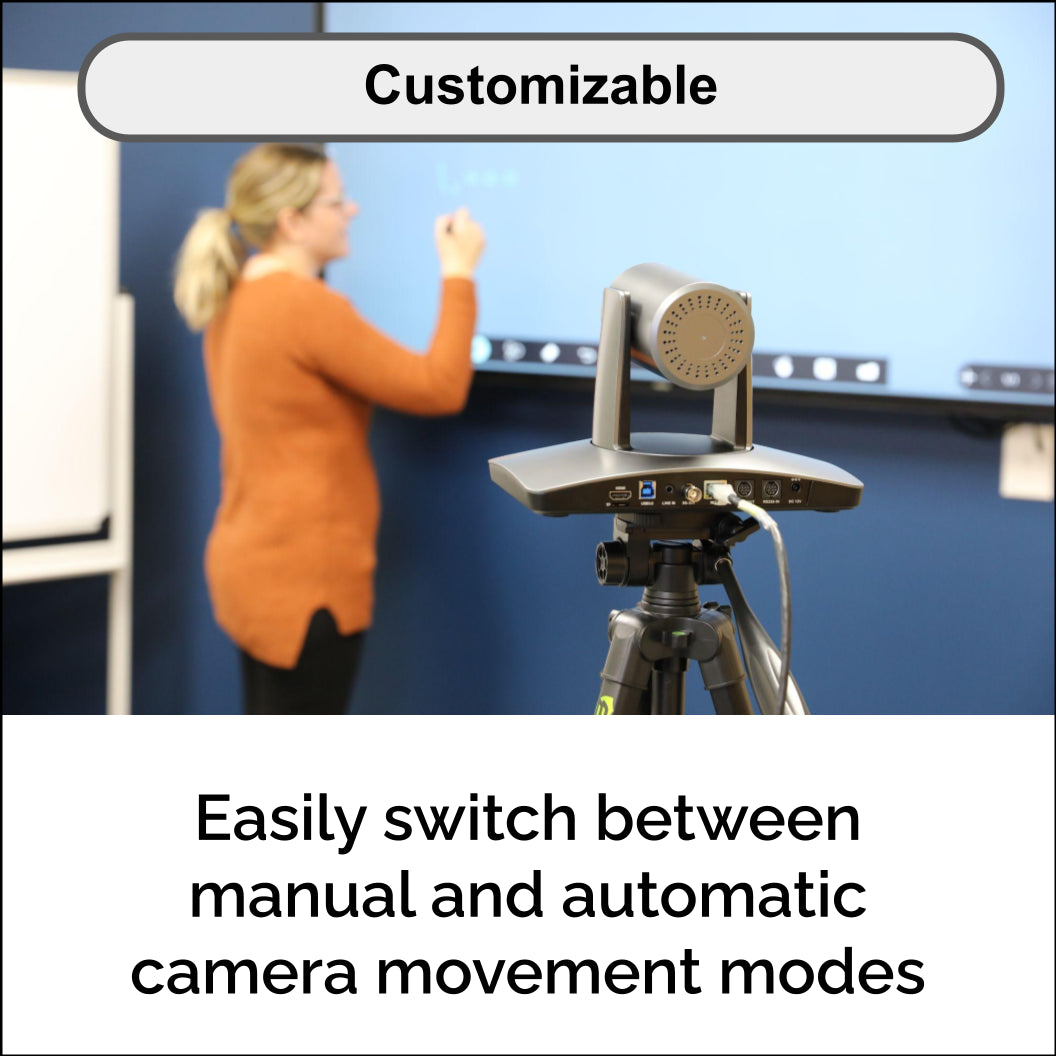

With SimplTrack3, you can automate camera controls and quickly adapt to any unique workflow. Customized tracking sensitivity options allow for the complete customization of the zoom level, pan/tilt speeds, and automatic operations to match the educator’s presentation style. Manual Mode can be enabled, allowing you to operate the SimplTrack3 with the included IR remote, a PTZ camera joystick controller, or camera control apps.

Set and Forget
The PTZOptics SimplTrack3 caters to various user preferences with its auto-tracking functionality, allowing for a straightforward setup with a single button for those seeking an uncomplicated solution. For users desiring more control, the SimplTrack3 also offers advanced capabilities for more complex setups, enabling detailed adjustment and fine-tuning of the tracking process.

Dual-Sensor and Scalability
The SimplTrack3’s dual-sensor system provides flexibility and superior performance, simultaneously capturing wide-angle and close-up views. SimplTrack3 supports multiple video outputs for seamless system integration and is designed for scalable deployments with dedicated management software.

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. Update your firmware now to ensure you’re taking advantage of the SimplTrack3’s enhanced five-year warranty from PTZOptics. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help.

Features and benefits

• Auto-Tracking up to 55ft
• Advanced Zone Management
• 20X Zoom in 1080p
• PoE Support
• Dual-Sensor System
• 5-Year Warranty

Optical Lens Video Sensor

• 20X: Sony 1/2.8 inch, CMOS, effective pixels: 2.14M

Resolution and Frame Rate

• HDMI, SDI: 1080p60 / 50
• USB, NDI® HX2: 1080p60, 1080p30, 720p30, 360p3
• Optical Lens Focal Length
• 20X: f = 4.7mm ~ 94mm, F1.6 ~ F3.55

Display Field of View

• Optical Lens: 71.0°
• Reference Lens: 101.0°

Optical Lens Field of View

• Horizontal 3° ~ 59.5°
• Vertical 2° ~ 36°

Reference Lens Video Sensor

• 1/2.8”

Reference Lens Focal Length

• 2.14 Mega Pixel, 2.4mm

Reference Lens Field of View

• Horizontal 86°
• Vertical 52°

Min. Lux

• 0.5 Lux @ (F1.8, AGC ON)

Shutter

• 1/1s ~ 1/10000s

Pan Movement Range

• ±170°

Pan Speed

• 0.1°/s ~ 120°/s

Tilt Movement Range

• -30° ~ +90°

Tilt Speed

• 0.1°/s ~ 90°/s

Presets

• 255 Presets

Preset Accuracy

• 0.1⁰

Image Flip, Mirror and Freeze

• Flip: Not Supported
• Mirror: Supported
• Freeze: Not Supported

Material

• Aluminum, Plastic

Color

• Gray

Dimensions (W x D x H)

• W 9.6” x D 6.1” x H 6.4” (W 243mm x D 157mm H 163mm)

Weight

• 5.7 lbs (2.59 kg)

Working Environment

• Indoor

Humidity Range

• 10% - 80%

Operating Temperature

• 32°F ~ 104°F (0°C ~ 40°C)

Storage Temperature

• -40°F ~ 140°F (-40°C to 60°C)

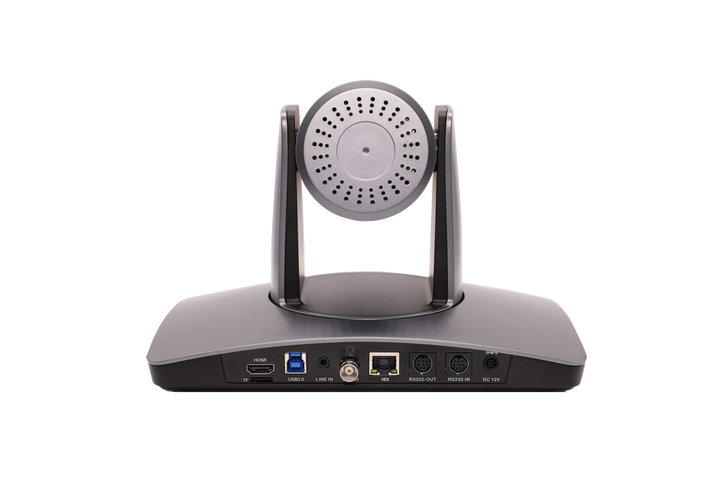

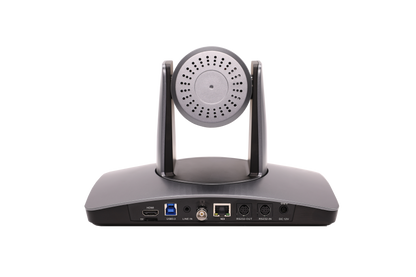

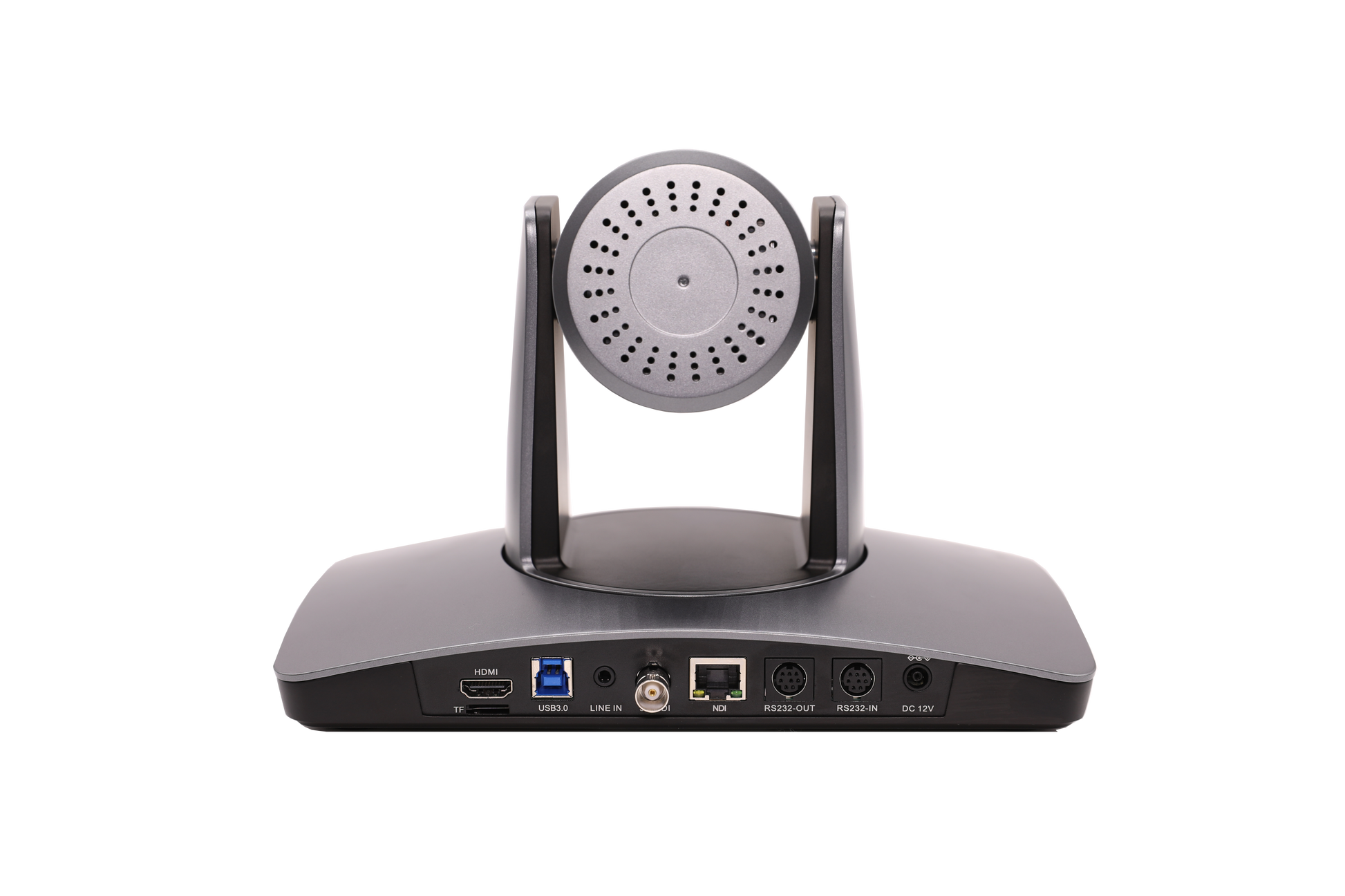

HD Video Output

• 1x RJ45: 10/100M Adaptive Ethernet Port | NDI® HX2 enabled
• 1x HDMI: version 2.0
• 1x USB 3.0: type B
• 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard

Audio Interface

• 1x 3.5mm Line level Input

Communication Interface

• 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P

IR

• 4x IR Addresses, max. distance 30ft / 9m

Power Supply

• JEITA type (DC IN 12V) / PoE (802.3af)

Current Consumption

• Max 1.0A

• SimplTrack3
• AC Power Supply
• USB B-A Cable
• RS232C Cable
• Quick Start Guide
• IR Remote
• 2 AA Batteries

Warranty: 5 Years
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
