Atomos Shinobi 7 4K HDMI/SDI HDR Photo & Video Monitor

SHINOBI 7 - Big. Bright. Beautiful.

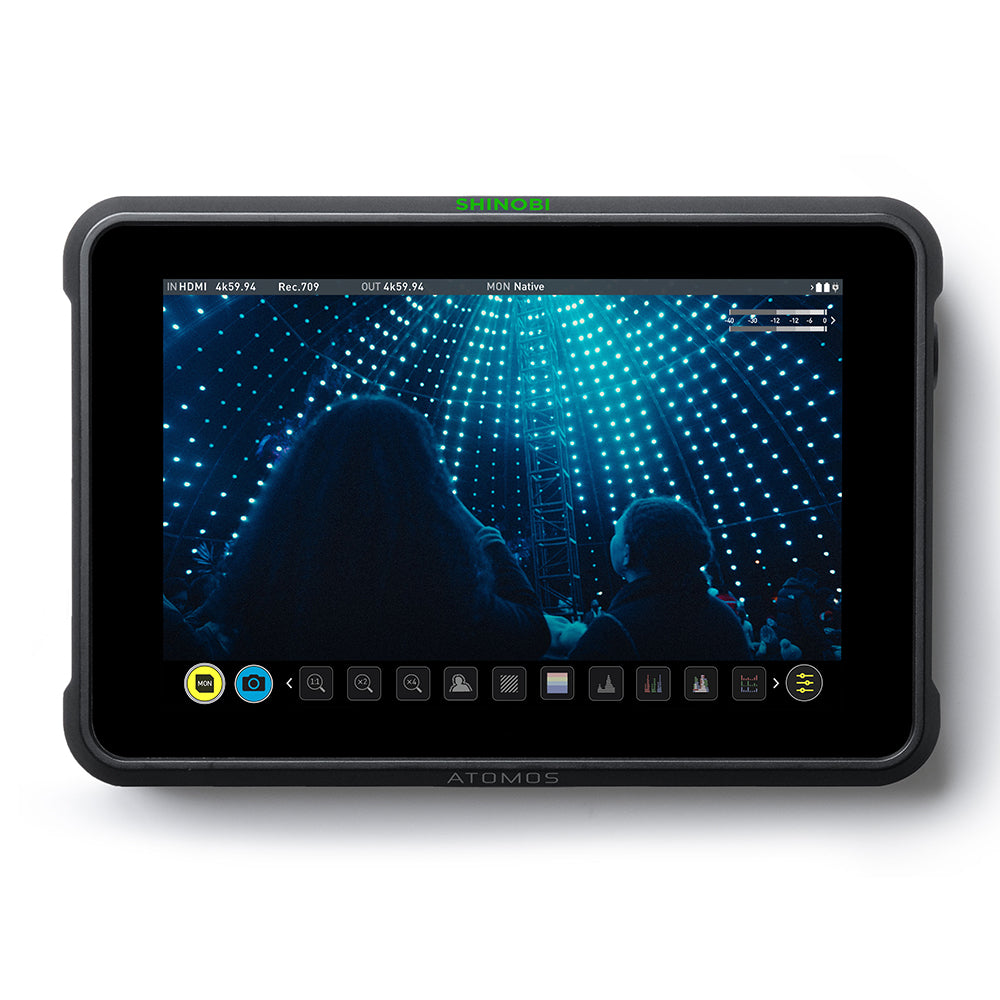

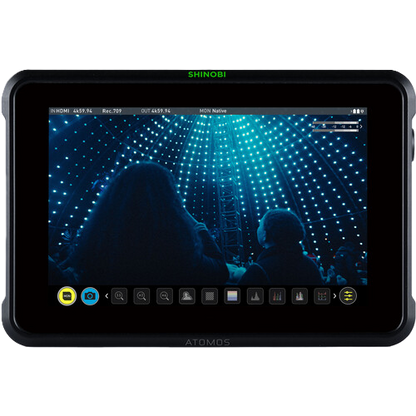

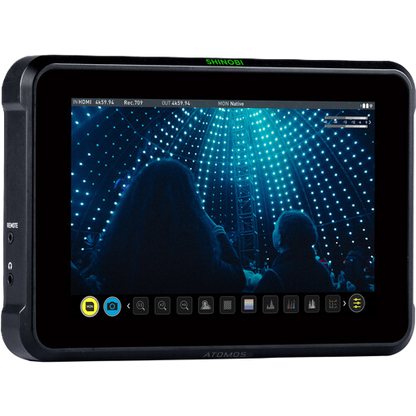

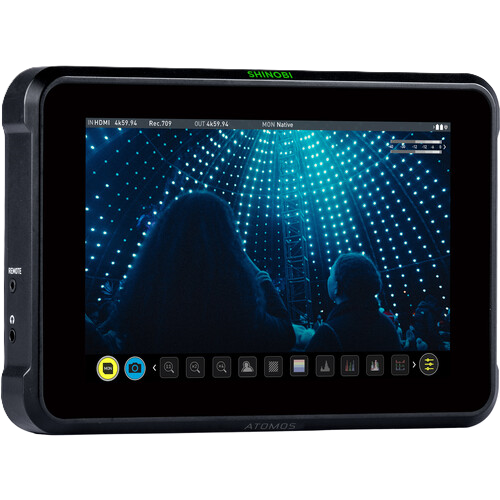

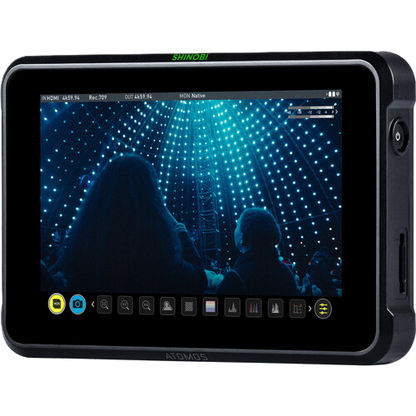

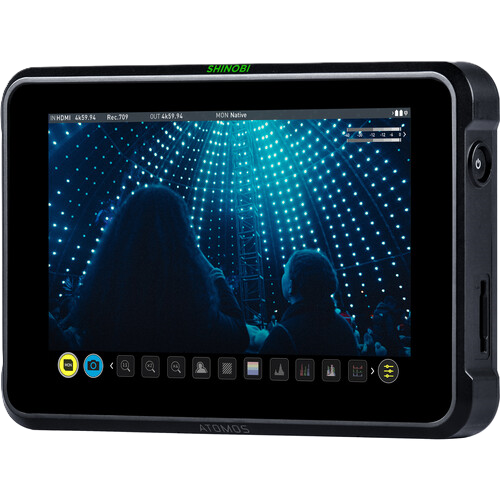

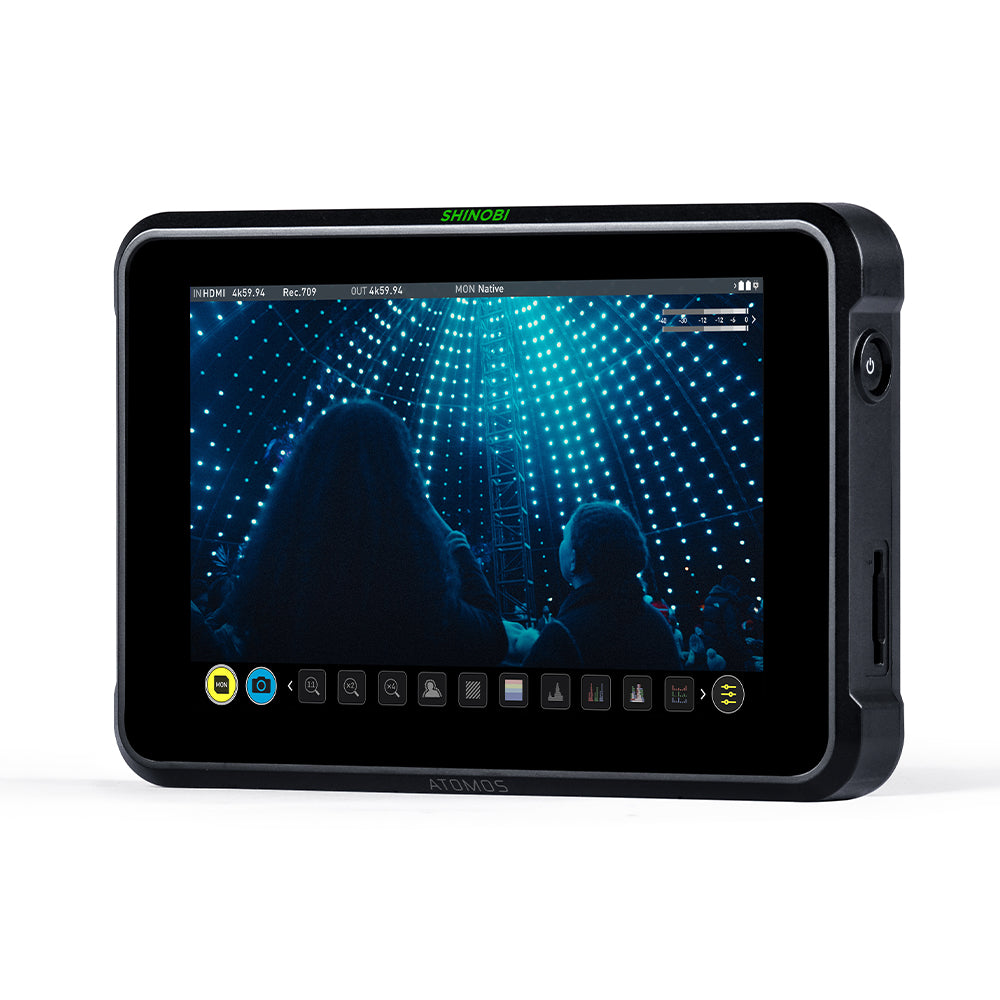

Shinobi 7 combines a stunning 7-inch HDR screen with a calibrated peak brightness of 2200 nits and all the professional monitoring goodness of the HDMI Shinobi.

One monitor for all
The Shinobi 7 can be used in the brightest environments to monitor signals up to 4Kp60 via HDMI or 2Kp60 via 3G-SDI. An ideal monitor for directors, DPs and focus pullers, and as a program or preview display for video switchers.

Ready for the big screen
Large-screen TVs and cinema displays show films in glorious detail. Full-frame camera sensors capture more information than ever before – often with extremely narrow depth of field. So there’s never been a better time to upgrade your on-camera monitoring so you can confidently capture video that’s perfect for appreciative audiences. Take visual control over composition, focus, exposure and HDR settings by putting a big screen on your camera.

Intuitive Controls
Easy touchscreen access to essential camera features.

Brightest and Best
Calibrated peak brightness of 2200nits.

Continuous Power
Dual battery slots.

Up to 4K Monitoring
Monitor signals up to 4Kp60 via HDMI or SDI.

Supports Z Cam E2
Via the optional USB-C to serial cable.

Future Proofing
Add updates and new features via USB or RJ45 ports.

Camera control at your fingertips
Directly control your camera using the intuitive touchscreen of the Shinobi 7, designed to give you fast access to the most critical camera features. Focus on the image while you make dynamic adjustments to iris, white balance, shutter angle and ND. With the optional Atomos USB-C to serial cable, support is available out the box for the Z Cam E2 series camera, providing direct control of all menu configurations. The additional USB and RJ45 control ports on the Shinobi 7 also provide support for future developments, as more options are added for touch screen camera control.

10+ stops of dynamic range
The Shinobi 7 screen displays a stunning 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with our unique HDR monitoring features, the Shinobi 7 simplifies shooting Log and HDR, helping you to replicate post-production workflows as you shoot. We look after the technology so you can focus on the image.

The best of AtomOS
Shinobi 7 comes with our acclaimed AtomOS platform and is packed with scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framing & exposure, including Focus Peaking, 4:1 / 2:1 / 1:1 Zoom, Zebra, False Color, Frame Guides, SMPTE Safe Area, Waveform, RGB parade, vectorscope, a new multi-view ‘Analysis’ view and a flexible 3D and 1D LUT, Profile and Preset support (upload .cube files via SD Card) and options for anamorphic desqueeze monitoring.

Focus Peaking
See sharp edges highlighted and colorized for easy and reliable focusing

False Color
Display your images in calibrated false color for accurate exposure assessment

Anamorphic De-squeeze
Compensate for non-spherical anamorphic lenses to show a visually corrected wide-screen image

Analysis Mode
View the incoming picture alongside levels, histograms and vectors

Frame Guides
Frame shots with confidence, for social media or cinematic productions

Vertical Flip
Turn the image on the screen upside-down

Built-in 3D LUT box

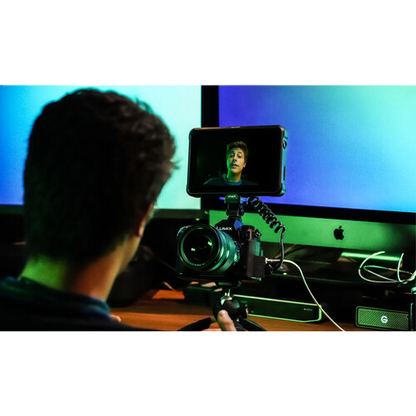

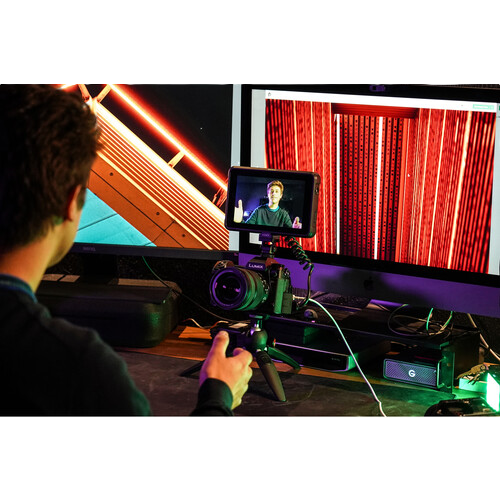

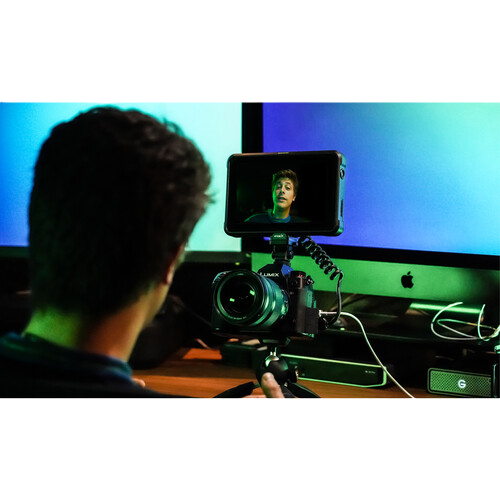

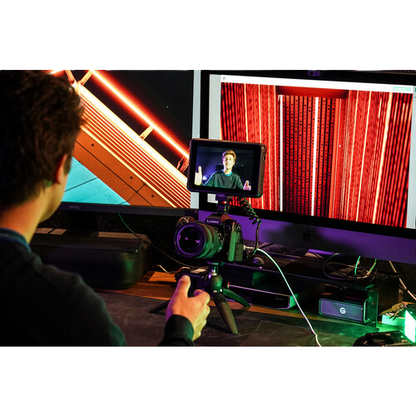

In addition to Shinobi 7’s Log to HDR conversions, you can also use your own custom 3D LUT to feed downstream to other devices or live feed. Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them. When using selfie mode, the large display acts as a confidence monitor that allows you to ’bake-in’ a LUT to your camera input, to achieve the desired look for your piece to camera.

Continuous Power

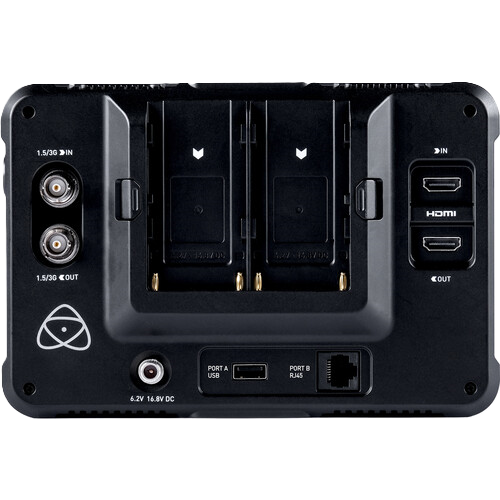

With dual battery slots you can easily hot-swap batteries during your shoot and never be caught without power. The Shinobi was designed from the ground up to optimize battery usage while monitoring, as the dual slots combine to allow you to run all day. The dedicated locking DC jack input allows you to connect to mains power on-set, and can be used with the optional DC to DTAP cable with V-lock batteries to power the Shinobi 7 in the field.

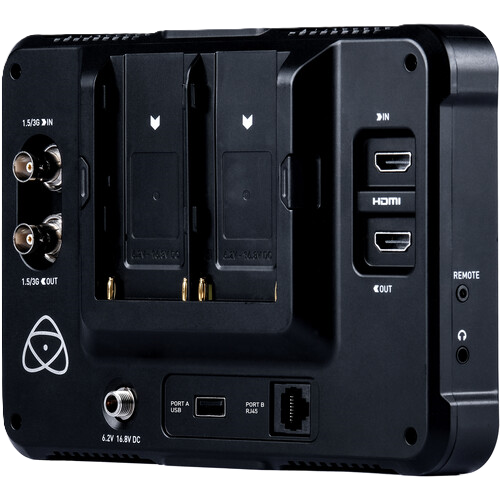

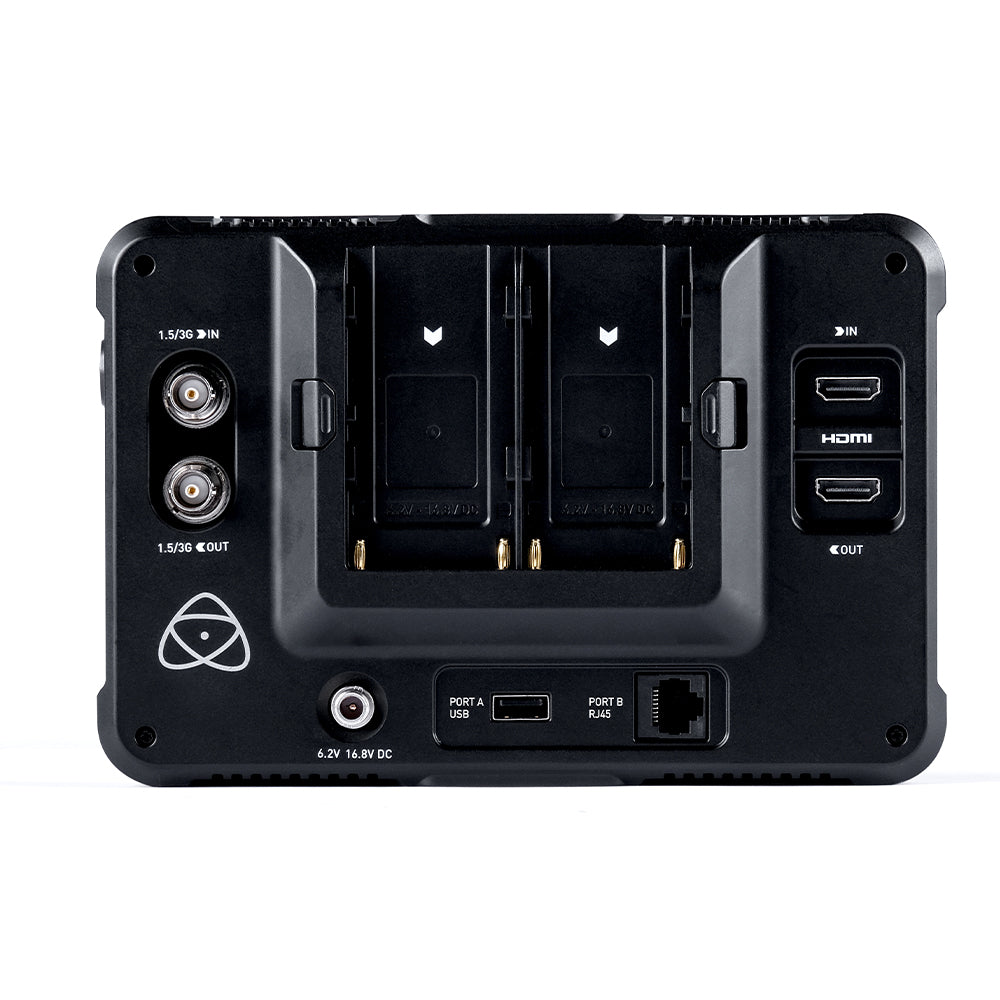

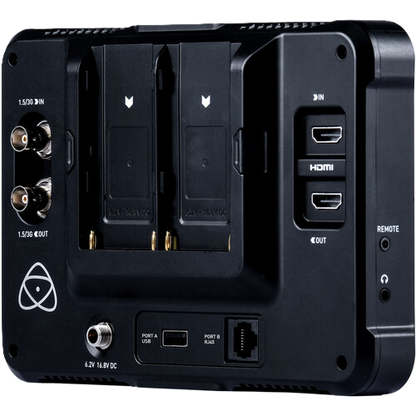

Professional I/O with Cross Conversion
With support for up to 4Kp60 via the HDMI inputs and the ability to cross-convert between 4K HDMI and 3G SDI,  the Shinobi 7 fits into many different video workflows. You can, for example, cross-convert and downscale from 4K HDMI into 2K SDI out and add a LUT to the output at the same time.

Easy User Calibration
Factory calibrated for Rec.709, Shinobi 7 also supports user field calibration via the free Atomos software. With the optional USB-A or USB-C to Serial cable and Calibrite Display Pro HL / Plus HL, you can automate screen calibration to ensure accurate and reliable monitoring results.

Physical

• Dimensions (W x H X D mm): 198mm x 133mm x 39mm / 7.8" x 5.2" x 1.5"
• Weight: 577g / 1.04lb
• Mounting Points: Top: 1 x 1/4"20 with anti rotational points, Bottom: 1 x 1/4"20 with anti rotational points

Environmental

• Ambient Operating Temperature: Up to 40 Degrees Celsius

Construction

• Body: ABS Polycarbonate Plastic
• Cooling: Heat Sink + Actively controlled Fan

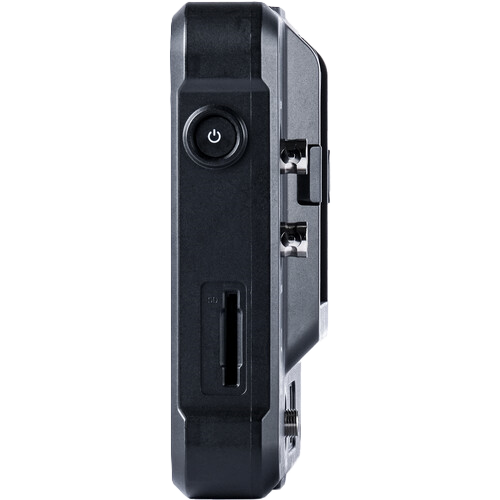

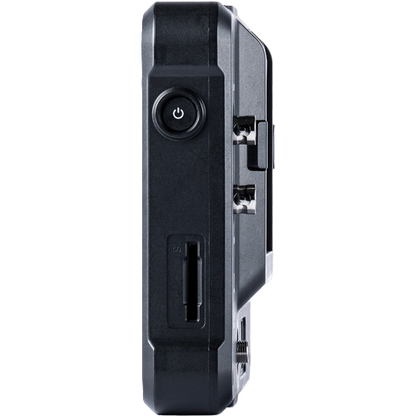

• Multi-Function Button: Power / Lock Screen
• Touch Screen: Capacitive Touch

Power

• Input Voltage: 6.2V to 16.8V
• Compatible Batteries: 2 x NP-F / L-Series
• DC-In Connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
• D-Tap: Via optional D-Tap to DC-Barrel Cable
• Fan Control: Quiet Fan/Limited Brightness & High Fan/Peak Brightness

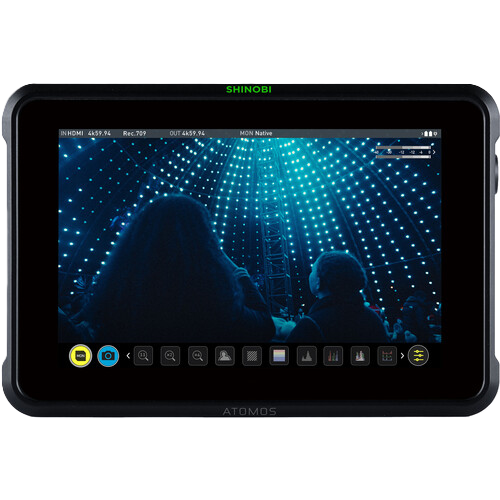

Display

• Display Panel: SuperAtom IPS Panel (Capacitive Touch)
• Size: 7"
• Resolution: 1920 x 1200 (1920 x 1080 Image Display)
• Viewing Angle: 178 + H & V
• PPI: 325
• Bit Depth: 10-Bit (8+2 FRC)
• Backlight Type: Edge-Lit
• Brightness (cd/m² / nits): 2200 +/- 10%
• Aspect Ratio: 16:10 (16:9 Image Display)
• Color Gamut: Rec.709
• Calibration Support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

Color Pipeline

• Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
• Gamut: Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide
• Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube Format (17 & 33 points supported)
• 3D LUT Output: Loop out
• 3D LUT 50/50: Via Compare Option in LUTs Menu
• Monitoring Modes: Native / 709 / HLG / PQ / 3D LUT
• HDR Output Conversion: Camera Log to HLG / PQ

Color Management

• Calibration: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
• Display Controls: Backlight, Lift, Gamma, Gain
• AtomHDR: Built-in Technical Log to HDR EOTF
• 3D LUTs: Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring

Video Input

• HDMI: 1 x HDMI 2.0
• SDI: 1 x 3G SDI
• Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
• Bit Depth: 8 / 10-Bit
• HDR: HDMI Auto Detection

Video Output

• HDMI: 1 x HDMI 2.0
• SDI: 1 x 3G SDI

Video Signal Conversion

• HDMI to SDI: Supported
• SDI to HDMI: Supported

Audio In/Out

• HDMI: 2ch 24-Bit, Input dependent
• SDI: 8ch 24-Bit, Input dependent
• Analog Audio Out / Headphone Jack: 3.5mm Jack

Timecode Display

• HDMI: Embedded
• SDI: Embedded

Resolution and Frame Rates (Monitoring)

• 4K DCI: up to 4Kp60 (HDMI only)
• 4K UHD: up to UHDp60 (HDMI only)
• 2K DCI: up to 2Kp60 (SDI only)
• FHD 1920 x 1080 Progressive: up to 1080p60 (HDMI & SDI)
• 1280 x 720 Progressive: up to 720p60 (HDMI & SDI)

Supported Media

• SD Card: up to 128GB Capacity – Used for Firmware Updates & Installing LUTs
• File System: FAT & FAT32

On-Screen Tools

• Waveforms: 3 Sizes – Adjustable Opacity & Brightness
• RGB Parade: 3 Sizes – Adjustable Opacity & Brightness
• Vector Scope: 2 Sizes – Adjustable Opacity & Brightness
• Histogram: 1 Size – Adjustable Opacity & Brightness
• MultiScope Analysis View: Image, Waveform, Histogram, Vector Scope & Audio Meters
• 1 x Zoom: Tap to Zoom
• 2 x Zoom: Tap to Zoom
• 4 x Zoom: Tap to Zoom
• Focus Peaking: 4 Modes (Color, Black & White, Outline, Edge Sharpening) with adjustable Outline Color & Peaking Intensity
• Zebra: Adjustable Threshold (50% to 105%)
• Isolate Color Channel: Blue Only
• Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 16:9, 4:3
• Social Frame Guides: 1:1, 5:4, 1:1.9
• Grid Markers: 9 Grid
• Anamorphic Desqueeze: 2x, 1.8x, 1.5x, 1.33x, 1.25x
• Display Flip: Horizontal & Vertical
• Colorized Exposure: Atomos False Color

Onboard Signal Processing

• 4K UHD Downscale for HD: Available on loop out
• DCI Crop: Available on loop out

External Device Control

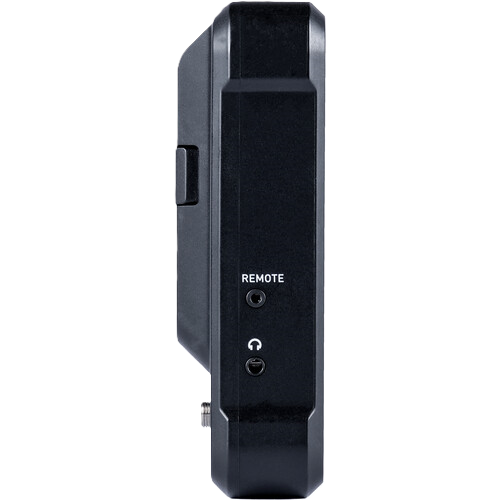

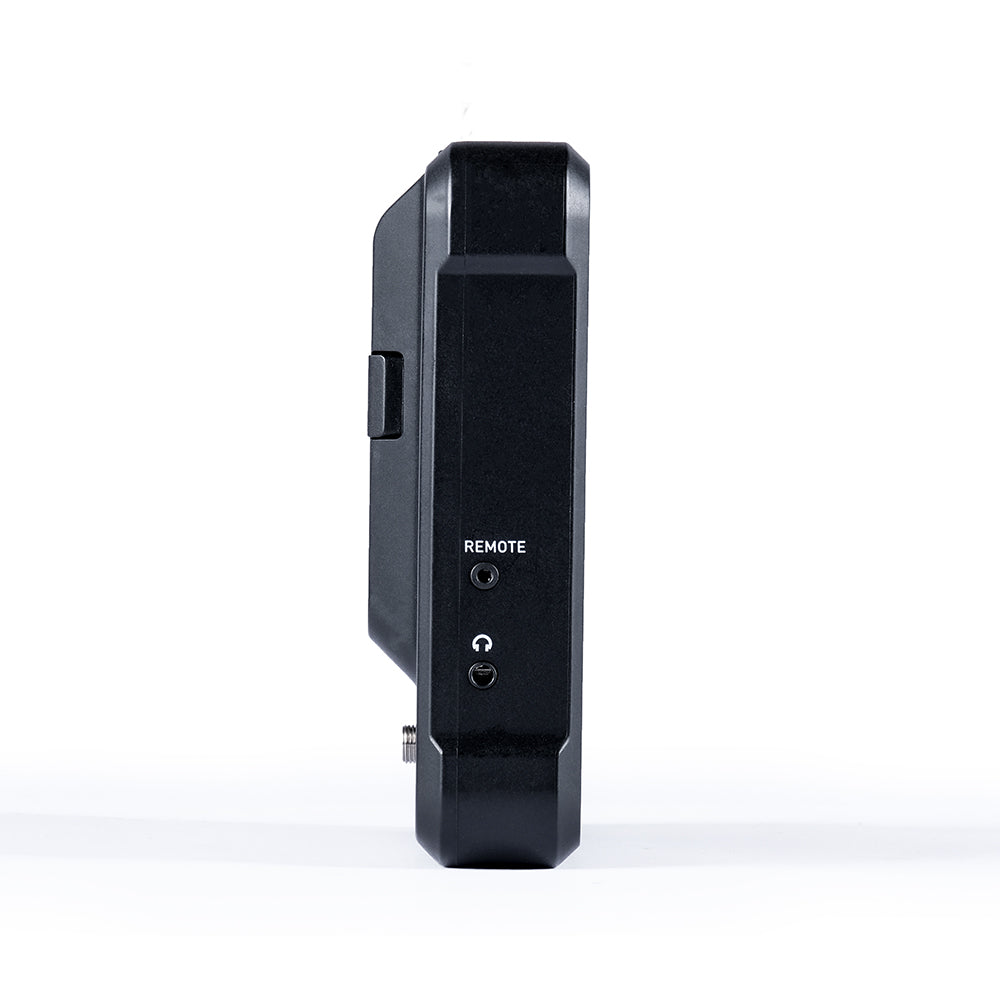

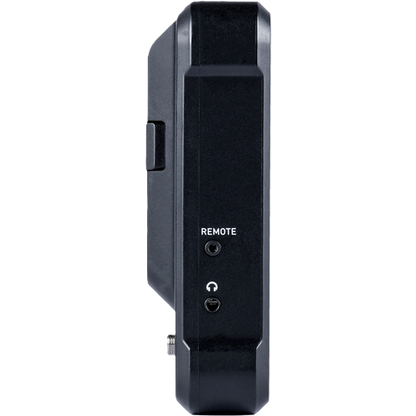

• Serial 2.5mm Jack: Z CAM Camera Control via Remote to USB-C Cable

• 1x Shinobi 7
• 1x International Power Supply
• 1x QuickStart Guide
• Warranty: Standard 1-year or 3-years with product registration
