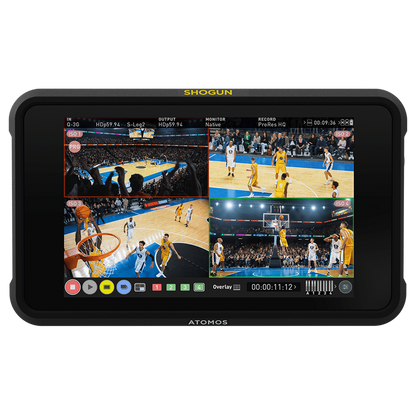

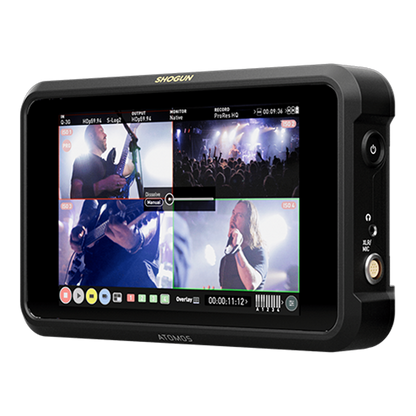

Atomos Shogun Classic 7" Monitor and Recorder

Atomos Shogun Classic 7″ Monitor-Recorder & Switcher
The 7″ Shogun HDR Classic Cinema Monitor-Recorder-Switcher combines monitoring, recording, and live switching in one portable solution. With its ultra-bright 3000 cd/m² screen, HDMI and SDI connectivity, and support for video input up to DCI/UHD 4K60, it is well-suited for cinema production, live events, and broadcast work.

Key Features

• 3000nit peak brightness HDR field reference monitor
• 4 x HD-SDI input switching, allowing seamless transitions between live video streams
• 4 x ISO and Program recording for individual input control and post-production flexibility

Ultrabright Screen
The Shogun Classic’s 7.2″ 1920 x 1200 display delivers a 1,000,000:1 contrast ratio and 3000 cd/m² brightness for clear HDR or SDR monitoring in any setting. Recently captured footage can be played back instantly on the same display, making on-set review quick and accurate.

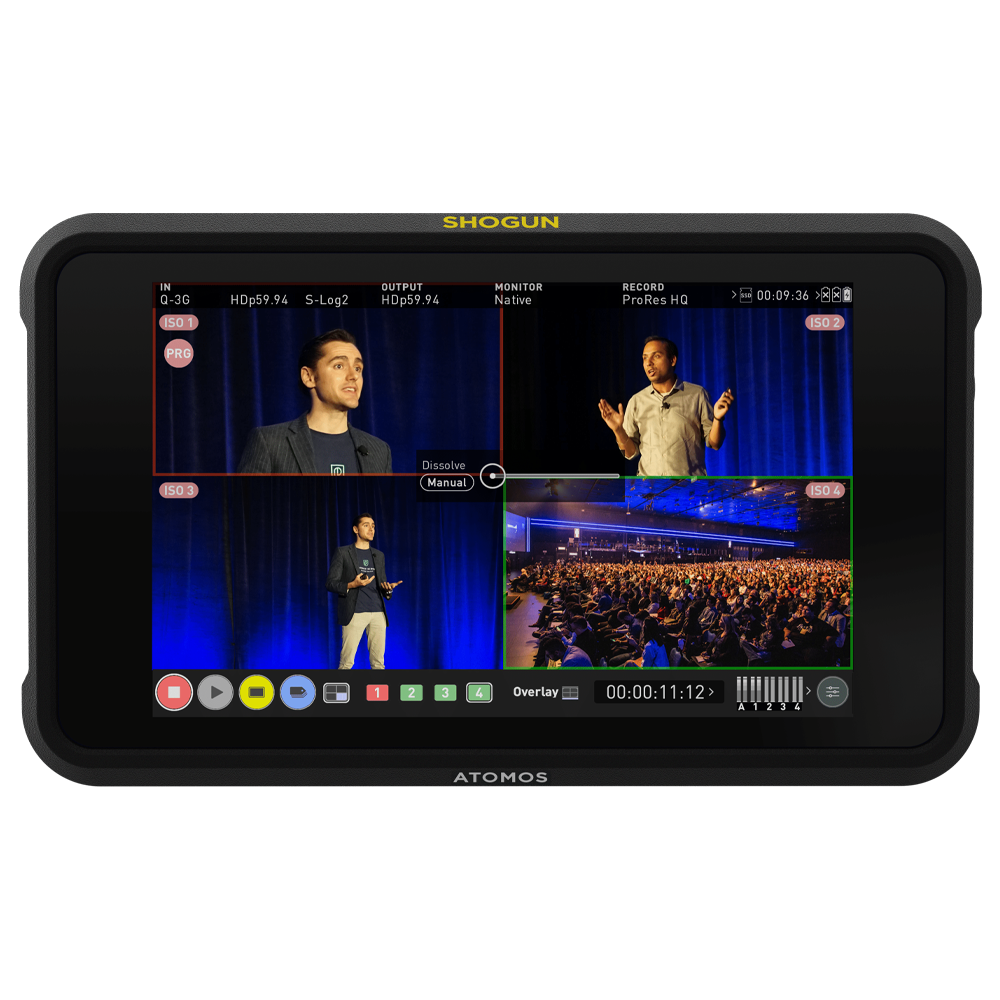

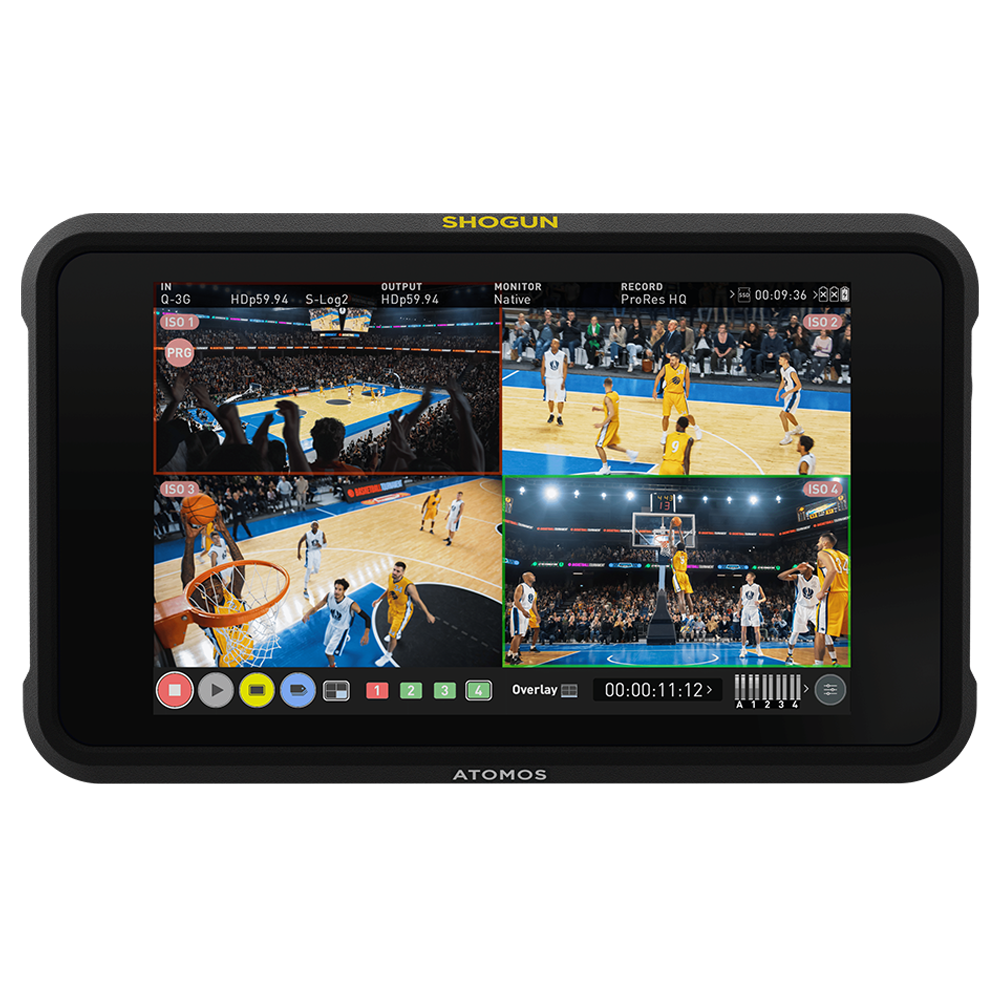

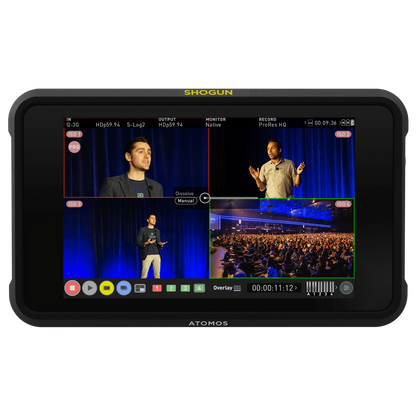

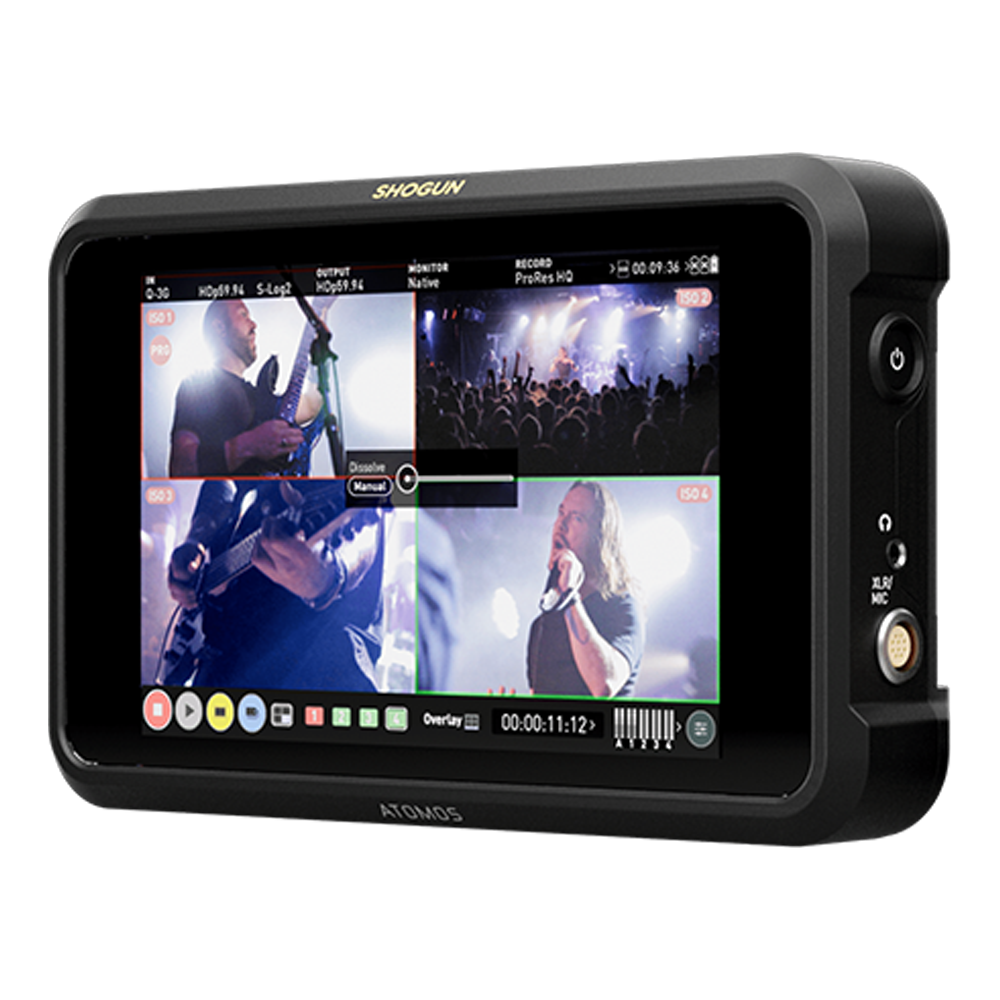

Multi-camera Switching
With four SDI inputs, the Shogun Classic becomes a compact multi-camera switcher and recorder. It can record a fifth program channel of your live-switched output and send the mixed feed out via HDMI or SDI for broadcast or streaming. Asynchronous switching removes the need for locked sources, letting you use cost-effective cameras without extra gear.

HDR I/O and Color Management
Output HDR content in real time over HDMI to any compatible HDR display. The Shogun Classic lets you view SDR or HDR at 10-bit quality as it is captured, ensuring accurate monitoring across a range of workflows. When paired with high-end cameras like ARRI, RED, or Sony VENICE, you gain precise HDR monitoring and the full suite of exposure and focus tools.

Recording
Connect a DSLR or mirrorless camera through HDMI to record in up to 4K60 Apple ProRes or AVID DNx formats, ensuring edit-ready files with professional quality. The Shogun Classic can also record up to four 1080p60 streams simultaneously as independent ISOs while you switch between them in real time using the touchscreen.

Additional Features

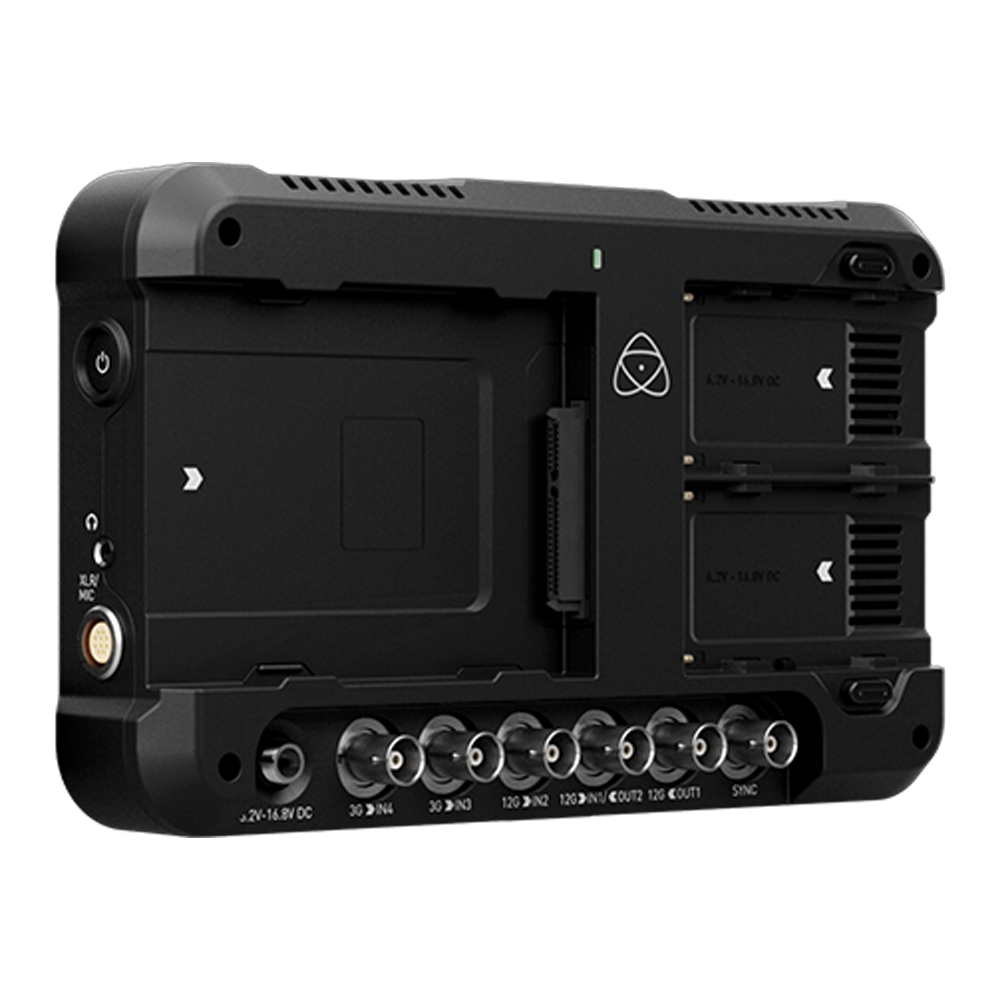

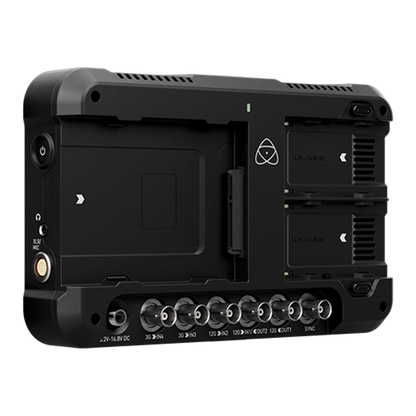

The unit includes LTC input via BNC, 2-pin XLR audio input and output for two channels, dual L-series battery plates, a 1/4″-20 mounting thread, cooling via fan and heat sink, and a 2.5mm LANC port for remote start/stop. A 3.5mm headphone output is available for audio monitoring. It comes with a Master Caddy II and also supports SSDmini drives for flexible media options.

Monitoring Tools
Packed with professional monitoring aids, the Shogun Classic supports custom 3D LUTs, false color, focus peaking, HDR exposure, pixel magnification (1:1, 2:1), RGB parade, vectorscope, frame guides, zebras, waveform monitoring, safe areas, markers, vertical flip, and anamorphic de-squeeze. It works with the Atomos Calibrator and Display Pro HL/Display Plus HL, offers HD downscaling and cropping, and converts interlaced or PSF to progressive for modern workflows.

Physical

• Dimensions (W x H x D mm): 214mm x 127mm x 45mm / 8.43” x 5.00” x 1.77”
• Weight: 738g / 26oz
• Mounting Points: 1/4”-20 screw mount. 1x top and 1x bottom

Environmental

• Ambient operating temperature: Up to 40 Degrees Celsius

Construction

• Body: Glass fiber reinforced polycarbonate
• Cooling: Heat Sink + Actively controlled Fan
• Touch Screen: Capacitive Touch

Power

• Input Voltage: 6.2V to 16.8V
• Compatible Batteries: 2x NP-F / L-Series batteries and supporting accessories
• DC in Connector: 1 x DC in (6.2 - 16.8V)

Display

• Display Panel: IPS panel (capacitive touch)
• Size: 7.2"
• Resolution: 1920 x 1200 (1920 x 1080 Image Display)
• PPI: 325
• Bit Depth: 10-Bit (8+2 FRC)
• Backlight Type: Zone Backlight (Full-Array Local Dimming)
• Brightness (cd/m² / nits): 3000nit (+/- 10%)
• Aspect ratio: 16:10 native resolution 1920 x 1200
• Color Gamut: Up to Wide color gamut (105% DCI-P3)
• Calibration Support: ATOMOS Calibrator with Display Pro HL and Display Plus HL

Color Pipeline

• Gamma: Sony SLog/SLog2/SLog3, Canon CLog/CLog2/CLog3, ARRI Log CEI160/Log CEI200/Log CEI250/Log CEI320/Log CEI400/Log CEI500/Log CEI640/Log CEI800/Log CEI1000/Log CEI1280/Log CEI1600, Panasonic Vlog, JVC JLog1, RED Log3G10/RED LogFilm, FujiFilm F-log, Nikon N-Log, PQ10k, HLG
• Gamut: Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema/DCI P3/DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709/BT.2020, JVC, RED WideGamut/RED DragonColor/DragonColor2/RED Color2/RED Color3/RED Color4
• 3D LUT Display: 3D LUT (.cube format)
• Monitoring Modes: Native / 709 / HLG / PQ / 3D LUT
• HDR Output Conversion: Camera Log to HLG / PQ

Color Management

• Calibration: Atomos Calibrator with Display Pro HL and Display Plus HL
• AtomHDR: Yes
• 3D LUTs: Yes
• Legalize: Full to Legal Range Conversion available via Input Menu

Video Input

• HDMI: HDMI 1 x HDMI (2.0)
• SDI: Quad-Link 3G SDI with 2 x 12G SDI (backwards compatible)
• Bit Depth: 8/10-Bit for Video
• Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
• HDR: HDMI Auto Detection

Video Output

• HDMI: 1 x HDMI (2.0)
• SDI Loop / Play Out: 2 x 12G SDI (backwards compatible)
• HDR: Yes with auto detection

Video Signal Conversion

• HDMI to SDI: Supported
• SDI to HDMI: Supported

Audio In/Out

• Audio Quality: 24-Bit / 48kHz
• Audio Codec: PCM
• HDMI: 2 or 8ch 24-Bit, Input dependent
• SDI: 12ch 48kHz 24-Bit
• Analog Audio In: Via optional 2 in 2 out XLR cable
• Analogue Audio Out / Headphone Jack: 3.5mm Jack
• Audio Input Delay: Frame Delay on Analog Input (applied to recorded files)

Timecode / Sync

• HDMI Embedded: Supported
• SDI Embedded: Supported
• Time of Day: Supported
• LTC: via full-sized BNC SYNC Port
• Wireless SYNC: Connect an Atomos UltraSync One to the full-sized BNC SYNC Port

Resolution and Frame Rates (Record, Monitor & Playback)

• 4K DCI: up to 4Kp60
• 4K UHD: up to UHDp60 via HDMI and SDI
• 2K DCI 2048 x 1080: up to 2Kp60 via SDI
• FHD 1920 x 1080 Progressive: up to 1080p120 via SDI
• FHD 1920 x 1080 PsF: Only via Pulldown to Progressive
• FHD 1920 x 1080 Interlaced: 1080i50 / 1080i60 via HDMI or SDI
• 1280 x 720p: up to 720p60

Recording Codecs

• Apple ProRes: HQ, 422, LT
• Avid DNxHD: 220x, 220, 145, 36 (.MOV Wrapper)
• Avid DNxHR: HQX, HQ, SQ, LB (.MOV Wrapper)
• Recording Functions
• Pre-roll Recording: 8s HD / 4K 2s
• Timelapse: Supported

Playback

• Playlist: Selected Clips, Favorites, or Combined
• Loop: Supported, with user-customizable In / Out Markers
• Apple ProRes: HQ, 422, LT (Linear PCM Audio only)
• Avid DNx: DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)

Supported Media

• Master Caddy I: Not Supported
• Master Caddy II: Supported
• Master Caddy III: Supported
• SSDmini: Supported
• File System: exFAT
• Interface: SATA 3.0

On-Screen Tools

• Waveform: 3 Sizes – Adjustable Opacity & Brightness
• RGB Parade: 3 Sizes – Adjustable Opacity & Brightness
• Vector Scope: 2 Sizes – Adjustable Opacity & Brightness
• 1 x Zoom: Tap to Zoom
• 2 x Zoom: Tap to Zoom
• Focus Peaking: 3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
• Zebra: Adjustable Threshold (50% to 105%)
• Isolate Color Channel: Blue Only
• Cine Frame Guides: 6 Presets
• Social Frame Guides: 4 Presets
• Safe Areas: SMPTE Safe Title Area – 93% & 90%
• Grid Markers: 9 Grid
• Anamorphic Desqueeze: 2x, 1.8x, 1.6x, 1.5x, 1.33x, 1.25x
• Display Flip: Vertical
• Colorized Exposure: Atomos False Color

Onboard Signal Processing

• 4K UHD Downscale for HD: Loop-out and playback
• DCI Crop: Available on loop out
• Interlaced to Progressive: 2:2 & 3:2 Pulldown
• PsF to Progressive: 2:2 & 3:2 Pulldown

Remote Control

• HDMI: Auto HDMI Trigger Supported Protocols – Dolby Vision, Canon, Sony, Atomos Open Standard
• SDI: SDI trigger camera selectable
• Serial 2.5mm Jack: Start & Stop Recording via compatible LANC Remotes

Cut & Tag

• FCP XML: Up to 10 Tags supported for each Clip

Supported Applications

• XML: Apple Final Cut Pro (.fcpxml)
• Video Codecs: All NLE applications that support Apple ProRes and Avid DNx in an .MOV Wrapper

• Shogun Classic unit
• 1x Master Caddy II
• 12V-3A AC power supply
• Carry Case
• Quick Start Guide
• Warranty: Standard 1-year or 2-years with product registration
