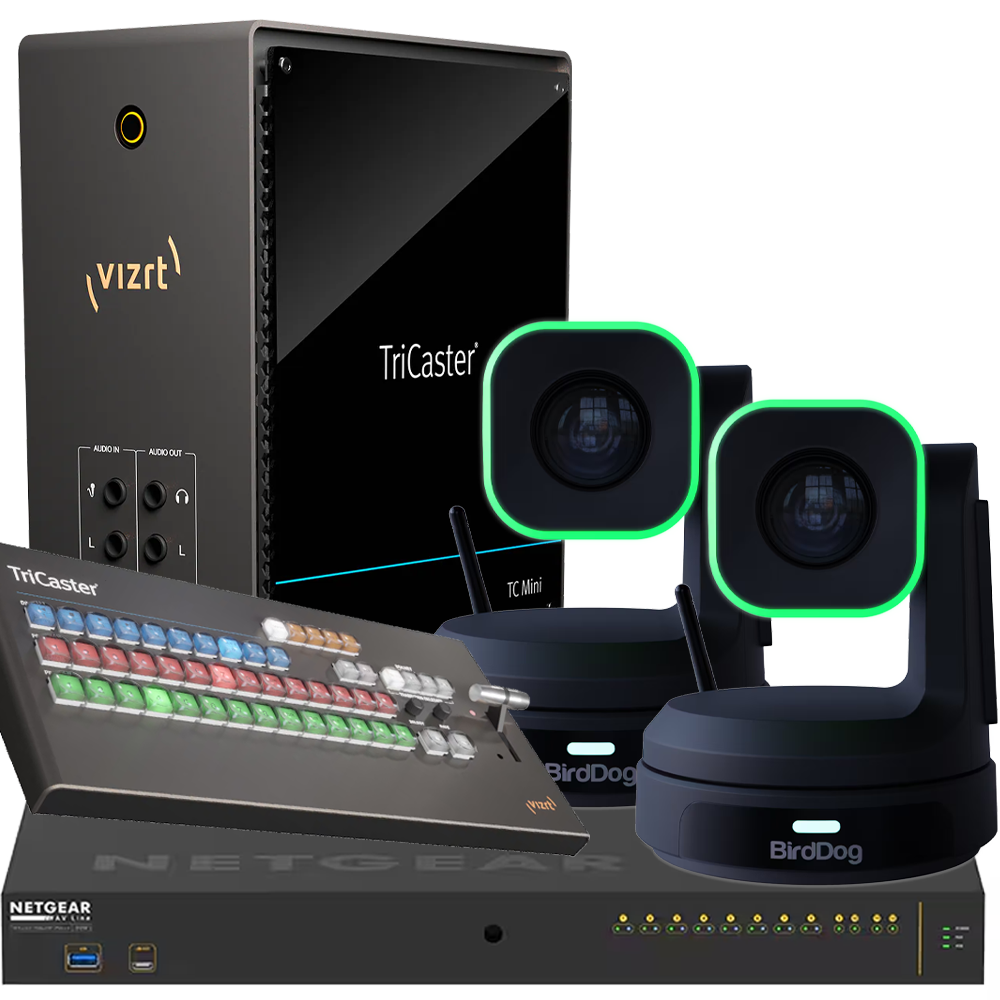

NDI Power of X Bundle with TriCaster Production and Multicamera BirdDog PTZs

BirdDog X1 1080P PTZ Camera with 20x Zoom - Black

IMAGING
Image Sensor
Sony 1/2.8” CMOS - FULL HD
Lens
f=5.5mm - 110mm
Optical Zoom
20x
Video Format
1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps
Horizontal angle of view
55.8° (W) – 3.2° (T)
Vertical angle of view
32.2° (W) – 1.8° (T)
Diagonal angle of view
61° (W) – 3.64° (T)
Aperture
F1.6 ~ 3.5
Focus
Auto, Manual
Exposure
Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation
Yes
Digital Noise Reduction
2D and 3D Noise Reduction
SNR
>50dB
Effective Pixels
2.07 MP

MECHANICAL
Pan/Tilt Rotation
±175°, -90° ~ +90°
Pan Control Speed
0.1 -80°/sec
Tilt Control Speed
0.1 -60°/sec
Preset Number
255 presets

I/O INTERFACE
Video Output Interfaces
HDMI, USB-C UVC 1.1, Network
Video Compression Formats
H.264, H.265
Network Interfaces
100M adaptive Ethernet port; POE IEEE 802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols
NDI|HX2, NDI|HX3, RTSP, RTMP
HDMI Decoder Network Protocols
NDI|HX2, NDI|HX3
Control Interfaces
10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols
VISCA Baud Rate: 9600/4800/38400/2400, VISCA-IP, NDI

GENERAL
Input Voltage
DC 12V,  POE IEEE 802.3af
Input Current
2.0A (Max)
Power Consumption
13W (Max)
Working Temperature
-10ºC ~ +40ºC
Working Humidity
20% ~ 80%
Dimension (W*H*D)
171.6*192.6*171.6mm/ 260*217*197mm (before / after packing)
Net and Gross Weight
1.35kg/2.05kg (Net/Gross weight)

M4250 10G2XF PoEplusplusAV

Inputs/Outputs
 8x RJ45 Gigabit Ethernet PoE++ (100 W, 802.3bt Type 4)
2x SFP+ 10 GbE
2x RJ45 Gigabit Ethernet LAN
2x USB-C
1x USB-A

Stackable
No


Switching Bandwidth
60 Gb/s


PoE Power Budget
720 W



Protocols
 Layer Services Supported
Layer 2, Layer 3


Supported Protocols
DHCP Server
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring


Jumbo Frames Support
12,000 Bytes


MAC Address Table Size
16K


Security
 Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control


Performance
Latency
0.8 to 1.8 µs


Forwarding Rate
44.64 Mpps


Switching Bandwidth
60 Gb/s


Packet Buffer
16 Mb


Computer
Memory
2 GB


Electrical
PoE per Port
90 W


PoE Power Budget
720 W


Power Draw
837.7 W (Max)
26.3 W (Idle)
18.00 W (Standby)


Power Supply Type
Internal


Environmental
Operating Temperature
32 to 77°F / 0 to 45°C


Operating Humidity
90%


Storage Temperature
-4 to 158°F / -20 to 70°C


Storage Humidity
95%


Noise Level
50.5 dB (Active)


General
Certifications
No


Cooling System
Fan/Passive Combo


Indicator Lights
Yes


Rack Mountable
Yes 1 RU


Dimensions
17.3 x 7.9 x 1.7" / 440 x 200 x 43.2 mm


Weight
6.28 lb / 2.85 kg


TriCaster Mini X HDMI Bundle


Network Video Input
8 x IP video inputs via NDI®, resolution-independent

Digital Video Input
4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates*

• 2160p: 29.97, 25
• 1080p: 29.97, 25
• 1080i: 59.94, 50
• 720p: 59.94, 50, 29.97, 25
• SD: 59.94, 50, 25

*Available frame rates determined by session video standard (NTSC or PAL)

PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and preset system
*Requires USB to serial adapter - sold separately

Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication

Network Video Output
IP video output via NDI, optionally configurable for:

• 4 x independent video mix outputs
• 1 x UHD video mix output

Stream Output
2 x streaming video output, independently configurable, with simultaneous stream archive

Monitor Outputs

• 4 x mini display port with output adapters
• 3 x of the outputs support multiviewers using standard display resolutions

Mix/Effect Buses (M/E)

• 4 x M/E buses supporting video re-entry
• 1 x Mix/Effect channel per bus with support for up to 2 sources
• 2 x KEY layers per bus

DSK Channels
2 x DSK channels

Media

• 5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound)
• 15 x Media Buffers (5 x Live Link or Animation Buffers, 10 x Graphic Buffers)

Keyers
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses

• 8 x input keyers
• 2 x media player keyers
• 4 x M/E keyers
• 15 x buffer keyers

Virtual Sets
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included

DataLink
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Macros

• Record, store, edit and automate commands and user-configured operation sequences
• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
• Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
• Supports control via web-based interface

Recording

• 4 x recording channels from either NDI® inputs or Mix outputs
• Records and retains alpha channel data
• 4 x QuickTime® archival video recorders (Native NDI Codec for recording)*

*QuickTime Player not required for playback in common NLE applications

Storage

• Capacity varies by format, resolution and file specification
• Supports recording to external storage via USB 3.0

Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs

Local Audio Input

• 2 x embedded digital audio inputs through HDMI conversion
• 1 x 1/4” (6.35 mm) balanced mic
• 2 x 1/4” (6.35 mm) balanced line

Local Audio Output

• 2 x embedded digital  audio outputs through HDMI conversion
• 2 x 1/4” (6.35 mm) balanced line
• 1 x 1/4” (6.35 mm) stereo headphones jack

Network Audio
Native support for network audio input and output via NDI® · Embedded audio supported for all NDI® input and output video signals · Integrated support3 for Dante™ networking protocol from Audinate® 3 Requires Dante Virtual Soundcard license from Audinate (sold separately)

Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including: · Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more · Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more · Audio: AIFF, MP3, WAV, and more

Processing Video
Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz

Latency

• Processing Latency: ~1.0-1.5 frames
• Practical Throughput Latency: 4 frames

Tally
Support for network tally via NDI®

MIDI
Support for standard MIDI protocol enabling third-party device control

NIC
2 x 1 Gigabit NIC

System Physical
NewTek Mini X system chassis, including adjustable handle and cable retention bracket

• 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm)
• 8.4 lbs (3.8 kg)

• 1x Vizrt TriCaster Mini X HDMI Bundle
  -ncludes TriCaster Mini X HDMI, TriCaster Mini CS, and NewTek custom travel case
• 2x BirdDog X1 1080P PTZ Camera with 20x Zoom - Black
• 1x NETGEAR M4250-10G2XF-PoE++ AV Switch
