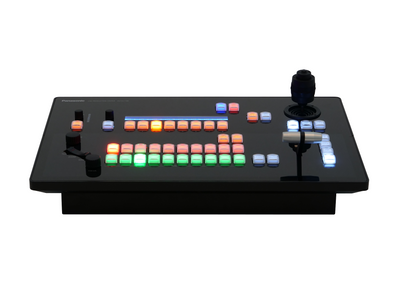

Panasonic AV-HLC100

Live production center streaming switcher/controller/mixer

Free Shipping for Orders IN THE USA

Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller
$13,999.00$11,499.00
0
VideoGuys Part # (SKU): AV-HLC100P
Live production center streaming switcher/controller/mixer

All-in-one IP Live Switcher With All The Functions Needed For Live Productions

The AV-HLC100 combines a live switcher, remote camera controller and audio mixer in one unit. Live audio production for small live musical performances, lectures and presentations can now be done easily by one operator, instead of the multiple operators that are usually required. It is also compliant with the NDI and NDI I HX standards, enabling connection and control of the remote camera to be performed through the same LAN cable with power provided* for smooth remote shooting. RTMP (Real-Time Messaging Protocol) is also supported. Footage can be directly uploaded to various streaming services such as YouTube Liveeagate® FireCuda® NVMe SSDfor max Thunderbolt 3 speeds and extreme in-field durability sofilmmakers and DITs can play back 6K, 8K, and super slo-mo source filesanywhere—without transcoding.


Video, audio and camera control through Single LAN cable, achieving easy controls by single operator

  • Direct streaming by RTMP (Real-Time Messaging Protocol)
    The AV-HLC100 supports RTMP (Real-Time Messaging Protocol), enabling footage to be directly uploaded to live streaming services such as YouTube Live and Facebook Live. Streamed footage can be streamed and recorded at the same time for easy archiving and restreaming

  • Various inputs supported, including SDI, HDMI and IP
    The AV-HLC100 supports a wide range of video formats*2 including 3G-SDI video in 1080/59.94p and 1080/50p, and enables cross-conversation between 1080p/1080i and 720p. SDIx4 or SDIx3/HDMIx1 can be selected, and it also has 8ch of IP inputs, so that a system can be configured to match the production environment. It is also compliant with NDI and NDI|HX, which enables high-resolution videos to be encoded and transferred in real time. Our HD Integrated Cameras*3 can be connected with a single LAN cable, without external IP decoders.

  • Quick workflow for production and streamingwith a wide range of video effects and titling
    A wide range of video effects are available for quick and easy live production work, including a title function with a design template, a clip player in which video and still image data can be used as  materials, still image storage and over 190 transition patterns including 3D-DVE patterns. Footage  from Skype TX can be used for interviews or on-site broadcasts, providing an effective technique for live events, lectures and presentations. Audio functions include mixing of embedded audio, line input and microphone input. Whether you’re working with video or audio material, the AV-HLC100 enables smooth live production work.


Learn more about Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller


  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews
The Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller

A well suited for use in a variety of environments including live events, education, live musical performances, and lectures. It supports ten channels of video and can simultaneously accept input from SDI, HDMI, and NDI/IP. Supporting up to 12 audio channels, the switcher can use the audio embedded in digital video, as well as from analog audio, and even the microphone input.

Still image capture is available at the push of a button on the console. The T-bar (transition bar) is pretty much a given on a switcher panel, offering you manual control over transitions. The built-in joystick works in conjunction with the panel's built-in PTZ controls. The NDI input and output options make this board suitable for live streaming as well as IP recording.

Usability
User-friendly operations and compatibility with NDI and NDI/HX standards for smooth live productions.

Transition Slider
A physical transition slider provides tactile control of a transition, for moments when a manual slider is preferable to a preprogramed transition.
Camera Control and Document Sharing for Lectures and Presentations

Connect the AV-HLC100 to Panasonic's HD integrated cameras to switch between footage from up to eight cameras, controlling each camera easily through a single LAN cable. Lecture documents can be input from a computer or captured in advance, then displayed on sub-screens during live streaming.

Simultaneous Live Streaming and Recording
Footage can be output directly to video streaming services without an external converter, and can even be recorded simultaneously. The content is recorded in formats that can be played on off-the-shelf computers, enabling streaming to users who are unable to view the live broadcast. Streaming and recording can all be done on one AV-HLC100 unit.
PTZ


Tele/Wide zooming can be done with the seesaw switch similar to what you would find on a camera. This is found on the left of the control panel.
Iris and Focus adjustment can be performed by individual dials, while position control such as PTZ camera, PiP, or Title can be assigned to the 3D joystick at the top right

Audio
The volume knob is the master audio level control. Audio levels can be checked in the LCD display. Detailed adjustments can be made using a GUI.

LCD Menu Bar
Small and unobtrusive, the built-in LCD menu bar provides a wealth of information. It displays a wide range of statuses and settings including PTZ camera selection, PTZ/PST operation, PiP material selection, title material selection, transition pattern selection, CLIP/STILL operation, and input-source selection.

Effects & Transitions
The switcher supports over 190 transitions, as well as PiP and 3D-DVE.

Titles
Built-in title templates speed title creation and customization.

RTMP
The AV-HLC100 supports RTMP, which allows you to stream your PGM output.

I/O
Inputs Video
4 x 3G/HD/SD-SDI
1 x HDMI type A (shared with SDI #1)


NDI
8 x Inputs (NDI compatible equipment including IP input from Skype TX compatible PC)



Audio
2 x 1/4" phone (TRS)
1 x 3.5 mm stereo mini jack
4 x BNC (embedded audio in SDI signal)
8 x NDI (embedded audio in NDI signal)


Outputs Video
Program: 1 x BNC (3G-SDI corresponds to Level-A only)
Program/Preview/Aux (Selectable): 1 x BNC, AUX (3G-SDI corresponds to Level/DisplayPort (shared): 1 x HDMI type A, 1 x DisplayPort (for GUI)
Network Program/Preview/AUX (Selectable): 1 x RJ45
2 x 1/4" Phone (TRS)
1 x 3.5 mm Stereo mini jack
2 x BNC (embedded audio in SDI signal)
1 x NDI (embedded audio in NDI signal)



Other
1 x D-Sub 9, RS-422
2 x RJ45, Ethernet
4 x USB 3.0 Type-B
1 X IEC C13, power
1 X 4-pin XLR, power



Standards
Format Support 1080p: 59.94/50/23.98 (59.94/50p are not supported over HDMI)
1080i: 59.94/50
1080PsF: 29.97/25
720p: 59.94/50/29.97/25
Network Protocol Support NDI
RTMP
