Secure, reliable, and the best value in 4K HDR streaming over IP.

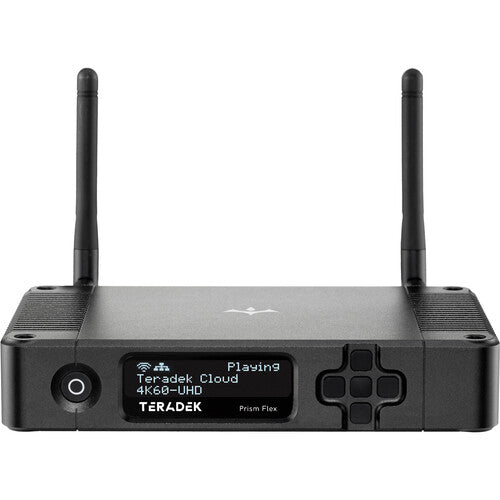

With a flexible I/O and compact, low-SWaP design, Prism Flex Mk II easily fits into any workflow. Flex Mk II is perfect for placement on a table top, camera-top, or wedged between your video switcher and audio mixer. Flex Mk II can encode or decode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity. The Prism platform supports many common streaming protocols such as TRT, SRT, MPEG-TS, RTSP/ RTP and RTMP(S), and can be connected to Teradek’s Core Cloud platform for even more flexibility.
The Compact Solution
The professional’s choice for a live production multi- tool. Prism Flex gives you ultra-low latency, 4K HDR streaming in a low-SWaP form factor that fits seamlessly into any video workflow.
Ultra-Low Latency
As low as 100ms over WAN
Network Flexibility
WiFi, Ethernet, & Cellular
Camera-to-Cloud
Frame.io, Sony C3P, Sony Ci, PIX
From HD to 4K
4:2:2 | 10-bit HDR
On-Board Recording
Store and Forward
Multiple Protocols
SRT, TRT, RTMP(S), and more
Enterprise Performance
Ultra-reliable, ultra-low latency, and ultra-high quality: Prism delivers on all fronts. Stream in HEVC or AVC, and select from a multitude of protocols to deliver your video feed to CDNs, decoders, software solutions, and more.
On-Board Recording
Record your live feed on Prism Flex and upload your content directly to Core Cloud for archiving or low latency distribution to clients and stakeholders. We’ve also partnered with Frame.io, Sony, and PIX to provide built-in camera-to-cloud capability for production workflows.
Designed for Size, Weight, and Power
Limited on space and power? The Prism Flex was designed from the ground up to provide broadcast-grade performance in a compact form factor. At just 11.6oz and pulling a max of 24W, Prism Flex is the ideal encoder for large-scale, set-and- forget streaming video deployments.

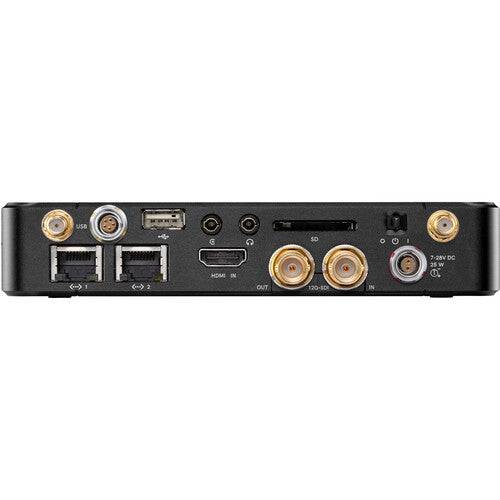

Hardware Overview
Prism Flex’s compact, multi-I/O, low-power design can squeeze into small spaces – making it easy to integrate into any live production workspace and workflow. It includes a 12G-SDI input and loop though, HDMI 2.0 input, dual Ethernet ports, WiFi 6, and 2 USB ports for LTE modems and external recording drives.*
*Decoder includes 12G-SDI and HDMI 2.0 Outputs
Add Reliability When You Need It the Most
Experience a robust internet connection in the most challenging network environments. Stream over LTE, 5G, and private mobile networks with our durable trio of high-performance modems have an aluminum chassis, 3 ¼”-20 mounting options, and a 5-pin locking connector to attach to your Prism Flex. And with worldwide SIM support, our Nodes work with virtually any SIM card, and can operate on most data bands around the world.
More Than Just A SIM Card
With all that’s needed to manage a production, your data plan should be the last of your concerns. That’s why we’ve created a flexible cellular solution for Prism Flex that frees you from data throttling and data caps. You can even change your cellular carrier on-site, or in mid- production. Plus, instead of having different plans for different SIMs, Teradek Data allows you to share your data across your whole fleet – pulling from one data bucket for much greater versatility.
Ultra Low Latency Streaming
Teradek Reliable Transport (TRT) represents a groundbreaking advancement in streaming video transport over local (LAN) and wide area networks (WAN). Designed for resilience and ultra- low latency, TRT can deliver audio and video over single and bonded networks with a round trip time (RTT) of just 100 ms and 250 ms respectively. TRT is available on all Prism devices and is the ideal transport protocol for real-time point-to-point and multipoint streaming in live production environments.
Configure Prism From Your Phone
With the Prism app for iOS and Android, you can manage your Prism devices right from your phone or tablet. Fire up the app to configure your encoder, monitor and manage your feed, and review streaming stats in real-time. Lacking internet signal? The Prism app allows you to share your phone's 5G or LTE bandwidth with your Prism device.
Do More with the Cloud
Core is Teradek’s cloud orchestration platform that helps you securely monitor, manage, distribute, and archive your live video feeds from anywhere in the world.
VIDEO
Video Inputs
1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1x HDMI 2.0 Type-A receptacle
Video Outputs
1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Supported Modes
Single Encode, Bi-directional Encode/Decode (additional license)
Supported Resolutions
4K DCI p23.98/24/25/29.97/30/59.94
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i
AUDIO
Audio Compression
AAC-LC
Audio Bitrate
32kbps to 512kbps
Audio Sample Rate
48kHz
Audio Input
Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain
Audio Output
3.5mm TRRS Stereo Headphone output, adjustable gain
IFB
Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)
LICENSABLE FEATURES
Enable Extra Streams
Extra simultaneous destinations
Enable Decoding
Enabled ability to decode to SDI output
De-Bonding Decoder
N/A
VIDEO PROCESSING
Video Compression/Decompression
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/
ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video
Coding (HEVC)/ITU H.265
HEVC: Main
Video Bitrate
250 Kbps to 85 Mbps
Video Format Conversion Support
Built in video scaler and deinterlacer
Number of Encoded/Decoded Streams
Up to one 4KDCI p60 4:2:2 10bit
HDR Support
Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color
Bonding
TeraLink
Recording
SD Card - Full size, USB Drive, NFS
Camera to Cloud
Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion, Avid
PROTOCOL SUPPORT
Network Protocols
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
Teradek Reliable Transport (TRT), Teradek Bonding Protocol, Secure Reliable Transport (SRT), Reliable Internet Stream Transport (RIST), RTMP/RTMPS, MPEG-TS DASH (UDP, TCP, TCP Server, Multicast), RTSP/RTP, HLS Server, Integrated CDNs (YouTube, Facebook, Vimeo), Airmix, WHIP
Remote Management
Teradek Core Cloud, Private SDK
PHYSICAL
Dimensions
6.25”W x 3.6”D x 1.4”H [162 x 92 x 35mm]
Weight
11.6oz [328.9g]
Construction
Milled aluminum
Mounting Options
Desktop, Four 1/4” 20 threaded mounting holes
INTERFACES
Configuration Interface
Feature-rich Web UI for local device management, configuration, and control, OLED Status Display w/Nav Control Buttons
USB Interface Functionality
1x Powered 5-Pin Locking Connector with Node Modem support
1x Powered USB-A with Node and external storage support
Ethernet
2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless
WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration
POWER
Power Input
2-pin circular locking connector
Voltage
6-28V DC
Nominal Power Consumption
18W
