Vizrt Viz Connect Tetra

$6,495.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): FG-003302-R001
Videoguys Part # (SKU): VCONTETRA
Short Description:

Vizrt Viz Connect Tetra

  • Free Shipping & Tech Support

Viz Connect Tetra is an ultra-compact live production workstation that enables multi-channel 4K video and audio connectivity with a simple internet or network connection, anywhere in the world.


Viz Connect Tetra seamlessly connects 12G SDI, 3G SDI, NDI® with NDI® Bridge built-in and now Flowics HTML 5 graphics – all in a small desktop workstation!


Bringing together any Viz Live Production product as well as any Viz Graphics Tool and, using NDI Bridge allowing Vizrt Content Creation anywhere in the world – without the need for additional hardware.



VIZ FLOWICS MEETS NDI AND BASEBAND
How can you bridge the gap between HTML based graphics tools and traditional SDI infrastructure? The answer is Viz Connect Tetra – it seamlessly brings in graphics tools like Viz Flowics, converting them for use with SDI systems and of course the most popular live production systems around the world with NDI®.



COMPACT & POWERFUL CONVERSION
Don’t let the desktop form factor of Viz Connect Tetra fool you – this adaptable box offers four exceptionally flexible 12G IO channels, in an ultra compact footprint that doesn’t have to live on a rack – unless of course, you need it to.



NDI® AT ITS CORE
Boasting access to NDI Bridge join-mode* in the device itself, this desktop converter can send and receive NDI for remote production anywhere in the world – without any additional hardware.



OUR MOST FLEXIBLE AUDIO YET
No matter the audio format you are using, Viz Connect Tetra has you covered – whether it’s NDI®, SDI, Dante, or ASIO – and for the very first time each IO channel supports 16×16 audio routing for patching on the go.

*NDI|HX Support for 4K Sources limited to 1x stream in either direction at launch. 4K and HD NDI High Bandwidth, and HD NDI|HX streams can be utilized across all 4x channels.


Features

  • 4 Flexible I/O Channels: For the first time in a Viz Connect product, 12G-SDI and 3G-SDI can be converted through NDI® High-Bandwidth with no compromise in each channel.
  • 12G SDI Connectivity: 4 x 3G / 12G SDI connections can be used independently or in Key/Fill pairs for a wide range of deployments; Cameras, Graphics, and Monitoring.
  • Viz Flowics: Ingest Viz Flowics / HTML 5 to NDI® for IP deployment, or SDI (including key & fill mode) for baseband systems integration.
  • NDI® Bridge: With NDI Bridge pre-installed on Viz Connect Tetra, users can seamlessly enable production capabilities with cloud and remote productions without additional hardware*.
  • Audio Routing: Offering 16 x 16 audio routing, users can “reshuffle” audio patching in each channel for on-the-go use, e.g. audio commentary for sports, and translation for ProAV.
  • Viz Connect Family: Expands on the features Viz Connect users already know and love, including Mutliviewer, ProcAmps, audio embedding and more.

Video In

  • NDI®High Bandwidth, NDI|HX*, Viz Flowics HTML 5, SRT, SDI, RTMP, RTSP



Video Out

  • NDI® High Bandwidth, SDI



IO IP Channels

  • Up to 4x IO channels as input or output, configurable as follows:



4K UHD and HD SDI I/O support

  • Up to 4x via 12G-SDI HD-BNC, configurable as up to 2x Key and Fill Pairs assignable to IO channels



Flowics and HTML 5 support

  • Up to 4x Viz Flowics HTML5 sources, convertible to either NDI with key and Fill, or 2x SDI key and fill pairs, or 4x as SDI fill only assignable to IO channels.



Remote Production and bandwidth control support
NDI® Tools Bridge integration (supporting Join and Local modes only) to connect to NDI® Bridge hosts over public internet.  

  • Up to 4x channels supported as NDI High Bandwidth in 4K UHD and HD
  • 4x channels NDI|HX 2 in HD H.264 or HEVC codec
  • or 1x channel 4K UHD as H.264 or HEVC codec
  • Please note multichannel and HEVC modes are not supported at this time for 4K UHD feeds.



Media Playback Channels

  • Up to 4x



Recording Channels

  • Up to 4x as NDI in .mov containers



Supported Video Formats

  • 2160p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 29.97, 25, 24, 23.976
  • 576i 50
  • 480i 59.94
  • 1080p: 60, 59.94, 50
  • 1080p/PsF: 30, 29.97, 25, 24, 23.98
  • 1080i: 30, 29.97, 25
  • 720p: 60, 59.94, 50
  • 576i: 25
  • 480i: 29.97



Supported Media Formats

  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more



Audio I/O

  • Up to 4x SDI embedded, USB Audio Devices, IP feeds with embedded audio.



Audio Channels and Routing

  • Up to 16x audio channels per IO channel with repatching/routing on 16x16 matrix



Audio Networking

  • Native support for network audio input and output via NDI®
  • Embedded SDI audio supported for all NDI® input and output video signals
  • Support1 for Dante™, and ASIO protocols via compatible 3rd party audio drivers



Timecode

  • LTC and VITC



Signal Monitoring

  • Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709



A/V Standards

  • 12G-SDI (ST 2082-10)
  • 6G-SDI (ST 2081-10)
  • 3G-SDI Level A (ST 425-1 Level A Mapping),
  • HD-SDI (ST 292),
  • SD-SDI (ST 259)



Genlock

  • Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported



Displays

  • 3x Display port 1.2, one utilised for GUI

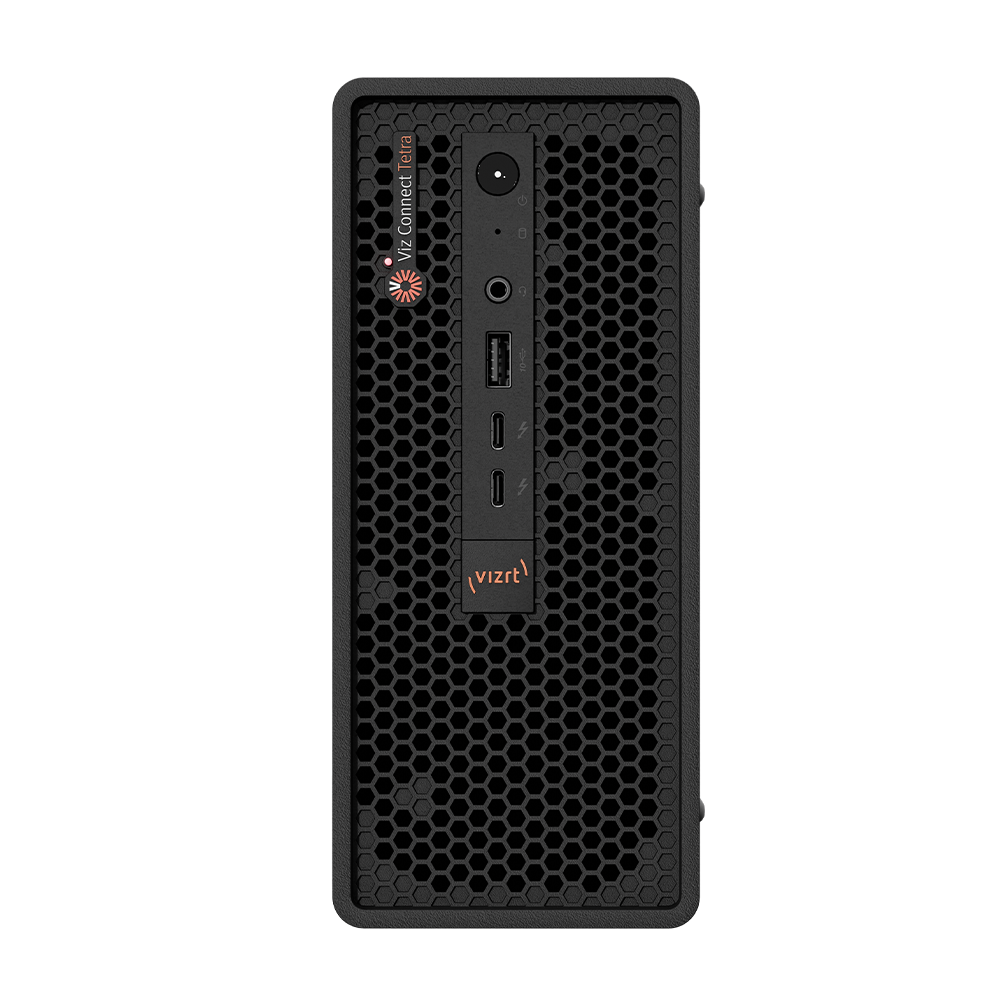

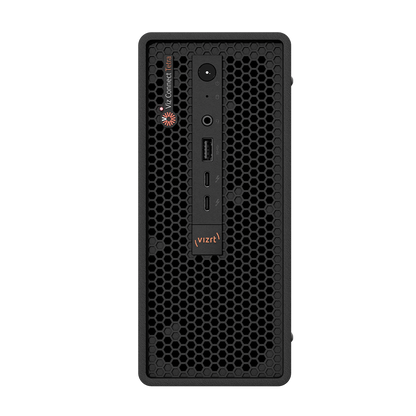

Front ports

  • 1x USB -A 3.2 Gen 2 (10Gbs)
  • 2x Thunderbolt 4 (USB-C 40Gbs)

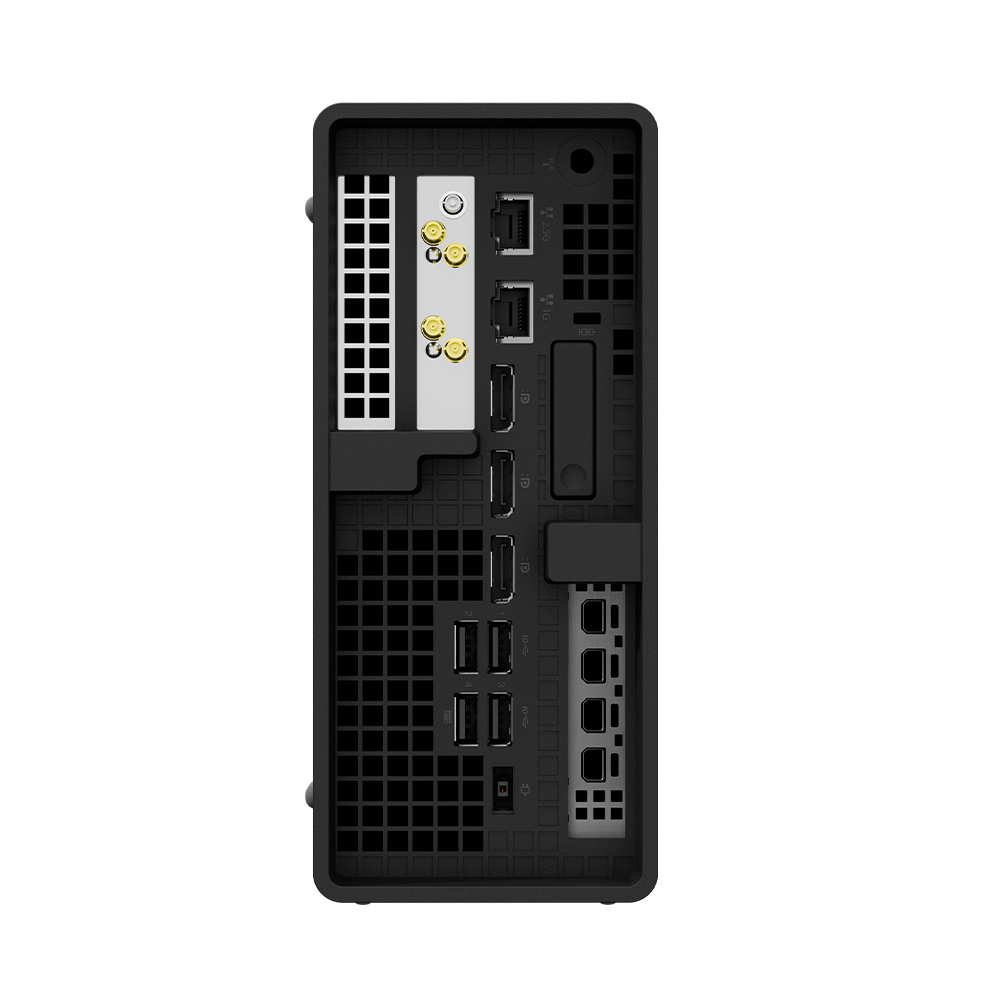

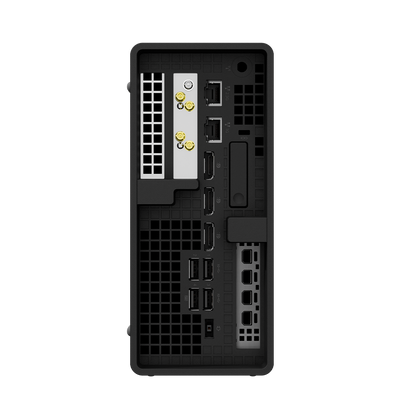

Rear Ports

  • 4x USB-A 3.2 Gen 2 (10Gbs)



Networking

  • 1 x 2.5 Gigabit NIC (2.5GBASE-T over RJ45) 1 x 1 Gigabit NIC (RJ45)



System Physical

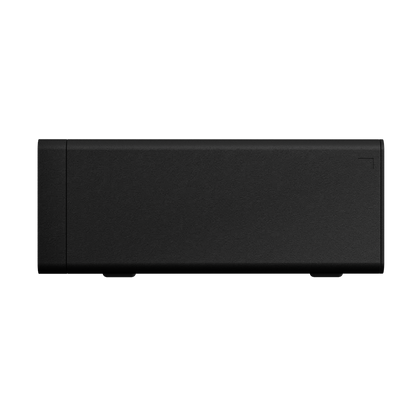

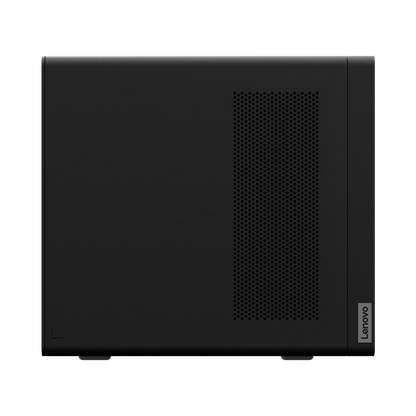

  • H 7.9in (20.2cm) x W 3.4in (8.7cm) x D 8.7 in (22.3cm) in vertical stance, H 3.4in x W 3.4in (20.2cm) x D 8.7in (22.3) in horizontal stance. Rack kit for up to two units available.
  • 1.8Kg / 3.96lbs  SUBJECT TO CHANGE.
